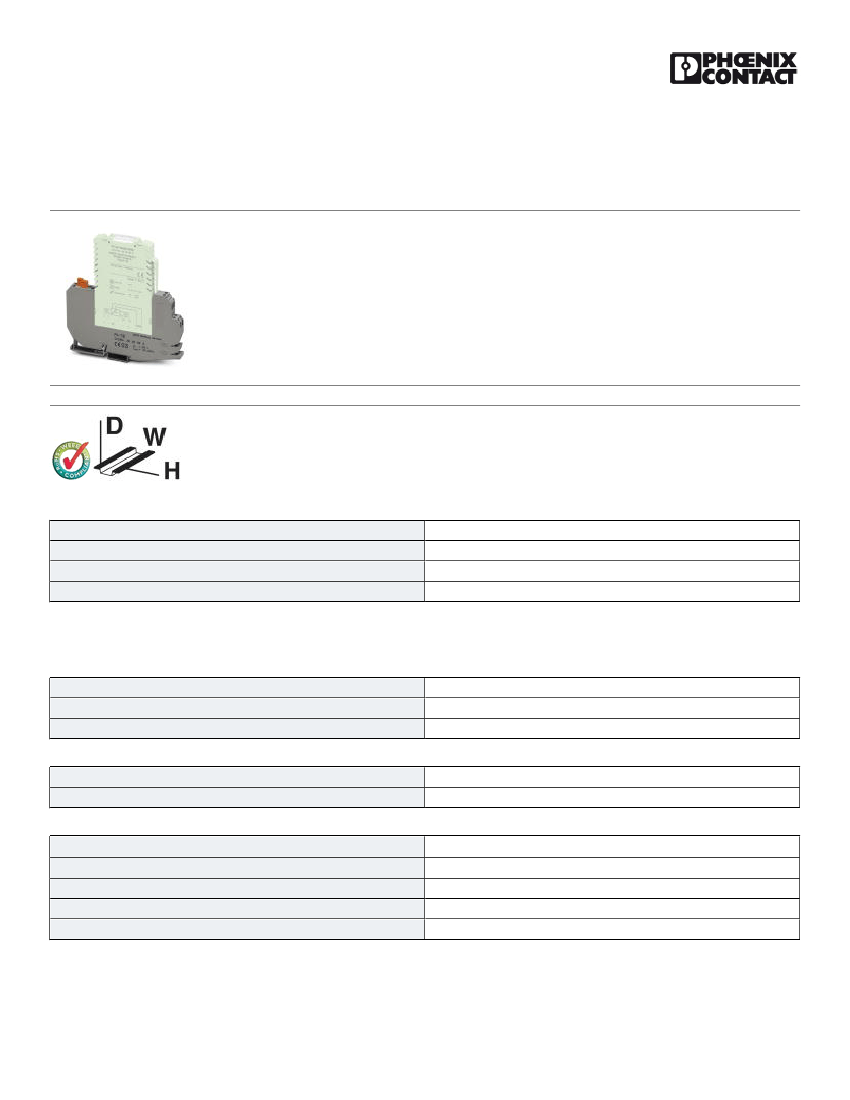

Basic terminal block - PI-TB - 2835943
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Base terminal block for non intrinsically safe signals with knife disconnection and test connections.
Key Commercial Data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
95.29 g
85369010
Germany
Technical data
Dimensions
Width
Height
Depth
12.4 mm
145 mm
86.5 mm
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
-20 °C ... 60 °C
-40 °C ... 85 °C
General
Nominal voltage U
N
Nominal current I
N
Housing insulation material
Flammability rating according to UL 94
Color
250 V
4A
PBT
V0
gray
Connection data
04/24/2016 Page 1 / 6
https://www.phoenixcontact.com/us/products/2835943
Basic terminal block - PI-TB - 2835943
Technical data
Connection data
Connection method
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Screw thread
Stripping length
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Screw thread
Stripping length
Tightening torque, min
Tightening torque max
Screw connection
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
24
14
M3
12 mm
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
24
14
M3
12 mm
0.5 Nm
0.6 Nm
Standards and Regulations
Flammability rating according to UL 94
V0
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27141127
27141127
27371603
27371603
27371603
27371603
27371603
27371603
ETIM
ETIM 2.0
ETIM 3.0
EC000764
EC001456
04/24/2016 Page 2 / 6
https://www.phoenixcontact.com/us/products/2835943
Basic terminal block - PI-TB - 2835943
Classifications
ETIM
ETIM 4.0
ETIM 5.0
EC001456
EC001456
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211811
39121410
39121410
39121410
39121410
Approvals
Approvals
Approvals
EAC
Ex Approvals
Approvals submitted
Approval details
EAC
Accessories
Accessories
Bridge
Bridging module - PI-N-BRIDGE - 2835875
Bridging module, for bridging input and output circuit
04/24/2016 Page 3 / 6
https://www.phoenixcontact.com/us/products/2835943
Basic terminal block - PI-TB - 2835943
Accessories

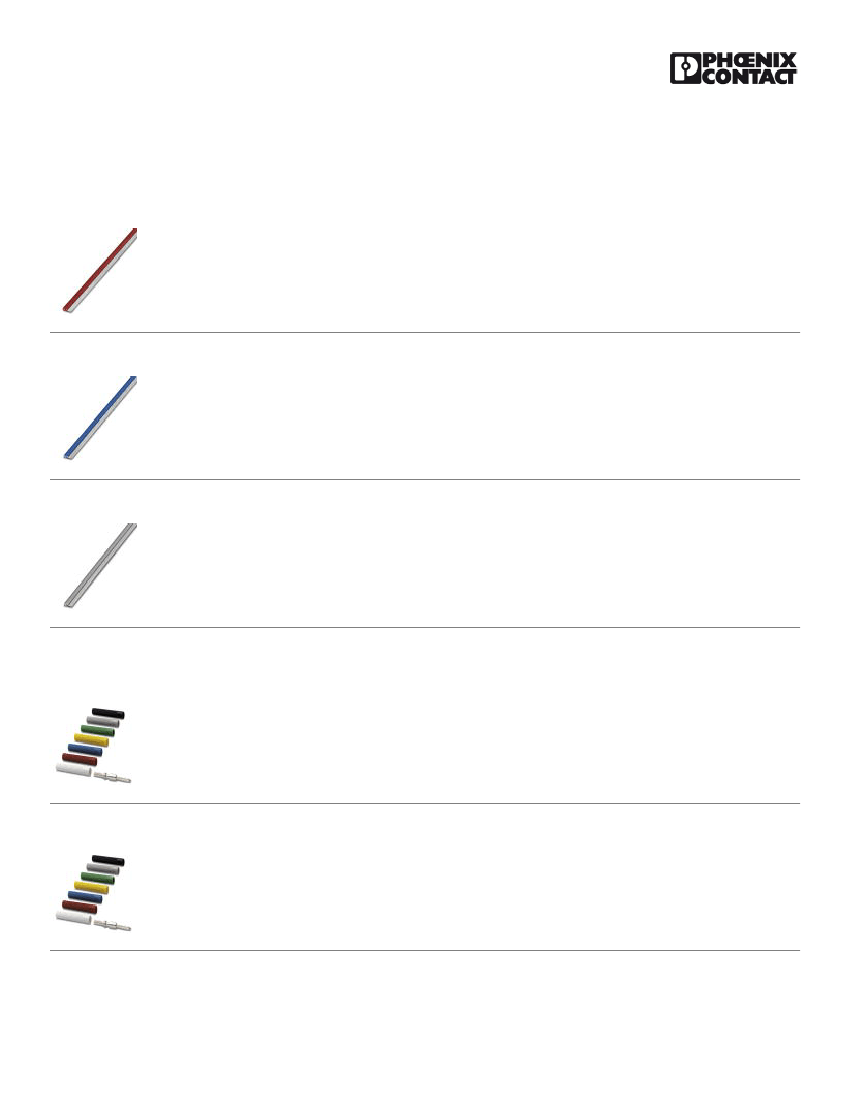

Continuous plug-in bridge - FBST 500-PLC RD - 2966786
Continuous plug-in bridge, Length: 500 mm, Color: red
Continuous plug-in bridge - FBST 500-PLC BU - 2966692
Continuous plug-in bridge, Length: 500 mm, Color: blue
Continuous plug-in bridge - FBST 500-PLC GY - 2966838
Continuous plug-in bridge, Length: 500 mm, Color: gray
Insulating sleeve
Insulating sleeve - MPS-IH RD - 0201676
Insulating sleeve, Color: red
Insulating sleeve - MPS-IH BU - 0201689
Insulating sleeve, Color: blue
04/24/2016 Page 4 / 6
https://www.phoenixcontact.com/us/products/2835943
Basic terminal block - PI-TB - 2835943
Accessories

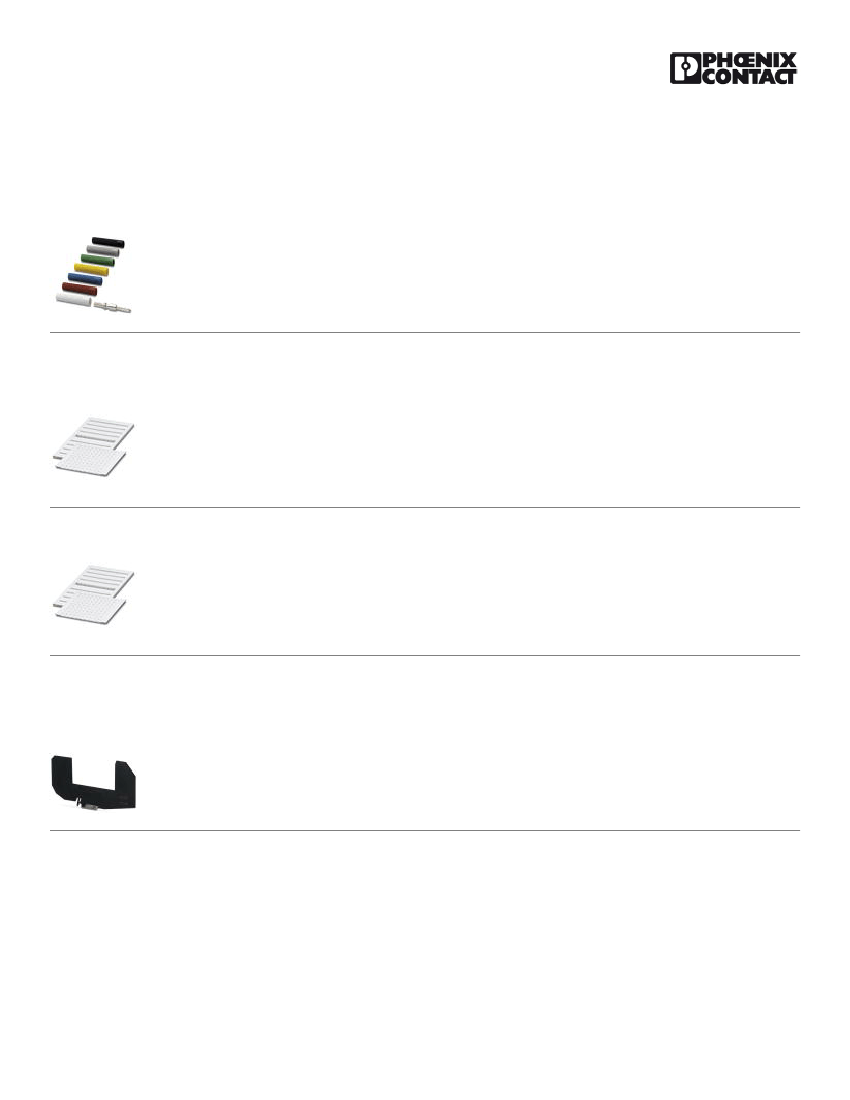

Insulating sleeve - MPS-IH GY - 0201728
Insulating sleeve, Color: gray
Labeled terminal marker
Marker for terminal blocks - ZBFM 6/WH,LGS:1-100 - 0800284
Marker for terminal blocks, Sheet, white, labeled, Printed horizontally: Consecutive numbers from 1 - 100, Mounting type:
Snap into flat marker groove, for terminal block width: 6.2 mm, Lettering field: 5 x 5.5 mm
Flat zack marker sheet - ZBFM 6/WH,LGS:FORTL.ZAHLEN - 0803621
Flat zack marker sheet, Sheet, white, labeled, Printed horizontally: Consecutive numbers from 1 - 10, 11 - 20, etc. up to
91 - 100, Mounting type: Snap into flat marker groove, for terminal block width: 6.2 mm, Lettering field: 5 x 5.5 mm
Partition plate
Separating plate - PI-ATP - 2835969
Separating plate, 2 mm thick, black, required at the start and end of a PI terminal strip where continuous bridges are
used.
Screwdriver tools
