SC110DR: DescriptionAudio Indicators & Alerts CONSTANT, 30-120V 1900HZ, CUL APPRVD; CategoryTopical application Mechanical and electrical/engineering/automation; File Size78KB，1 Pages; ManufacturerMallory; Websitehttps://www.msdperformance.com/brands/mallory/

Download Datasheet Parametric View All

SC110DR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SC110DR	-	-	View	Buy Now

SC110DR Overview

Audio Indicators & Alerts CONSTANT, 30-120V 1900HZ, CUL APPRVD

SC110DR Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Mallory
Product Category	Audio Indicators & Alerts
RoHS	Details
Product	Buzzers
Sound Pressure Level	75 dBA
Tone	Continuous
Frequency	1.9 kHz
Voltage Rating	120 VAC/DC
Current Rating	21 mA
Termination Style	Screw
Diameter	43 mm
Mounting	Panel
Dimensions	1.69 in L x 1.69 in W x 1.41 in H
Height	1.41 in
Length	1.69 in
Packaging	Tray
Width	1.69 in
Factory Pack Quantity	1
Unit Weight	1.587328 oz

Preview

Download Datasheet

View All

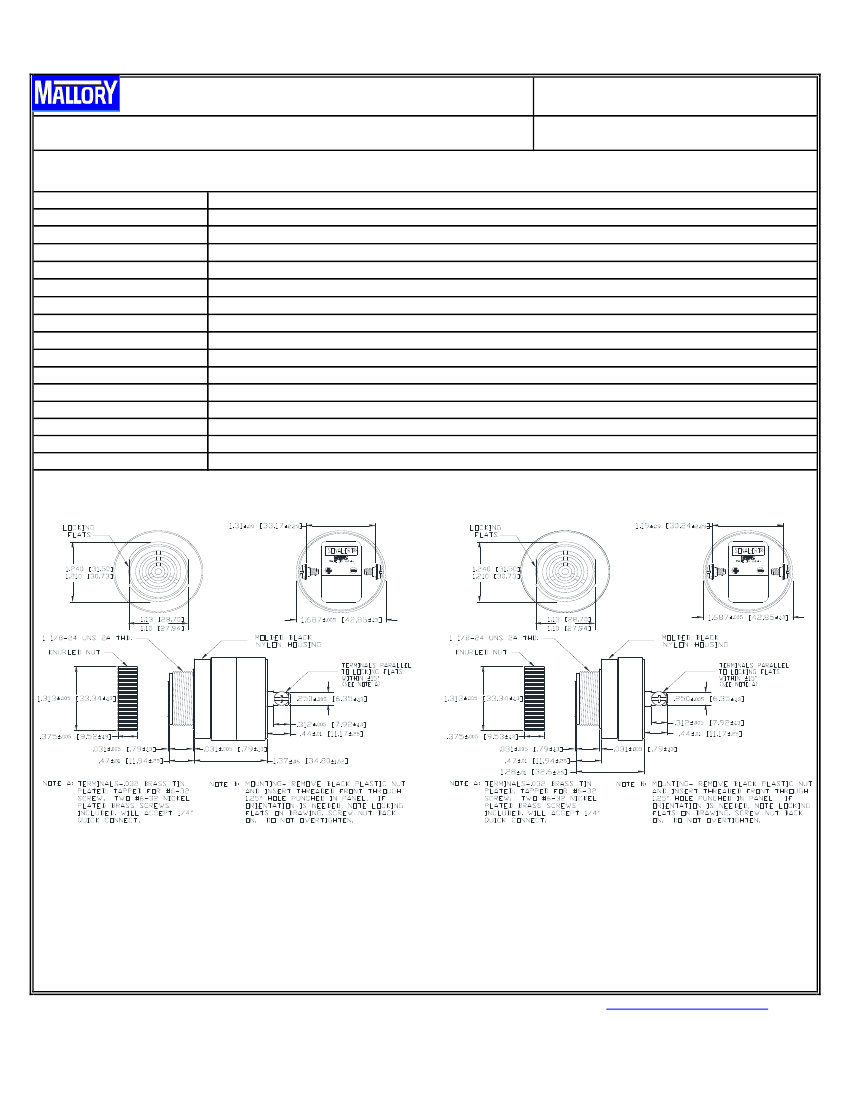

Mallory Sonalert Products, Inc.

Revision:

Sales Outline Drawing

Specifications:

Sound Level Category

Mode of Operation

Voltage Rating

Frequency

Loudness @ 2 FT

Loudness @ Min V

Loudness @ Max V

Current Draw

Housing Material

Storage Temperature

Operating Temperature

Panel Mounting

Knurled Nut

Weight (Typical)

NEMA 3R,4X, & 12

Options

Part #:

SC110DR

F

Medium

Continuous

30 to 120 VAC/DC

2000 ± 500 Hz

68 to 80 dB(A) Typ.

60 dB(A) @ 2 Feet and 30 Vac/dc

75 dB(A) @ 2 Feet and 120 Vac/dc

6-21mA

6/6 Nylon, Color: Black

-40° to +85° C

-30° to +65° C

Recommended hole size is 1.25"(31.75mm). Thread front will fit standard 30mm(1.181") hole.

Used to attach part to panel. The max recommended torque is 10 in-lbs.

1.6 oz (45g)

Approved with use of ACC03.

Please contact factory.

Dimensions:

cUL

Inches (mm)

PART DIMENSIONS BEFORE CODE DATE:

0824 5

Recognized

ROHS Compliant

PART DIMENSIONS AFTER CODE DATE:

0825 1

4411 South High School Road, Indianapolis, Indiana 46241 U.S.A · Phone: (317) 612-1000 Fax: (317) 612-1010

www.mallory-sonalert.com
