HCM49-36864MABJ-T datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> HCM49-36864MABJ-T

Preview

HCM49-36864MABJ-T: DescriptionCrystals 3.6864MHZ 30ppm 18pF; CategoryPassive components; File Size413KB，2 Pages; ManufacturerCITIZEN; Websitehttp://ce.citizen.co.jp/e/index.html

Download Datasheet Parametric View All

HCM49-36864MABJ-T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HCM49-36864MABJ-T	-	-	View	Buy Now

HCM49-36864MABJ-T Overview

Crystals 3.6864MHZ 30ppm 18pF

HCM49-36864MABJ-T Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	CITIZEN
Product Category	Crystals
RoHS	Details
Termination Style	SMD/SMT
Package / Case	HC-49/US
Load Capacitance	18 pF
Frequency	3.6864 MHz
Tolerance	30 PPM
Frequency Stability	50 PPM
Drive Level	100 uW
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Length	11.4 mm
Width	4.7 mm
Height	4.3 mm
Type	AT-Cut Crystal
ESR	200 Ohms
Mounting Style	SMD/SMT
Factory Pack Quantity	1000

Preview

Download Datasheet

View All

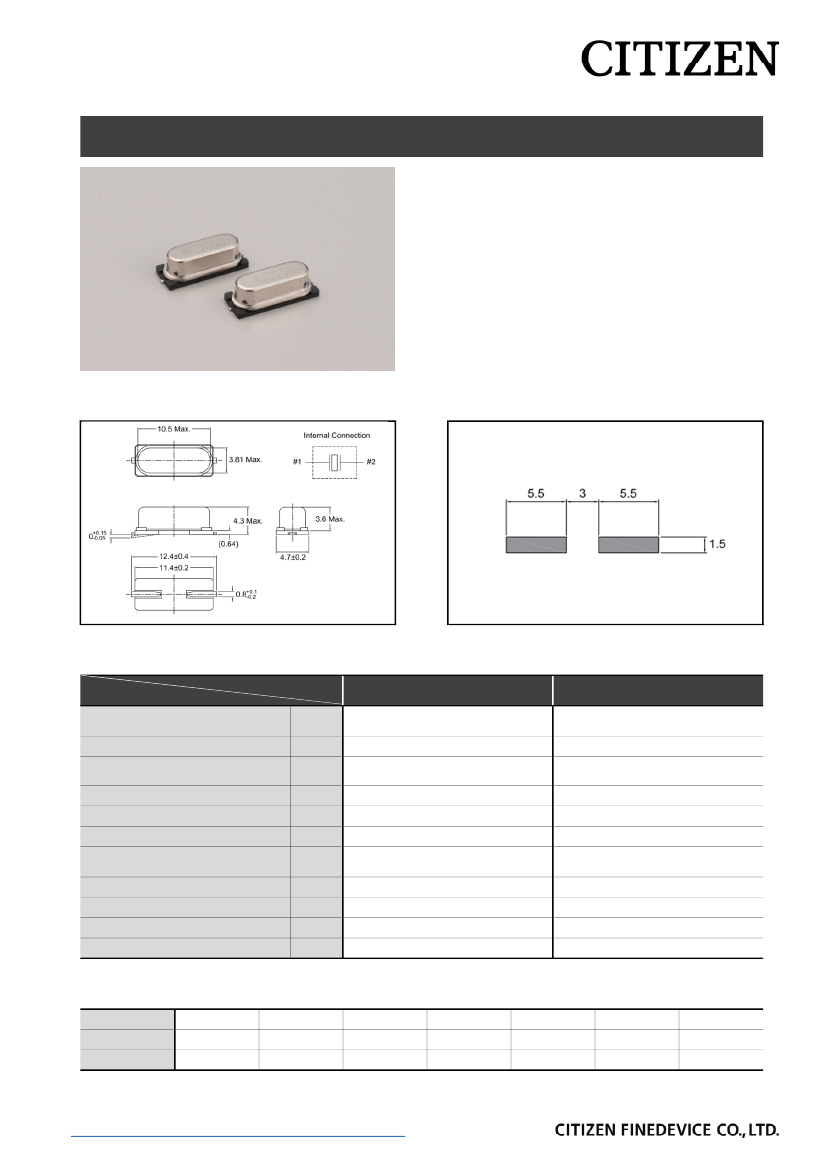

AT-CUT CRYSTAL UNIT

RoHS compliant

(SMD

・

Metal-can Type)

HCM49

■

FEATURES

1,000pcs/reel

● Frequency range : 3.5 ½ 50.0MH½

● External dimensions (mm)

　 L : 12.8 x W : 4.9 x H : 4.3

● Applications

　　Consumer products

■

DIMENSION

[mm]

■

SOLDER PAD LAYOUT

[mm]

■

STANDARD SPECIFICATIONS

Item

Model

HCM49

3.5MHz ½ 30.0MHz (Fundamental)

30.0MHz ½ 50.0MHz (3rd Overtone)

±30ppm

below 6.0MHz:±50ppm

above 6.0MHz:±30ppm

-40℃ ½ +85℃

-55℃ ½ +125℃

Refer to the following table

Fundamental:10.0pF ½ ∞

3rd Overtone:5.0pF ½ ∞

7.0pF Max.

100μW

500MΩMin.

±5ppm Max.

Conditions

Please contact us for

frequencies available

at 25˚C

-10℃½+60℃

Nominal Frequency

Frequency Tolerance

Frequency Tolerance over

Operating Temperature Range

Storage Temperature Range

Motional (series) resistance

Load capacitance

Shunt capacitance

Level of drive

Insulation Resistance

Aging (first year)

f

0

Δf/f

0

Δf/f

0

T

OPR

T

STR

R

1

C

L

C

0

D

L

I

R

Δf/f

0

at 25˚C

Please specify your requirement

DC100V±15V

25℃±3℃

■

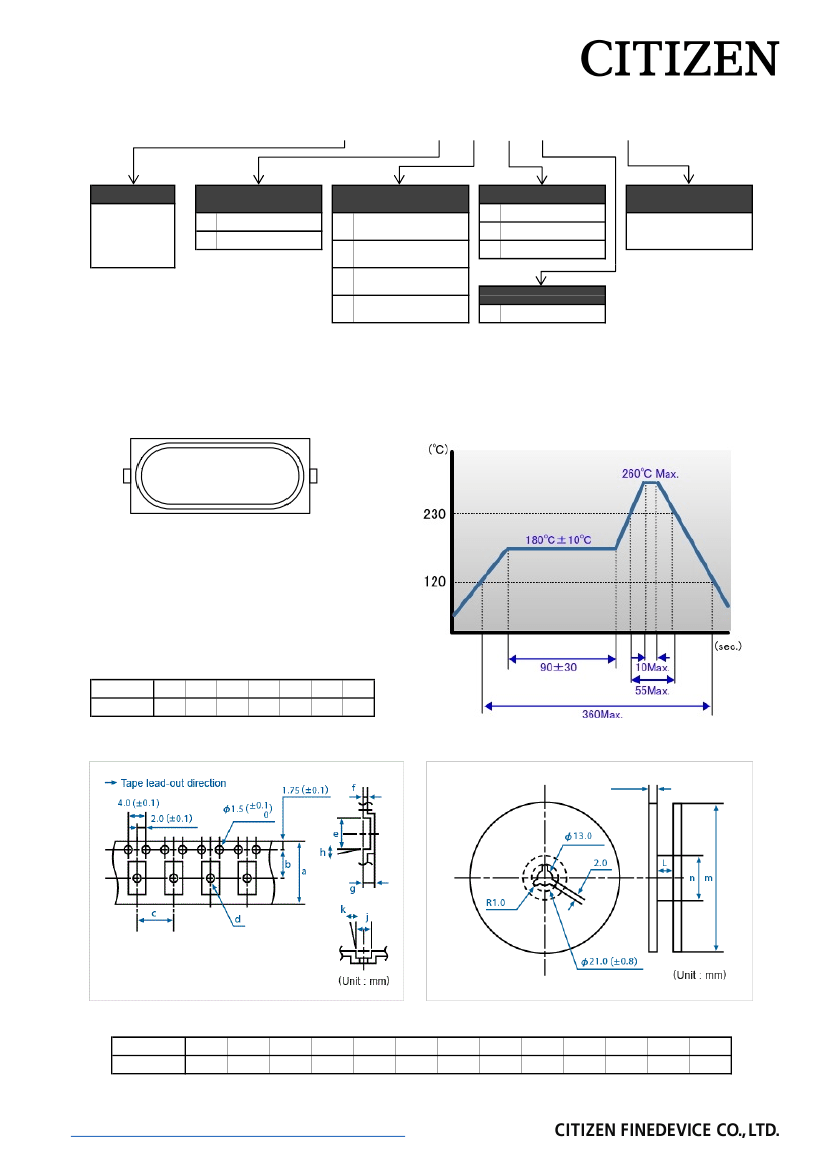

MOTIONAL (SERIES) RESISTANCE (R

1

)

Freq. Range

(MHz)

Mode

R

1

3.5≦f

0

＜4.0

Fundamental

200ΩMax.

4.0≦f

0

＜6.0

Fundamental

150ΩMax.

6.0≦f

0

＜10.0

Fundamental

100ΩMax.

10.0≦f

0

＜14.0

Fundamental

80ΩMax.

14.0≦f

0

＜30.0

Fundamental

50ΩMax.

30.0≦f

0

＜36.0

3rd Overtone

140ΩMax.

36.0≦f

0

≦50.0

3rd Overtone

100ΩMax.

http://cfd.citizen.co.jp/english/prod-tech/product/cvo_top.html
