UMW0J470MDD

Description
Aluminum Electrolytic Capacitors - Leaded 6.3volts 47uF 85c 5x5 2LS
CategoryPassive components
File Size173KB,1 Pages
ManufacturerNichicon
Websitehttp://www.nichicon.co.jp
Download Datasheet Parametric View All

UMW0J470MDD Online Shopping

Suppliers Part Number Price MOQ In stock
UMW0J470MDD - - View Buy Now

UMW0J470MDD Overview

Aluminum Electrolytic Capacitors - Leaded 6.3volts 47uF 85c 5x5 2LS

UMW0J470MDD Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerNichicon
Product CategoryAluminum Electrolytic Capacitors - Leaded
RoHSDetails
Termination StyleRadial
Capacitance47 uF
Voltage Rating DC6.3 VDC
Tolerance20 %
Ripple Current45 mA
Minimum Operating Temperature- 40 C
Maximum Operating Temperature+ 85 C
Diameter5 mm
Length5 mm
PackagingBulk
ProductAudio Grade Electrolytic Capacitors
Leakage Current3 uA
Factory Pack Quantity200
Unit Weight0.007760 oz

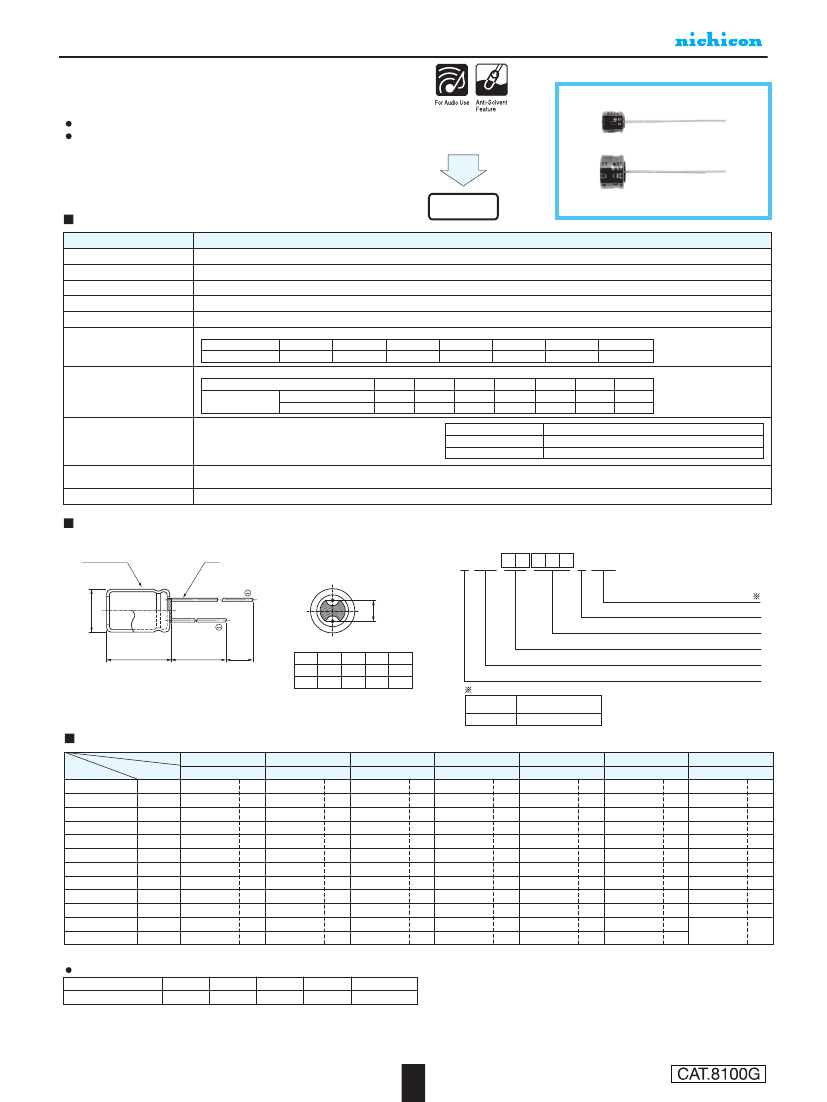

ALUMINUM ELECTROLYTIC CAPACITORS
UMW
Specifications
Item
Category Temperature Range
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
Leakage Current
Tangent of loss angle (tan
δ)
5mmL, For General Audio Equipment
Acoustic series, with 5mm height.
Compliant to the RoHS directive (2011/65/EU).
USW
Smaller
UMW
Performance Characteristics
–40 to +85°C
4 to 50V
1 to 470µF
± 20% at 120Hz, 20°C
After 2 minutes' application of rated voltage at 20°C, leakage current is not more than 0.01CV or 3 (µA) , whichever is greater.
Measurement frequency : 120Hz at 20°C
Rated voltage (V)
tan
δ
(MAX.)
4
0.35
6.3
0.24
4
7
15
10
0.20
6.3
4
8
16
0.16
10
3
6
25
0.14
16
2
4
25
2
4
35
0.12
35
2
3
50
0.10
50
2
3
Measurement frequency : 120Hz
Stability at Low Temperature
Rated voltage (V)
Impedance ratio
ZT / Z20 (MAX.)
Z– 25°C / Z+20°C
Z– 40°C / Z+20°C
Endurance
The specifications listed at right shall be met when
the capacitors are restored to 20°C after the rated
voltage is applied for 1000 hours at 85°C.
Capacitance change
tan
δ
Leakage current
Within ±20% of the initial capacitance value
200% or less than the initial specified value
Less than or equal to the initial specified value
Shelf Life
Marking
After storing the capacitors under no load at 85°C for 1000 hours and then performing voltage treatment based on JIS C 5101-4
clause 4.1 at 20°C, they shall meet the specified values for the endurance characteristics listed above.
Printed with black color letter on gold sleeve.
Radial Lead Type
Sleeve (P.E.T.)
Sleeve (P.E.T.)
φ
d
φ
d
Type numbering system (Example : 25V 10
µ
F)
1
U MW 1 E 1 0 0 M D D
U MW 1 E 1 0 0 M D D
P ±
0.5
P ±
0.5
2 3 4 5 6 7 8 9 10 11
1 2 3 4 5 6 7 8 9 10 11
φD
+
0.5 MAX.
φD
+
0.5 MAX.
Configuration
Configuration
Capacitance tolerance (±20%)
(mm)
L+
1MAX.
L+
1MAX.
15
MIN
15
MIN
4
MIN
4
MIN
φD
4
5
6.3
8
(mm)
P
φD
1.5 4 2.0 5 2.56.3 2.5 8
1.5
2.0
2.5
2.5
φd
P 0.45 0.45 0.45 0.45
φd
0.45
0.45
0.45
0.45
Configuration
Pb-free leadwire
Configuration
φ
D
4 to
φ
D
8
4 to 8
DD
Capacitance tolerance (±20%)
Rated capacitance (10µF)
Rated capacitance (10µF)
Rated voltage (25V)
Rated voltage (25V)
Series name
Series name
Type
Type
Pb-free PET sleeve
Pb-free leadwire
DD
Pb-free PET sleeve
Dimensions
V
Cap.(µF)
code
4
0G
6.3
0J
10
1A
16
1C
25
1E
35
1V
1
2.2
3.3
4.7
10
22
33
47
100
220
330
470
010
2R2
3R3
4R7
100
220
330
470
101
221
331
471
4
×
5
4
×
5
5
×
5
6.3
×
5
8
×
5
8
×
5
28
33
56
96
145
185
4
×
5
5
×
5
5
×
5
6.3
×
5
8
×
5
8
×
5
28
37
45
70
110
170
5
×
5
5
×
5
6.3
×
5
8
×
5
8
×
5
33
41
52
80
135
4
×
5
5
×
5
6.3
×
5
6.3
×
5
8
×
5
23
37
49
58
92
4
×
5
5
×
5
6.3
×
5
6.3
×
5
8
×
5
8
×
5
16
27
42
52
70
110
4
×
5
4
×
5
5
×
5
6.3
×
5
8
×
5
8
×
5
15
18
29
46
62
80
50
1H
4
×
5
4
×
5
4
×
5
5
×
5
6.3
×
5
8
×
5
8
×
5
8.4
13
17
20
33
52
71
Case size
φ
D
×
L Rated
(mm)
ripple
Rated ripple current(mArms) at 85°C 120Hz
Frequency coefficient of rated ripple current
Frequency
Coefficient
50 Hz
0.70
120 Hz
1.00
300 Hz
1.17
1 kHz
1.36
10 kHz or more
1.50
Please refer to page 20, 21, 22 about the formed or taped product spec.
Please refer to page 4 for the minimum order quantity.
