"High Frequency Ceramic Solutions"
2450 MHz Small SMD Chip Antenna
Detail Specification:
10/08/13
P/N 2450AT42B100
Page 1 of 4

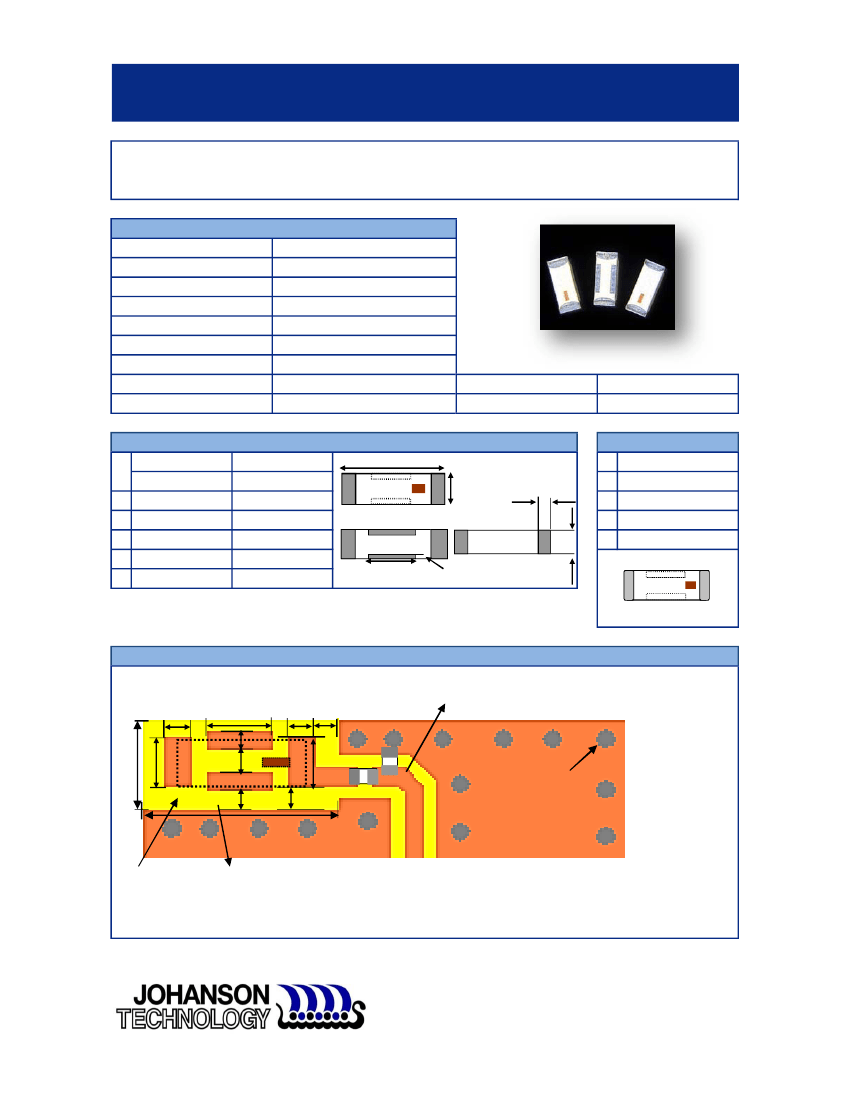

Ground Clearance Requirements Minimized. This antenna was designed for corner or end-mounting
General Specifications
Part Number
Frequency Range
Peak Gain
Average Gain
Return Loss
Impedance
Reel Quanity
Operating Temperature
2450AT42B100
2400 - 2500 Mhz
0 dBi typ. (XZ-V)
-1.5 dBi typ. (XZ-V)
9.5 dB min.
50
Ω
2,000
-40 to +85°C
Storage Period
Power Capacity
-40 to +85°C
2W max. (CW)
Recommended Storage Condition
+5 ~ +35
°C,Humidity
45~75%RH
Mechanical Dimensions
In
L
W
L1
W1
T
a
Terminal Configuration
mm
L
W
Top View
T
L1
Bottom View
W1
Side View
a
No.
1
2
3
4
Function
Feeding Point
NC
NC
NC
0.197 ± 0.008
0.079 ± 0.008
0.102 ± 0.008
0.020 ± 0.008
0.079 +.004/-.008
0.020 ± 0.012
5.00 ± 0.20
2.00 ± 0.20
2.60 ± 0.20
0.50 ± 0.20
2.00
+0.1/-0.2
0.50 ± 0.30
Mounting Considerations
Line width should be designed to match 50Ω characteristic impedance (Grounded Co‐Planar Waveguide), depending on PCB material
and thickness. (The matching circuit and component values will be different on clients PCB layout, se notes below and go to page 2 for
details).
1
1 0.7
2.8
0.7 1
0.7
3.8
6
2
1.0
3
0.7
0.8
2
1
8
2
1.5 nH
3.3 nH
RF Via"stich" around
antenna clearance
and feed trace for
best radiation
We peform layout review
as well as antenna
tuning and
characterization services.
Go to page 2 for details.
Yellow
The "0.82mm" dimmension is
area=Ground/Metal a min. requirement, if the
Clearance.
designer can make this larger,
the better radiation and gain
will occur (i.e. 2.0 or 4.0mm)
Note: It is recommended that the designer leave available slots for a "pi" (or shunt-series-
shunt) network. The antenna matching network values here are used when antenna is
mounted on Johanson's evaluation board. The matching values on clinet's PCB will be
different, go to: johansontechnology.com/tuning and see how to obtain the new values. If
you need further help, contact our RF Applications Eng Team at:
www.johansontechnology.com/en/ask-a-technical-question.html
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
Ver 2.1
2013 Johanson Technology, Inc. All Rights Reserved
"High Frequency Ceramic Solutions"
2450 MHz Small SMD Chip Antenna
Detail Specification:
10/08/13
P/N 2450AT42B100
Page 2 of 4

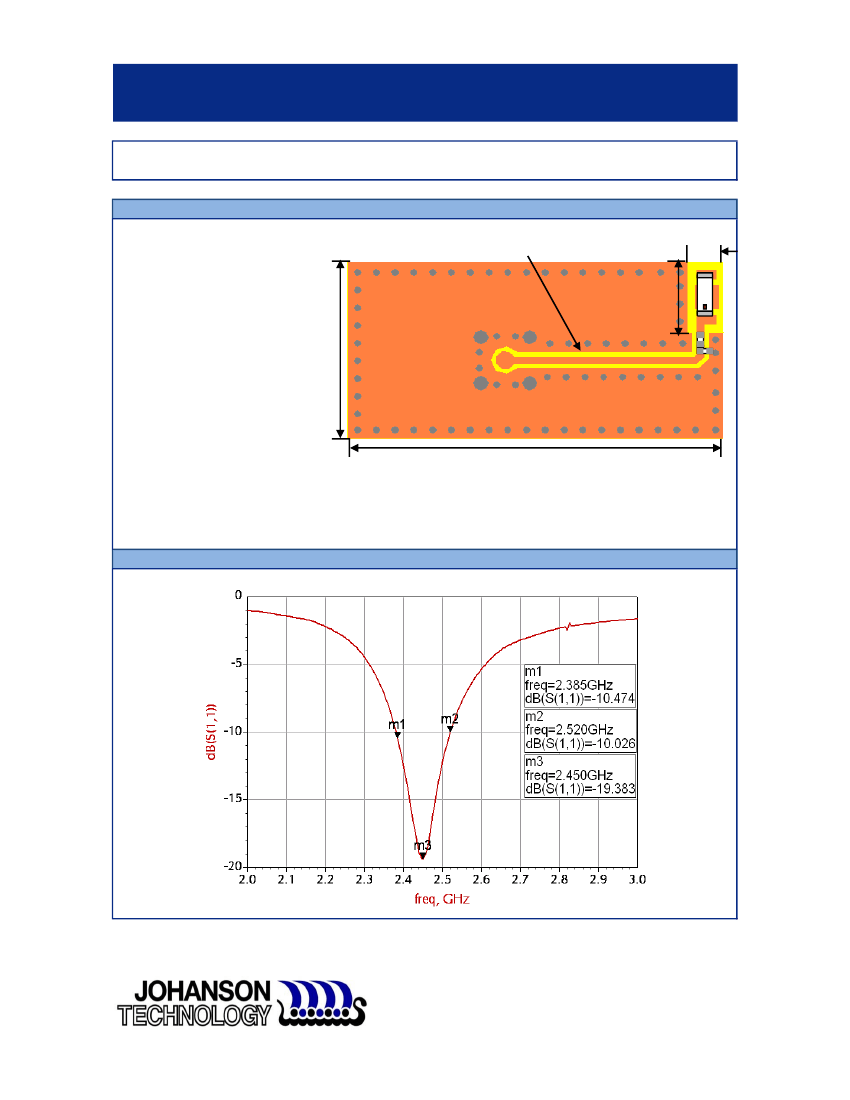

Johanson Evaluation Board (orderable item)
Test Board:
P/N: 2450AT42B100-EB1SMA
(orderable item)
To order, go to:
www.johansontechnology.com/samplerequest
(Units in mm)
This 50Ω Feedline can be as short as
needed, this lenth is just for reference to
our EVB
3.86
8
20
40
We offer antenna layout review, tuning, and characterization services, go to:
www.johansontechnology.com/ipcantennaservices
for details and instructions
o
Typical Electrical Characteristics (T=25
C)
Return Loss
(with
matching)
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
Ver 2.1
2013 Johanson Technology, Inc. All Rights Reserved
"High Frequency Ceramic Solutions"
2450 MHz Small SMD Chip Antenna
Detail Specification:
10/08/13
o
P/N 2450AT42B100
Page 3 of 4
Typical Electrical Characteristics (T=25

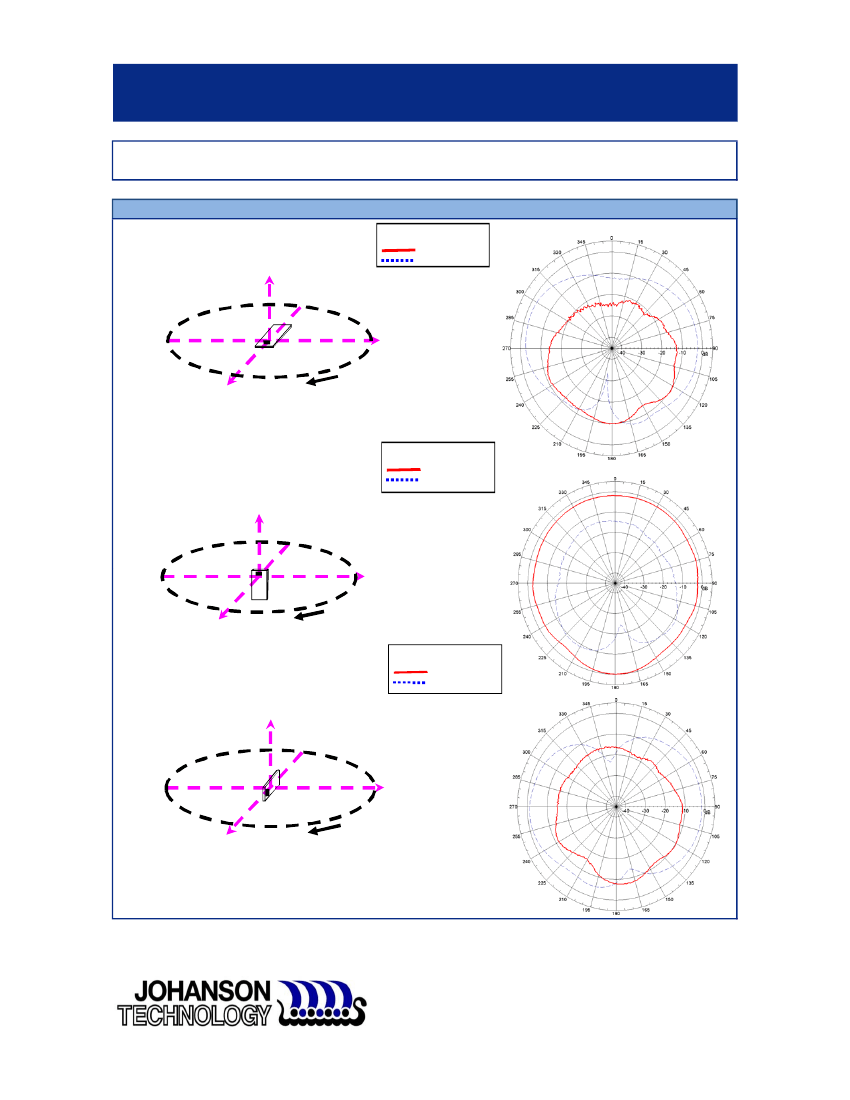

C) Radiation Patterns
XY-V/XY-H
Z
180
o
90
o
Y
0
o
XY cut @2.45GHz
Vertical
Horizontal
X
270
o
XY-cut scanning direction
XZ cut @2.45GHz
Vertical
Horizontal
XZ-V/XZ-H
Y
180
o
90
o
Z
0
o
YZ-V/YZ-
H
X
270
o
XZ-cut scanning direction
YZ cut @2.45GHz
Vertical
Horizontal
X
180
o
90
o
Z
0
o
Y
270
o
YZ-cut scanning direction
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
Ver 2.1
2013 Johanson Technology, Inc. All Rights Reserved
"High Frequency Ceramic Solutions"
2450 MHz Small SMD Chip Antenna
Detail Specification: 10/08/13
P/N 2450AT42B100
Page 4 of 4
Part Number Explanation
Bulk (loose pieces)
Packing Style
P/N Suffix
T&R
T & R (Reverse)
100% Tin
Suffix = S
Suffix = E
Suffix = R
eg.2450AT42B100S
eg. 2450AT42B100E
eg. 2450AT42B100R (MOQ Applies)
Suffix = None eg. 2450AT42B100(S, E, R)
Eval Board (1-port
SMA antenna test
2450AT42B100-EB1SMA (Page 2)
boards)
More Details
www.johansontechnology.com/ipc-pn-explained
Storage Conditions and Shelf Life (On T&R or Bulk)
Temperature:
Relative Humidity:
+5C to +35°C
45 to 75%
Shelf Life:
18 months max.
Packaging information
www.johansontechnology.com/ipcpackaging.html
Soldering Information
www.johansontechnology.com/ipcsoldering-profile
Antenna layout and tuning techniques
www.johansontechnology.com/tuning
Antenna layout review, tuning, and characterization services
www.johansontechnology.com/ipcantennaservices
RoHS Compliance
www.johansontechnology.com/technical-notes/rohs-compliance.html
MSL Info
www.johansontechnology.com/technical-notes/msl-rating.html
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
Ver 2.1
2013 Johanson Technology, Inc. All Rights Reserved
