3700S-1-202L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> 3700S-1-202L

3700S-1-202L: DescriptionPrecision Potentiometers 2K OHM 10-TURN W/W POT; CategoryPassive components The resistor; File Size305KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3700S-1-202L Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3700S-1-202L	-	-	View	Buy Now

3700S-1-202L Overview

Precision Potentiometers 2K OHM 10-TURN W/W POT

3700S-1-202L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	Panel Mount,
Reach Compliance Code	not_compliant
ECCN code	EAR99
Factory Lead Time	10 weeks
Actuator direction	HORIZONTAL
Actuator type	SHAFT
Other features	PRECISION
structure	Bushing Mount
gang number	1
JESD-609 code	e4
Installation features	CHASSIS MOUNT
Number of terminals	3
number of turns	1
Maximum operating temperature	125 °C
Minimum operating temperature	1 °C
Package diameter	12.7 mm
Package length	25.4 mm
Package shape	CIRCULAR PACKAGE
Package form	Panel Mount
Rated power dissipation(P)	1 W
Rated temperature	70 °C
resistance	2000 Ω
resistance law	LINEAR
Resistor type	POTENTIOMETER
rotation angle	3600 deg
surface mount	NO
technology	WIRE WOUND
Temperature Coefficient	-50,50 ppm/°C
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
Terminal shape	LUG
Tolerance	5%
Base Number Matches	1

Preview

Download Datasheet

View All

Features

■

Bushing mount

■

Excellent resolution

■

Non-standard features and speciﬁcations available

■

Small diameter

■

High rotational life

■

RoHS compliant*

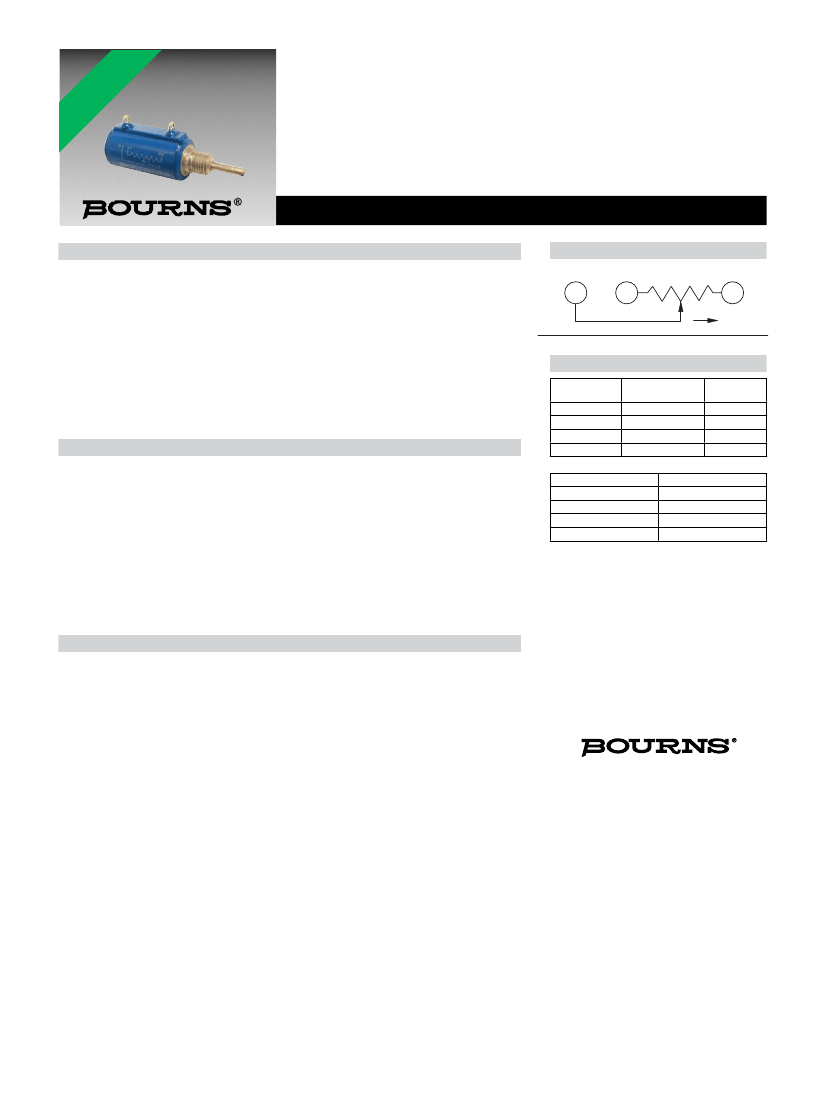

3700/3701 - Precision Potentiometer

Electrical Characteristics

3700 Wirewound Element

3701 Hybritron

Element

Schematic

Standard Resistance Range................ 100 to 100 K ohms .....................1 K to 100 K ohms

Total Resistance Tolerance.................. ±5 % ...........................................±10 %

Independent Linearity .......................... ±0.25 % ......................................±0.25 %

Effective Electrical Angle ..................... 3600 ° +10 °, -0 ° .......................3600 ° +10 °, -2 °

Absolute Minimum Resistance/ ........... 1 ohm or 0.1 % maximum ..........Minimum voltage

Minimum Voltage

(whichever is greater)

0.2 % maximum

Noise .................................................. 100 ohms ENR maximum ..........Output smoothness 0.1 %

maximum

Dielectric Withstanding Voltage (MIL-STD-202, Method 301)

Sea Level ......................................... 1,000 VAC minimum ..................1,000 VAC minimum

Power Rating (Voltage Limited By Power Dissipation or 315 VAC, Whichever Is Less)

+70 °C.............................................. 1 watt..........................................1 watt

+125 °C............................................ 0 watt..........................................0 watt

Insulation Resistance (500 VDC) ........ 1,000 megohms minimum ..........1,000 megohms minimum

Resolution............................................ See recommended part nos. .....Essentially inﬁnite

CCW

Recommended Part Numbers

Part

Number

Resistance

(Ω)

Resolution

(% Max.)

Environmental Characteristics

Operating Temperature Range ............ +1 °C to +125 °C ........................+1 °C to +105 °C

Storage Temperature Range ............... -65 °C to +125 °C .......................-55 °C to +105 °C

Temperature Coefﬁcient Over

Storage Temperature Range

......... ±50 ppm/°C maximum/unit .........±100 ppm/°C maximum/unit

Vibration .............................................. 20 G ...........................................20 G

Wiper Bounce .................................. 0.1 millisecond maximum ...........0.1 millisecond maximum

Shock................................................... 100 G .........................................100 G

Wiper Bounce .................................. 0.1 millisecond maximum ...........0.1 millisecond maximum

Load Life .............................................. 1,000 hours, 1 watt.....................1,000 hours, 1 watt

Total Resistance Shift ...................... ±2 % maximum ..........................±5 % maximum

Rotational Life (No Load)..................... 1,000,000 shaft revolutions

.....4,000,000 shaft revolutions

Total Resistance Shift ...................... ±5 % maximum ..........................±5 % maximum

Moisture Resistance (MIL-STD-202, Method 103, Condition B)

Total Resistance Shift ...................... ±2 % maximum ..........................±5 % maximum

IP Rating .............................................. IP 40 ...........................................IP 40

3700S-1-102L

3700S-1-202L

3700S-1-502L

3700S-1-103L

Part Number

1,000

2,000

5,000

10,000

0.05

0.04

0.03

Resistance (Ω)

3701H-1-102L

3701H-1-202L

3701H-1-502L

3701H-1-103L

1,000

2,000

5,000

10,000

BOLDFACE

LISTINGS ARE IN STOCK AND READILY

AVAILABLE THROUGH DISTRIBUTION.

FOR OTHER OPTIONS CONSULT FACTORY.

ROHS IDENTIFIER:

L = COMPLIANT*

Mechanical Characteristics

Stop Strength.......................................................................................... 14 N-cm (20 oz-in.) minimum

Mechanical Angle ......................................................................................................3600 ° +20 °, -0 °

Torque (Starting & Running) .....................................................................0.45 N-cm (0.6 oz.-in.) max.

Mounting ..................................................................................... 170-200 N-cm (15-18 lb.-in.) max.

Shaft Runout.................................................................................................0.05 mm (0.002 in.) T.I.R.

Lateral Runout ..............................................................................................0.13 mm (0.005 in.) T.I.R.

Shaft End Play ..............................................................................................0.13 mm (0.005 in.) T.I.R.

Shaft Radial Play ..........................................................................................0.08 mm (0.003 in.) T.I.R.

Pilot Diameter Runout ..................................................................................0.05 mm (0.002 in.) T.I.R.

Backlash ....................................................................................................................... 1.0 ° maximum

Weight .................................................................................................................Approximately 28 gm

Terminals ............................................Gold-plated solderlugs (3700) or gold-plated turret lugs (3701)

Soldering Condition

Manual Soldering .................................96.5Sn/3.0Ag/0.5Cu solid wire or no-clean rosin cored wire

370 °C (700 °F) max. for 3 seconds

Wave Soldering ........................................................ 96.5Sn/3.0Ag/0.5Cu solder with no-clean ﬂux

260 °C (500 °F) max. for 5 seconds

Wash processes ..................................................................................................Not recommended

Marking ................................................. Manufacturer’s name and part number, resistance value and

tolerance, linearity tolerance, wiring diagram, and date code

Ganging (Multiple Section Pots.) ................................................................................. 1 cup maximum

Hardware ................................................... One lockwasher (H-37-1) and one mounting unit (H-38-1)

is shipped with each potentiometer.

At room ambient: +25 °C nominal and 50 % relative humidity nominal, except as noted.

Consult manufacturer for complete speciﬁcation details.

Asia-Paciﬁc:

Tel: +886-2 2562-4117

Fax: +886-2 2562-4116

EMEA:

Tel: +36 88 520 390

Fax: +36 88 520 211

The Americas:

Tel: +1-951 781-5500

Fax: +1-951 781-5700

www.bourns.com

REV. 11/13

“Hybritron” is a registered trademark of Bourns, Inc.

*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

Speciﬁcations are subject to change without notice.

The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.

Users should verify actual device performance in their speciﬁc applications.
