MR052C123JAA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> MR052C123JAA

MR052C123JAA: DescriptionMultilayer Ceramic Capacitors MLCC - Leaded 160volts 0.012uF 5% X7R; CategoryPassive components; File Size326KB，8 Pages; ManufacturerAVX

Download Datasheet Parametric View All

MR052C123JAA Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MR052C123JAA	-	-	View	Buy Now

MR052C123JAA Overview

Multilayer Ceramic Capacitors MLCC - Leaded 160volts 0.012uF 5% X7R

MR052C123JAA Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	AVX
Product Category	Multilayer Ceramic Capacitors MLCC - Leaded
RoHS	N
Termination Style	Radial
Capacitance	0.012 uF
Voltage Rating DC	200 VDC
Dielectric	X7R
Tolerance	5 %
Lead Spacing	5.08 mm
Case Style	Molded
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 55 C
Product	General Type MLCCs
Length	4.83 mm
Width	4.83 mm
Height	2.28 mm
Packaging	Bulk
Operating Temperature Range	- 55 C to + 125 C
Type	Radial Leads/Ceralam
Voltage Rating	200 V
Capacitance - nF	12 nF
Capacitance - pF	12000 pF
Lead Diameter	0.635 mm
Factory Pack Quantity	1000
Temperature Coefficient / Code	X7R

Preview

Download Datasheet

View All

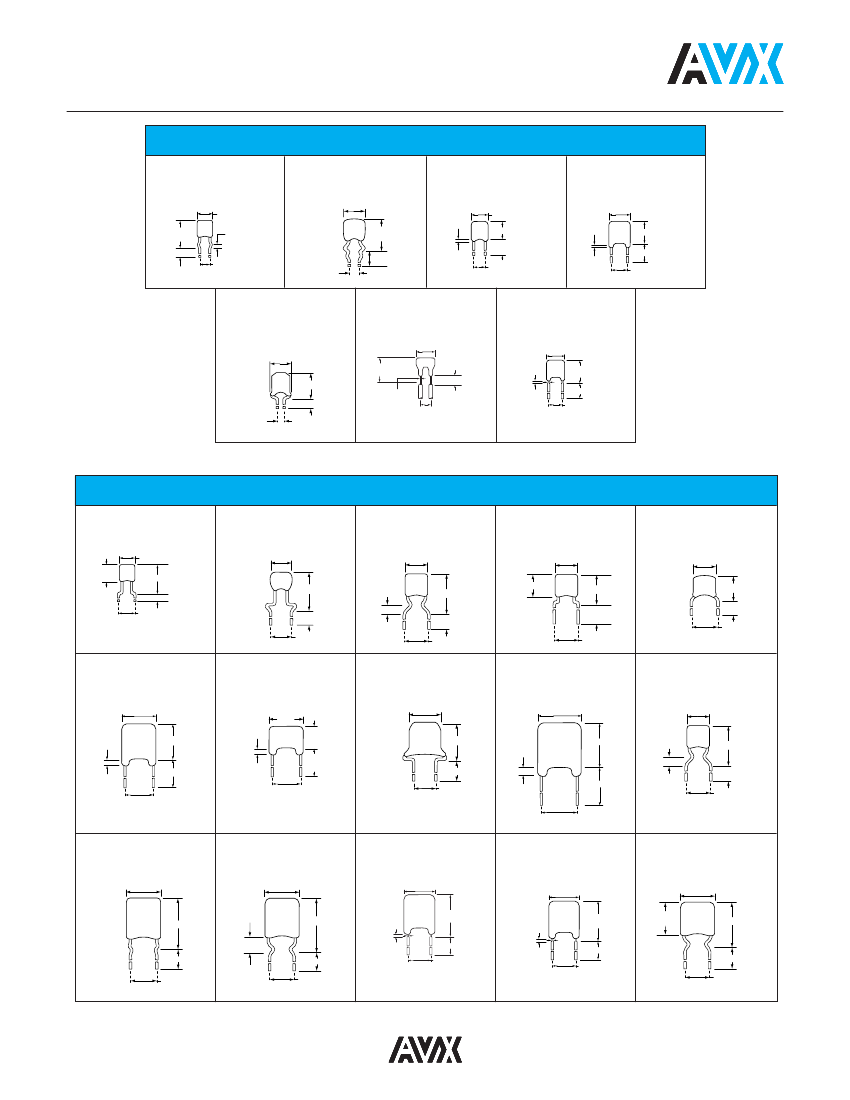

Radial Leads/Ceralam

GENERAL INFORMATION

Dimensions: Millimeters (Inches)

AVX MR Series

Molded Radial Leaded MLC

Temperature Coefficients:

C0G (NP0), X7R, Z5U

50, 100, 200 Volts

Case Material:

Molded Epoxy

Lead Material:

Solderable

1.14 (.045)

Max.

31.7 (1.25)

Min.

L.D.

31.7 (1.25)

Min.

L.S.

Style MR05

L.D.

L.S.

Styles MR04, MR06,

MR07, MR08

HOW TO ORDER

MR05

AVX Style

MR04

MR05

MR06

MR07

MR08

Voltage

5 = 50V

1 = 100V

2 = 200V

Dielectric

A = C0G (NP0)

C = X7R

E = Z5U

561

Capacitance

First two digits are the significant

figures of capacitance. Third digit

indicates the additional number

of zeros. For example, order

100,000 pF as 104. (For values

below 10pF use “R” in place of

decimal point, e.g., 1R4 = 1.4pF.)

Capacitance

Tolerance

C0G (NP0):

D = ±.5pF

(>10pF only)

F = ±1%

(>50pF only)

G = ±2%

(>25pF only)

J = ±5%

K = ±10%

X7R:

J = ±5%

K = ±10%

M = ±20%

Z5U:

M = ±20%

Z = +80%

-20%

Failure Rate

A = Not Applicable

T = CECC

Leads

A = Standard

Solderable (SnPb)

= Trimmed Leads

.230" ± .030"

Not RoHS Compliant

Trimmed lead length for the MR05 style will be measured from the bend in the lead (seating plane).

MARKING

Marking is as size permits.

(For code identification, see HOW TO ORDER section.)

— AVX

— Capacitance Tolerance

— Voltage Rating

— Temperature Coefficient

— Date Code

— Lot Code

PACKAGING REQUIREMENTS

Bulk Packaging:

1000 pcs. per sealed package except

MR07/MR08 (300 pcs.).

Tape and Reel:

Available on MR04, MR05, and MR06

only (2500 pcs./reel).

Ammo Packaging:

Available on special request.
