REV.
DESCRIPTION
DATE
APPROVED
C
D
Engineering Update w/o Changes
Removed Material Code
02/17/04
05/23/16
M. C.
J. C.
Ø.045 [Ø1.1mm]
TYP.
H
F
0.045 [1.1mm]
TYP.
0.06 [1.5mm]
0.200 [5.1mm]
0.290 [7.4mm]
TYP.
0.090 [2.3mm]
Ø.090 [Ø2.3mm]
PART NO.
330-050
330-072
330-085
A55485/06
M38527/06
-047N
-046N
-048N
H
.050 (1.3)
.072 (1.8)
.085 (2.2)
F
.000
.022 (.56)
.035 (.89)
STANDARD TOLERANCE
( UNLESS OTHERWISE SPECIFIED )
DECIMALS
ANGULAR
®
.X
.XX
.XXX
± .1
± .01
± .005
X°
± 1°
4 THOMAS, IRVINE, CA. 92618
TEL: (949) 951-8808
FAX: (949) 951-3974
TITLE:
DATE:

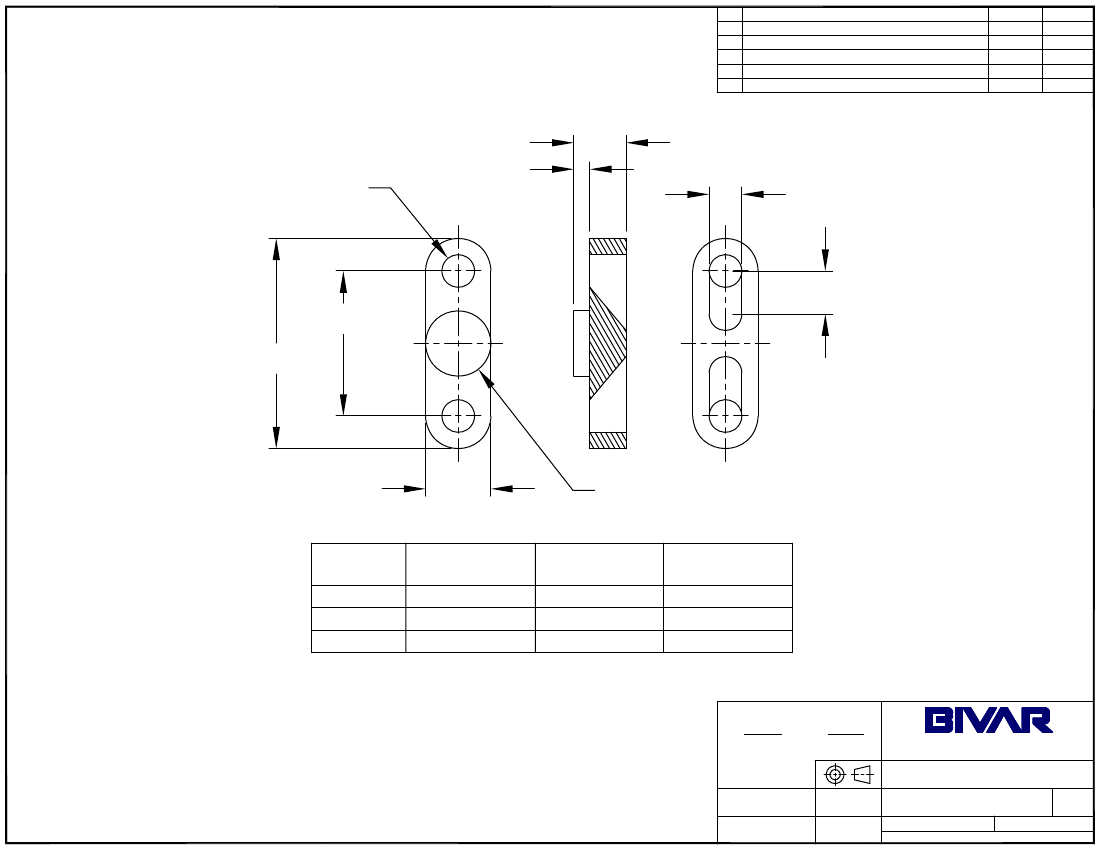

PERM-O-PAD DISCRETE
COMPONENT & CAPACITOR MOUNT
REVISION:
2. MATERIAL: NYLON 6/6, 94V-2, NATURAL.
1. GENERAL SPECIFICATIONS: BIVAR MOLDED COMPONENT SPECIFICATION BV00-E101.
DESIGNED:
PART NO:
D. Green
CHECKED:
01/16/03
DATE:
330-XXX
D
M. Chen
01/16/03
CAGE CODE : 32559
SHEET #
1
OF
1
CAD GENERATED DOCUMENT, DO NOT MEASURE DRAWING.
