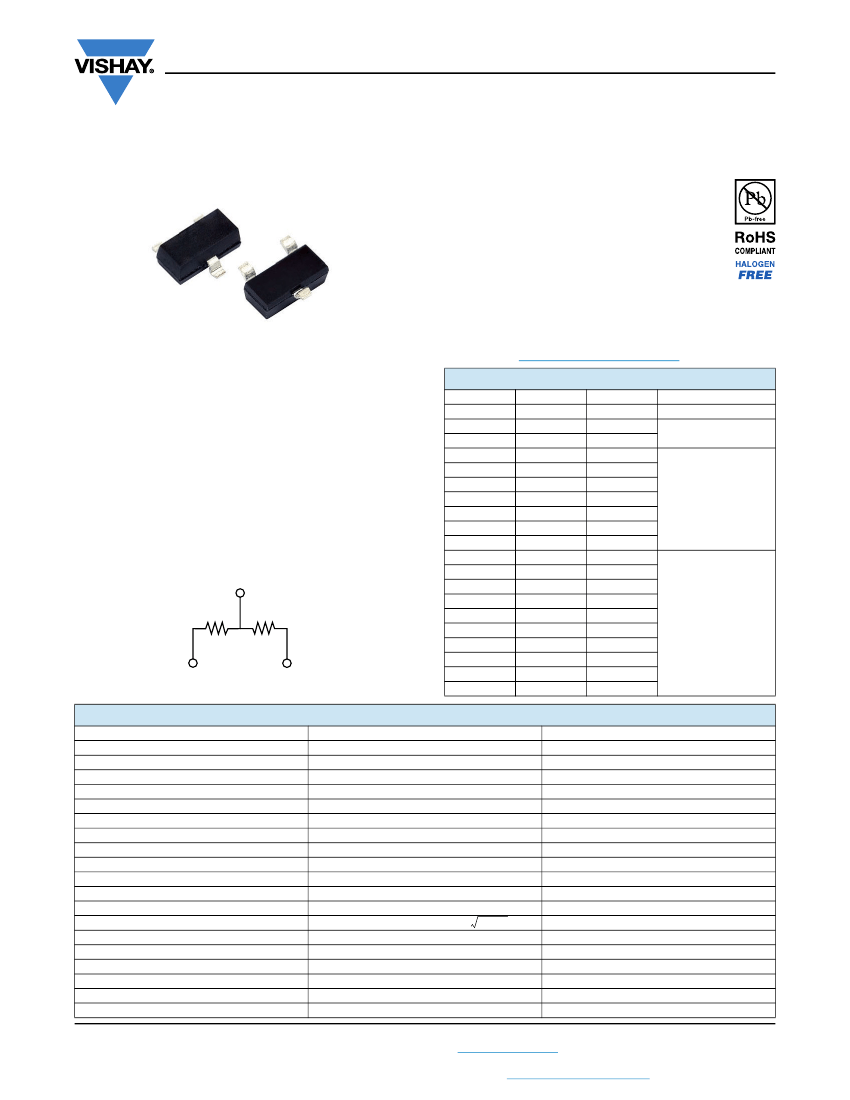

MPMA (Divider)
www.vishay.com
Vishay Dale Thin Film
Matched Pair, Molded, Automotive, Thin Film, SOT-23, Resistor,
Surface Mount Network, AEC-Q200 Qualified
FEATURES
• AEC-Q200 qualified
• Resistance range 250
Ω
to 50 kΩ
• Excellent long term ratio stability ± 0.03 % over
1000 h, 125 °C
• Ratio tolerances to ± 0.05 %
• Tracking as low as ± 2 ppm/°C
• Very low noise and voltage coefficient
(< -30 dB, 0.1 ppm/V)
• Standard JEDEC TO-236 package variation AB
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
Vishay Thin Film MPMA Series dividers provide ± 2 ppm/°C
tracking and a ratio tolerance as tight as ± 0.05 %, small
size, and exceptional stability for all surface mount
applications. The standard SOT-23 package format with
unity and common standard resistance divider ratios
provide easy selection for most applications requiring
matched pair resistor elements. MPMA is AEC-Q200
qualified and ideal for high precision automotive
applications. The ratios listed are available for off the shelf
delivery. If you require a non-standard ratio, consult the
applications engineering group as we may be able to meet
your requirements.
STANDARD DIVIDER RATIO
(R
2
/R
1
)
RATIO
50:1
25:1
20:1
10:1
9:1
6:1
5:1
5:1
4:1
4:1
2:1
2:1
1:1
1:1
1:1
1:1
1:1
1:1
1:1
1:1
R
2
(Ω)
50K
25K
20K
10K
9K
6K
10K
5K
8K
4K
10K
2K
50K
25K
10K
5K
2.5K
1K
500
250
R
1
(Ω)
1K
1K
1K
1K
1K
1K
2K
1K
2K
1K
5K
1K
50K
25K
10K
5K
2.5K
1K
500
250
TCR TRACKING
10 ppm/°C
5 ppm/°C
3 ppm/°C
SCHEMATIC
3
2 ppm/°C
R
1
1
R
2
2
STANDARD ELECTRICAL SPECIFICATIONS
TEST
Material
Pin/Lead Number
Resistance Range
TCR: Absolute
TCR: Tracking
Tolerance: Absolute
Tolerance: Ratio
Power Rating: Resistor
Power Rating: Package
Stability: Absolute
Stability: Ratio
Voltage Coefficient
Working Voltage
Operating Temperature Range
Storage Temperature Range
Noise
Thermal EMF
Shelf Life Stability: Absolute
Shelf Life Stability: Ratio
Revision: 03-Nov-15
SPECIFICATIONS
Ta2N
3
250
Ω
to 50 kΩ per resistor
± 25 ppm/°C
Down to ± 2 ppm/°C
± 0.1 % to ± 1.0 %
± 0.05 % to 0.5 %
100 mW
200 mW
< 1 kΩ: ± 0.35 %; > 1 kΩ: ± 0.04 %
< 1 kΩ: ± 0.35 %; > 1 kΩ: ± 0.03 %
0.1 ppm/V
100 V max. not to exceed
P
x
R
-55 °C to +155 °C
-55 °C to +155 °C
< - 30 dB
0.2 μV/°C
ΔR/R
± 0.01 %
ΔR/R
± 0.002 %
CONDITIONS
-
-
-
-55 °C to +125 °C
-55 °C to +125 °C
+25 °C
+25 °C
Maximum at +70 °C
Maximum at +70 °C
1000 h at +125 °C
1000 h at +125 °C
-
-
-
-
-
-
1 year at +25 °C
1 year at +25 °C
Document Number: 60113
1
For technical questions, contact:
thinfilm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MPMA (Divider)
www.vishay.com
Vishay Dale Thin Film
INCHES
MIN.
0.031
0.001
0.105
0.071
0.015
0.083
0.047
0.005
0.0035
0.017
0
MAX.
0.040
0.004
0.120
0.079
0.021
0.098
0.055
0.010
0.0059
0.022
8°
MILLIMETERS
MIN.
0.79
0.02
2.67
1.80
0.38
2.10
1.20
0.13
0.089
0.44
0
MAX.
1.02
0.10
3.05
2.00
0.54
2.50
1.40
0.25
0.15
0.55
8°
DIMENSIONS AND IMPRINTING
in inches and millimeters
DIMENSION
A
3
W
B
H L
T
A
S
A1
B
S
W
L
J
H
Ø
A1
K
1
Pin #
2
T
J
K
Ø
MECHANICAL SPECIFICATIONS
Resistive Element
Substrate Material
Body
Terminals
Lead (Pb)-free Option
Tantalum nitride
DERATING CURVE
100
Percent of Rated Power
Ceramic
Molded epoxy
Copper alloy
Solder free leads,
Ni/Pd/Au plated
80
60
40
20
0
0
100 % = 0.2 W
70
125
155
Ambient Temperature °C
ENVIRONMENTAL TESTS
ENVIRONMENTAL TEST
CONDITIONS
< 1 kΩ: MIL-STD-202, 108, 1000 h at 125 °C
> 1 kΩ: MIL-STD-202, 108, 1000 h at 125 °C
JESD22, JA-104, 1000 cycles at -55 °C to +125 °C
MIL-STD-202, 106
MIL-STD-202, 103, 1000 h at 85 °C, 85 % RH, 10 % P
< 1 kΩ: MIL-STD-202, 108 at 125 °C, 1000 h
> 1 kΩ: MIL-STD-202, 108 at 125 °C, 1000 h
MIL-STD-202, 213, condition C
MIL-STD-204, 10 Hz to 2 kHz
MIL-STD-202, 210, condition B
< 1 kΩ: AEC-Q200-002 at 500 V human body
> 1 kΩ: AEC-Q200-002 at 1000 V human body
J-STD-002 method B and B1
AEC-Q200-006 at 1 kg for 60 s
AEC-Q200-001 para 4.0
SUGGESTED
PRODUCT
LIMITS
ABS/RATIO
± 0.5 %/± 0.5 %
± 0.25 %/± 0.1 %
± 0.25 %/± 0.1 %
± 0.25 %/± 0.1 %
± 1.0 %/± 0.5 %
± 0.5 %/± 0.5 %
± 0.5 %/± 0.1 %
± 0.25 %/± 0.1 %
± 0.25 %/± 0.1 %
± 0.25 %/± 0.1 %
± 0.5 %
± 0.5 %
Visual
± 0.25 %/± 0.1 %
Visual
MAX. VALUES
ABS/RATIO
± 0.35 %/± 0.35 %
± 0.02 %/± 0.008 %
± 0.1%/± 0.027 %
± 0.03%/± 0.012 %
± 0.4 %/± 0.34 %
± 0.35 %/± 0.35 %
± 0.04 %/± 0.03 %
± 0.03 %/± 0.018 %
± 0.02 %/± 0.047 %
± 0.13 %/± 0.24 %
± 0.50 %
± 0.25 %
Visual
± 0.02 %/± 0.018 %
Visual
High Temperature Exposure
Temperature Cycling
Moisture Resistance
Biased Humidity
Life
Mechanical Shock
Vibration
Resistance to Soldering Heat
Electrostatic Discharge
Solderability
Terminal Strength
Flame Retardance
Revision: 03-Nov-15
Document Number: 60113
2
For technical questions, contact:
thinfilm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MPMA (Divider)
www.vishay.com
Vishay Dale Thin Film
GLOBAL PART NUMBER INFORMATION
New Global Part Numbering: MPMA1003AWS
M
M
P
P
M
M
A
A
1
1
0
0
0
0
1
3
5
0
0
1
A
A
T
T
1
1
GLOBAL MODEL
(3 or 4 digits)
MPMA
Ni/Pd/Au = e4
termination
RESISTANCE
(4 or 8 digits)
First 3 digits are significant figures
and the last digit specifies the
number of zeros to follow. When
like values are required use total
resistance. When dual values are
required list both values.
Example:
(List R
1
first in part number with dual
values)
1002
= 10K (5K/5K)
1003
= 100K (50K/50K)
10011002
= 1K/10K divider
TOLERANCE AND
RATIO TOLERANCE
Abs. Tol.
A
= 0.1 %
B
= 0.1 %
C
= 0.25 %
D
= 0.5 %
F
=1%
Ratio
0.05 %
0.1 %
0.1 %
0.1 %
0.5 %
PACKAGING
TAPE AND REEL
T1
= 1000 min., 1000 mult
(1)
T5
= 500 min., 500 mult
TF
= Full reel 4000
TP
= 100 min., 1 mult
(package unit single lot date
code)
TS
= 100 min., 1 mult
Note
(1)
Preferred packaging code
Revision: 03-Nov-15
Document Number: 60113
3
For technical questions, contact:
thinfilm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
