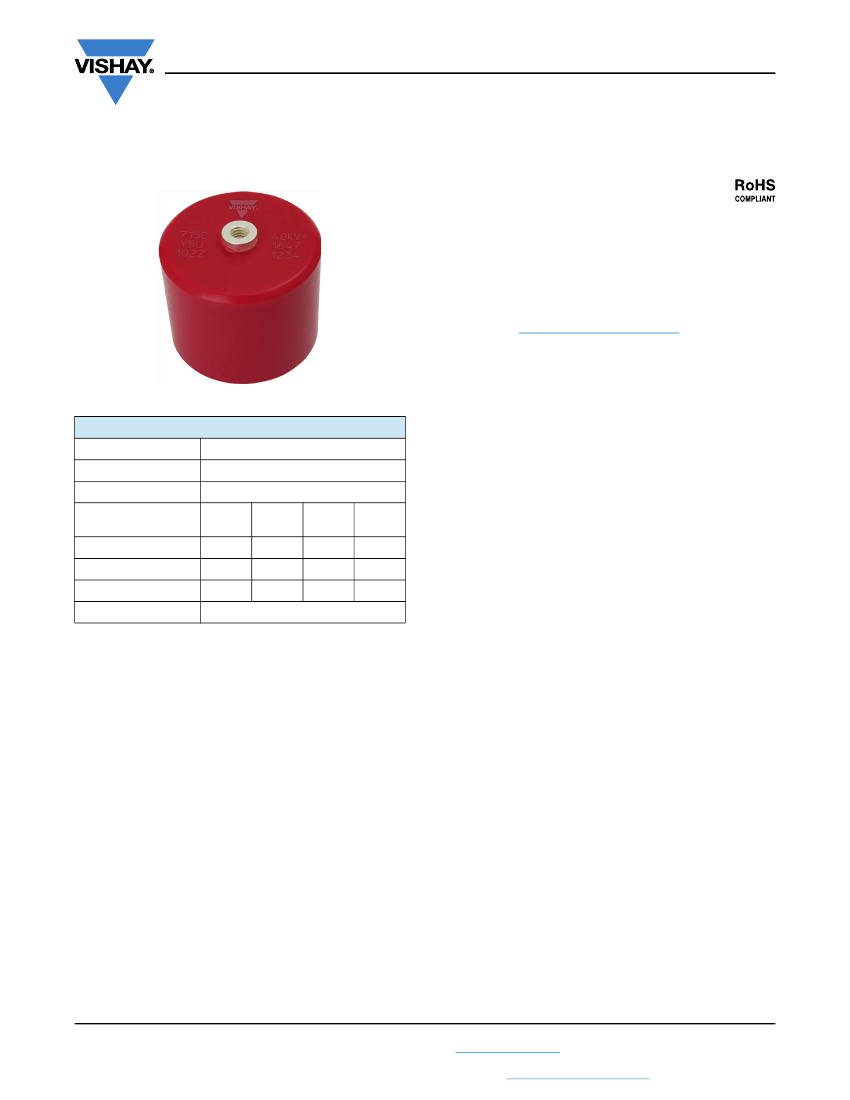

715C..DK...
www.vishay.com
Vishay Cera-Mite
High Voltage Class 2 Ceramic DC Disc Capacitors,
Screw Terminal Mounting, 15 kV
DC
to 40 kV
DC
FEATURES
•
•
•
•
•
•
Class 2 ceramic (Y5U)
Low inductance
High insulation resistance
Epoxy coating
Screw terminal mounting
Ceramic singlelayer capacitor
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
APPLICATIONS
•
•
•
•
•
High voltage power supplies
CO
2
lasers
X-ray equipment
Welding equipment
Industrial
QUICK REFERENCE DATA
DESCRIPTION
Ceramic Class
Ceramic Dielectric
Type
Voltage (V
DC
)
Min. Capacitance (pF)
Max. Capacitance (pF)
Mounting
715C15
DK###
15 000
1500
10 000
VALUE
2
Y5U
715C20
DK###
20 000
500
6800
715C30
DK###
30 000
500
4700
715C40
DK###
40 000
300
3300
CAPACITANCE RANGE
100 pF to 10 nF
(1)
RATED VOLTAGE
•
•
•
•
Screw terminal
15 kV
DC
(5.3 kV
RMS
)
20 kV
DC
(7.0 kV
RMS
)
30 kV
DC
(10.6 kV
RMS
)
40 kV
DC
(14.0 kV
RMS
)
Note
(1)
All kV
RMS
up to 60 Hz
DIELECTRIC STRENGTH
150 % of rated voltage, charging current limited to 50 mA.
CERAMIC DIELECTRIC
Y5U (Class 2)
DISSIPATION FACTOR tan
20 x 10
-3
(1 kHz)
MATERIAL
Capacitor elements made from class 2 ceramic in a molded
epoxy case. Screw terminals: brass, silver plated.
INSULATION RESISTANCE
Min. 200 000 M or 1000
F
min. at 25 °C.
MARKING
Type designator, capacitance value, rated DC voltage,
ceramic material code, production date code, Cera-mite
logo.
CORONA LIMIT
< 5 pC at 50 % rated AC voltage.
OPERATING TEMPERATURE RANGE
-30 °C to +85 °C
POWER DISSIPATION
Limit to 25 °C rise above ambient, measured on case.
CAPACITANCE TOLERANCES
-20 % to +80 %
Revision: 19-Jan-17
Document Number: 22168
1
For technical questions, contact:
powcap@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
715C..DK...
www.vishay.com
DIMENSIONS
8-32NC-2B tapped holes
H
max.
Vishay Cera-Mite
Notes
• Screw torque limit must be 12 inch pounds. Use #8-32, 3/16" long screw to prevent bottoming
• M5 metric terminals available on request, consult factory
ORDERING INFORMATION
715C15DKD20
MODEL
15 kV
DC
RATED VOLTAGE
2000 pF
CAPACITANCE VALUE
-20 % TO +80 %
TOLERANCE
Y5U
CERAMIC
SAP PART NUMBER, ELECTRICAL, AND DIMENSIONAL DATA
in millimeters (inches)
MODEL
715C15DK###
715C15DKD15
715C15DKD20
715C15DKD33
715C15DKD47
715C15DKS10
715C20DK###
715C20DKT50
715C20DKD10
715C20DKD13
715C20DKD25
715C20DKD33
715C20DKD47
715C20DKD68
715C30DK###
715C30DKT50
715C30DKD10
715C30DKD25
715C30DKD33
715C30DKD47
715C40DK###
715C40DKT30
715C40DKT50
715C40DKT78
715C40DKD10
715C40DKD16
715C40DKD25
715C40DKD33
Y5U
300
500
780
1000
1600
2500
3300
40
14.0
22.4 (0.88)
26.7 (1.05)
33.0 (1.30)
39.4 (1.55)
45.7 (1.80)
54.1 (2.13)
58.4 (2.30)
34.5 (1.36)
Y5U
500
1000
2500
3300
4700
30
10.6
26.7 (1.05)
33.0 (1.30)
45.7 (1.80)
54.1 (2.13)
61.5 (2.42)
30.0 (1.18)
34.5 (1.36)
Y5U
500
1000
1300
2500
3300
4700
6800
20
7.0
22.4 (0.88)
31.8 (1.25)
33.0 (1.30)
39.4 (1.55)
45.7 (1.80)
54.1 (2.13)
61.5 (2.42)
25.4 (1.00)
Y5U
1500
2000
3300
4700
10 000
15
5.3
26.7 (1.05)
33.0 (1.30)
39.4 (1.55)
33.0 (1.30)
45.7 (1.80)
22.9 (0.90)
CERAMIC
CAPACITANCE
VALUES
(pF)
RATED
VOLTAGE
(kV
DC
)
RATED
VOLTAGE
(kV
RMS
)
D
max.
H
max.
Revision: 19-Jan-17
Document Number: 22168
2
For technical questions, contact:
powcap@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
