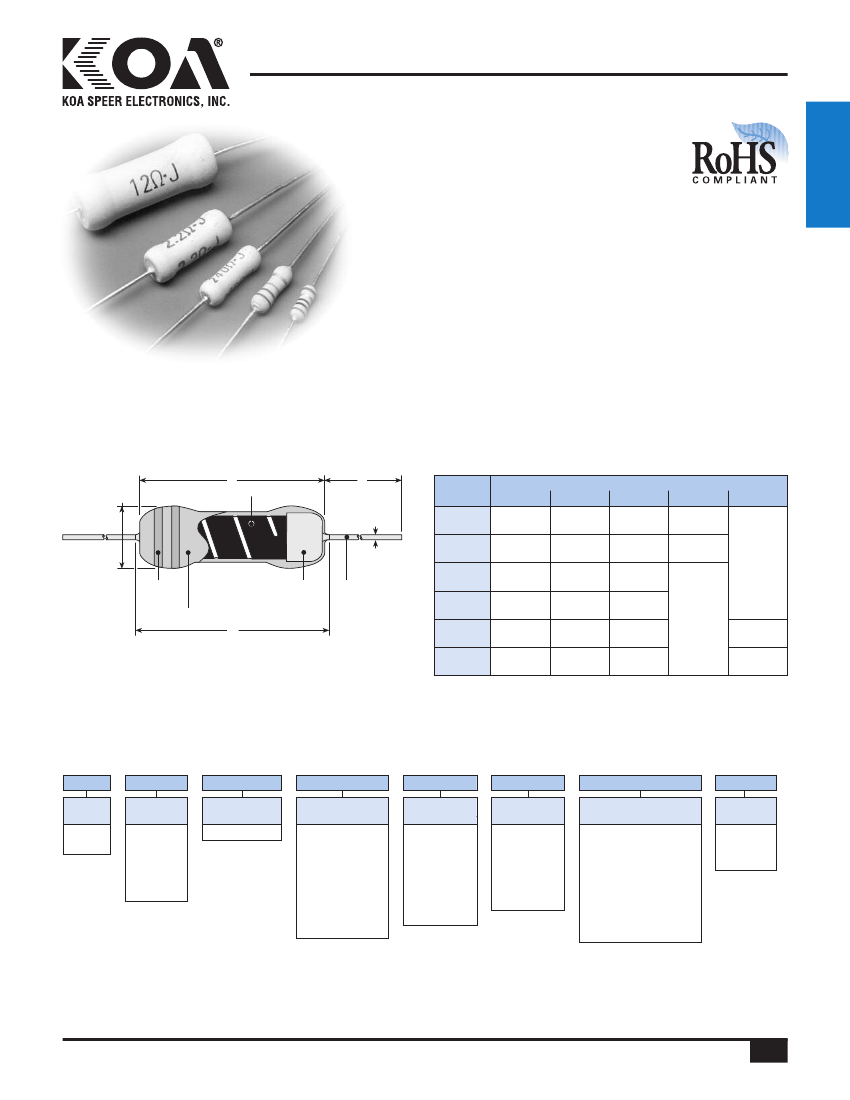

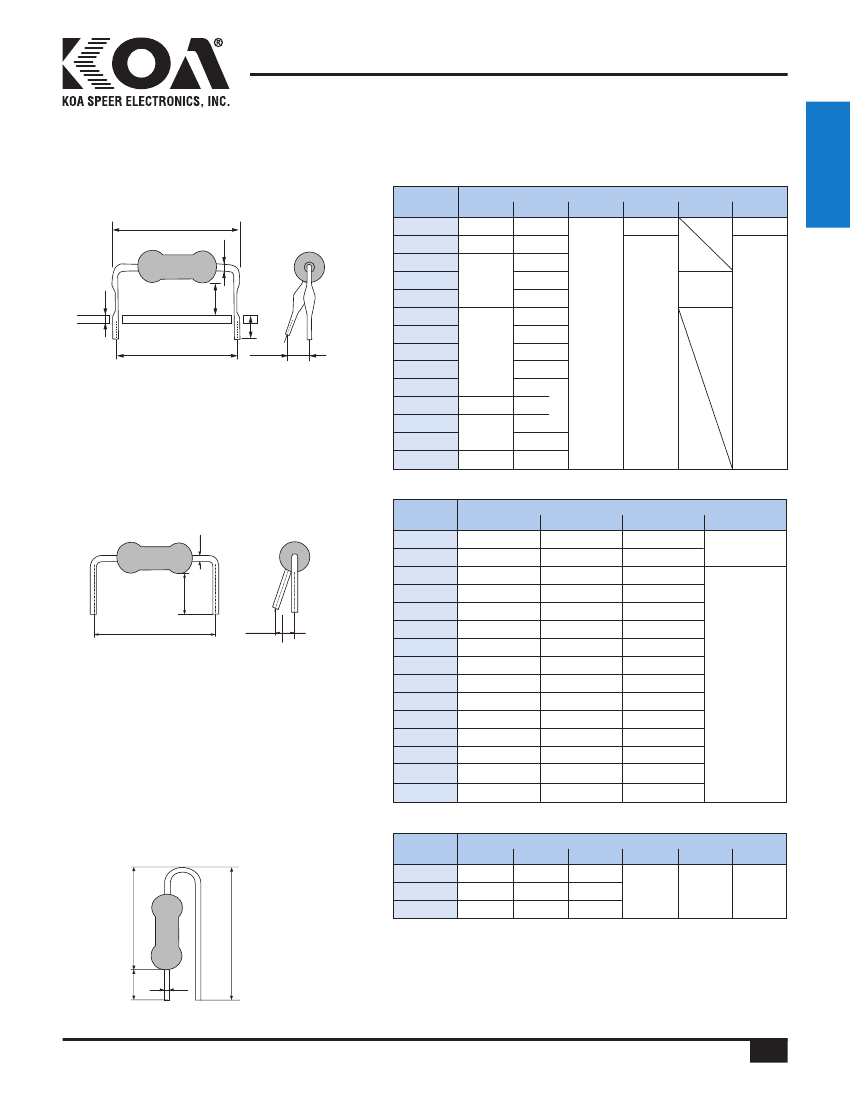

MOS
reduced size metal oxide power type
leaded resistor
features
•
Small size power type resistor
•
Coated with UL94V0 equivalent
flameproof material
•
Suitable for automatic machine insertion
•
Products with lead-free terminations meet EU RoHS
and China RoHS requirements
•
Surface mount style “N” forming is suitable for
automatic mounting
resistors
EU
dimensions and construction
D
L
Ceramic Body
l
Type
d
MOS1/2
MOSX1/2
MOS1
MOSX1
Marking
Flame Retardant Coating
C
End
Cap
Lead
Wire
MOS1
MOSX1
MOS2
MOSX2
MOS3
MOSX3
MOS5
MOSX5
L
.244±.02
(6.2±0.5)
.244±.02
(6.2±0.5)
.354±.039
(9.0±1.0)
.472±.039
(12.0±1.0)
.610±.039
(15.5±1.0)
.965±.039
(24.5±1.0)
Dimensions
inches
(mm)
C (max.)
D
d (nom.)
.280
(7.1)
.280
(7.1)
.437
(11.1)
.591
(15.0)
.709
(18.0)
1.10
(28.0)
.098±.02
(2.5±0.5)
.098±.02
(2.5±0.5)
.118±.02
(3.0±0.5)
.157±.02
(4.0±0.5)
.236±.039
(6.0±1.0)
.354±.039
(9.0±1.0)
.031
(0.8)
.024
(0.6)
.024
(0.6)
.945 Min.
(24.0 Min.)
l*
1.18±.118
(30.0±3.0)
1.50±.118
(38.0±3.0)
* Lead length changes depending on taping and forming type.
ordering information
MOS
Type
MOS
MOSX
1
Power
Rating
1/2: 0.5W
1: 1W
2: 2W
3: 3W
5: 5W
C
Termination
Material
C: SnCu
T52
Taping and
Forming
Axial: T26, T52,
T521, T631
Stand-off Axial:
L52, L521, L631
Radial: VTP, VTE,
GT, GT4, VTF
L, U, M, N
Forming
8
Lead
Diameter
MOS(X)1
only:
Blank:
0.6mm
8: 0.8mm
Blank: All
others
A
Packaging
A: Ammo
R: Reel
TEB, TEG:
Plastic
embossed
(N forming)
103
Nominal
Resistance
±2%, ±5%:
2 significant figures
+ 1 multiplier “R”
indicates decimal
on value <10Ω
±1%: 3 significant
figures + 1 multiplier
“R” indicates decimal
on value <100Ω
J
Tolerance
F: ±1%
G: ±2%
J: ±5%
For further information
on packaging, please
refer to Appendix C.
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
11/21/17
KOA Speer Electronics, Inc.
• 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
197
MOS
reduced size metal oxide power type
leaded resistor
resistors
applications and ratings
Part
Designation
MOS1/2
MOS1
MOS2
MOS3
MOS5
MOSX1/2
MOSX1
MOSX2
MOSX3
MOSX5
Power
Rating
@ 70°C
0.5W
1.0W
2.0W
3.0W
5.0W
0.5W
1.0W
2.0W
3.0W
5.0W
Minimum
Dielectric
Withstanding
Voltage
400V
500V
700V
800V
400V
500V
700V
800V
±300
0.1Ω - 9.1Ω
0.1Ω - 9.1Ω
0.1Ω - 9.1Ω
—
0.22Ω - 9.1Ω
E =
√
P x R
E x 2.5
T.C.R.
(ppm/°C)
Max.
Resistance Range
E-24, E-96*
(F±1%)
10Ω - 47kΩ
10Ω - 68kΩ
10Ω - 100kΩ
—
10Ω - 100kΩ
10Ω - 100kΩ
350V
500V
E-24*
(G±2%)
10Ω - 47kΩ
10Ω - 68kΩ
E-24
(J±5%)
10Ω - 47kΩ
Absolute
Maximum
Working
Voltage
E =
√
P x R
Absolute
Maximum
Overload
Voltage
600V
700V
1000V
-55°C
to
+200°C
Operating
Temperature
Range
* Please consult when there is a demand of the resistance besides the 1% and 2% range.
environmental applications
Derating Curve
100
Surface Temperature Rise
250
Temperature Rise (°C)
200
150
100
50
0
5W (L35A)
3W (L20A)
2W (L15A)
1W (L12.5A)
0.5W (L10A)
80
% Rated Power
60
40
20
0
-60 -40 -20 0 20 40 60 80 100 120 140 160 180 200 220 240
-55
70
235
Ambient Temperature
(°C)
0
25
50
75
100
125
% Rated Power
For resistors operated at an ambient temperature of 70°C or above, a
power rating shall be derated in accordance with the above derating curve.
Performance Characteristics
Parameter
Resistance
T.C.R.
Overload (Short time)
Resistance to Solder Heat
Terminal Strength
Rapid Change of Temperature
Moisture Resistance
Endurance at 70°C
Resistance to Solvent
Requirement
∆
R ±(% + 0.05Ω)
Limit
Typical
Within specified
—
tolerance
Within specified
—
T.C.R.
±(2% +0.1Ω)
±1%
±1%
±0.5%
No lead-coming off
and loose terminals
Test Method
Measuring points are at 10mm ±1mm from the end cap.
+25°C/+125°C
Rated voltage x 2.5 for 5 seconds
260°C ±5°C, 10 seconds ± 1 second
Twist 360°C, 5 times
-55°C (30 minutes), +155°C (30 minutes), 5 cycles
40°C ± 2°C, 90 - 95% RH, 1000 hours, 1.5 hr ON, 0.5 hr OFF cycle
70°C ± 2°C, 1000 hours, 1.5 hr ON, 0.5 hr OFF cycle
Ultrasonic washing with isopropyl alcohol for 2 minutes.
Power: 0.3W/cm
3
, f: 28kHz, Temp: 35°C ±5°C
Flame test: the test flame shall be applied and removed for each 15 seconds respectively
to repeat the cycle 5 times. Overload flame retardant: power (AC) corresponding to 2, 4,
8, 16 and 32 times the power rating shall be applied for each 1 minute until disconnection
occurs. However the applied voltage shall not exceed the value of 4 times of the
maximum operating voltage
12/19/17
—
±0.5%
±2.5%
±2.5%
—
±1%
±(5%+0.1Ω)
±(5%+0.1Ω)
No abnormality in
appearance. Marking
shall be easily legible
Flame Retardant
No evidence of
flaming or
self-flaming
—
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
198
KOA Speer Electronics, Inc.
• 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
MOS
reduced size metal oxide power type
leaded resistor
secondary processed products
L Forming
Type
L
d
P
10.0±1.0
12.5±1.0
15.0±1.0
H1
5.3±1.0
7.0±1.0
6.5±1.0
7.0±1.0
4.5±1.0
9.0±1.0
4.8±1.0
Dimensions
millimeters
Substrate
H2
d (Nom.) L max. Hole Dia.
0.6
ø0.8
1/2CL10A
1CL12.5A
1CL15A
2CL15A
H1
1.6t
2CL15F
2CL20A
H2
17.5
2CL20D
3CL20A
3CL20C
3CL20T
3CL25A
3CL30A
5CL30A
5CL35A
35.0±1.0
25.0±1.0
30.0±1.0
20.0±1.0
P
2max.
8.0±1.0
10.0±1.0
4.0±1.0
7.0±1.0
7.0±1.0
8.5±1.0
5.5±1.0
4.0
0.8
ø1.0
M Forming
Type
d
P
10.0±1.0
10.0±1.0
12.5±1.0
12.5±1.0
15.0±1.0
15.0±1.0
15.0±1.0
15.0±1.0
15.0±1.0
16.0±1.0
20.0±1.0
20.0±1.0
20.0±1.0
26.0±1.0
30.0±1.0
Dimensions
millimeters
H
d (Nom.)
3.5±1.0
5.0±1.0
3.5±1.0
4.0±1.0
5.0±1.0
6.3±1.0
11.0±1.0
3.5±1.0
4.5±1.0
4.0±1.0
4.0±1.0
13.5±1.0
4.6±1.0
4.7±1.0
13.0±1.0
0.6
0.6
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
Substrate Hole
Dia.
ø0.8
1/2CM10C
1/2CM10F
1CM12.5C
1CM12.5D
1CM15F
2Max
H
P
1CM15J
1CM15S
2CM15C
2CM15E
2CM16D
2CM20D
2CM20U
3CM20E
3CM26E
5CM30U
ø1.0
UCL Forming
Type
1CUCL
2CUCL
H1
H1
Dimensions
millimeters
Insertion Substrate
H2
H3
d (Nom.)
Hole Dia.
Pitch
3.5±1.0
3.5±1.0
4.0±1.0
0.8
5.0
ø1.0
13.0±1.0 17.0 max.
14.5±1.0 18.5 max.
20.0 max. 22.0±1.0
3CUCL
H2
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
H3
φd
11/21/17
KOA Speer Electronics, Inc.
• 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
199
resistors
MOS
reduced size metal oxide power type
leaded resistor
resistors
secondary processed products
(continued)

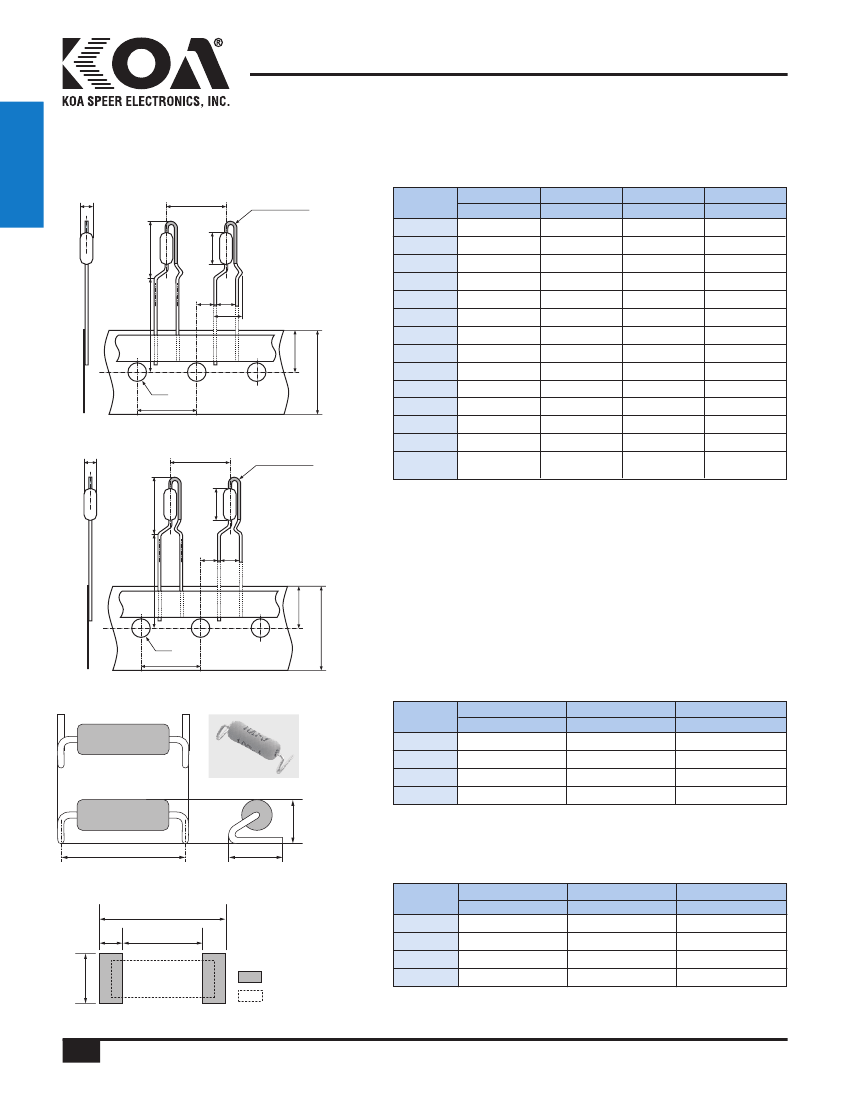

VTF Radial Taping
φD
P
Insulated Lead
Type
A
øD
d (Nom.)
F
1/2C
VTP
6.2±0.5
2.5±0.5
0.6
5.0±0.5
––
13 max.
16.0+1.0/-0
12.7±1.0
12.7±0.3
3.85±0.7
18.0±0.5
9.0±0.5
4.0±0.2
ø0.8
1C
VTP
9.0±1.0
3.0±0.5
0.6
5.0±0.5
––
16 max.
16.0+1.0/-0
12.7±1.0
12.7±0.3
3.85±0.7
18.0±0.5
9.0±0.5
4.0±0.2
ø0.8
2C
VTP
12.0±1.0
4.0±0.5
0.65
5.0±0.5
––
22.5 max.
16.0+1.0/-0
12.7±1.0
12.7±0.3
3.85±0.7
18.0±0.5
9.0±0.5
4.0±0.2
ø0.8
2C
VTF
12.0±1.0
4.0±0.5
0.8
5.0±0.5
7.3 max.
22.5 max.
16.0+1.0/-0
12.7±1.0
12.7±0.3
3.85±0.7
18.0±0.5
9.0±0.5
4.0±0.2
ø1.0
H
A
P
1
H
0
F
F
1
F1
H
H0
W
1
W
P
P0
P1
W
W1
øD0
φD
0
P
0
VTP Radial Taping
φD
P
Insulated Lead
Substrate
Hole Dia.
H
A
P
1
H
0
F
W
1
W
φD
0
P
0
N Forming
Type
P±1
T±0.5
A±0.5
d (Nom.)
A
1C
N14.5TEB
14.5
5.0
4.8
0.8
2C
N17TEB
17.0
6.0
5.8
0.8
3C
N20TEG
20.0
7.5±1.0
6.5
0.8
P
T
UCL Forming
B
Type
A
B
C
Solder pad
Component
1C
N14.5TEB
12.5
16.5
7.0
2.0
2C
N17TEB
14.6
19.4
8.0
2.4
3C
N20TEG
17.6
22.4
9.5
2.4
D
A
D
C
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
11/09/15
200
KOA Speer Electronics, Inc.
• 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
