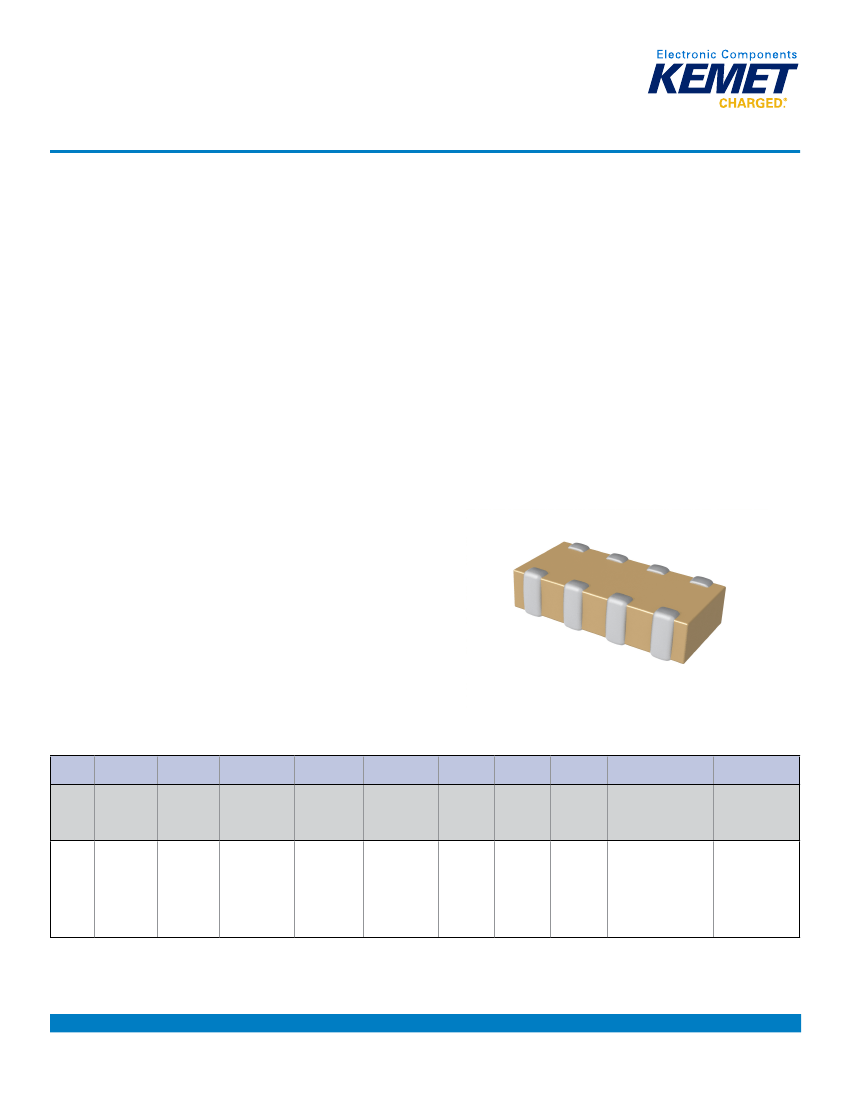

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
Capacitor Array, C0G Dielectric, 10 – 200 VDC
(Commercial & Automotive Grade)
Overview
KEMET’s Ceramic Chip Capacitor Array in C0G dielectric is
an advanced passive technology, where multiple capacitor
elements are integrated into one common monolithic
structure. Array technology promotes reduced placement
costs and increased throughput. This is achieved by
alternatively placing one device rather than two or four
discrete devices. Use of capacitor arrays also saves board
space, which translates into increased board density and
more functions per board. Arrays consume only a portion
of the space required for standard chips, resulting in
savings in inventory and pick/place machine positions.
For added reliability, KEMET's Flexible Termination
technology has been incorporated in order to provide
superior flex performance. This technology was developed
to address flex cracks, which are the primary failure mode
of MLCCs and typically the result of excessive tensile
and shear stresses produced during board flexure and
thermal cycling. Flexible Termination technology inhibits
the transfer of board stress to the rigid body of the MLCC,
therefore mitigating flex cracks which can result in low IR
or short circuit failures.
KEMET’s C0G dielectric features a 125°C maximum
operating temperature and is considered “stable." The
Electronics Industries Alliance (EIA) characterizes C0G
dielectric as a Class I material. Components of this
classification are temperature compensating and are suited
for resonant circuit applications or those where Q and
stability of capacitance characteristics are required. C0G
exhibits no change in capacitance with respect to time and
voltage and boasts a negligible change in capacitance with
reference to ambient temperature. Capacitance change is
limited to ±30 ppm/°C from −55°C to +125°C.
KEMET automotive grade array capacitors meet the
demanding Automotive Electronics Council's AEC-Q200
qualification requirements.
Ordering Information
CA
06
4
X
104
K
4
Rated
Voltage
(VDC)
8 = 10
4 = 16
3 = 25
5 = 50
1 = 100
2 = 200
Click image above for interactive 3D content
Open PDF in Adobe Reader for full functionality
G
Dielectric
G = C0G
A
Failure
Rate/
Design
A = N/A
C
Termination Finish
2
C = 100% Matte Sn
L = SnPb
(5% minimum Pb
content)
TU
Packaging/
Grade (C-Spec)
See
"Packaging
C-Spec
Ordering
Options Table"
below
Ceramic
Case Size
Number of
Specification/
Capacitance Capacitance
Series
Code (pF)
Tolerance
Array
(L" x W")
1
Capacitors
06 = 0612
4=4
X = Flexible
Termination
Two
significant
digits +
number of
zeros
J = ±5%
K = ±10%
M = ±20%
All previous reference to metric case dimension "1632" has been replaced with an inch standard reference of "0612". Please reference all new designs
using the "0612" nomenclature. "CA064" replaces "C1632" in the ordering code.
2
Additional termination finish options may be available. Contact KEMET for details.
2
SnPb termination finish option is not available on automotive grade product.
1
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
C1016_C0G_ARRAY_SMD • 11/29/2017
1
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
Capacitor Array, C0G Dielectric, 10 – 200 VDC, (Commercial & Automotive Grade)
Packaging C-Spec Ordering Options Table
Packaging Type
Commercial Grade
1
Bulk Bag
7" Reel/Unmarked
13" Reel (Embossed Plastic Tape)/Unmarked
Not Required (Blank)
TU
7210
AUTO
AUTO7210
Packaging/Grade
Ordering Code (C-Spec)
Automotive Grade
2
7" Reel
13" Reel/Embossed Plastic/Unmarked
1
1
Default packaging is "Bulk Bag". An ordering code C-Spec is not required for "Bulk Bag" packaging.
The terms "Marked" and "Unmarked" pertain to laser marking option of capacitors. All packaging options labeled as "Unmarked" will contain
capacitors that have not been laser marked. The option to laser mark is not available on these devices. For more information see "Capacitor Marking".
2
Reeling tape options (Paper or Plastic) are dependent on capacitor case size (L" x W") and thickness dimension. See "Chip Thickness/Tape & Reel
Packaging Quantities" and "Tape & Reel Packaging Information".
2
For additional Information regarding "AUTO" C-Spec options, see "Automotive C-Spec Information".
2
All Automotive packaging C-Specs listed exclude the option to laser mark components. The option to laser mark is not available on these devices. For
more information see "Capacitor Marking".
Benefits
•
•
•
•
•
•
•
−55°C to +125°C operating temperature range
Superior flex performance (up to 5 mm)
Saves both circuit board and inventory space
Reduces placement costs and increases throughput
Lead (Pb)-free, RoHS and REACH compliant
0612 (4-element) case size
DC voltage ratings of 10 V, 16 V, 25 V, 50 V, 100 V,
and 200 V
•
•
•
•
Capacitance offerings ranging from 10 to 470 pF
Available capacitance tolerances of ±5%, ±10%, and ±20%
Non-polar device, minimizing installation concerns
100% pure matte tin-plated termination finish allowing for
excellent solderability
• SnPb termination finish option available upon request
(5% Pb minimum)
• Commercial and Automotive (AEC-Q200) grades available
Applications
Typical applications include those that can benefit from board area savings, cost savings, and overall volumetric reduction
such as telecommunications, computers, handheld devices and automotive. Flexible termination technology benefits
applications subject to high levels of board flexure or temperature cycling.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
C1016_C0G_ARRAY_SMD • 11/29/2017
2
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
Capacitor Array, C0G Dielectric, 10 – 200 VDC, (Commercial & Automotive Grade)
Automotive C-Spec Information
KEMET Automotive Grade products meet or exceed the requirements outlined by the Automotive Electronics Council.
Details regarding test methods and conditions are referenced in document AEC–Q200, Stress Test Qualification for Passive
Components. These products are supported by a Product Change Notification (PCN) and Production Part Approval Process
warrant (PPAP).
Automotive products offered through our distribution channel have been assigned an inclusive ordering code C-Spec, “AUTO.”
This C-Spec was developed in order to better serve small and medium-sized companies that prefer an automotive grade
component without the requirement to submit a customer Source Controlled Drawing (SCD) or specification for review by a
KEMET engineering specialist. This C-Spec is therefore not intended for use by KEMET’s OEM Automotive customers and are
not granted the same “privileges” as other automotive C-Specs. Customer PCN approval and PPAP request levels are limited
(see details below).
Product Change Notification (PCN)
The KEMET Product Change Notification system is used to communicate primarily the following types of changes:
• Product/process changes that affect product form, fit, function, and/or reliability
• Changes in manufacturing site
• Product obsolescence
KEMET Automotive
C-Spec
KEMET assigned
1
AUTO
1
Customer Notification due to:
Process/Product change
Yes (with approval and sign off)
Yes (without approval)
Obsolescence*
Yes
Yes
Days prior to
implementation
180 days minimum
90 days minimum
KEMET assigned C-Specs require the submittal of a customer SCD or customer specification for review. For additional information contact KEMET.
Production Part Approval Process (PPAP)
The purpose of the Production Part Approval Process is:
• To ensure that supplier can meet the manufacturability and quality requirements for the purchased parts.
• To provide the evidence that all customer engineering design record and specification requirements are properly
understood and fulfilled by the manufacturing organization.
• To demonstrate that the established manufacturing process has the potential to produce the part.
KEMET Automotive
C-Spec
KEMET assigned
1
AUTO
1
PPAP (Product Part Approval Process) Level
1
●
○
2
●
3
●
○
4
●
5
●
KEMET assigned C-Specs require the submittal of a customer SCD or customer specification for review. For additional information contact KEMET.
●
Part number specific PPAP available
○
Product family PPAP only
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
C1016_C0G_ARRAY_SMD • 11/29/2017
3
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
Capacitor Array, C0G Dielectric, 10 – 200 VDC, (Commercial & Automotive Grade)
Dimensions – Millimeters (Inches)
0612 (4-CAP)
Top View
Profile View
BW
L
P
P Ref
BL
CL
W
T
EIA Size
Code
0612
Metric Size
Code
1632
L
Length
1.60 (0.063)
±0.20 (0.008)
W
Width
3.20 (0.126)
±0.20 (0.008)
BW
Bandwidth
0.40 (0.016)
±0.20 (0.008)
BL
Bandlength
T
Thickness
P
Pitch
0.80 (0.031)
±0.10 (0.004)
P
Reference
0.40 (0.016)
±0.05 (0.002)
0.30 (0.012)
See Table 2 for
±0.20 (0.008)
Thickness
Qualification/Certification
Commercial Grade products are subject to internal qualification. Details regarding test methods and conditions are
referenced in Table 4, Performance & Reliability.
Automotive Grade products meet or exceed the requirements outlined by the Automotive Electronics Council. Details
regarding test methods and conditions are referenced in document AEC-Q200, Stress Test Qualification for Passive
Components. For additional information regarding the Automotive Electronics Council and AEC-Q200, please visit their
website at www.aecouncil.com.
Environmental Compliance
Lead (Pb)-free, RoHS, and REACH compliant without exemptions (excluding SnPb termination finish option).
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
C1016_C0G_ARRAY_SMD • 11/29/2017
4
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
Capacitor Array, C0G Dielectric, 10 – 200 VDC, (Commercial & Automotive Grade)
Electrical Parameters/Characteristics
Item
Operating Temperature Range
Capacitance Change with Reference to
+25°C and 0 VDC Applied (TCC)
Aging Rate (Maximum % Capacitance Loss/Decade Hour)
1
Parameters/Characteristics
−55°C to +125°C
±30 ppm/°C
0%
250% of rated voltage
(5 ±1 seconds and charge/discharge not exceeding 50 mA)
0.1%
1,000 megohm microfarads or 100 GΩ
(Rated voltage applied for 120 ±5 seconds at 25°C)
Dielectric Withstanding Voltage (DWV)
2
Dissipation Factor (DF) Maximum Limit at 25°C
3
Insulation Resistance (IR) Limit at 25°C
DWV is the voltage a capacitor can withstand (survive) for a short period of time. It exceeds the nominal and continuous working voltage of the
capacitor.
2
Capacitance and dissipation factor (DF) measured under the following conditions:
1 MHz ±100 kHz and 1.0 Vrms ±0.2 V if capacitance ≤ 1,000 pF
1 kHz ±50 Hz and 1.0 Vrms ±0.2 V if capacitance > 1,000 pF
3
To obtain IR limit, divide MΩ-µF value by the capacitance and compare to GΩ limit. Select the lower of the two limits.
Capacitance and Dissipation Factor (DF) measured under the following conditions:
Note: When measuring capacitance it is important to ensure the set voltage level is held constant. The HP4284 and Agilent E4980 have a feature known
as Automatic Level Control (ALC). The ALC feature should be switched to "ON."
1
Post Environmental Limits
High Temperature Life, Biased Humidity, Moisture Resistance
Dielectric
C0G
Rated DC
Voltage
All
Capacitance
Value
All
Dissipation Factor
(Maximum %)
0.5
Capacitance
Shift
0.3% or ±0.25 pF
Insulation
Resistance
10% of Initial
Limit
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
C1016_C0G_ARRAY_SMD • 11/29/2017
