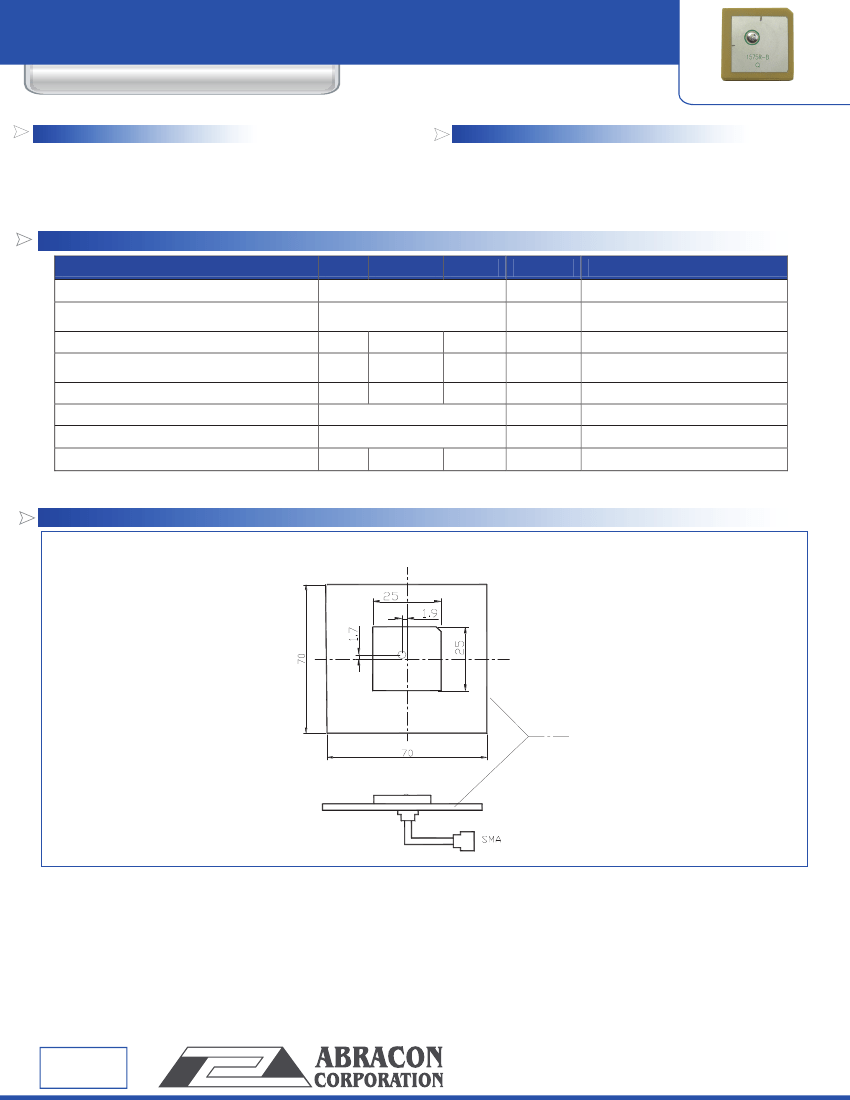

1575.42MHZ; 25 x 25 x4mm GPS Patch Antenna
APAE1575R2540BBDB1-T
MSL level: Not Applicable
FEATURES:
• High Gain
• Compact Size and Low Profile
• Pin type
• Customization Available
• RoHS Compliance
RoHS/ RoHS II compliant
25.0 x 25.0 x 4.0mm
| | | | | | | | | | | | | | |
TYPICAL APPLICATIONS:
Automotive navigation, Marine buoys,
Surveying equipment, Cell phone, Laptop,
Healthcare and medical monitoring devices, PND, PDA
STANDARD SPECIFICATIONS:
Parameters
Receiving Frequency Range
Center
Frequency @ -10dB
bandwidth
(*)
-10dB
Bandwidth
Gain
(Zenith@ 90˚)
VSWR
at Center
Frequency
Impedance
Polarization Model
Frequency
Temperature
Coefficient
(*)
Min.
Typ.
1580.0±3.0
Max.
Units
MHz
MHz
MHz
dBic
Note
(with
adhesive tape on
70x70mm
ground plane)
(Peak
gain on standardized Ground
Plane.)
1575.42±1.023
15
4.5
1.5
50
RHCP
20
Ω
(Right Hand Circular Polarization)
ppm/°C
Application environment, including size of ground plane will affect stated performance.
Fine
tuning might be required when installed on customer’s PCB.
TEST CONDITIONS & TEST SETUP:
Parts shall be measured under a condition
(Temp.: 20±15°C,
Humidity:
65±20%
R.H.)
GROUND
ABRACON IS
ISO9001:2008
CERTIFIED
CERTIFIED
30332 Esperanza,
Rancho Santa
Margarita,
California
92688
tel
949-546-8000
|
fax
949-546-8001
|
www.abracon.com
Visit
www.abracon.com for
Terms & Conditions of Sale
Revised
11.14.13

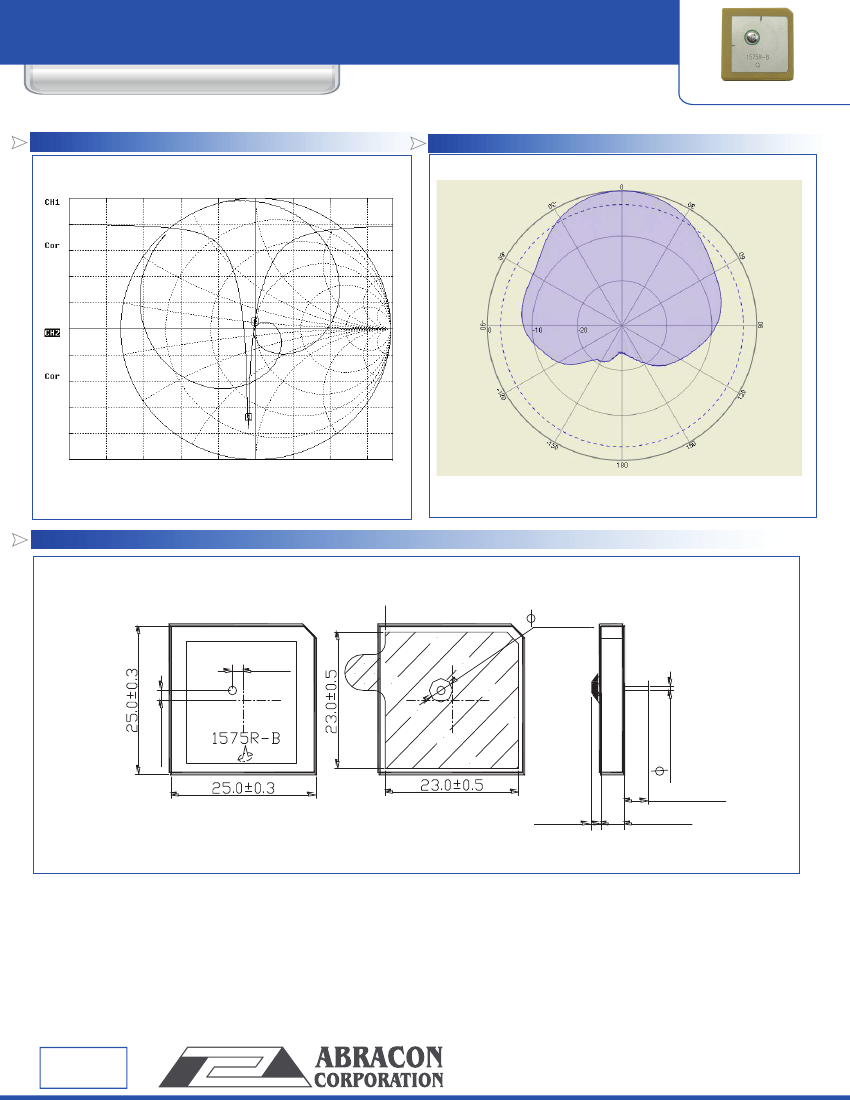

1575.42MHZ; 25 x 25 x4mm GPS Patch Antenna
APAE1575R2540BBDB1-T

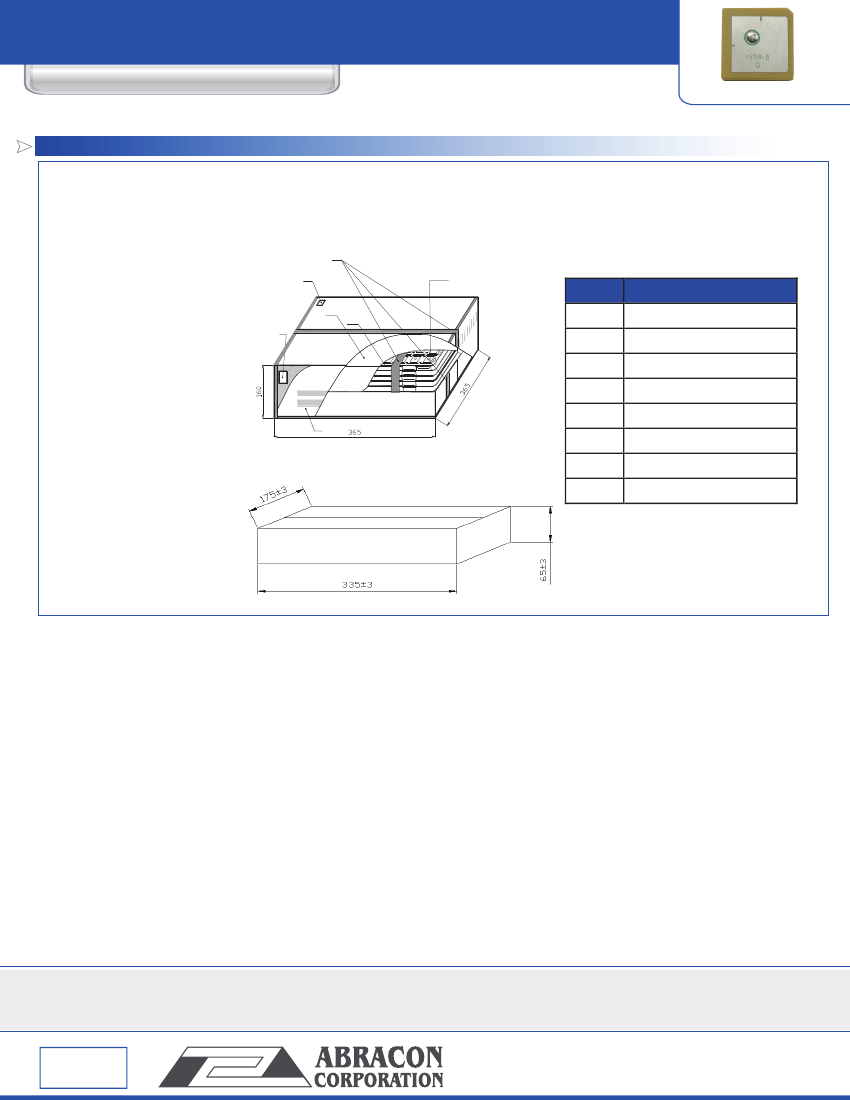

PACKAGING:
“T”
is for a vacuum sealed tray containing 50 units.
1000 pieces is the suggested quantity containing
20-trays
with
50-pcs
per
Tray.
NOTE: This product is vacuum packaged to reduce the possibility of oxidation and/or contamination
during storage.
8
5
3,6
RoHS/ RoHS II compliant
25.0 x 25.0 x 4.0mm
| | | | | | | | | | | | | | |
1
7
4
2
NO.
1
2
3
4
5
称
数量
Name
Inner
Box
Package
Vacuum
Bag
Certificate of approval
Label
Cushion
Tray
Adhesive tape
Inner
Box dimensions (unit: mm)
序号
名
1
2
3
4
5
6
7
8
内 盒（七）
外箱十二
垫片（二）
合格证
标 签
包装座（二）
真空袋（一）
胶带
4
1
20
1
5
24
4
3.5
6
7
8
CAUTION:
(1) Do not apply excess mechanical stress to the component body or terminations. Do not attempt to re-form or bend the components as this will cause
damage to the component.
(2) Do not expose the component to open flame.
(3) This specification applies to the functionality of the component as a single unit. Please insure the component is thoroughly evaluated in the application
circuit.
NOTE:
1) The
parts are manufactured in accordance with this specification.
If
other conditions and specifications which are required for this specifica-
tion, please contact ABRACON for more information.
2)
ABRACON will supply the parts in accordance with this specification unless we receive a written request to modify prior to an order placement.
3) In
no case shall ABRACON be liable for any product failure from in appropriate handling or operation of the item beyond the scope of this specifica-
tion.
4)
When changing your production process, please notify ABRACON immediately.
5)
ABRACON Corporation’s products are COTS
–
Commercial-Off-The-Shelf products; suitable for Commercial,
Industrial
and, where designated,
Automotive Applications. ABRACON’s products are not
specifically designed for
Military,
Aviation, Aerospace, Life-dependant
Medical
applications or any application requiring high reliability where component failure could result in loss of life and/or property.
For
applications
requiring high reliability and/or presenting an extreme operating environment, written consent and authorization from ABRACON Corporation is
required. Please contact ABRACON Corporation for more information.
6)
All specifications and
Marking
will be subject to change without notice.
ATTENTION:
Abracon Corporation’s products are COTS
–
Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applica-
tions. Abracon’s products are not specifically designed for
Military,
Aviation, Aerospace, Life-dependant
Medical
applications or any application requiring high reliability where
component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and
authorization from Abracon Corporation is required. Please contact Abracon Corporation for more information.
ABRACON IS
ISO9001:2008
CERTIFIED
CERTIFIED
30332 Esperanza,
Rancho Santa
Margarita,
California
92688
tel
949-546-8000
|
fax
949-546-8001
|
www.abracon.com
Visit
www.abracon.com for
Terms & Conditions of Sale
Revised
11.14.13
