NTE4029B datasheet, PDF - EEWORLD Datasheet

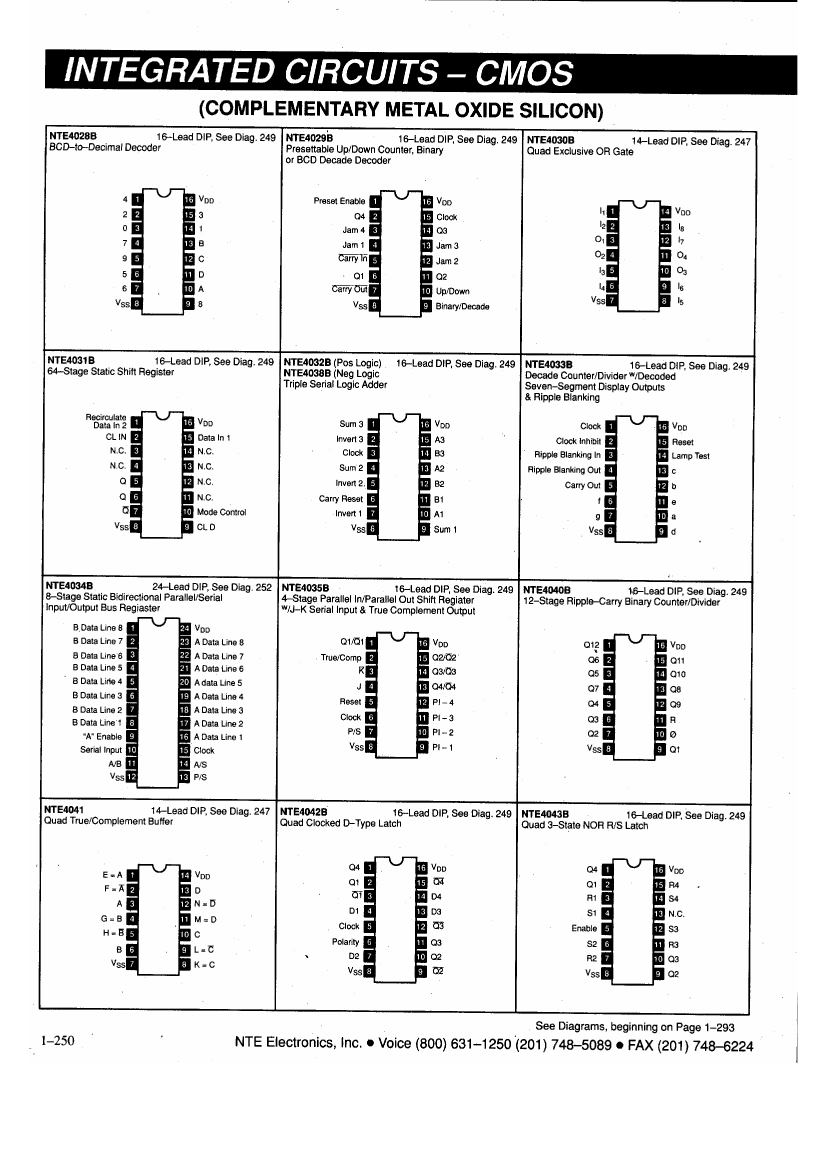

NTE4029B: DescriptionINTERGRATED CIRCUITS - CMOS; Categorylogic logic; File Size165KB，1 Pages; ManufacturerNTE; Websitehttp://www.nteinc.com; Environmental Compliance

Download Datasheet Parametric Compare View All

NTE4029B Overview

INTERGRATED CIRCUITS - CMOS

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	NTE
package instruction	DIP,
Reach Compliance Code	unknown
Counting direction	BIDIRECTIONAL
series	4000/14000/40000
JESD-30 code	R-XDIP-T16
length	22 mm
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
Operating mode	SYNCHRONOUS
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	UNSPECIFIED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
propagation delay (tpd)	400 ns
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	18 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	POSITIVE EDGE
width	7.62 mm
minfmax	5 MHz
Base Number Matches	1

	NTE4029B	NTE4028B	NTE4030B	NTE4031B
Description	INTERGRATED CIRCUITS - CMOS	INTERGRATED CIRCUITS - CMOS	INTERGRATED CIRCUITS - CMOS	INTERGRATED CIRCUITS - CMOS
Is it Rohs certified?	conform to	conform to	conform to	-
Maker	NTE	NTE	NTE	-
package instruction	DIP,	DIP,	DIP,	-
Reach Compliance Code	unknown	unknow	unknow	-
series	4000/14000/40000	4000/14000/40000	4000/14000/40000	-
JESD-30 code	R-XDIP-T16	R-XDIP-T16	R-PDIP-T14	-
length	22 mm	22 mm	15.24 mm	-
Logic integrated circuit type	BINARY COUNTER	DECIMAL DECODER/DRIVER	XOR GATE	-
Number of functions	1	1	4	-
Number of terminals	16	16	14	-
Maximum operating temperature	125 °C	125 °C	125 °C	-
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-
Package body material	UNSPECIFIED	UNSPECIFIED	PLASTIC/EPOXY	-
encapsulated code	DIP	DIP	DIP	-
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Package form	IN-LINE	IN-LINE	IN-LINE	-
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
propagation delay (tpd)	400 ns	350 ns	280 ns	-
Maximum seat height	5.08 mm	5.73 mm	5.08 mm	-
Maximum supply voltage (Vsup)	18 V	18 V	18 V	-
Minimum supply voltage (Vsup)	3 V	3 V	3 V	-
Nominal supply voltage (Vsup)	5 V	5 V	5 V	-
surface mount	NO	NO	NO	-
technology	CMOS	CMOS	CMOS	-
Temperature level	MILITARY	MILITARY	MILITARY	-
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	-
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	-
Terminal location	DUAL	DUAL	DUAL	-
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
width	7.62 mm	7.62 mm	7.62 mm	-
