710/740 MHz SAW Duplexer
Applications
For Band 17 LTE applications
LTE B17, data cards, mobile routers, repeaters
For Base Station applications
CSP-10KT, 2.5 x 2.00 x 0.56 mm
Product Features
High Rejection in Band 17
Usable bandwidth 12 MHz
High Uplink-Downlink Isolation
Low loss
High attenuation
Single-ended Downlink and Uplink operation
Ceramic chip-scale Hermetic Package (CSP)
Small Size: 2.5 x 2.00 x 0.56 mm
Hermetic RoHS compliant, Pb-free

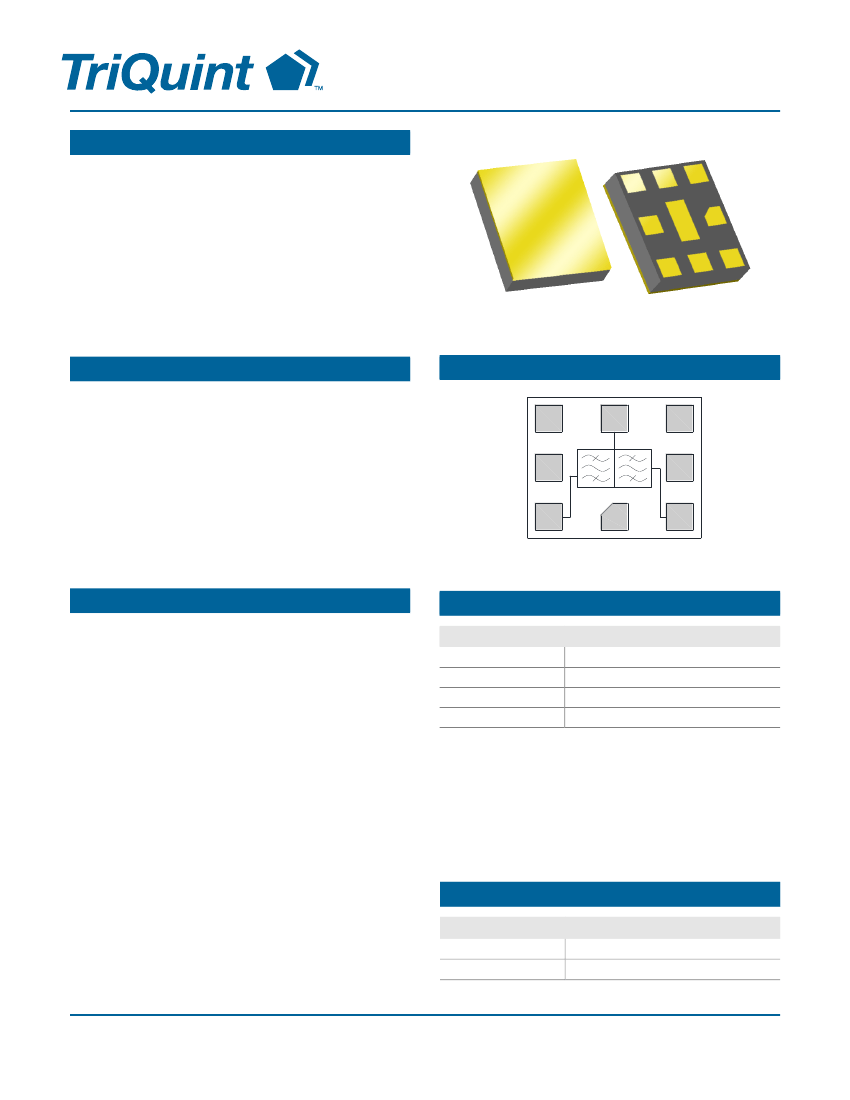

Functional Block Diagram
7
8
1
Top View
6
5
4
2
3
General Description
The 857182 is a high-performance Surface Acoustic
Wave (SAW) duplexer designed to meet the strict LTE
requirements for use in Band 17.
857182 is specifically designed to meet the high
performance expectations of insertion loss, isolation
and rejection in LTE systems operating in B17
applications under all operating condition.
The 857182 uses common packaging techniques to
achieve the industry standard 2.5 x 2.0 mm footprint.
The duplexer exhibits excellent power handling
capabilities.
Pin Configuration - Single Ended
Pin No.
1
3
6
2,4,5,7,8,,9
Label
Downlink
Uplink
Ant/Phase Inductor
Ground
Ordering Information
Part No.
857182
857182-EVB
Description
Packaged Part
Evaluation board description
Standard T/R size = 10,000 units/reel
Data Sheet: Rev A 09-18-2014
© 2014 TriQuint
-
1 of 9
-
Disclaimer: Subject to change without notice
857182
710/740 MHz SAW Duplexer
Absolute Maximum Ratings
Parameter
Storage Temperature
(2)
Operable Temperature
RF Input Power
(1)
Rating
-40 to +90°C
-20 to +90°C
+29 dBm
1. Operation of this device outside the parameter ranges given
may cause permanent damage.
2. Specifications are not guaranteed over all operable
conditions.
3. Input Power at Downlink Pin 1 with applied CW signal at 55
°C for 10K hours in the 734-746 MHz frequency band
Uplink Electrical Specifications
(1)
Specified Temperature Range
(2)
= -20 to +90°C
Parameter
(3)
Center Frequency
Maximum Insertion Loss
(5)
Amplitude Variation
Conditions
704 – 716 MHz
704 – 716 MHz over any 5 MHz
10 – 686 MHz
728 – 734 MHz
734 – 746 MHz
746 – 768 MHz
768 –805 MHz
869 – 894 MHz
1408 – 1432 MHz
1565 – 1585 MHz
1597 – 1607 MHz
1805 – 1880 MHz
1930 – 1990 MHz
2110 – 2155 MHz
2155 – 2170 MHz
2400 – 2484 MHz
2816– 3000 MHz
704 – 716 MHz
704 – 716 MHz
Single ended
Single ended
Min
-
-
-
32
15
45
30
31
30
30
38
40
40
40
40
45
50
50
10
10
-
-
Typ
(4)
710
1.8
0.5
35.2
26.1
56.2
39.7
35.5
33.7
39.4
39.3
42.9
49.0
52.6
58.7
60.4
66.2
60.6
13.8
16.6
50
50
Max
-
2.5
1.2
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Units
MHz
dB
dB p-p
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
Absolute Attenuation
(6)
Uplink Return Loss
Antenna Return Loss
Uplink Impedance
(7)
(7)
Antenna Impedance
Notes:
1.
2.
3.
4.
5.
6.
All specifications are based on the TriQuint schematic for the main reference design shown on page 4
In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical
compliance over temperature
Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing
tolerances
Typical values are based on average measurements at room temperature
Relative to zero dB
This is the optimum impedance in order to achieve the performance shown
Data Sheet: Rev A 09-18-2014
© 2014 TriQuint
-
2 of 9
-
Disclaimer: Subject to change without notice
857182
710/740 MHz SAW Duplexer
Downlink Electrical Specifications
(1)
Specified Temperature Range
(2)
= -20 to +90°C
Parameter
(3)
Center Frequency
Maximum Insertion Loss
Amplitude Variation
Absolute Attenuation
(6)
Conditions
734 – 746 MHz
734 – 746 MHz over any 5 MHz in-
band
10 – 674 MHz
674 – 686 MHz
686 - 704 MHz
704 – 716 MHz
716 – 722 MHz
776 – 793 MHz
793 – 805 MHz
805 – 2300 MHz
2300 – 3000 MHz
Min
-
-
-
27
32
35
50
22
32
32
32
40
Typ
(4)
740
2.0
0.5
32.4
37.6
41.5
57.5
46.1
36.4
35.0
33.7
56.1
Max
-
2.5
1.2
-
-
-
-
-
-
-
-
-
Units
MHz
dB
dB p-p
dB
dB
dB
dB
dB
dB
dB
dB
dB
Downlink Return Loss
Antenna Return Loss
Downlink Impedance (single-
(8)
ended )
Antenna Impedance (single-
(8)
ended )
734 – 746 MHz
734 – 746 MHz
10
10
-
-
17.5
14.1
50
50
58.7
57.7
69.6
69.6
70.1
-
-
-
-
-
-
-
-
-
dB
dB
dB
dB
dB
dB
dB
dB
Uplink-Downlink Specification
Uplink to Downlink Isolation
704 – 716 MHz
734 – 746 MHz
1408 – 1432 MHz
2112 – 2148 MHz
2816 – 3000 MHz
54
50
30
30
30
Notes:
1. All specifications are based on the TriQuint schematic for the main reference design shown on page 4
2. In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance
over temperature
3. Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing
tolerances
4. Typical values are based on average measurements at room temperature
5. Relative to zero dB
6. All power levels are referenced to the Downlink to Antenna port.
7. This is the optimum impedance in order to achieve the performance shown
Data Sheet: Rev A 09-18-2014
© 2014 TriQuint
-
3 of 9
-
Disclaimer: Subject to change without notice
857182
710/740 MHz SAW Duplexer

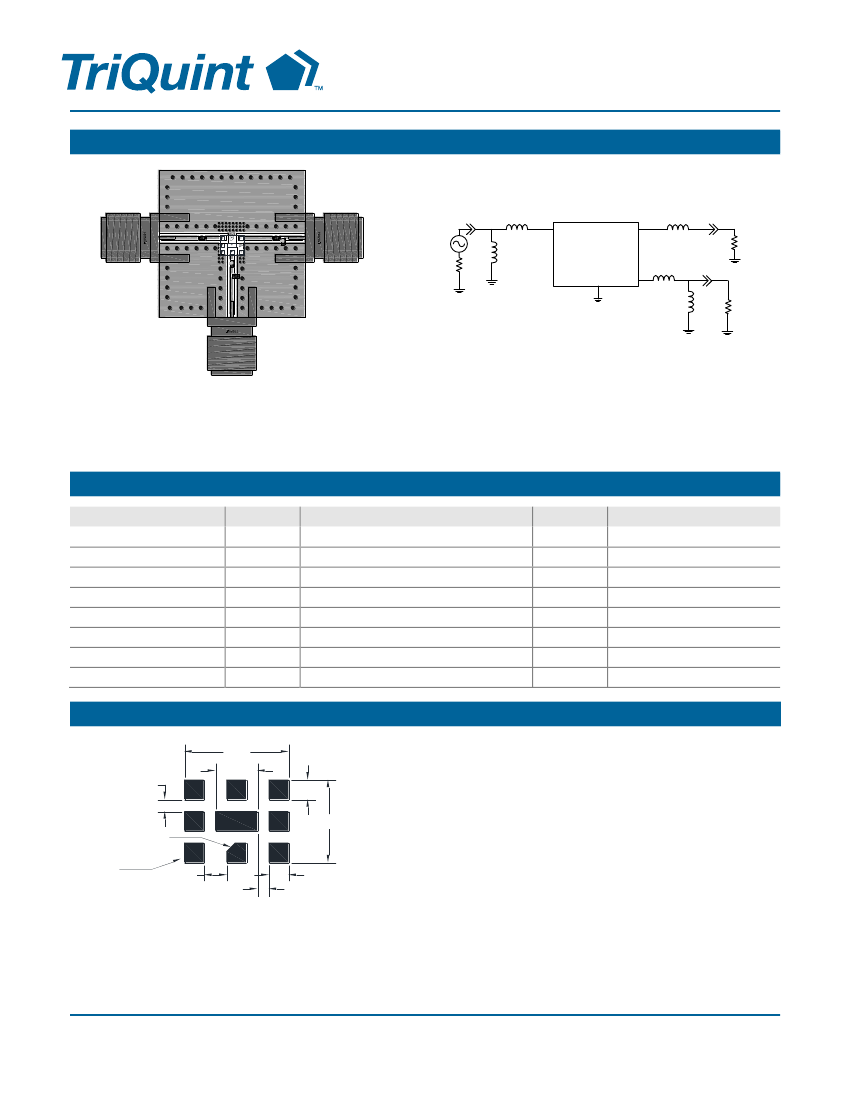

Evaluation Board
960562
Uplink
L3
Downlink
L2
L1
L4
L2
1
3
L3
Uplink
50
Downlink
50
L1
2,4,5,7,8,9
6
ANT
L4
L5
50
ANT
L5
Notes:
1. This is the optimum impedance in order to achieve the performance shown
2. PCB: 0.75 x 0.75 x 0.063; Construction: 1 OZ
Cu
Top, Middle and Bottom Layers; Material in between middle and top
layer:
TLY-5A
(.0075); Material in between mid-bottom layers:
FR4.
(dimensions are in inches)
Bill of Material
Reference Des.
U1
L1
L2
L3
L4
L5
SMA
PCB
Value
n/a
13nH
2.7nH
9.1nH
4.7nH
24nH
N/A
n/a
Description
Duplexer 751/782 MHz
0402, ± 2%, wire wound chip
0402, ± 0.1nH wire wound chip ind
0402, ± 2%, wire wound chip ind
0402, ± 0.1nH wire wound chip ind
0402, ± 2% wire wound chip ind
SMA connector
Printed Circuit Board
Manuf.
TriQuint
Murata
Murata
Murata
Murata
Murata
Radiall
TriQuint
Part Number
857182
LQW15AN13NG00
LQW15AN2N7B00
LQW15AN9N1G00
LQW15AN4N7B00
LQW15AN24N1G00
9602-1111-018
960562
PCB Mounting Pattern
(Top View)
2.40
0.95
0.275
0.45
1.90
0.19x45°
CHAMFER
Pin 1
0.525
0.275
0.45
Notes:
1. All dimensions are in millimeters. Angles are in degrees.
2. This drawing specifies the mounting pattern used on the TriQuint
evaluation board for this product. Some modification may be necessary
to suit end user assembly materials and processes.
Data Sheet: Rev A 09-18-2014
© 2014 TriQuint
-
4 of 9
-
Disclaimer: Subject to change without notice
857182
710/740 MHz SAW Duplexer

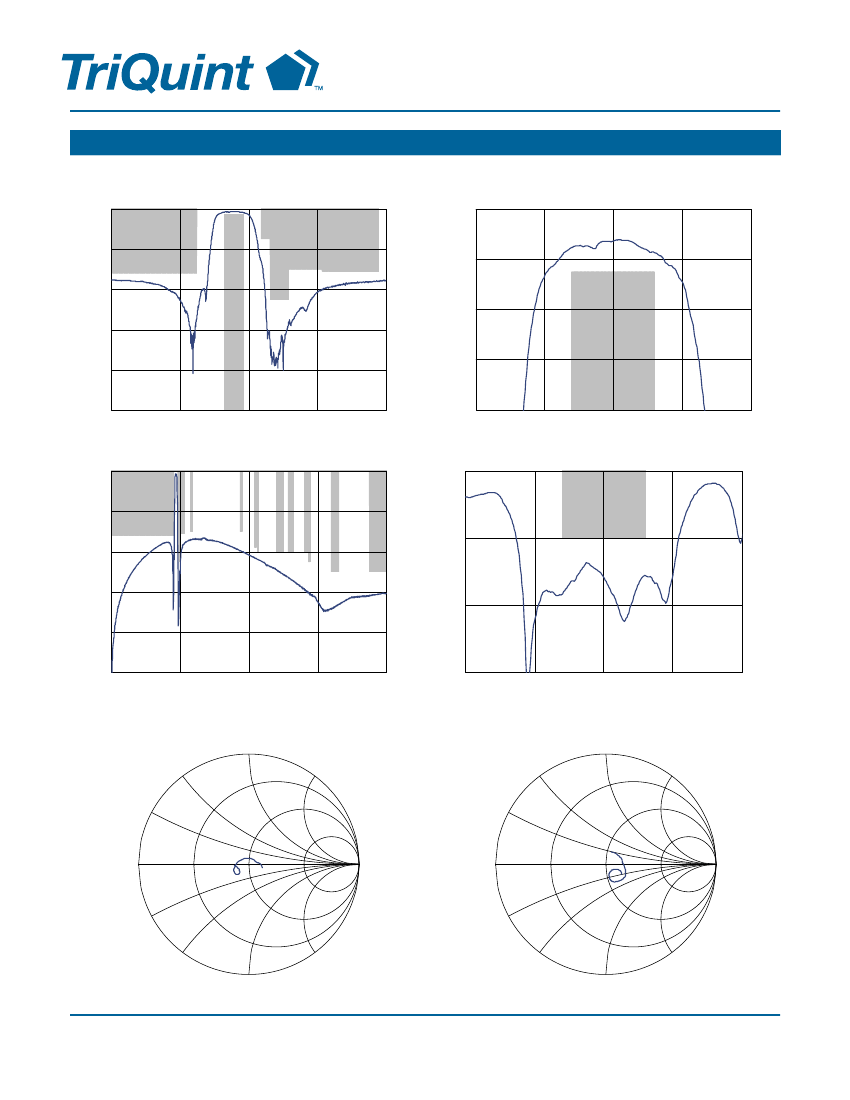

Performance Plots
Test conditions unless otherwise noted: Temp= +25°C
UL Frequency Response
0
0
UL Passband Response
-20
-2
d
B
-40
d
B
d
B
-4
d
B
-60
-6
-80
-100
630
675
720
765
810
-8
690
700
710
720
730
Frequency (MHz)
Frequency (MHz)
UL Wideband Response
0
0
UL Return Loss
-20
-10
d
B
-40
d
B
d
B
-20
d
B
-60
-80
-100
10
757.5
1505
2252.5
3000
-30
690
700
710
720
730
Frequency (MHz)
Frequency (MHz)
UL Path - Ant Port Impedance
1
UL Port Impedance
1
0.8
0.8
0.6
0.6
0.4
0.4
0.2
0.2
0
-1
-0 .5
0
0.5
1
-1
-0 .5
0
0
0.5
1
-0 .2
-0 .2
-0 .4
-0 .4
-0 .6
-0 .6
-0 .8
-0 .8
-1
-1
