TGM-18-2002
Module Amplifier
2 GHz - 18 GHz

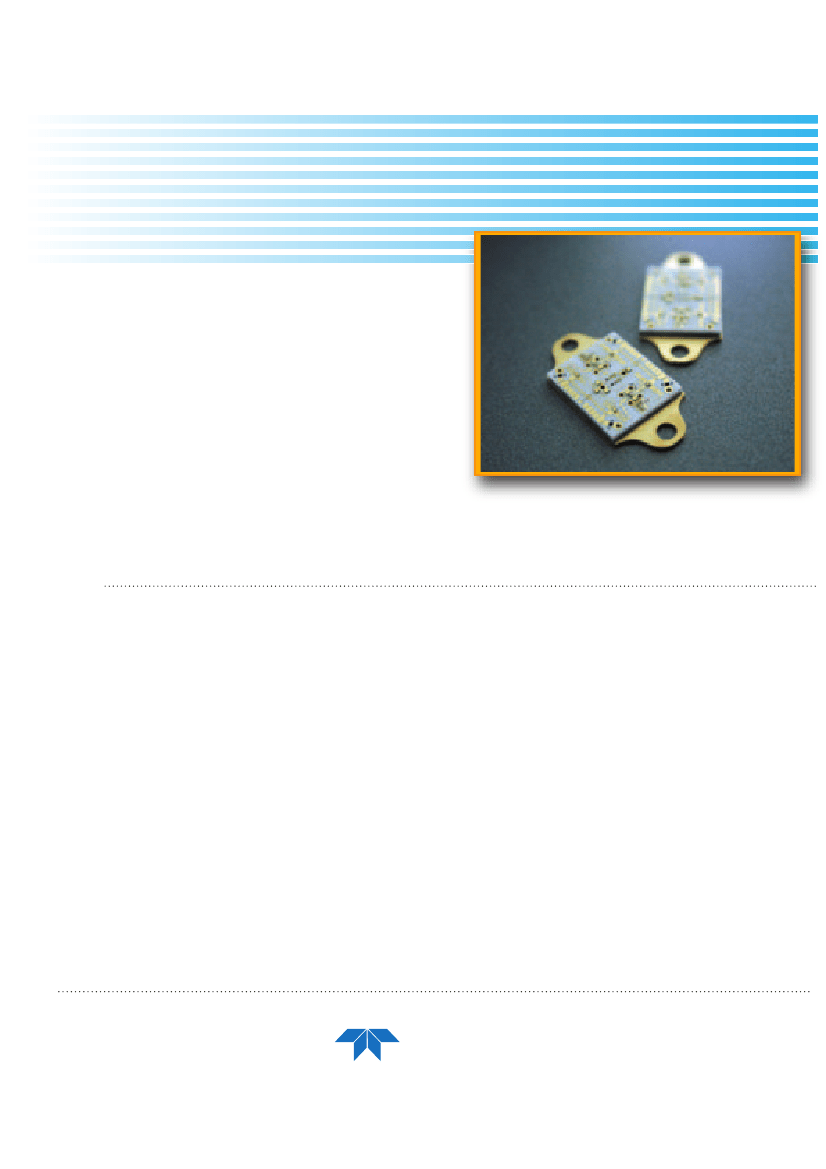

This Module Amplifier offers exceptional performance over the
band 2 GHz to 18 GHz with 18.0 dBm P1dB output power and
9.0 dB Gain.
Teledyne Microwave amplifiers are balanced or feedback
designs and manufactured with the latest MIC & MMIC
technology. The GaAs FET’s used in these amplifiers are well
established proven devices from multiple sources.
Teledyne Microwave offers a complete line of Narrow and
broadband Amplifiers covering the frequency range 500 MHz
to 40 GHz. These products are available in either
connectorized packages or as modules. For a complete list of
these products and more, please visit our website.
Other products from Teledyne Microwave
Transceivers, Synthesizers, and YIG Products
include:
Specifications:
Model Number:
TGM-18-2002
Frequency Range:
2 GHz - 18 GHz
9.0 dB
Gain (min):
Gain Vs Temp Coefficient per 1 deg C: -0.022 dB
Noise Figure (max):
11.0 dB
18.0 dBm
Output Power @ 1dB Compression:
Gain Flatness Vs Frequency:
+/-0.8 dB
3
rd
Order Intercept (Typ):
Contact Factory
Power Supply:
Input Voltage: 11.5 to 15 VDC
330 mA
Current @ 12 VDC (typ):
Current @ 12 VDC (max):
Contact Factory

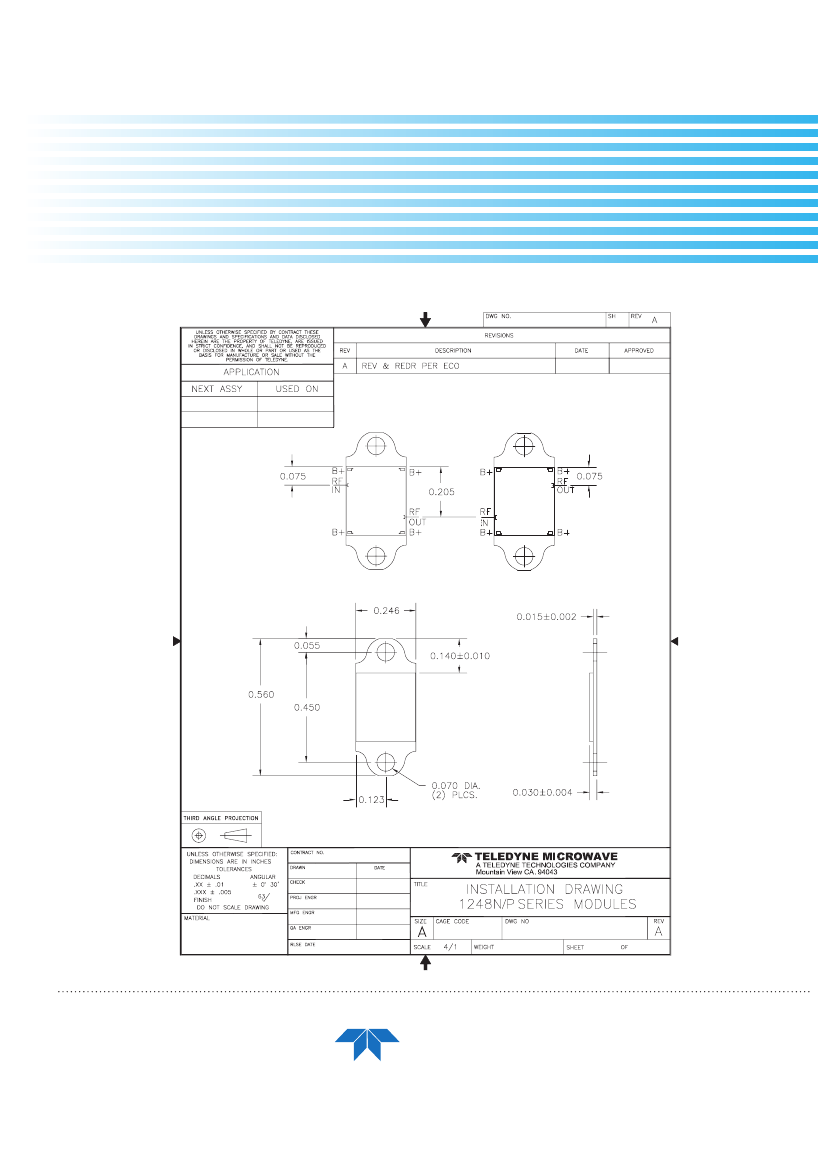

Case Type (See attached Outline):
1248NP
Temperature Range:
+25C
TELEDYNE
MICROWAVE
ISO 9001:2000
1274 Terra Bella Avenue, Mountain View, CA 94043 • PHN# 800.832.6869 or +1.650.962.6944 • FAX# 650.962.6845
www.teledynemicrowave.com • microwave@teledyne.com
All Specifications are subject to change. Please contact Teledyne Microwave for the latest information on this product
08/05
TGM-18-2002
Module Amplifier
2 GHz - 18 GHz
TELEDYNE
MICROWAVE
ISO 9001:2000
1274 Terra Bella Avenue, Mountain View, CA 94043 • PHN# 800.832.6869 or +1.650.962.6944 • FAX# 650.962.6845
www.teledynemicrowave.com • microwave@teledyne.com
All Specifications are subject to change. Please contact Teledyne Microwave for the latest information on this product
08/05
