FD02-101G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> FD02-101G

FD02-101G: DescriptionAudio Transformers / Signal Transformers 10BASE-T FILTER DIP 100Ohm; CategoryPassive components; File Size407KB，2 Pages; ManufacturerHALO Electronics

Download Datasheet Parametric View All

FD02-101G Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FD02-101G	-	-	View	Buy Now

FD02-101G Overview

Audio Transformers / Signal Transformers 10BASE-T FILTER DIP 100Ohm

FD02-101G Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	HALO Electronics
Product Category	Audio Transformers / Signal Transformers
RoHS	N
Termination Style	Through Hole
Frequency Range	1 MHz to 10 MHz
Isolation Voltage	1.5 kV
Number of Channels	Single
Product	LAN
Type	Module
Application	10Base-T Filter
Package / Case	DIL-16
Length	25.4 mm
Width	10.16 mm
Height	6.35 mm
Packaging	Tube
Maximum DC Resistance	100 Ohms
Factory Pack Quantity	20

Preview

Download Datasheet

View All

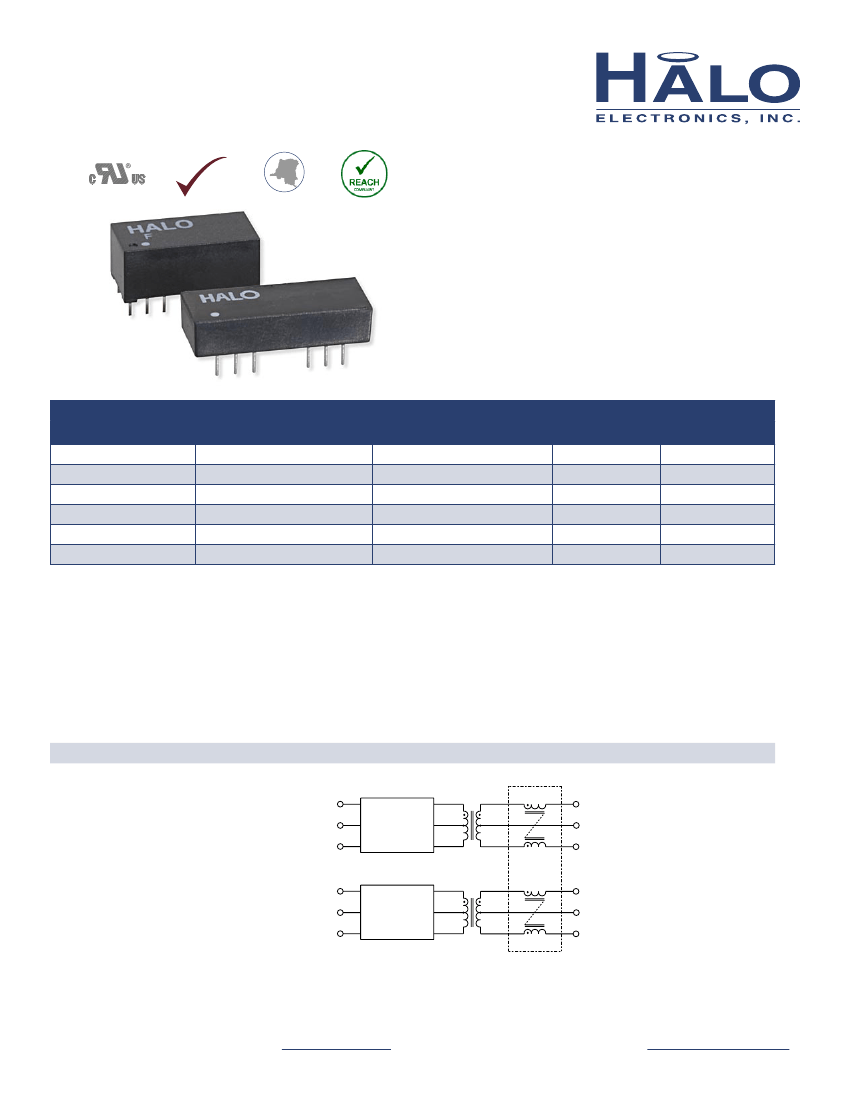

10BASE-T Filter Modules

100Ω DIL Packages with Optional Chokes

RoHS

Compliant

Conflict

FREE

Product Features:

Standard series of 100Ω filter modules to spe-

cifically address the 10BASE-T requirements

of IEEE 802.3

Choice of low or high profile packages

Optional TX or TX/RX chokes

Available for most LAN IC manufacturer’s

products

1500Vrms Hi-Pot

Part Number

FD02-101GRL

FD12-101GRL

FD22-101GRL

FD02-101HRL

FD12-101HRL

FD22-101HRL

Transmit

100Ω Transformer + Filter

-1 dB Max.

-15 dB Min.

-30 dB Min.

Transmit -27 dB Min.

Receive -18 dB Min.

17 MHz Typ.

Filter Description

Receive

100Ω Transformer + Filter

Optional

CMR Chokes

–

TX / RX

–

TX / RX

Package

Electrical Specifications @ 25°C

Insertion Loss (5-10MHz):

Return Loss (5-10MHz):

Cross Talk (1-10MHz):

Attenuation @ 30MHz:

Cutoff Frequency:

Schematic

TRANSMIT 2

OPTIONAL

LOW PASS

FILTER

RECEIVE 7

LOW PASS

FILTER

For additional information contact your

local representative,

or HALO’s support staff at (650) 903-3800 or

info@haloelectronics.com
