PM1608-102M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> PM1608-102M

PM1608-102M: DescriptionFixed Inductors 1000uH 20%; CategoryPassive components inductor; File Size337KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com

Download Datasheet Parametric Compare View All

PM1608-102M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PM1608-102M	-	-	View	Buy Now

PM1608-102M Overview

Fixed Inductors 1000uH 20%

PM1608-102M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Bourns
package instruction	2618
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	2618
structure	Bobbin Core
core material	FERRITE
DC Resistance	13.8 Ω
Nominal inductance(L)	1000 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	PM1608
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package height	2.92 mm
Package length	6.6 mm
Package form	SMT
Package width	4.45 mm
method of packing	TR
Maximum rated current	0.1 A
series	PM1608 SERIES
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

Features

■

Formerly

■

Height of 2.92 mm

■

Current rating up to 2.9 A

■

RoHS compliant*

Applications

model

■

Input/output of DC/DC converters

■

Power supplies for:

•

Portable communication equipment

Camcorders

LCD TVs

Car radios

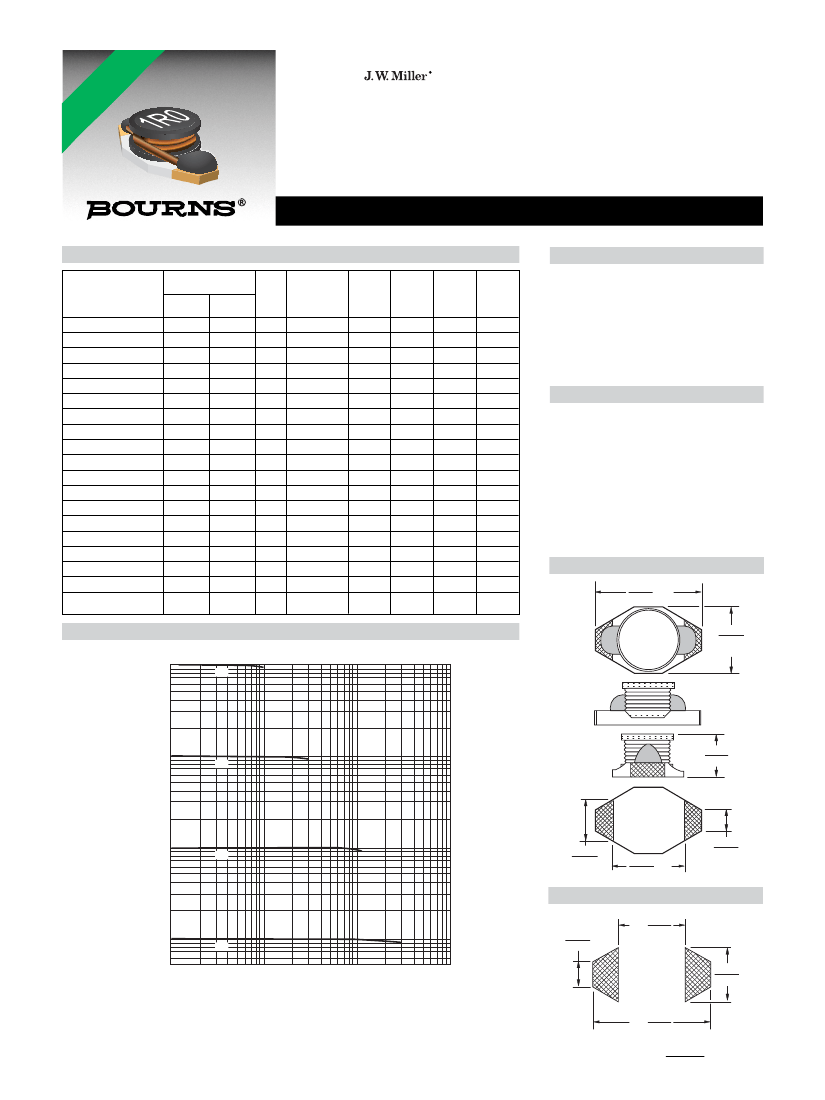

PM1608 Series - SMD Power Inductor

Electrical Speciﬁcations

Inductance 100 kHz

General Speciﬁcations

Test

Q Frequency

Ref.

(MHz)

7.96

18.5

7.96

15.5

7.96

2.52

0.796

0.252

SRF

Typ.

(MHz)

130

115

5.5

DCR

Max.

(Ω)

0.05

0.07

0.08

0.09

0.13

0.16

0.23

0.37

0.51

0.64

0.86

1.3

2.0

3.2

3.8

5.1

9.2

13.8

I rms

Max.

(A)

2.9

2.8

2.4

2.0

1.5

1.4

1.1

1.0

0.80

0.60

0.50

0.40

0.30

0.25

0.20

0.16

0.15

0.12

0.07

I sat

Typ.

(A)

2.9

2.6

2.3

2.0

1.5

1.2

1.1

0.90

0.70

0.58

0.50

0.40

0.31

0.27

0.22

0.18

0.16

0.14

0.10

Bourns Part No.

PM1608-1R0M-RC

PM1608-1R5M-RC

PM1608-2R2M-RC

PM1608-3R3M-RC

PM1608-4R7M-RC

PM1608-6R8M-RC

PM1608-100M-RC

PM1608-150M-RC

PM1608-220M-RC

PM1608-330M-RC

PM1608-470M-RC

PM1608-680M-RC

PM1608-101M-RC

PM1608-151M-RC

PM1608-221M-RC

PM1608-331M-RC

PM1608-471M-RC

PM1608-681M-RC

PM1608-102M-RC

(µH)

1.0

1.5

2.2

3.3

4.7

6.8

100

150

220

330

470

680

1000

Tol. %

±20

Test Voltage ....................................0.1 V

Reﬂow soldering .... 230 °C; 50 sec max.

Operating Temperature

................................-40 °C to +125 °C

(Temperature rise included)

Storage Temperature .. -40 °C to +125 °C

Resistance to Soldering Heat

.......................... 260 °C, 10 sec. max.

Materials

Core ..............................................Ferrite

Wire ............................Enameled copper

Base ..........................................Ceramic

Adhesive .............................. Epoxy resin

Terminal ....................................Ag/Ni/Au

Rated Current

...................Ind. drop 10 % typ. at Isat

Temperature Rise ...............15 °C typical

at rated Irms

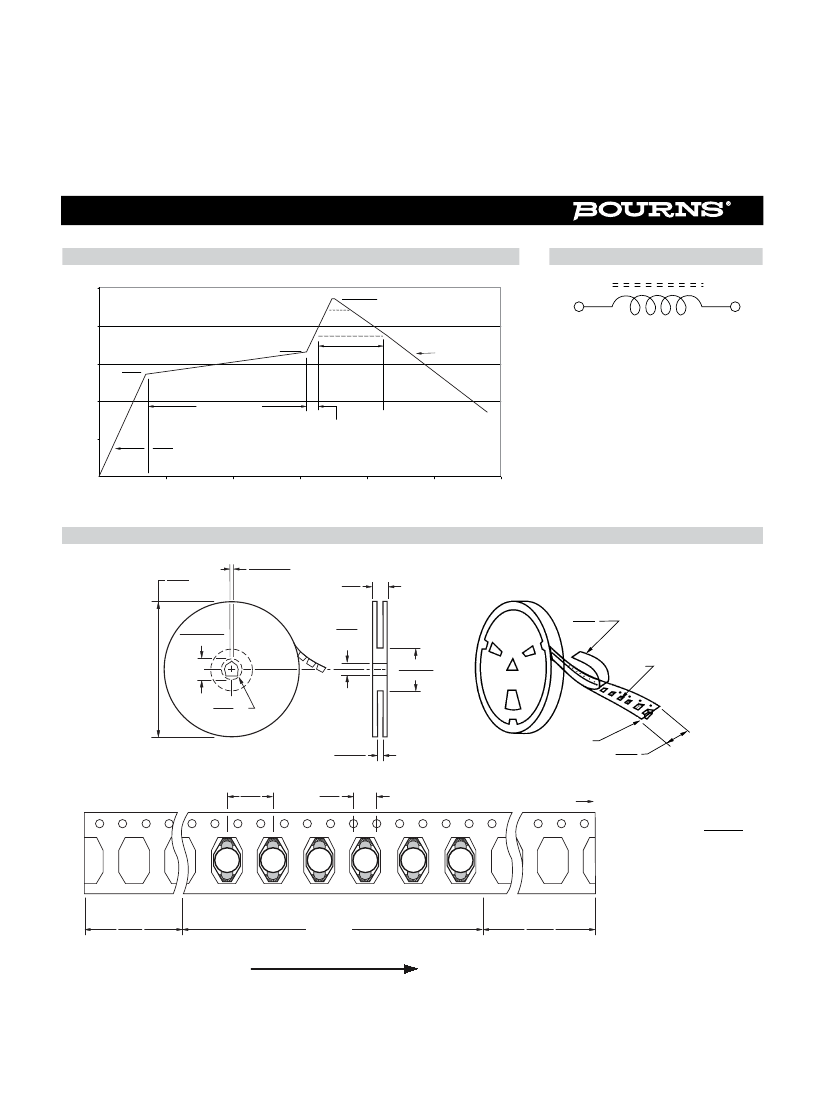

Packaging .................... 600 pcs. per reel

Product Dimensions

6.60

MAX.

(0.260)

100

Inductance vs. Current

103

102

4.45

(0.175)

MAX.

102

101

MAX.

2.92

(0.115)

Inductance (µH)

101

100

3.05

(0.120)

TYP.

4.32

TYP.

(0.170)

1.27

(0.050)

Recommended Layout

REF.

4.10

(0.161)

100

101

1R0

1.60

REF.

(0.063)

102

7 103

7 104

3.00

REF.

(0.118)

DC Current (mA)

REF.

7.00

(0.276)

*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

Speciﬁcations are subject to change without notice.

Customers should verify actual device performance in their speciﬁc applications.

DIMENSIONS:

(INCHES)

PM1608-102M Related Products

	PM1608-102M	PM1608-1R0M	PM1608-1R5M	PM1608-331M	PM1608-330M	PM1608-221M	PM1608-101M	PM1608-6R8M	PM1608-681M	PM1608-100M
Description	Fixed Inductors 1000uH 20%	Fixed Inductors 1.0uH 20%	Fixed Inductors 1.5uH 20%	Fixed Inductors 330uH 20%	Fixed Inductors 33uH 20%	Fixed Inductors 220uH 20%	Fixed Inductors 100uH 20%	Fixed Inductors 6.8uH 20%	Fixed Inductors 680uH 20%	Fixed Inductors 10uH 20%
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	2618	2618	2618	2618	2618	2618	2618	2618	2618	2618
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
uppercase and lowercase codes	2618	2618	2618	2618	2618	2618	2618	2618	2618	2618
structure	Bobbin Core	Bobbin Core	Bobbin Core	Bobbin Core	Bobbin Core	Bobbin Core	Bobbin Core	Bobbin Core	Bobbin Core	Bobbin Core
core material	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE
DC Resistance	13.8 Ω	0.05 Ω	0.05 Ω	3.8 Ω	0.51 Ω	2.65 Ω	1.27 Ω	0.13 Ω	9.2 Ω	0.16 Ω
Nominal inductance(L)	1000 µH	1 µH	1.5 µH	330 µH	33 µH	220 µH	100 µH	6.8 µH	680 µH	10 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	PM1608	PM1608	PM1608	PM1608	PM1608	PM1608	PM1608	PM1608	PM1608	PM1608
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package height	2.92 mm	2.92 mm	2.92 mm	2.92 mm	2.92 mm	2.92 mm	2.92 mm	2.92 mm	2.92 mm	2.92 mm
Package length	6.6 mm	6.6 mm	6.6 mm	6.6 mm	6.6 mm	6.6 mm	6.6 mm	6.6 mm	6.6 mm	6.6 mm
Package form	SMT	SMT	SMT	SMT	SMT	SMT	SMT	SMT	SMT	SMT
Package width	4.45 mm	4.45 mm	4.45 mm	4.45 mm	4.45 mm	4.45 mm	4.45 mm	4.45 mm	4.45 mm	4.45 mm
method of packing	TR	TR	TR	TR	TR	TR	TR	TR	TR	TR
Maximum rated current	0.1 A	2.9 A	2.6 A	0.18 A	0.58 A	0.22 A	0.31 A	1.2 A	0.14 A	1.1 A
series	PM1608 SERIES	PM1608 SERIES	PM1608 SERIES	PM1608 SERIES	PM1608 SERIES	PM1608 SERIES	PM1608 SERIES	PM1608 SERIES	PM1608 SERIES	PM1608 SERIES
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE
Test frequency	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz
Tolerance	20%	20%	20%	20%	20%	20%	20%	20%	20%	20%
