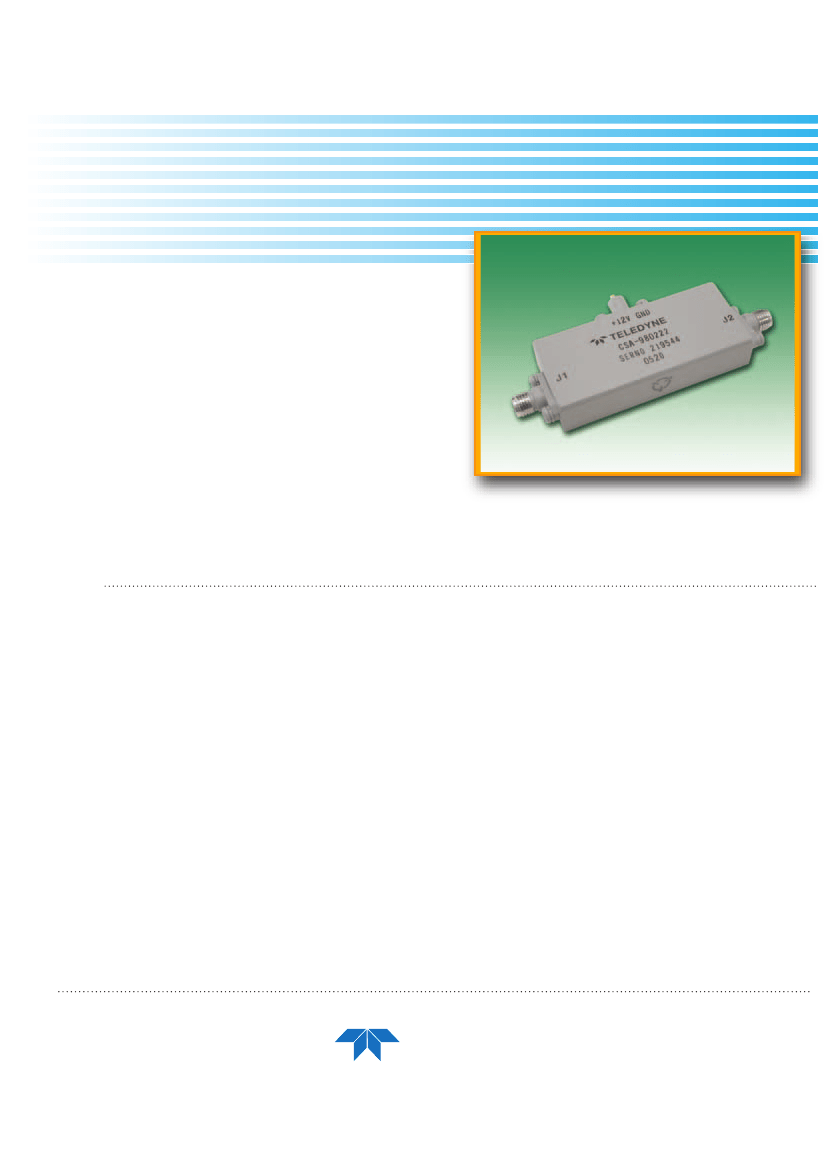

TMA-8-2004
Amplifier
2 GHz - 8 GHz
This Amplifier offers exceptional performance over the band 2
GHz to 8 GHz with 18 dBm P1dB output power and 36 dB
Gain.
Teledyne Microwave amplifiers are balanced or feedback
designs and manufactured with the latest MIC & MMIC
technology. The GaAs FET’s used in these amplifiers are well
established proven devices from multiple sources.
Teledyne Microwave offers a complete line of Narrow and
broadband Amplifiers covering the frequency range 500 MHz
to 40 GHz. These products are available in either
connectorized packages or as modules. For a complete list of
these products and more, please visit our website.
Other products from Teledyne Microwave
Transceivers, Synthesizers, and YIG Products
include:
Specifications:
Model Number:
TMA-8-2004
Frequency Range:
2 GHz - 8 GHz
36 dB
Gain (min):
Gain Vs Temp at any Frequency: This Amplifier is not Temperature Compensated
Noise Figure (max):
4 dB
18 dBm
Output Power @ 1dB Compression:
Gain Flatness Vs Frequency:
+/-1.5 dB
3
rd
Order Intercept (Typ):
27 dBm
Power Supply:
Input Voltage: 11.5 to 15 VDC
250 mA
Current @ 12 VDC (typ):
Current @ 12 VDC (max):
290 mA

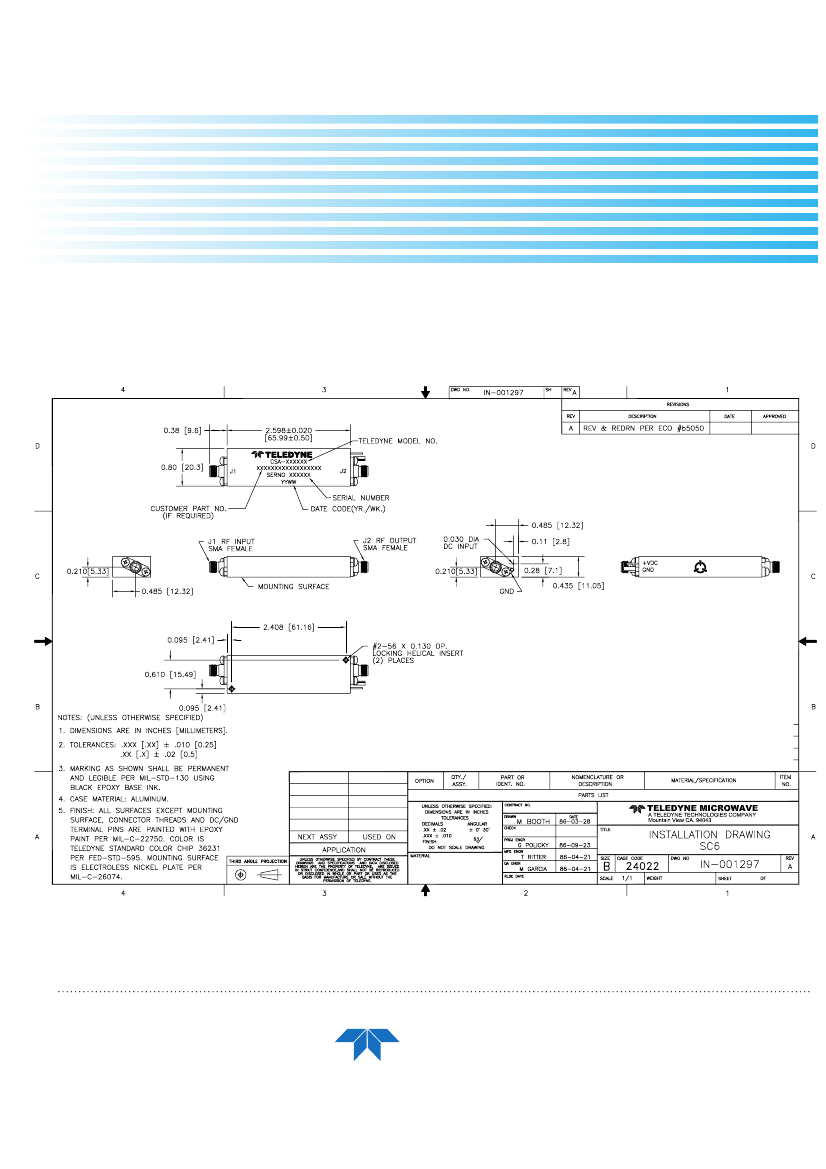

Case Type (See attached Outline):
SC6
Temperature Range:
+25
TELEDYNE
MICROWAVE
ISO 9001:2000
1274 Terra Bella Avenue, Mountain View, CA 94043 • PHN# 800.832.6869 or +1.650.962.6944 • FAX# 650.962.6845
www.teledynemicrowave.com • microwave@teledyne.com
All Specifications are subject to change. Please contact Teledyne Microwave for the latest information on this product
08/05
TMA-8-2004
Amplifier
2 GHz - 8 GHz
TELEDYNE
MICROWAVE
ISO 9001:2000
1274 Terra Bella Avenue, Mountain View, CA 94043 • PHN# 800.832.6869 or +1.650.962.6944 • FAX# 650.962.6845
www.teledynemicrowave.com • microwave@teledyne.com
All Specifications are subject to change. Please contact Teledyne Microwave for the latest information on this product
08/05
