ILSB-0603
www.vishay.com
Vishay Dale
Monolithic Chip Inductors
FEATURES
•
•
•
•
High reliability
Surface mountable
Magnetically self shielded
Nickel barrier plating virtuallly eliminates silver
migration
• Material categorization: for definitions of
compliance please see
www.vishay.com/doc?99912
MECHANICAL SPECIFICATIONS
Solderability:
90 % coverage after 5 s dip in 235 °C solder
following 60 s preheat at 120 °C to 150 °C and type R flux dip
Resistance to Solder Heat:
10 s in 260 °C solder, after
preheat and flux per above
Termination:
100 % Sn
Terminal Strength:
0.5 kg for 30 s
Beam Strength:
0.3 kg
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature:
-55 °C to +125 °C
Thermal Shock:
-40 °C to +85 °C
Humidity:
90 % RH at 40 °C, 1000 h at full rated current
Load Life:
85 °C for 1000 h at full rated current
STANDARD ELECTRICAL SPECIFICATIONS
INDUCTANCE
(μH)
0.047
0.068
0.082
0.10
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
TOL.
20 %
20 %
20 %
10 %
10 %
10 %
10 %
10 %
10 %
10 %
10 %
10 %
10 %
10 %
10 %
10 %
10 %
10 %
10 %
10 %
10 %
10 %
10 %
10 %
10 %
10 %
10 %
10 %
THICKNESS “D”
(INCHES [mm])
0.031 ± 0.008 [0.80 ± 0.2]
0.031 ± 0.008 [0.80 ± 0.2]
0.031 ± 0.008 [0.80 ± 0.2]
0.031 ± 0.008 [0.80 ± 0.2]
0.031 ± 0.008 [0.80 ± 0.2]
0.031 ± 0.008 [0.80 ± 0.2]
0.031 ± 0.008 [0.80 ± 0.2]
0.031 ± 0.008 [0.80 ± 0.2]
0.031 ± 0.008 [0.80 ± 0.2]
0.031 ± 0.008 [0.80 ± 0.2]
0.031 ± 0.008 [0.80 ± 0.2]
0.031 ± 0.008 [0.80 ± 0.2]
0.031 ± 0.008 [0.80 ± 0.2]
0.031 ± 0.008 [0.80 ± 0.2]
0.031 ± 0.008 [0.80 ± 0.2]
0.031 ± 0.008 [0.80 ± 0.2]
0.031 ± 0.008 [0.80 ± 0.2]
0.031 ± 0.008 [0.80 ± 0.2]
0.031 ± 0.008 [0.80 ± 0.2]
0.031 ± 0.008 [0.80 ± 0.2]
0.031 ± 0.008 [0.80 ± 0.2]
0.031 ± 0.008 [0.80 ± 0.2]
0.031 ± 0.008 [0.80 ± 0.2]
0.031 ± 0.008 [0.80 ± 0.2]
0.031 ± 0.008 [0.80 ± 0.2]
0.031 ± 0.008 [0.80 ± 0.2]
0.031 ± 0.008 [0.80 ± 0.2]
0.031 ± 0.008 [0.80 ± 0.2]
TEST FREQ.
(MHz)
L AND Q
50
50
50
25
25
25
25
25
25
25
25
25
25
25
25
10
10
10
10
10
10
10
10
10
4
4
4
2
Q
MIN.
10
10
10
15
15
15
15
15
15
15
15
15
15
15
15
35
35
35
35
35
35
35
35
35
30
30
30
30
SRF MIN.
(MHz)
260
250
245
276
236
207
190
173
157
144
127
121
110
104
98
87
74
69
64
58
52
46
41
38
22
20
18
17
DCR
MAX.
()
0.15
0.25
0.25
0.50
0.50
0.60
0.60
0.80
0.80
0.85
1.00
1.35
1.55
1.70
2.10
0.60
0.80
0.80
0.95
1.15
1.35
1.55
1.70
2.10
1.55
1.70
2.10
2.55
RATED
DC CURRENT
(mA)
50
50
50
50
50
50
50
50
50
35
35
35
35
35
35
25
25
25
25
15
15
15
15
15
15
15
15
15
DESCRIPTION
ILSB-0603
MODEL
3.3 μH
INDUCTANCE VALUE
± 10 %
INDUCTANCE TOLERANCE
ER
PACKAGE CODE
e3
JEDEC
®
LEAD (Pb)-FREE STANDARD
GLOBAL PART NUMBER
I
L
S
B
0
6
SIZE
0
3
E
R
3
R
INDUCTANCE
VALUE
3
K
TOL.
PRODUCT FAMILY
PACKAGE
CODE
Revision: 10-Jun-15
Document Number: 34027
1
For technical questions, contact:
magnetics@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
ILSB-0603
www.vishay.com
Vishay Dale

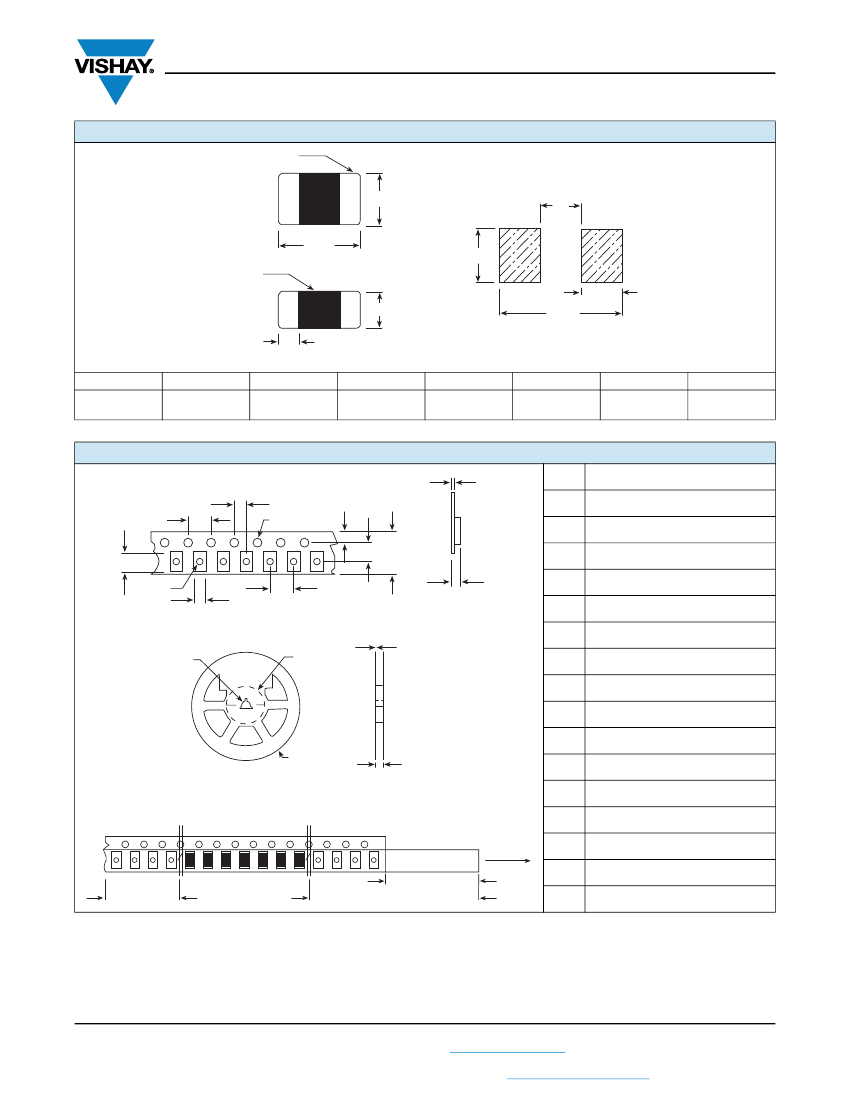

DIMENSIONS
in inches [millimeters]
100 %
Sn
Termination
B
G
A
F
Ferrite Body
H
D
E
C
Dimensional Outline
Suggested
Pad Layout
A
0.063 ± 0.006
[1.6 ± 0.15]
B
0.031 ± 0.006
[0.8 ± 0.15]
C
0.012 ± 0.006
[0.3 ± 0.15]
D
0.031 ± 0.008
[0.8 ± 0.2]
E
0.105
[2.7]
F
0.035
[0.9]
G
0.025
[0.64]
H
0.040
[1.0]
TAPE AND REEL SPECIFICATIONS 0603 SIZE PER EIA-481-1
in inches [millimeters]
4000 Piece/Reel
P
2
P
0
Ø D
0
E
1
T
A
0
B
0
D
0
0.045 ± 0.004 [1.14 ± 0.1]
0.068 ± 0.004 [1.75 ± 0.1]
0.059 + 0.005/- 0.000 [1.5 + 0.127]
0.039 min. [1.0 min.]
0.069 ± 0.004 [1.75 ± 0.1]
0.138 ± 0.002 [3.50 ± 0.05]
0.045 ± 0.002 [1.15 ± 0.05]
0.157 ± 0.004 [4.00 ± 0.1]
0.157 ± 0.004 [4.00 ± 0.1]
0.079 ± 0.002 [2.00 ± 0.05]
0.327 max. [8.3 max.]
0.008 ± 0.002 [0.2 ± 0.05]
7.000 ± 0.079 [178 ± 2.0]
2.500 [63.5]
0.512 ± 0.020 [13.00 ± 0.50]
0.315 + 0.059/- 0.000 [8.00 + 1.5]
0.079 ± 0.002 [2.00 ± 0.05]
F
B
0
Ø D
1
A
0
P
1
W
D
1
K0
E
1
F
T1
ØC
ØN
K
0
P
0
P
1
P
2
W
ØA
W
1
T
A
N
Empty Trailer
Components
Empty Tape
Cover Tape Leader
Unreel
Direction
160 mm Minimum
C
W
1
T
1
160 mm Minimum
390
mm Minimum
Revision: 10-Jun-15
Document Number: 34027
2
For technical questions, contact:
magnetics@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
