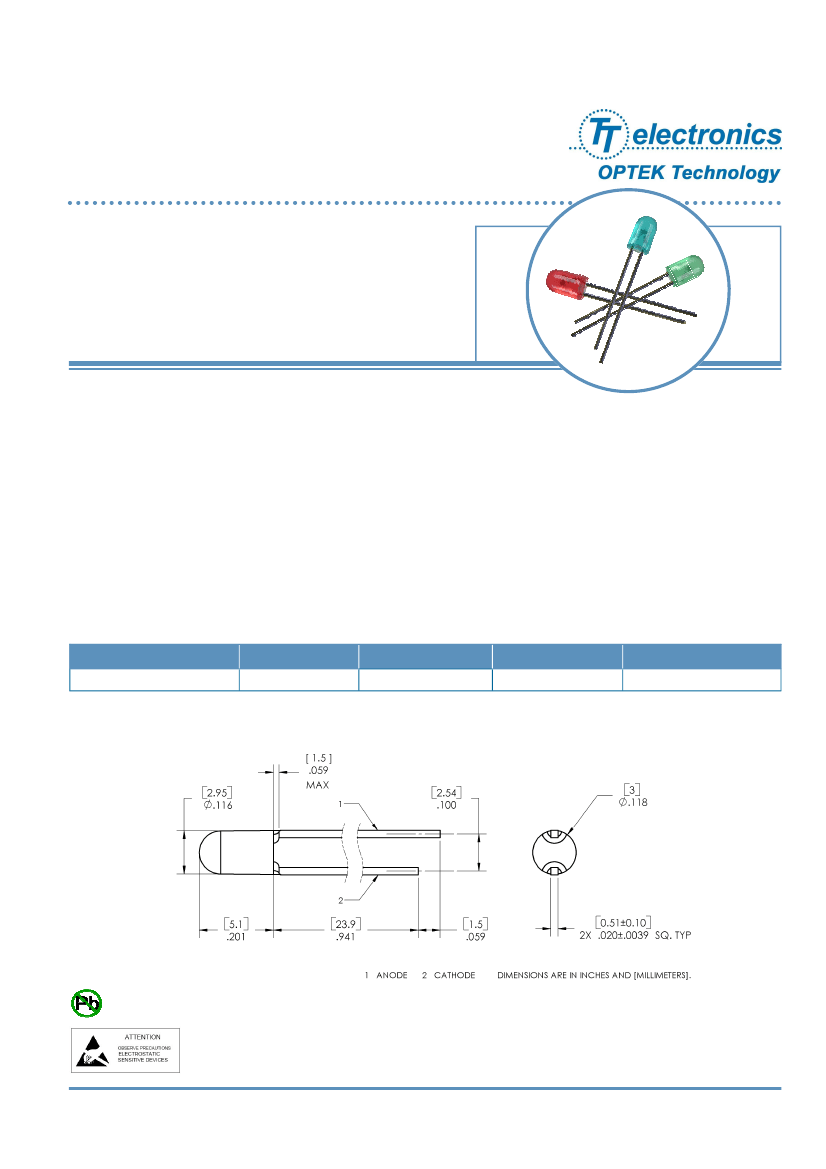

Round Red Through-hole LED
Lamp (3mm)
OVLBR4C7
x
x
x
High Brightness with Well-defined Spatial Radiation Patterns
UV-resistant Epoxy Lens
Red (623nm)
Product Photo Here
The OVLBR4C7 is a high-intensity AlInGaP LED mounted in a clear plastic T-1 package. Its UV-resistant epoxy
lens makes this device an optimal solution for outdoor applications. This LED provides a well-defined and even
emission pattern.
Applications
x
Pedestrian Signals
x
Signage and Architectural Lighting
x
Backlighting
x
Automotive
x
Outdoor/Indoor Displays
Part Number
OVLBR4C7
Material
AlInGaP
Emitted Color
Red
Intensity Typ. mcd
1800
Lens Color
Water Clear
RoHS
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747 FAX: (972) 323-2396 visibleLED@optekinc.com www.optekinc.com
Issue 1.0
0705
Page 1
Round Red Through-hole LED (3mm)
OVLBR4C7
Absolute Maximum Ratings
T
A
= 25
o
C unless otherwise noted
Storage Temperature Range
Operating Temperature Range
Reverse Voltage
Continuous Forward Current
Peak Forward Current (10% Duty Cycle, 1KHz)
Power Dissipation
Current Linearity vs. Ambient Temperature
LED Junction Temperature
Lead Soldering Temperature (3mm from the base of the epoxy bulb)
1
Note:
1. Solder time less than 5 seconds at temperature extreme.
-40 ~ +100°
C
-40 ~ +85°
C
5V
30 mA
100 mA
78 mW
-0.5 mA/°
C
125°
C
260°
C
Electrical Characteristics
T
A
= 25
o
C unless otherwise noted
SYMBOL
I
v
V
F
I
R
P
D
PARAMETER
Luminous Intensity
Forward Voltage
Reverse Current
MIN
1135
----
----
----
619
----
TYP
1800
2.2
----
633
623
45
MAX
----
2.6
10
----
630
----
UNITS
CONDITIONS
I
F
= 20mA
I
F
= 20mA
V
R
= 5V
I
F
= 20mA
I
F
= 20mA
I
F
= 20mA
mcd
V
µA
Peak Wavelength
Dominant Wavelength
50% Power Angle
nm
nm
deg
2 ½H-H
Lamps are sorted to luminous intensity (I
V
) and dominant wavelength (
D
) bins shown.
Orders for OVLBR4C7 may be filled with any or all bins contained as below.
Luminous Intensity
(mcd)
R1
3115
2225
1590
1135
619
623
626
Dominant Wavelength (nm)
G
1.8–2.0
H
2.0–2.2
0U
0T
0S
630
Luminous intensity is
at 0S bin or above.
R2
R3
Standard Bins
(I
F
= 20mA)
Forward Voltage
Rank
Voltage
J
2.2–2.4
6
2.4–2.6
Important Notes:
1. All ranks will be included per delivery, rank ratio will be based on the chip distribution.
2. To designate luminous intensity ranks, please contact OPTEK.
3. Pb content <1000PPM.

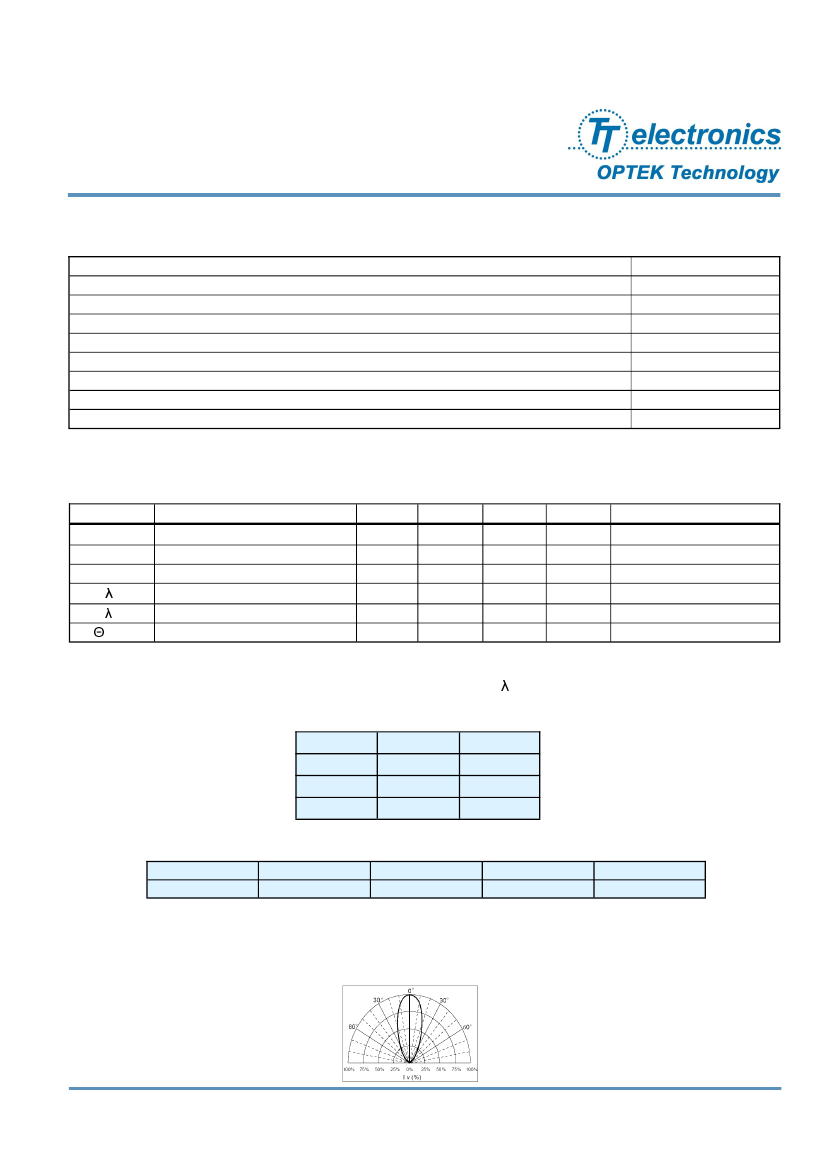

Beam Pattern
Issue 1.0
Page 2
0705
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747 FAX: (972) 323-2396 visibleLED@optekinc.com www.optekinc.com
Round Red Through-hole LED (3mm)
OVLBR4C7

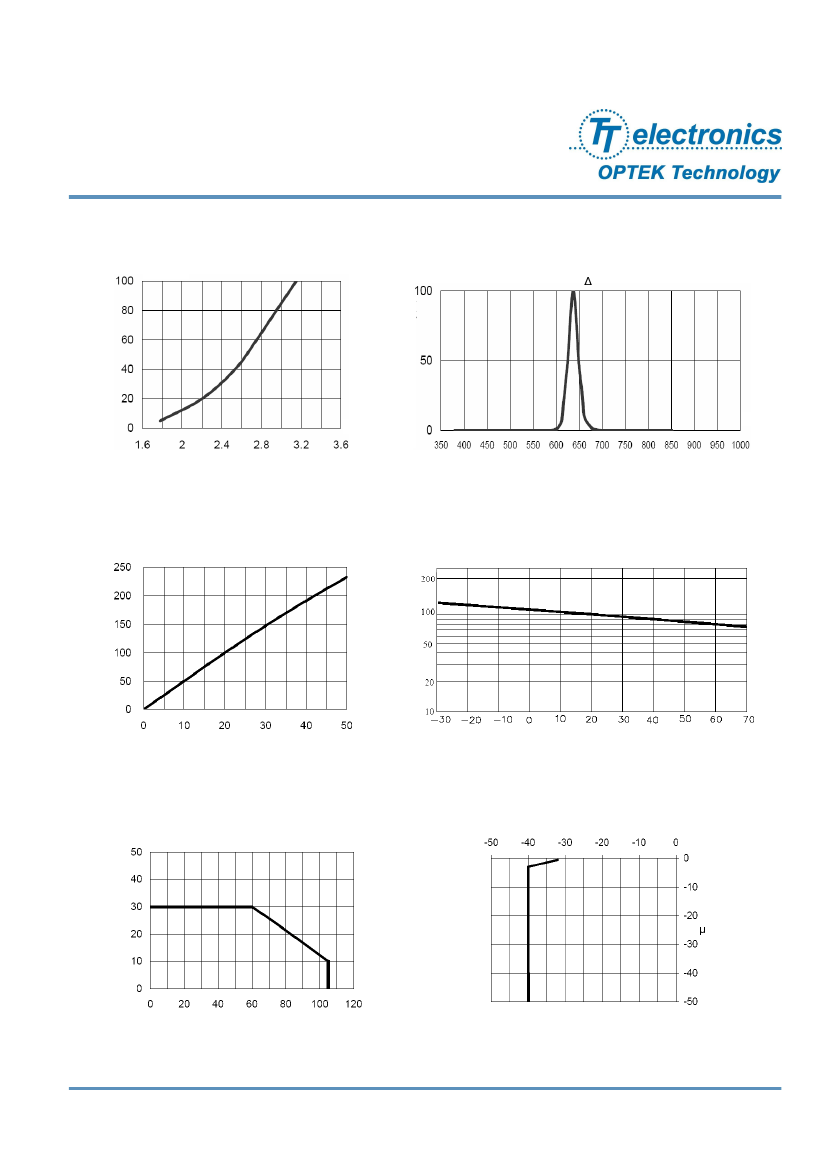

Typical Electro-Optical Characteristics Curves
Half Power
WL = 25nm
mA
%
V
mA
Forward Current vs. Forward Voltage
Relative Luminous Intensity vs. Wavelength
%
%
Relative Luminous Intensity vs. Forward Current
mA
°
C
Relative Luminous Intensity vs. Ambient
Temperature
V
mA
A
Forward Current vs. Ambient Temperature
°
C
Reverse Current vs. Reverse Voltage
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747 FAX: (972) 323-2396 visibleLED@optekinc.com www.optekinc.com
Issue 1.0
0705
Page 3
Round Red Through-hole LED (3mm)
OVLBR4C7

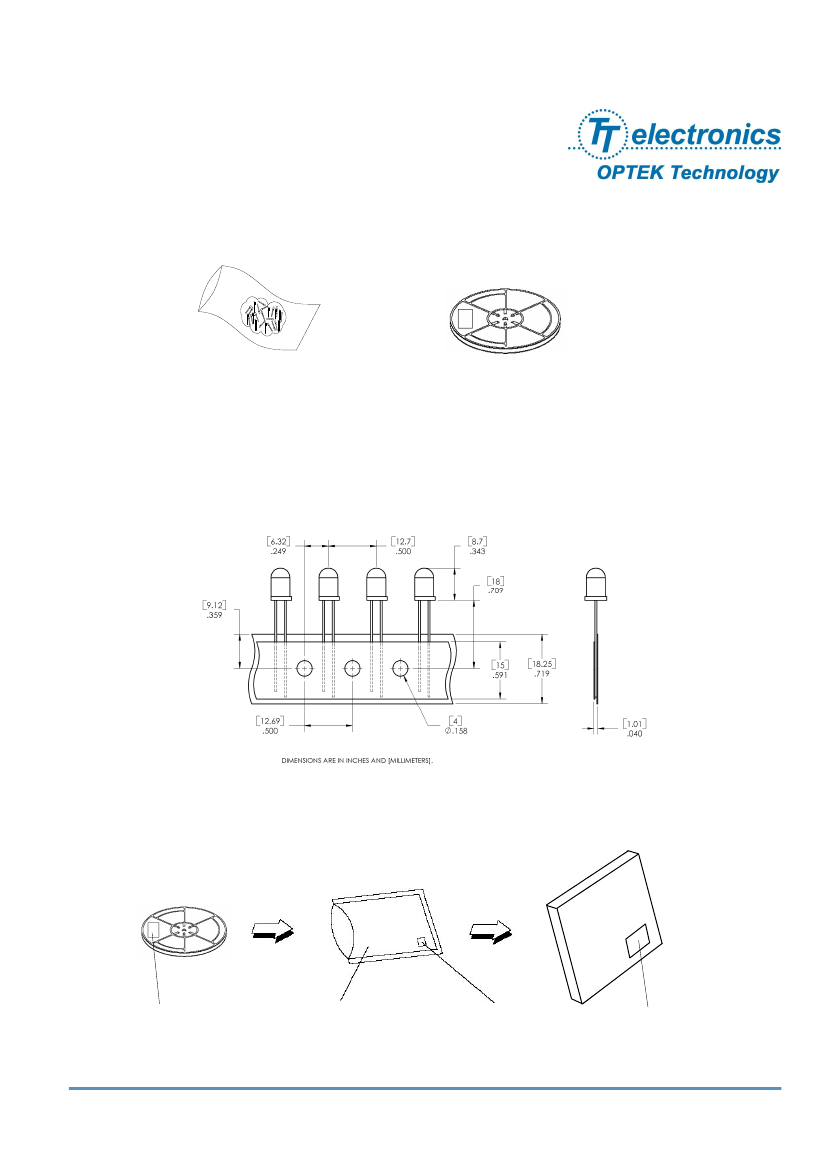

Packing Information: Available in Bulk or Reel
Bulk: 500 pcs/bag
13-Inch Reel: 2500 pcs/reel
Carrier Tape Dimensions: Loaded Quantity 2500 PCS per Reel
Moisture Resistant Packaging
Label
Aluminum Moisture-proof Bag
Desiccant
Bar Code Label
Issue 1.0
Page 4
0705
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747 FAX: (972) 323-2396 visibleLED@optekinc.com www.optekinc.com
Round Red Through-hole LED (3mm)
OVLBR4C7
Issue
Change Description
Approval
Date
1.0
Initial Release
J. Haynie
7/20/05
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747 FAX: (972) 323-2396 visibleLED@optekinc.com www.optekinc.com
Issue 1.0
0705
Page 5
