54168B Overview

Ring Terminal, 107.26mm2, ROHS COMPLIANT

54168B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ABB
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Terminal and terminal strip types	RING TERMINAL
Conductor cross section	107.26 mm2
Base Number Matches	1

Preview

Download Datasheet

View All

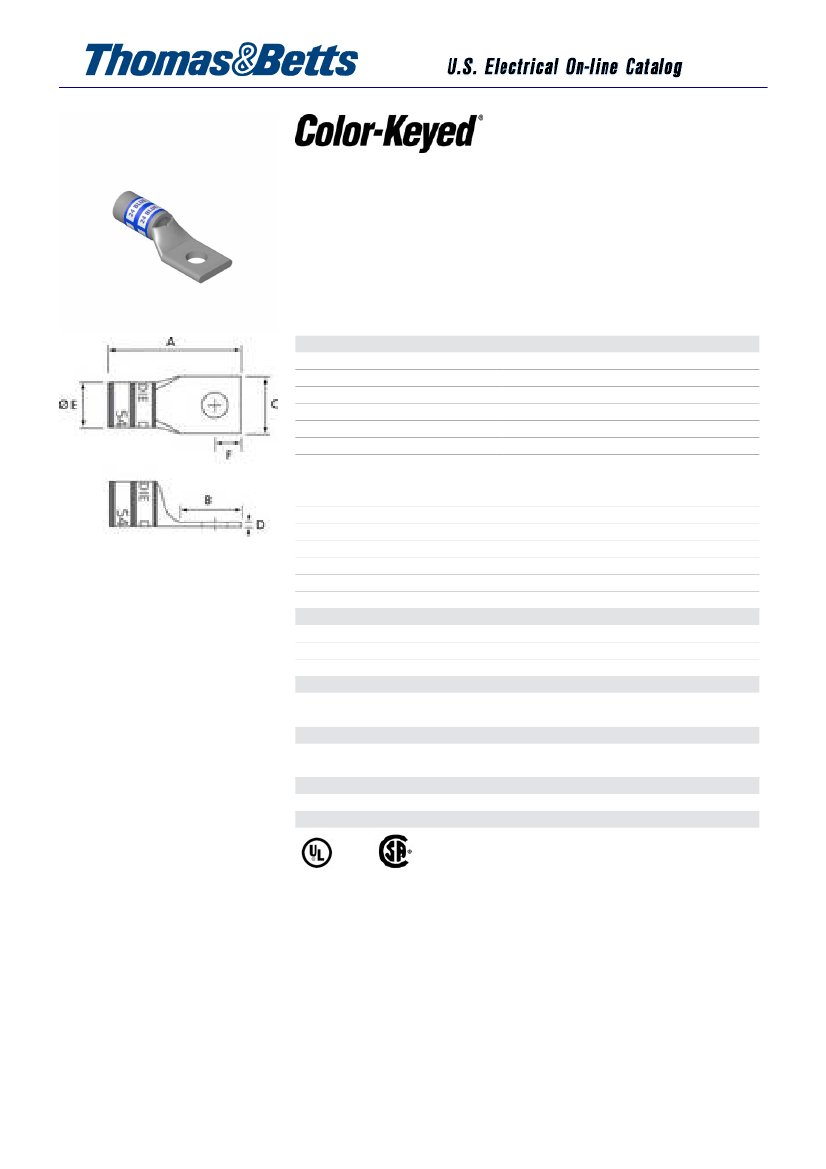

T&B Catalog Number:

UPC Number:

Description:

54168B

78621071549

Copper One-Hole Lug - Straight Standard

Barrel - max 35KV, 4/0 AWG Wire, 5/16"

Bolt Size, Tin Plated with Inspection Hole,

Bottom Stacking, Purple 54

Active

Status:

General

Material

Finish

Wire Size

Number of Studs

Stud Size

Tongue Angle

Barrel Length

Barrel Shape

Tongue Width

Peep Hole

Stacking

Marking

Hole Shape

Die Color

Die Code

Copper

Tin Plated

4/0 AWG

1

5/16

Straight

Standard

Y

Bottom

Standard

Round

Purple

54

10

Each

18 lbs. per 100

Available on Website

Dimensions given for reference only. Dimensions

may vary up to +/- .030.

Packaging

Package in Units

T&B Sold in UOM

T&B Weight Per UOM

Application Support

Overview

Connector & Tooling Chart

Notes

Certifications

RoHS Compliance

Yes

Certifications

File Nbr:

E9809

For further technical assistance, please contact us...

Thomas & Betts - USA

8155 T&B Blvd.

Memphis, TN 38125

www.tnb.com

T&B Technical Support

MS 3B-50

8155 T&B Blvd.

Memphis, TN 38125

Hours: 7AM - 6PM CDT

Monday-Friday

Phone: (888) 862-3289

Fax: (901) 252-1321

Email:techsupport@tnb.com
