DA0887 datasheet, PDF - EEWORLD Datasheet

DA0887: DescriptionGaAs 7 Section Attenuator; CategoryWireless rf/communication Radio frequency and microwave; File Size185KB，1 Pages; ManufacturerDAICO; Websitehttp://www.daico.com/

Download Datasheet Parametric View All

DA0887 Overview

GaAs 7 Section Attenuator

Parameter Name	Attribute value
Maker	DAICO
package instruction	DIP38,.8
Reach Compliance Code	unknow
Nominal attenuation	63.5 dB
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	23.98 dBm
Maximum insertion loss	9 dB
Installation features	THROUGH HOLE MOUNT
Number of terminals	38
Maximum operating frequency	1000 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	METAL
Encapsulate equivalent code	DIP38,.8
power supply	5 V
RF/Microwave Device Types	VARIABLE ATTENUATOR
Maximum slew rate	7 mA
surface mount	NO
technology	GAAS
Maximum voltage standing wave ratio	1.35

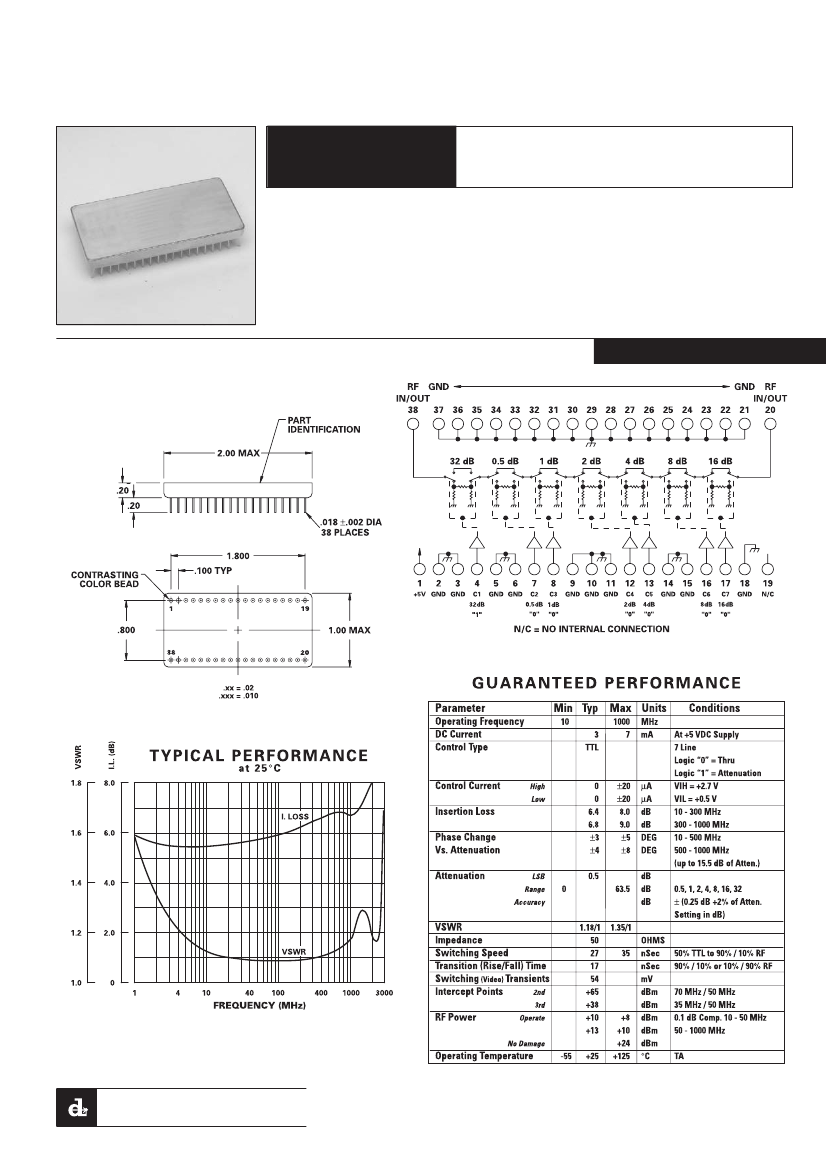

MODEL NUMBER

DA0887

FEATURES

• 10-1000 MHz

• 3 mA, +5 VDC

• 17 nSec Transition Time

• 27 nSec Switching Speed

GaAs 7 Section Attenuator

• 0.5 dB LSB, 63.5 dB Range

• 54 mV Transients

• TTL Control

• 38 Pin DIP

7 BIT

DAICO

Industries

310.507.3242 • FAX 310.507.5701 • www.daico.com

209
