DPS52005 Overview

Phase Shifter 5 Section

Parameter Name	Attribute value
Maker	DAICO
Reach Compliance Code	unknow
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum insertion loss	3 dB
Maximum operating frequency	300 MHz
Minimum operating frequency	100 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
maximum phase shift	43.6 deg
RF/Microwave Device Types	COAXIAL MECHANICAL PHASE SHIFTER
Maximum voltage standing wave ratio	1.3

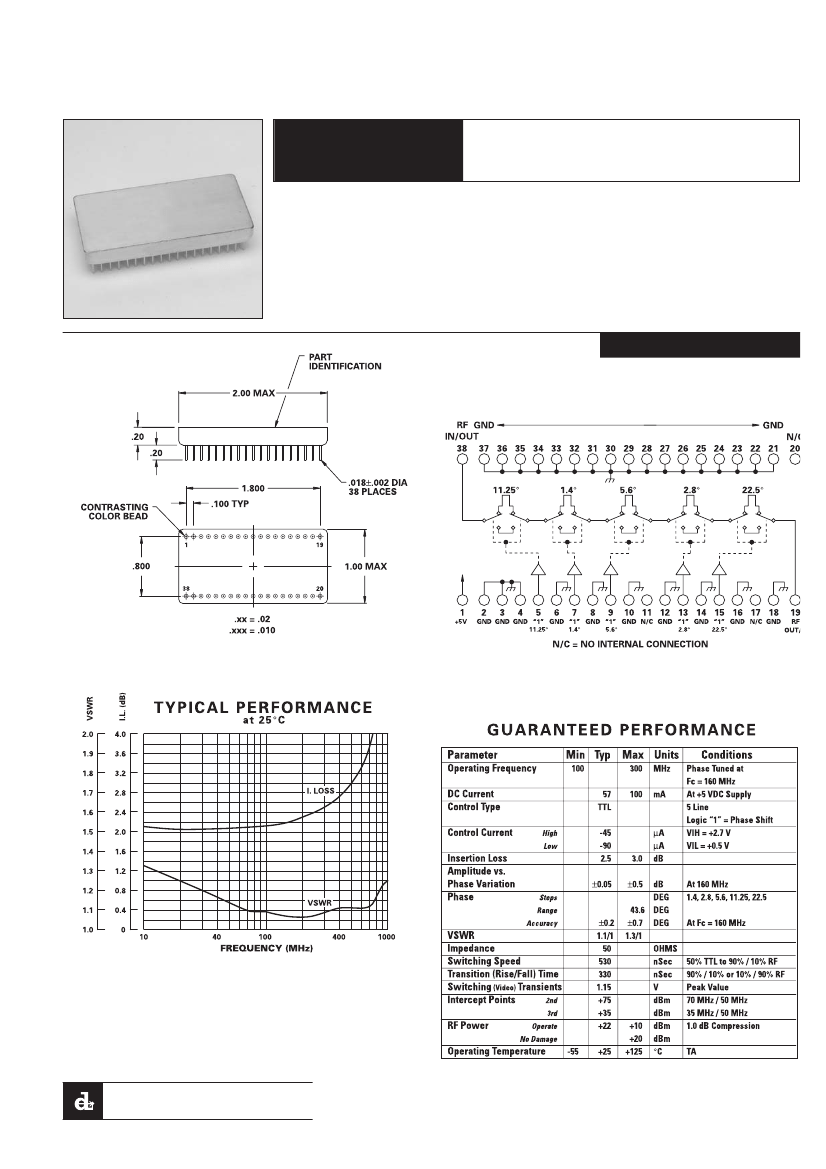

MODEL NUMBER

DPS52005

Phase Shifter 5 Section

FEATURES

• 100-300 MHz

• Large Phase Shift, Small Package

• 38 Pin DIP

5 BIT

DAICO

Industries

310.507.3242 • FAX 310.507.5701 • www.daico.com

259
