DS0744

Description
PIN Diode SP4T
CategoryWireless rf/communication    Radio frequency and microwave
File Size152KB,1 Pages
ManufacturerDAICO
Websitehttp://www.daico.com/
Download Datasheet Parametric View All

DS0744 Overview

PIN Diode SP4T

DS0744 Parametric

Parameter NameAttribute value
MakerDAICO
package instructionFL24,.77,100FL
Reach Compliance Codeunknow
1dB compression point27 dBm
Characteristic impedance50 Ω
structureCOMPONENT
Maximum input power (CW)26.99 dBm
Maximum insertion loss1.5 dB
Minimum isolation45 dB
Installation featuresSURFACE MOUNT
Number of functions1
Number of terminals24
on time1.6 µs
Maximum operating frequency1000 MHz
Minimum operating frequency10 MHz
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialCERAMIC
Encapsulate equivalent codeFL24,.77,100FL
port terminationABSORPTIVE
power supply5 V
RF/Microwave Device TypesSP4T
surface mountYES
technologyGAAS
Maximum voltage standing wave ratio1.5

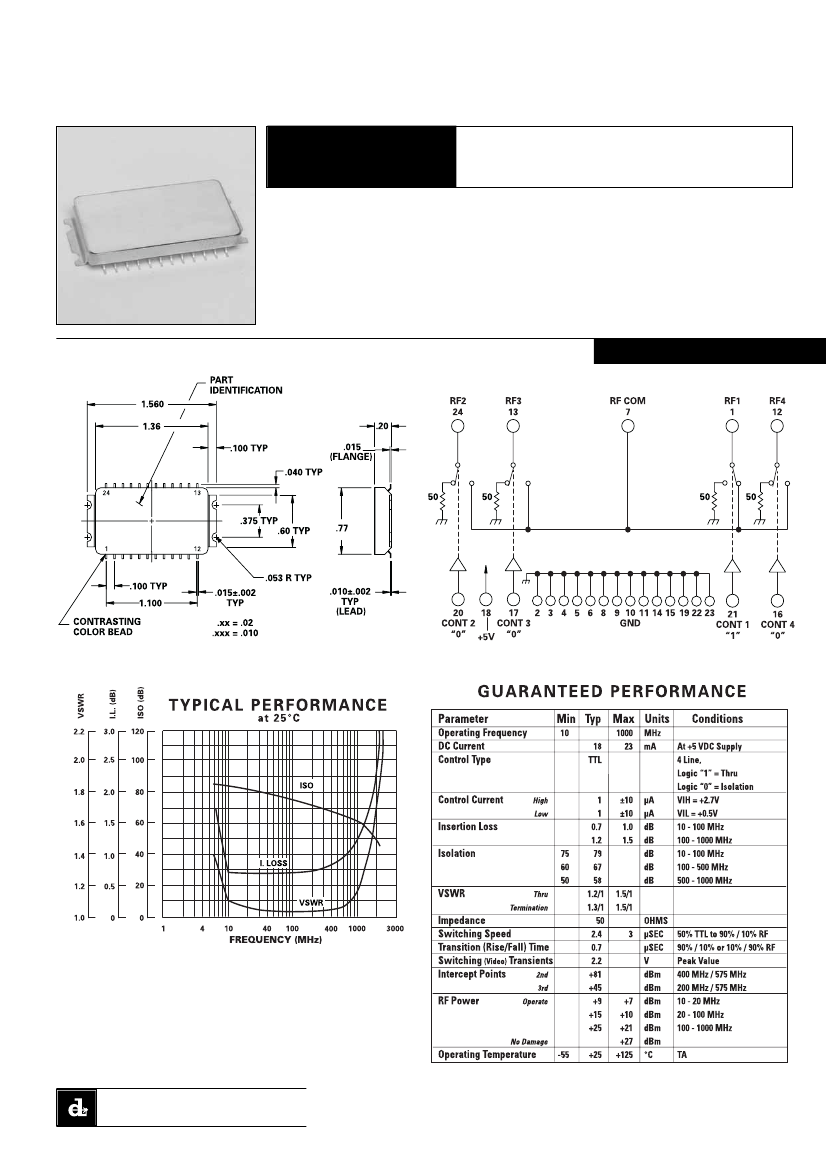

MODEL NUMBER
DS0744
FEATURES
• 10 - 1000 MHz
• 18 mA, +5 VDC
• Low Insertion Loss
• High Isolation
PIN Diode SP4T
• TTL Driver
• 24 Pin Surface Mount Package
• See DS0644 For 24 Pin DIP Version
SP4T
DAICO
Industries
310.507.3242 • FAX 310.507.5701 • www.daico.com
141
