307UC101E datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> 307UC101E

Preview

307UC101E: DescriptionTrimmer Resistors - Through Hole 100ohms 25% Cermet Trimm Pot.; CategoryPassive components; File Size211KB，2 Pages; ManufacturerCTS [CTS Corporation]

Download Datasheet Parametric Compare View All

307UC101E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	307UC101E	-	-	View	Buy Now

307UC101E Overview

Trimmer Resistors - Through Hole 100ohms 25% Cermet Trimm Pot.

307UC101E Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	CTS [CTS Corporation]
Product Category	Trimmer Resistors - Through Hole
Termination Style	Radial
Product	Single Turn
Resistance	100 Ohms
Adjustment	Top Crossed
Power Rating	330 mW
Voltage Rating	100 V
Tolerance	25 %
Operating Temperature Range	- 25 C to + 100 C
Packaging	Bulk
Height	3.5 mm
Length	6.8 mm
Type	Trimmer Resistors - Single Turn
Width	6.8 mm
Element Type	Cermet
Maximum Operating Temperature	+ 100 C
Minimum Operating Temperature	- 25 C
Factory Pack Quantity	500

Preview

Download Datasheet

View All

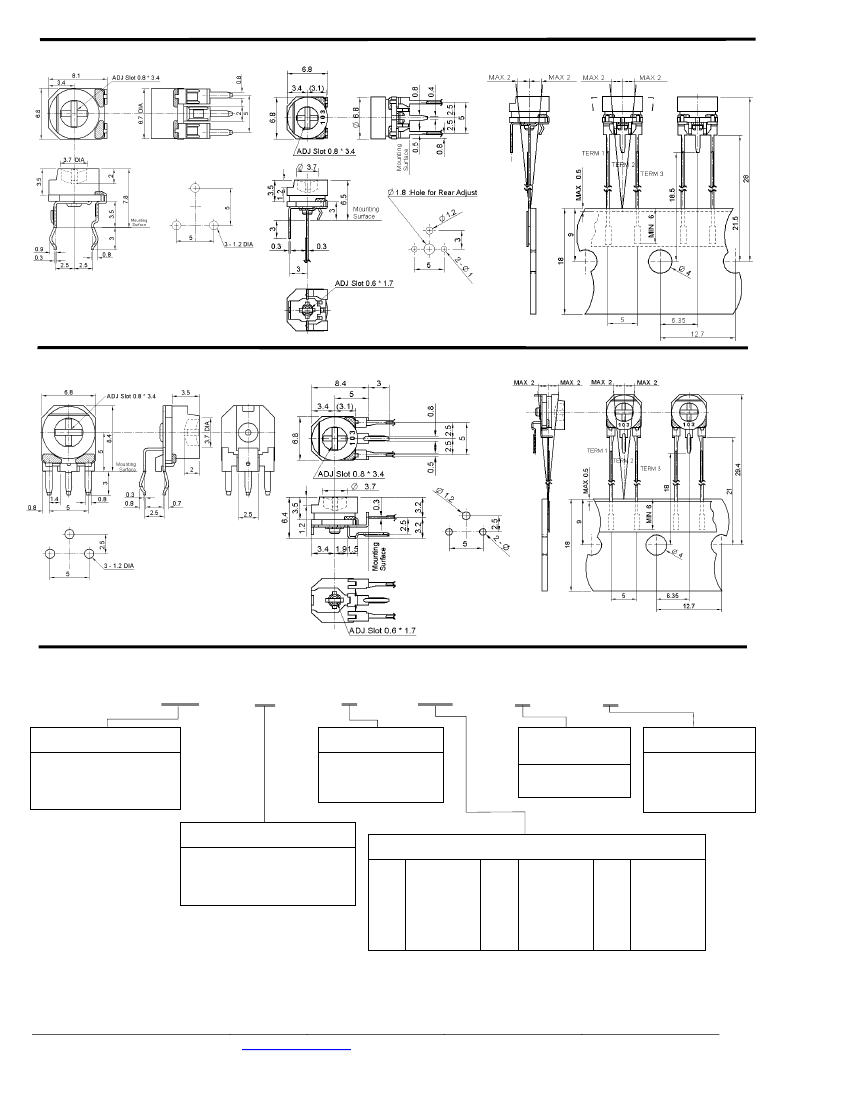

Series 307

Technical Data

Commercial

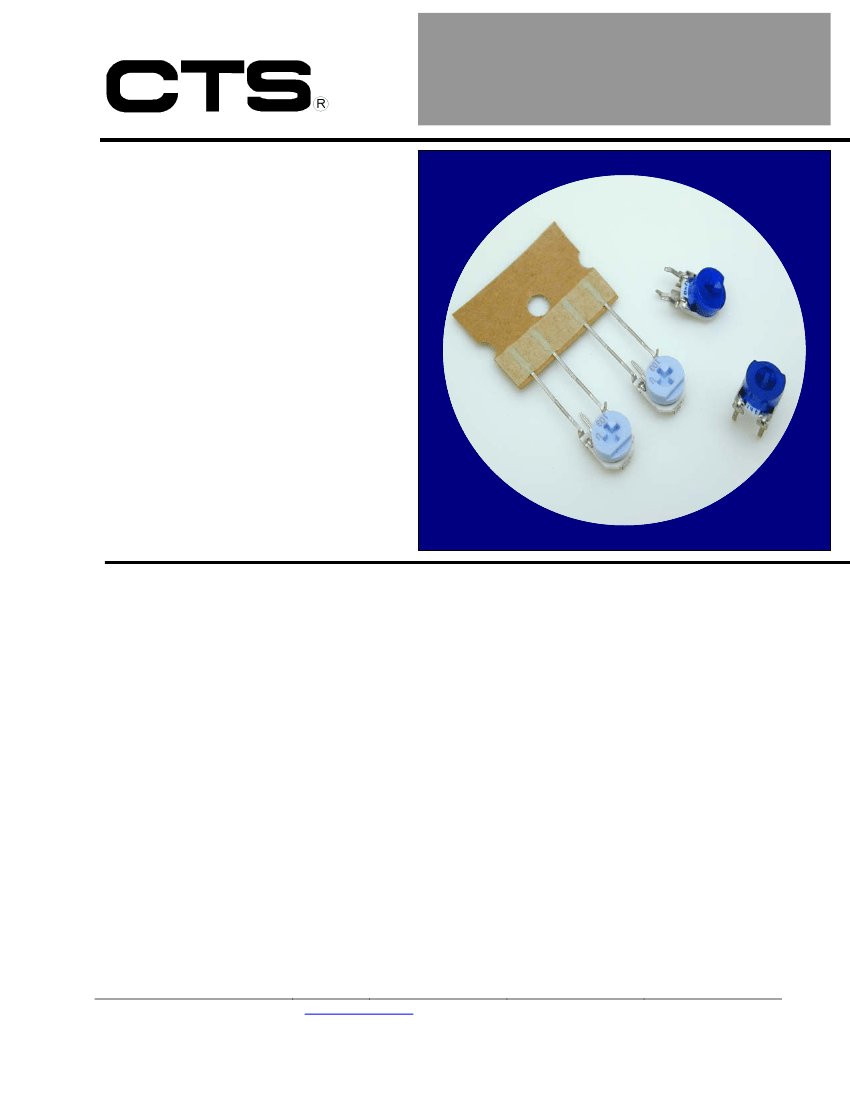

miniature 6 mm

cermet trimmer

potentiometer

•

Variety of terminal pitches

•

Front cross-slot adjustment

•

Available in Bulk and Ammo-Pak

Electrical and Mechanical Specifications

Taper

Linear

Resistance Range

100 ohms to 1 megohm

(See Resistance Code Table)

Resistance Tolerance

±

25 %

Residual Resistance

Less than 2% of the total resistance value,

100 kΩ < 5% maximum

Power Rating

Cermet - 0.3 watt at 70°C, 0 watts at 100°C

Maximum Working Voltage

100 V

Temperature Range

-25° C ~ +100

°

C

Temperature Coefficient

±

250 ppm/°C

Noise (Contact Resistance Variation)

Less than 4% of total resistance

Rotation Angle

240°

±

10°

Operation Torque

Bulk

–

2.94 ~ 29.4 mN•m

Taped – 0.98 ~ 29.4 mN•m

Stop Strength

49.00 mN•m, maximum

Document No. 307 Series

Page 1 of 2

Rev. A

٠

CTS Electronic Components

٠

www.ctscorp.com

٠

171 Covington Drive

٠

Bloomingdale, IL 60108
