854653 Overview

1 FUNCTIONS, 70 MHz, SAW FILTER

854653 Parametric

Parameter NameAttribute value
Number of functions1
Processing package descriptionROHS COMPLIANT, HERMETIC, CERAMIC PACKAGE-10
Lead-freeYes
EU RoHS regulationsYes
stateACTIVE
Installation typeSURFACE MOUNT
terminal coatingGOLD (39) OVER NICKEL (236)
DimensionsL19.0XB6.5XH1.96 (mm)/L0.748XB0.256XH0.077 (inch)
Manufacturer Series
filter typeSAW FILTER
input resistance50 OHM
Output impedance50 OHM
Maximum insertion loss8.25 dB
Rated center frequency70 MHz

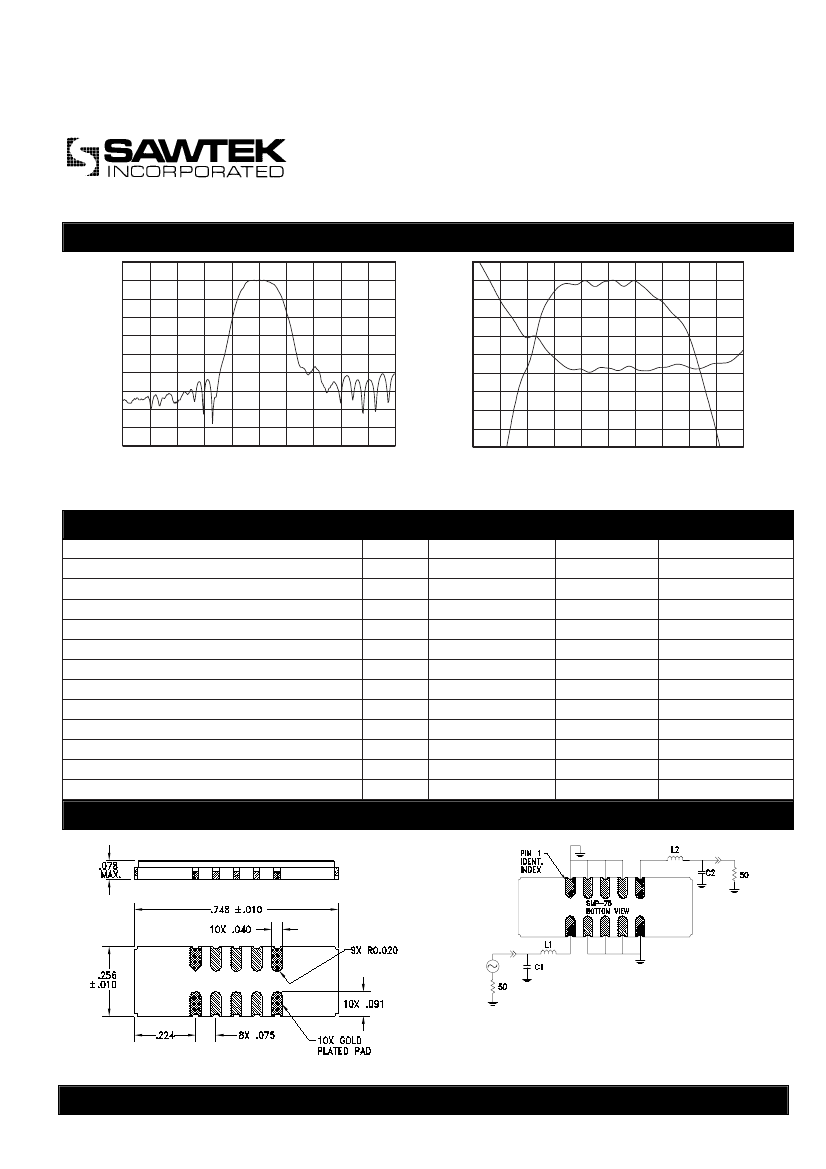

70 MHz Low-Loss Filter
Data Sheet
Typical Performance
10
0
-10
-20
-30
-40
-50
-60
-70
-80
-90
Horizontal:
71 72
65 66 67 68 69 70
1 MHz/Div
73 74 75
Vertical: 10 dB/Div
1
50
0
40
-1
30
-2
20
-3
10
-4
0
-5
-10
-6
-20
-7
-30
-8
-40
-9
-50
Horizontal: 300 kHz/Div
69 69.269.469.6 69.8 70 70.2 70.4 70.6 70.8 71
Vertical: 1 dB/Div
Vertical: 10 deg/Div
1.5 MHz Bandwidth
Part Number 854653
Parameter
Center Frequency
Insertion Loss at F
o
1 dB Bandwidth
3 dB Bandwidth
40 dB Bandwidth
Passband Ripple
Phase Linearity (60% of 3 dB Bandwidth)
Group Delay Variation (60% of 3 dB Bandwidth)
Absolute Delay
Substrate Material
Temperature Coefficient
Ambient Temperature
Specifications
Unit
Minimum
MHz
dB
MHz
MHz
MHz
dB
deg
nsec
µsec
-
ppm/°C
°C
69.92
-
0.83
1.5
-
-
-
-
-
-
-
-
Typical
70
7.5
1.04
1.52
3.2
0.85
5.6
340
2.2
LiTaO
3
-23
25
Maximum
70.08
8.25
-
-
3.5
1
7
425
-
-
-
-
Package Outline
Matching Configuration
L1 = 150nH, L2 = 120nH
C1 = 33pF, C2 = 56pF
Nominal Source/Load Impedance = 50Ω
Package Style SMP-75
11/24/99
Sawtek Inc.
Telephone: (407) 886-8860
Fax: (407) 886-7061
