854661: Description1 FUNCTIONS, 70 MHz, SAW FILTER; CategoryPassive components; File Size42KB，1 Pages; ManufacturerTriQuint Semiconductor Inc. (Qorvo); Websitehttp://www.triquint.com

Download Datasheet Parametric View All

854661 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	854661	-	-	View	Buy Now

854661 Overview

1 FUNCTIONS, 70 MHz, SAW FILTER

854661 Parametric

Parameter Name	Attribute value
Maximum operating temperature	85 Cel
Minimum operating temperature	-40 Cel
Number of functions	1
Processing package description	ROHS COMPLIANT, HERMETIC SEALED, CERAMIC PACKAGE-12
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
Installation type	SURFACE MOUNT
terminal coating	GOLD (39) OVER NICKEL (236)
Dimensions	L13.3XB6.5XH1.96 (mm)/L0.524XB0.256XH0.077 (inch)
Manufacturer Series
filter type	SAW FILTER
input resistance	50 OHM
Output impedance	50 OHM
Maximum insertion loss	8.8 dB
Rated center frequency	70 MHz

Preview

Download Datasheet

View All

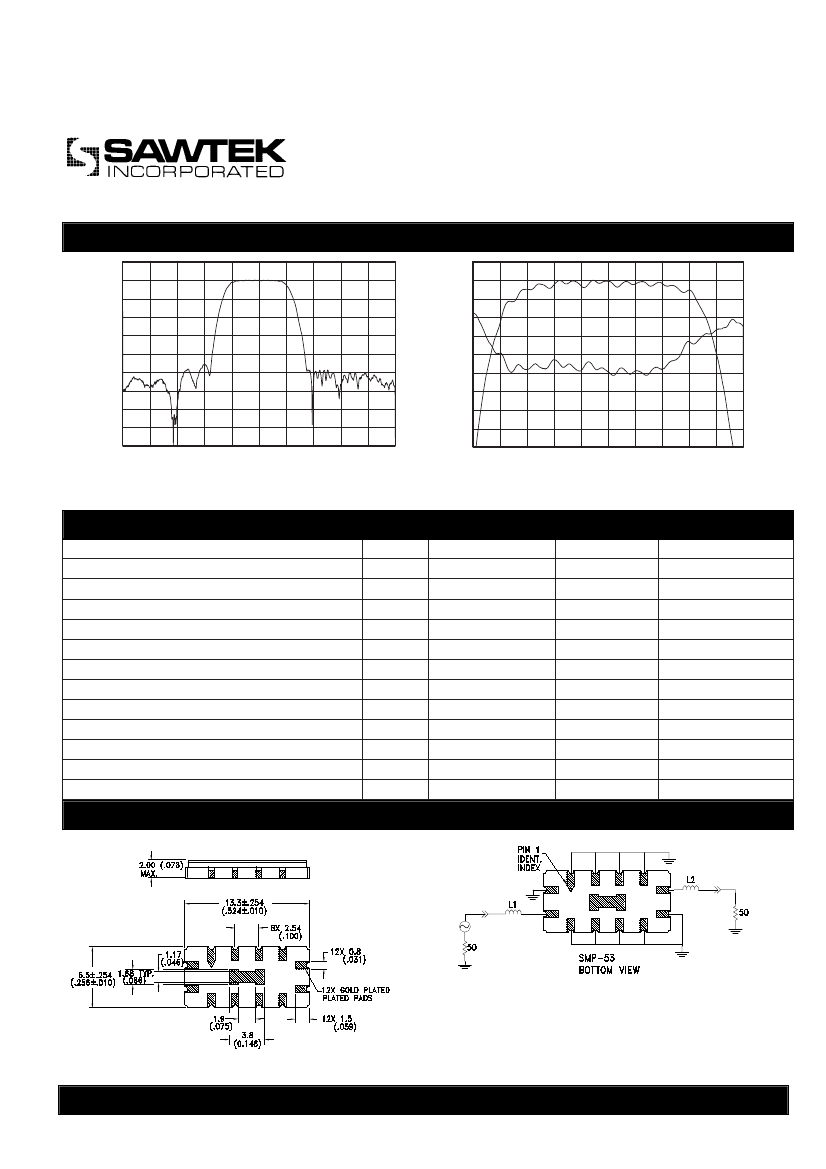

70 MHz Low-Loss filter

Data Sheet

Typical Performance

10

0

-10

-20

-30

-40

-50

-60

-70

-80

-90

Horizontal:

73 76

55 58 61 64 67 70

3 MHz/Div

79 82 85

Vertical: 10 dB/Div

1

25

0

20

-1

15

-2

10

-3

5

-4

0

-5

-6

-10

-7

-15

-8

-20

-9

-25

Horizontal: 800 kHz/Div

66 66.867.668.4 69.2 70 70.8 71.6 72.4 73.2 74

Vertical: 1 dB/Div

Vertical: 5 deg/Div

6 MHz Bandwidth

Part Number 854661

Parameter

Center Frequency

Insertion Loss at F

o

1 dB Bandwidth

3 dB Bandwidth

40 dB Bandwidth

Passband Ripple

Phase Linearity (80% of 3dB Bandwidth)

Group Delay Variation (80% of 3dB Bandwidth)

Absolute Delay

Substrate Material

Temperature Coefficient

Ambient Temperature

Specifications

Unit

Minimum

MHz

dB

MHz

dB

deg

nsec

µsec

-

ppm/°C

°C

69.8

-

5.1

6

-

Typical

70

7.5

5.35

6.35

10.2

0.7

8.2

85

1.01

YZ LiNbO

3

-94

25

Maximum

70.2

8.5

-

10.65

1

9.75

110

-

Package Outline

Matching Configuration

Ω

L1 = 180nH, L2 = 150nH

Nominal Source/Load Impedance = 50Ω

Package Style SMP-53

11/29/99

Sawtek Inc.

Telephone: (407) 886-8860

Fax: (407) 886-7061
