1 FUNCTIONS, 70 MHz, SAW FILTER
CategoryPassive components
File Size35KB,1 Pages
ManufacturerTriQuint Semiconductor Inc. (Qorvo)
Websitehttp://www.triquint.com
Download Datasheet Parametric View All

854672 Online Shopping

Suppliers Part Number Price MOQ In stock
854672 - - View Buy Now

854672 Overview

1 FUNCTIONS, 70 MHz, SAW FILTER

854672 Parametric

Parameter NameAttribute value
Number of functions1
Processing package descriptionHERMETIC, ceramic PACKAGE-12
Lead-freeYes
EU RoHS regulationsYes
stateACTIVE
Installation typesurface mount
terminal coatingGold(39) OVER Nickel(236)
DimensionsL13.3XB6.5XH1.96 (mm)/L0.524XB0.256XH0.077 (inch)
Manufacturer Series
filter typesurface acoustic wave filter
input resistance50 OHM
Output impedance50 OHM
Maximum insertion loss17 dB
Rated center frequency70 MHz

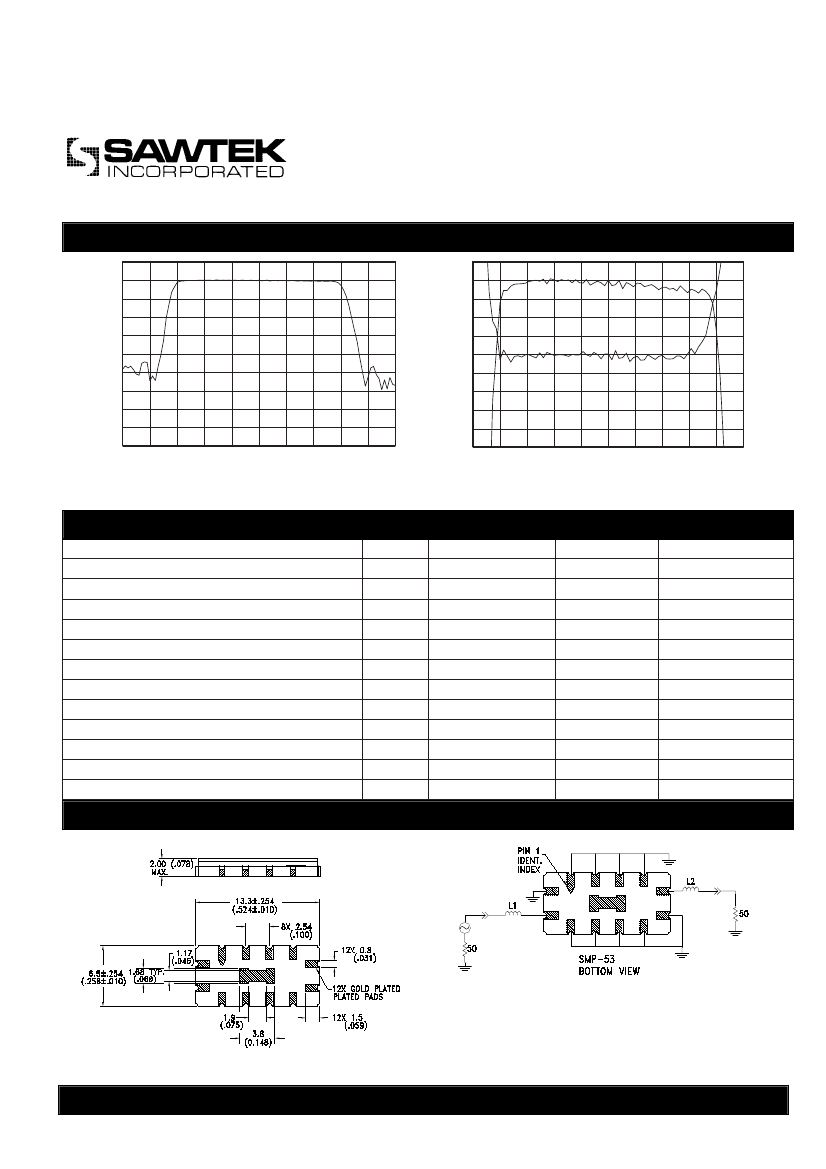

70 MHz Bandpass Filter
Data Sheet
Typical Performance
10
0
-10
-20
-30
-40
-50
-60
-70
-80
-90
Horizontal:
74 78
50 54 58 62 66 70
4 MHz/Div
82 86 90
Vertical: 10 dB/Div
1
25
0
20
-1
15
-2
10
-3
5
-4
0
-5
-5
-6
-10
-7
-15
-8
-20
-9
-25
Horizontal: 3 MHz/Div
79 82 85
55 58 61 64 67 70 73 76
Vertical: 1 dB/Div
Vertical: 5 deg/Div
24 MHz Bandwidth
Part Number 854672
Parameter
Center Frequency
Insertion Loss at F
o
2 dB Bandwidth
3 dB Bandwidth
40 dB Bandwidth
Passband Ripple
Phase Linearity (90% of 3 dB Bandwidth)
Group Delay Variation (90% of 3 dB Bandwidth)
Absolute Delay
Substrate Material
Temperature Coefficient
Ambient Temperature
Specifications
Unit
Minimum
MHz
dB
MHz
MHz
MHz
dB
deg
nsec
µsec
-
ppm/°C
°C
69.8
-
22.9
24
-
-
-
-
-
-
-
-
Typical
70
16.25
23.4
24.45
29.65
0.7
8
65
1.14
YZ LiNbO
3
-94
25
Maximum
70.2
17
-
-
30.5
1
12
100
-
-
-
-
Package Outline
Matching Configuration
L1 = 120 nH, L2 = 120 nH
Nominal Source/Load Impedance = 50Ω
Package Style SMP-53
11/29/99
Sawtek Inc.
Telephone: (407) 886-8860
Fax: (407) 886-7061
