Pot Cores (5695181221)
Part Number: 5695181221

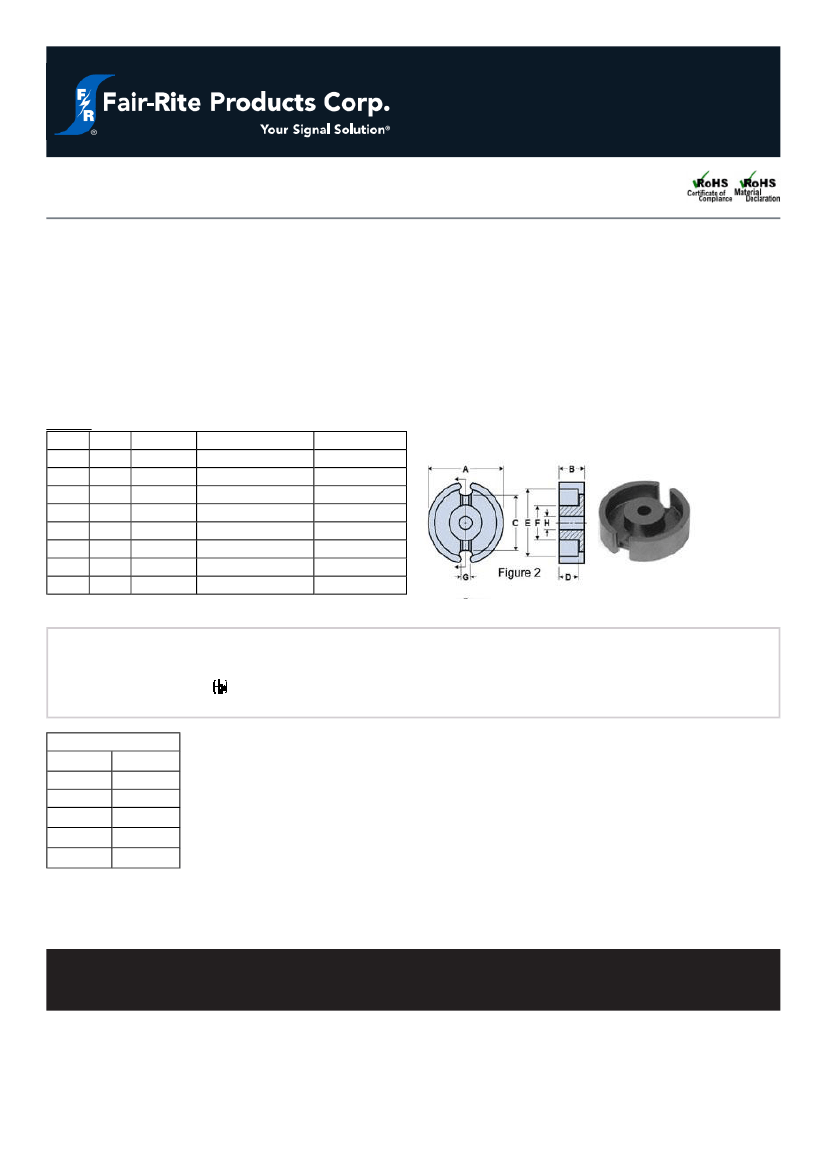

95 POT CORE SET
Pot cores have found application in all types of inductive devices. The core configuration provides a high degree of self-
shielding. It also facilitates gapping to enhance utility for a variety of magnetic designs.
Pot cores can be supplied with the center post gapped to a mechanical dimension or an A
L
value.
Weight indicated is per pair or set.
Weight: 6.000 (g)
Dim mm mm tol
A
18
±0.40
B
5.35 ±0.15
C
13.4 ±0.40
D
3.8
±0.20
E
14.9 min
F
7.45 ±0.15
G
4
±0.30
H
3.2
±0.20
nominal inch
0.709
0.211
0.528
0.15
0.587
0.293
0.157
0.126
inch misc.
_
_
_
_
min
_
_
_
Chart Legend
Σl/ A : Core Constant, l
e
: Effective Path Length, A
e
: Effective Cross- Sectional Area, V
e
:
Effective Core Volume
A
L
: Inductance Factor
Explanation of Part Numbers: Digits 1 & 2 = product class and 3 & 4 = material grade.
Electrical Properties
A
L
(nH)
3400 ±25%
2
Ae(cm ) 0.43
-1
Σl/ A(cm ) 6
l
e
(cm)
2.59
3
V
e
(cm )
1.12
2
A
min
(cm ) 0.36
A
L
value is measured at 1 kHz, B < 10 gauss.
Fair- Rite Products Corp.
•
One Commercial Row, Wallkill, New York 12589-0288
888-324-7748 • 845-895-2055 • Fax: 845-895-2629 • ferrites@fair- rite.com • www.fair- rite.com
