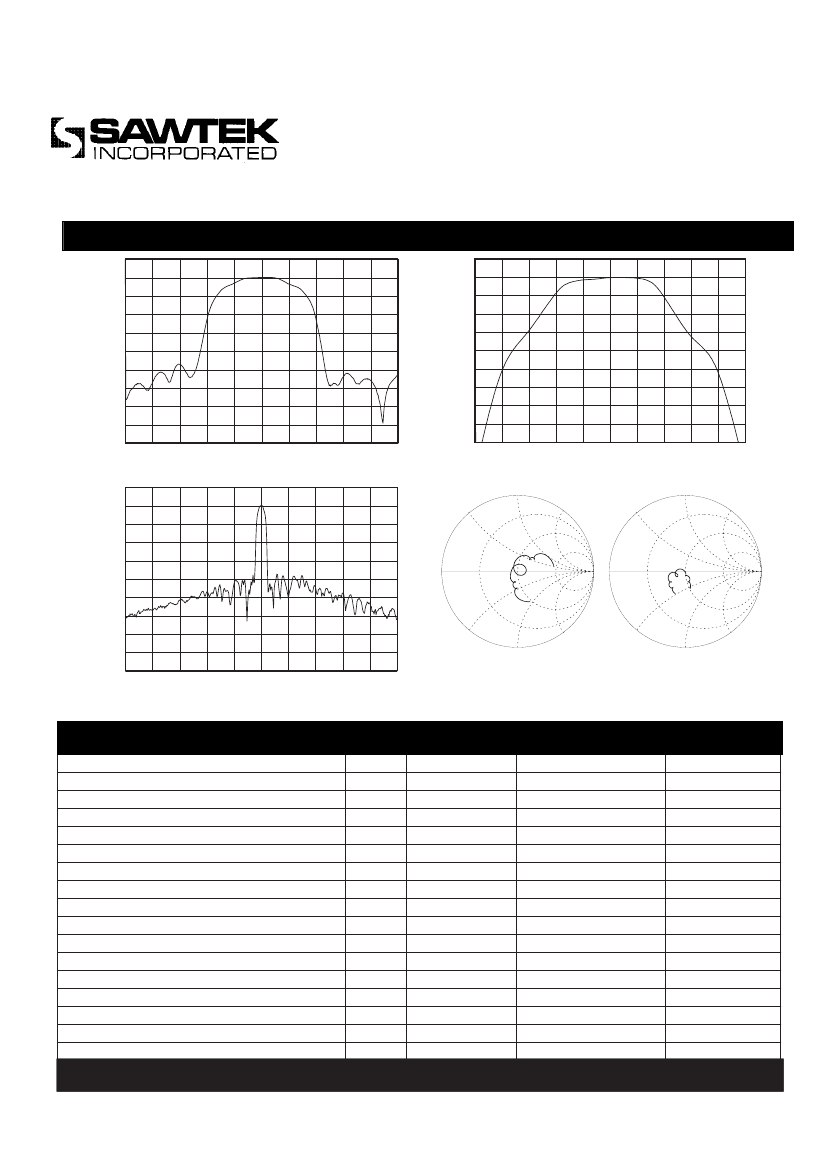

210.380 MHz Bandpass Filter
1.260 MHz Bandwidth
Data Sheet
Typical Performance
8
0
-8
-16
-24
-32
-40
-48
-56
-64
-72
207.88
208.38
208.88
Part Number 855715
209.38
209.88
210.38
210.88
211.38
211.88
212.38
212.88
Horizontal: 500 kHz/Div
Vertical: 8 dB/Div
Horizontal: 180 kHz/Div
Vertical: 1 dB/Div
Input
Output
50Ω
Horizontal: 5 MHz / Div
Vertical: 10 dB / Div
50Ω
Specifications
Parameter
Center Frequency, f
o
Insertion Loss
5 dB Lower Frequency
5 dB Upper Frequency
33 dB Lower Frequency
33 dB Upper Frequency
Attenuation at 209.13 MHz
Attenuation at 211.63MHz
Attenuation at 208.33 MHz
Attenuation at 212.43 MHz
Amplitude Variation over the f
o
±
.300 MHz
Phase Ripple over the f
o
±
.615 MHz
Ultimate Rejection
Substrate Material
Operating Temperature Range
Storage Temperature Range
Unit
MHz
dB
MHz
MHz
MHz
MHz
dB
dB
dB
dB
dB p-p
deg rms
dB
-
°C
°C
Minimum
-
-
-
211.01
209.13
-
33
33
33
33
-
-
40
-
-30
-55
Typical
210.38
7.2
209.7
211.1
209.26
211.51
42
48
43
40
0.5
2
50
Quartz
25
25
Maximum
-
9
209.75
-
-
211.63
-
-
1.2
3.5
-
-
80
125
Sawtek Inc.
Telephone: (407) 886-8860
Fax: (407) 886-7061
11/27/01
210.380 MHz
Data Sheet
Notes
(1) Sawtek's production specifications reflect the typical performance in a 50 ohm single-ended system. Similar
performance can be achieved in source and load impedances ranging from 50 to 1000 ohms.
(2) The typical insertion loss may vary slightly depending on actual source and load impedances, matching configuration
and PC board layout.
(3) Inductors with
±2%
tolerance may be required.
(4) In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical
compliance over temperature.
(Cont.)
1.260 MHz
Part Number 855715
Matching Configurations
50Ω Single-ended
50Ω Single-ended / 500Ω Balanced
L1 = 12 nH, L2 = 39 nH, L3 = 30 nH,
L4 = 12 nH, C1 = TBD, C2 = TBD
A trimmer Capacitor may be needed for L1 & L4
depending on PCB parasitics
L1 = 40 nH, L2 = 45 nH, C1 = 3.8 pf
C2 = TBD, C3 = TBD, C4 = 4.2 pf, C5 = 4.2 pf
A trimmer Capacitor may be needed for L1 & L2
depending on PCB parasitics
Package Outline
SMP-28B
Dimensions shown are in
millimeters (inches).
Sawtek Inc.
Telephone: (407) 886-8860
Fax: (407) 886-7061
11/27/01
