Data Sheet
Features
•
•
•
•
•
•
For WCDMA applications
Usable bandwidth of 5 MHz
Low loss
Single-ended operation
Ceramic Surface Mount Package (SMP)
Small size
Part Number 855770
190 MHz SAW Filter
•
Package
Surface Mount 5.00 x 5.00 x 1.32 mm
Pin Configuration
Bottom View
1
2
3
1.32 NOM.
1.52 MAX.
5.00
1.27
0.66
8
4
7
6
5
5.00
1.27
Pin No.
2
3
6
7
1,4,5,8
Description
Input
Input return
Output
Output return
Case ground
2.08
0.64
Dimensions shown are nominal in millimeters
All tolerances are
±0.15mm
except overall
length and width
±0.15/±0.10mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar, Ni
plated
Terminations:
Au
plating 0.5 - 1.0µm,
over a 2 - 6µm
Ni
plating
Subject to change or obsolescence without notice
Rev -
08-Jan-2002
Page 1 of 5
Data Sheet
Operating Temperature Range:
(2)
-30 to +70
o
C
Part Number 855770
190 MHz SAW Filter
Electrical Specifications
(1)
Parameter
(3)
Center Frequency, f
0
Insertion Loss at 190 MHz
Lower 5 dB Bandedge
(4)
Upper 5 dB Bandedge
Phase Ripple
188 - 192 MHz
Attenuation
(4)
160 - 170 MHz
170 - 180 MHz
180 - 185.5 MHz
194.5 - 200 MHz
200 - 210 MHz
210 - 220 MHz
Source Impedance
(5)
Load Impedance
(5)
Substrate Material
Notes:
1.
2.
3.
4.
5.
Minimum
-
-
-
192.4
-
33
27
25
25
27
33
-
-
-
Typical
190
8
187.23
193.01
1.90
39.9
35.4
30.3
29.5
34.9
42.7
50
50
LiTaO
3
Maximum
-
10
187.6
-
4.15
-
-
-
-
-
-
-
-
Unit
MHz
dB
MHz
MHz
deg RMS
dB
dB
dB
dB
dB
dB
Ω
Ω
All specifications are based on the test circuit shown below
In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
Relative to insertion loss at 190 MHz
This is the optimum impedance in order to achieve the performance shown
Test Circuit:
56nH
1pF
2
6
47nH
1pF
33pF
50Ω
50Ω
Single-ended
50Ω
33pF
1,3,4
5,7,8
Subject to change or obsolescence without notice
Rev -
08-Jan-2002
Page 2 of 5
Data Sheet
Part Number 855770
190 MHz SAW Filter

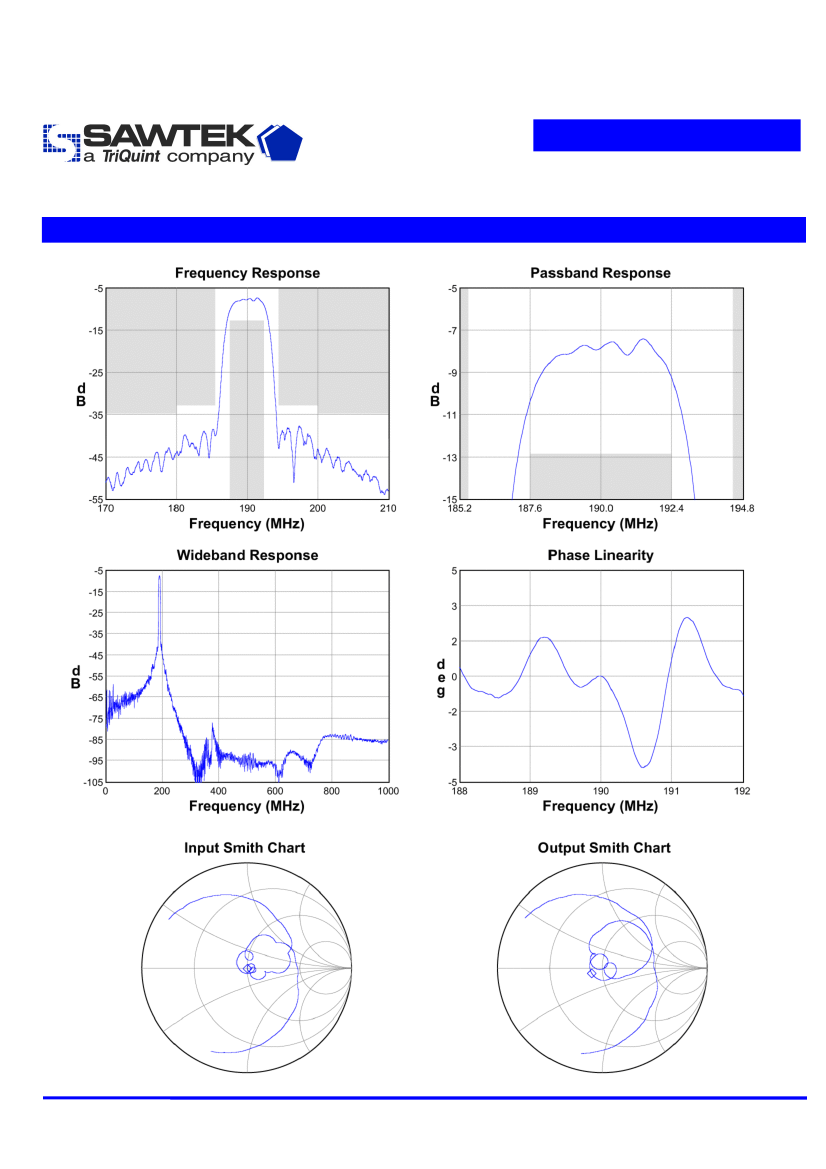

Typical Performance
(at +25
o
C)
Subject to change or obsolescence without notice
Rev -
08-Jan-2002
Page 3 of 5
Data Sheet
Actual matching values may vary due to PCB layout and parasitics
56nH
1pF
2
6
47nH
1pF
Part Number 855770
190 MHz SAW Filter
Matching Schematics
50Ω
Single-ended
50Ω
33pF
1,3,4
5,7,8
33pF
50Ω
Marking
2.28
Sawtek
logo
Marking
code
PCB Footprint
5.20
1.47
A
JJJYM
.84
.71
ID dot
Date code
.43
.84
1.47
The date code consists of: JJJ = Julian day,
Y = last digit of year, M = manufacturing site code
This footprint represents a recommendation only
Dimensions shown are nominal in millimeters
Tape and Reel
2.7
12.8
Ø330
ID dot
0.3
2.0
4.0
Ø1.5
A
1.75
5.5
Sawtek
logo
Ø102
Ø20.2
Ø13.0
2.0
Direction of travel
5.25
1.8
Section A-A
5.25
8.0
Ø1.5
A
12.0
Dimensions shown are nominal in millimeters
Packaging quantity: 4000 units/reel
Subject to change or obsolescence without notice
Rev -
08-Jan-2002
Page 4 of 5
Data Sheet
Maximum Ratings
Parameter
Operating Temperature Range
Storage Temperature Range
Part Number 855770
190 MHz SAW Filter
Symbol
T
T
stg
Minimum
-30
-40
Maximum
+70
+85
Unit
o
o
C
C
Warnings
•
•
Electrostatic Sensitive Device (ESD)
Avoid ultrasonic exposure
Links to Additional Technical Information
PCB Layout Tips
S-Parameters
Qualification Flowchart
Soldering Profile
Other Technical Information
Contact Information
PO Box 609501
Orlando, FL 32860-9501
USA
Subject to change or obsolescence without notice
Phone: +1 (407) 886-8860
Fax: +1 (407) 886-7061
Email:
custservice@sawtek.com
Web:
www.sawtek.com
Rev -
Or contact one of our worldwide
network of
sales offices,
representatives or distributors
08-Jan-2002
Page 5 of 5
