DS9090K

1-Wire Memory Evaluation Kit

www.maxim-ic.com

GENERAL DESCRIPTION

The DS9090K provides the HW and SW necessary to

evaluate and operate 1-Wire memory products in an

easy to use PC environment. All 1-Wire EEPROM,

EPROM, and ROM devices are supported. Memory

contents can be read or written as necessary for

device evaluation purposes or to support end product

development activity. Kit operation requires a host PC

and the SW defaults to a Win32 platform (Windows

XP, 2000, ME, 98, or 95). Other operating systems

are supported through a Java™ API, see details

under

Software Installation.

EVALUATION KIT CONTENTS

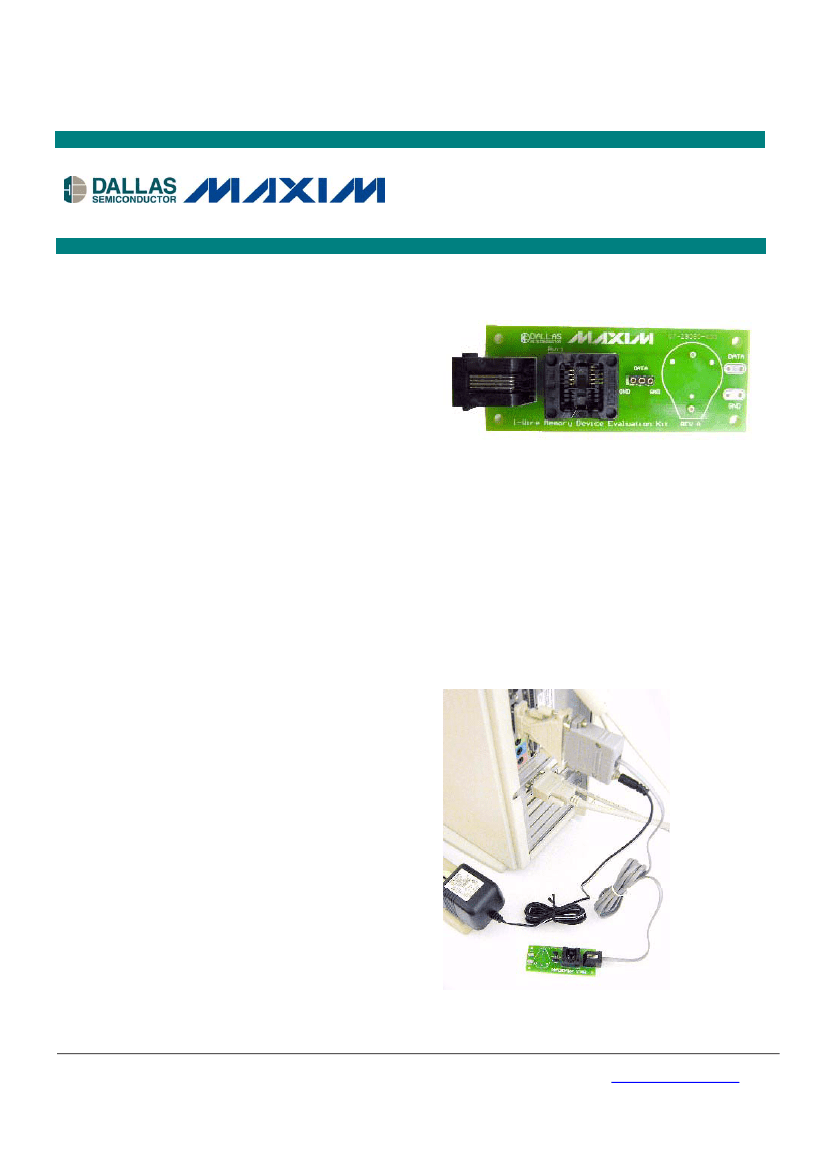

1 pc. 1-Wire Memory Device Evaluation Board

1 pc. DS9097U-E25 1-Wire Universal Serial Adapter

with EPROM Programming

1 pc. DS2430A 256-bit 1-Wire EEPROM (T092

Package)

1 pc. DS2431 1024-bit 1-Wire EEPROM (T092

Package)

1 pc. DS2432 1-kbit Protected 1-Wire EEPROM with

SHA-1 Secure Authentication (TSOC Package)

1 pc. DS2433 4-kbit 1-Wire EEPROM (PR35

Package)

1 pc. DS2502 1-kbit EPROM (T092 Package)

1 pc. DS2505 16-kbit EPROM (T092 Package)

1 pc. DS2506 64-kbit EPROM (PR35 Package)

1 pc. DS2401 64-bit Silicon Serial Number (T092

Package)

1 pc. RJ11 Male to RJ11 Male Cable 7 ft.

ORDERING INFORMATION

Part Number: DS9090K

EQUIPMENT NEEDED

1. IBM compatible PC running Windows XP, 2000,

ME, 98, or 95

2. 25-pin to 9-pin serial port adapter (if necessary)

3. +12V power source to program EPROM devices

TYPICAL SETUP

1-Wire is a registered trademark of Dallas Semiconductor.

Windows is a restered trademark of Microsoft Corp.

Java is a trademark of Sun Microsystems.

Note:

Some revisions of this device may incorporate deviations from published specifications known as errata. Multiple revisions of any device

may be simultaneously available through various sales channels. For information about device errata, click here:

www.maxim-ic.com/errata.

1 of 6

03/07/05

DS9090K 1-Wire Memory Evaluation Kit

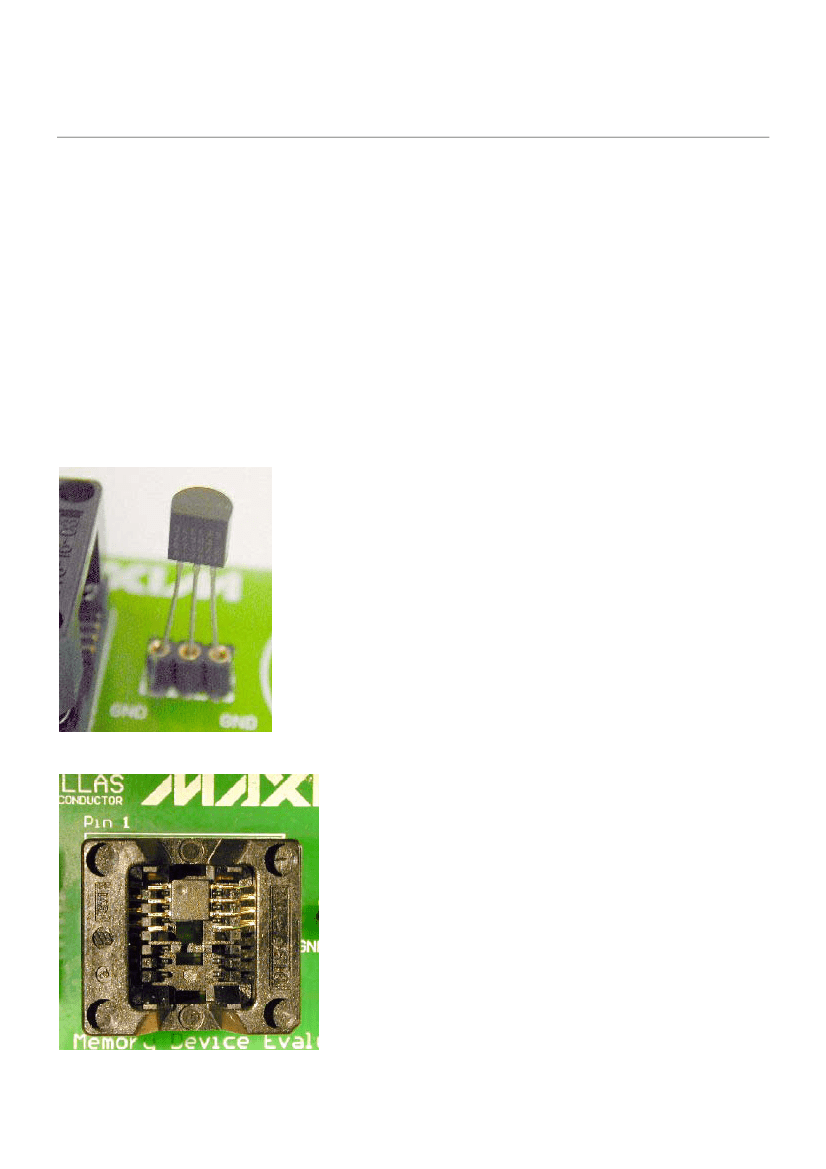

Connect the evaluation board to the PC with the supplied RJ-11 to RJ-11 cable. To do this, one end of the cable

should be plugged into the evaluation board and the other end into the DS9097U-E25.

Software Installation

Install the latest 1-Wire Drivers package (http://www.ibutton.com/software/tmex/). These drivers require a Win32

platform such as Windows XP, 2000, ME, 98, or 95. The installation program will prompt the user to select a default

1-Wire network adapter. Choose the DS9097U tab and the COM port number correlating to that being used

(usually 1, 2, or 3). This also can be chosen after installation by running the "Default 1-Wire Net" program that gets

installed with the drivers. For Linux and other operating system platforms, support for the DS9097U-E25 1-Wire

adapter can be installed through RXTX (or other equivalent software packages compliant with the Java

Communications API). See the OneWireViewer page for pre-built RXTX libraries for Linux.

Click on "Start->Programs->1-Wire Drivers". Then click on the OneWireViewer icon. This will bring up a webpage

with information on how to install the OneWireViewer.

Run the OneWireViewer. Once running the 64-bit ROM ID value of the 1-Wire chip should be displayed on your PC

in the Viewer. Select the address of the chip and other tabs should be made available that contain functionality to

exercise the chip (i.e., read and write data, files, etc.).

KIT OPERATION

Connect the evaluation board to the PC, making sure it contains the 1-Wire memory device of choice properly

oriented and inserted. See "Hardware Installation" above for help.

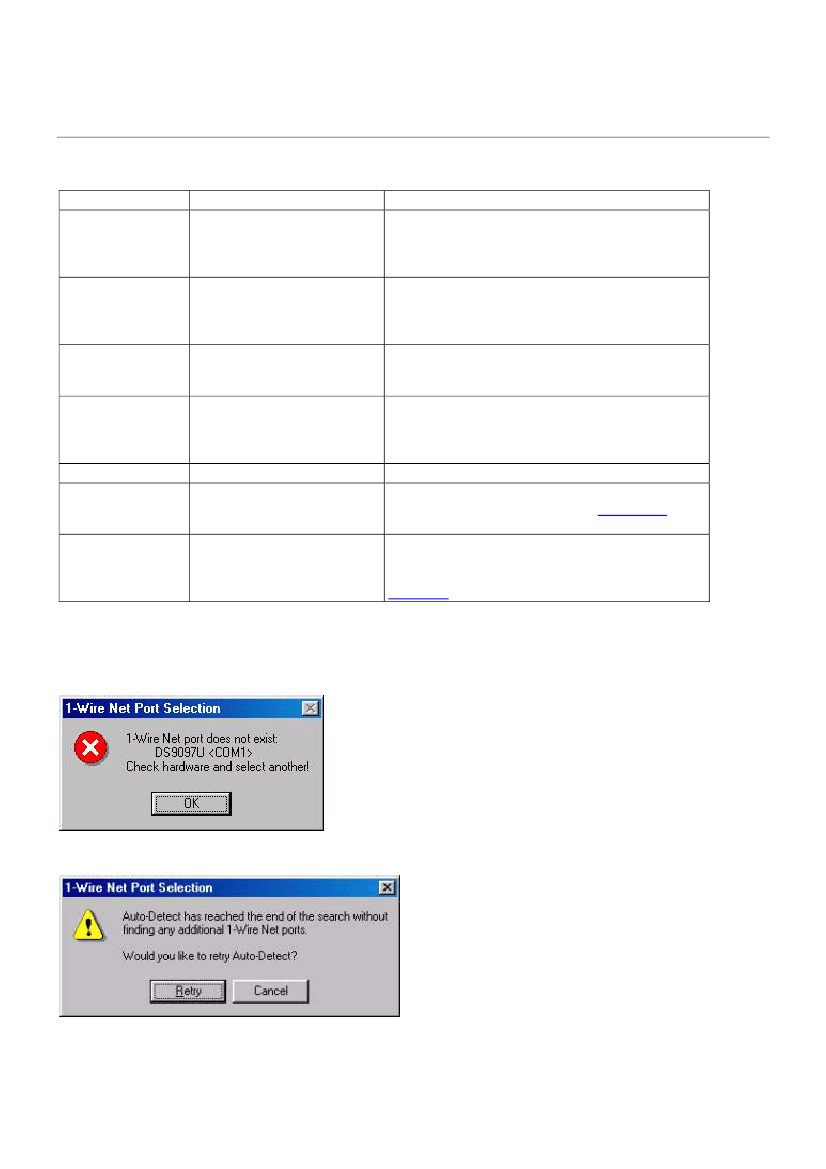

Run the OneWireViewer. If you have any difficulty, see the "Troubleshooting Guide" at the bottom of this page.

Another helpful resource is the OneWireViewer User’s Guide. It can be downloaded from the following link:

http://www.maxim-ic.com/appnotes.cfm/appnote_number/3358.

The OneWireViewer contains a "Device List" window located on the left-hand side of the main screen. It shows a

list of the different 1-Wire devices it finds connected to the DS9097U-E25. The 1-Wire device type inserted into the

socket or header of the eval board should be shown in “Device List” window along with the 64-bit ROM ID lasered

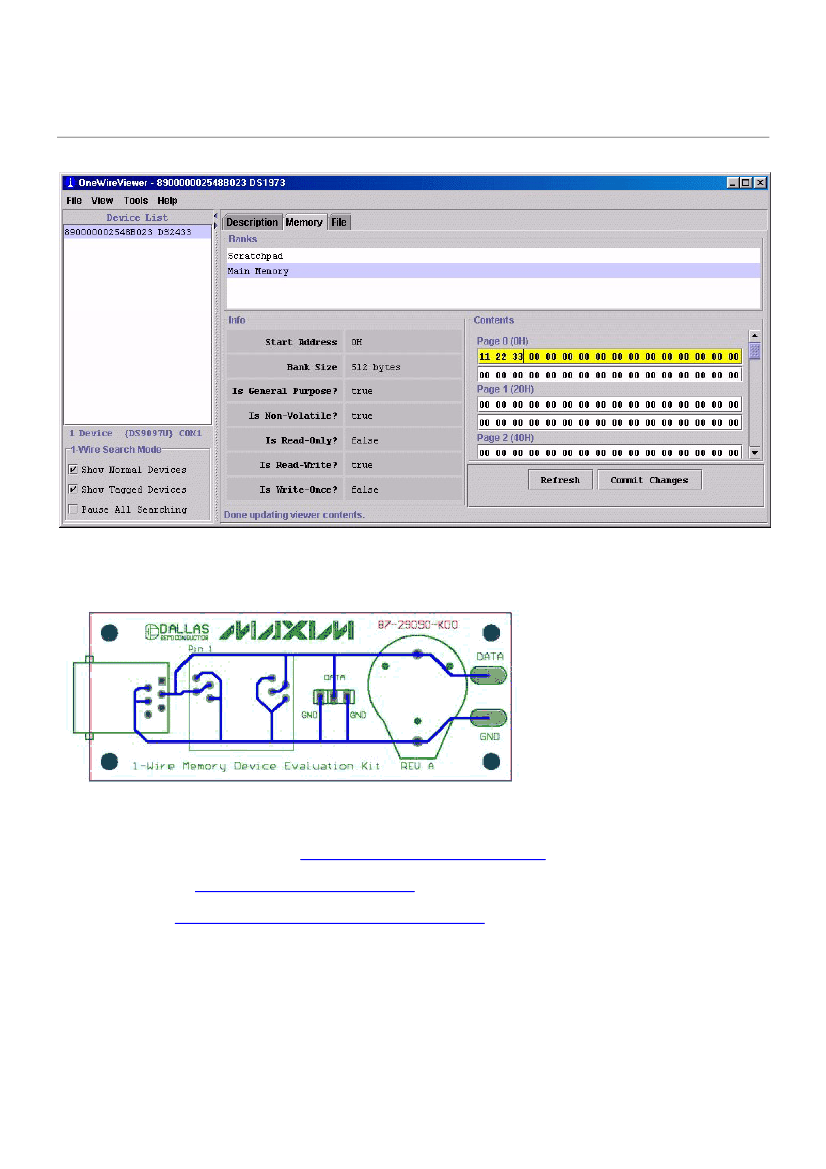

into the device. The screenshot below shows the DS2433 in the "Device List" window, along with its 64-bit ROM ID

value of "890000002548B023". From the "Device List" window select the part by clicking on it.

Read from or write to the 1-Wire memory: Once the 1-Wire device has been selected, the right-hand side of the

main OneWireViewer screen will be populated with different tabs. There will be at least three tabs for each device

contained in the DS9090K kit: Description, Memory, and File. Click on the "Memory" tab. It will bring up the

"Memory Viewer" shown in the screenshot below. You will have the choice of reading/writing any of the memory

banks listed in the "Banks" section of the "Memory Viewer". Select the "Main Memory" bank It should bring up the

"Info" and "Contents" similar to that of the screenshot below. The "Info" section of the "Memory Viewer" shows the

different attributes of the memory bank being exercised. The "Contents" section shows the actual contents of the

memory. To edit the 1-Wire memory, just click in the appropriate box (labeled with Page 0, Page 1, Page 2, etc)

and start typing in the appropriate hexadecimal characters.

When finished editing, click on the "Commit Changes" button to write the changes to memory. To have the

OneWireViewer re-read the contents of the 1-Wire memory, click on the "Refresh" button.
