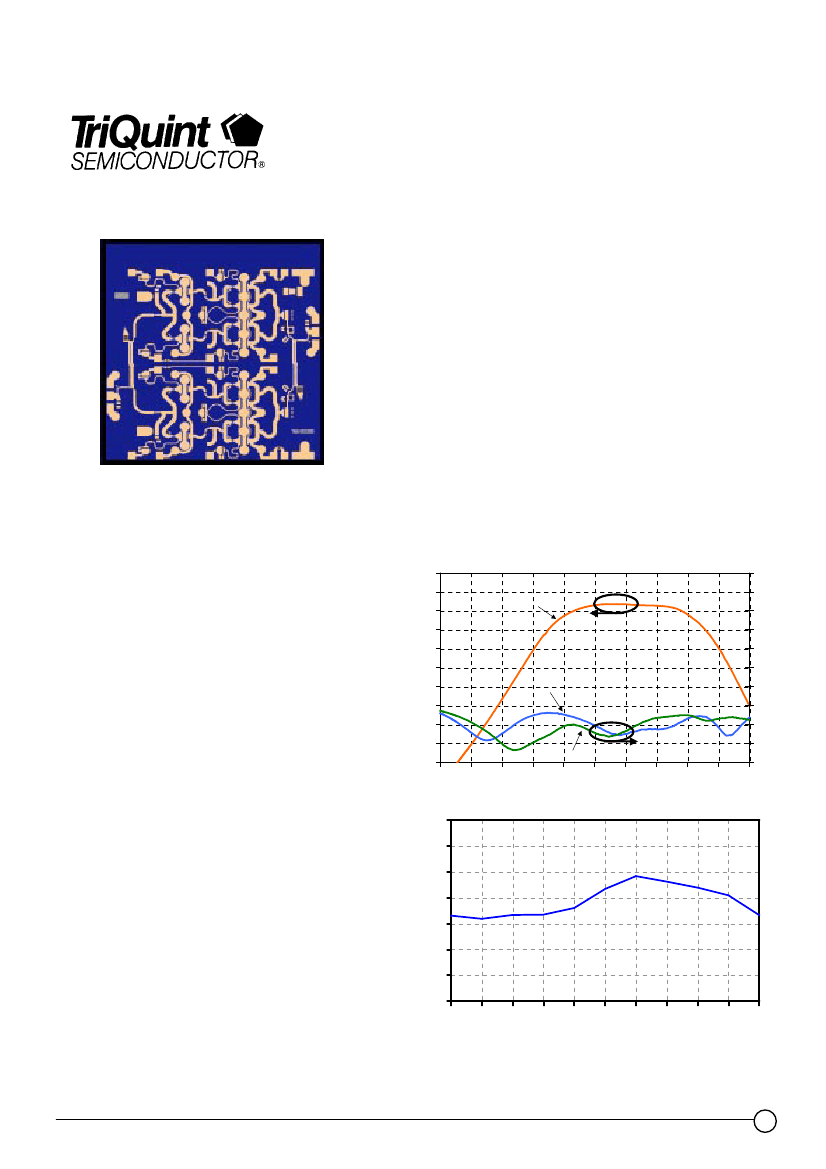

Q-band Power Amplifier
Key Features
•
•
•
•
•
•
TGA4043
Frequency Range: 40-45 GHz
29 dBm Nominal Pout @ P1dB
10 dB Nominal Gain
0.25 um pHEMT Technology
Bias 7V @ 500 mA
Chip Dimensions 3.08 mm x 3.14 x 0.10 mm
(0.121 x 0.124 x 0.004 in)
Primary Applications
•
•
•
Point to Point Radio
Point to Multipoint Radio
Military Communications
Product Description
The TriQuint TGA4043 is a compact High
Power Amplifier MMIC for Q-band
applications. The part is designed using
TriQuint’s proven standard 0.25 um gate
power pHEMT production process.
The TGA4043 provides a nominal 28
dBm of output power at 1 dB gain
compression from 40-45 GHz with a small
signal gain of 10 dB.
The part is ideally suited for low cost
emerging markets such as Point-to-Point
Radio and Point-to-Multi Point
Communications.
The TGA4043 is 100% DC and RF tested
on-wafer to ensure performance
compliance.
15
12
9
6
3
0
-3
-6
-9
-12
-15
30
32
31

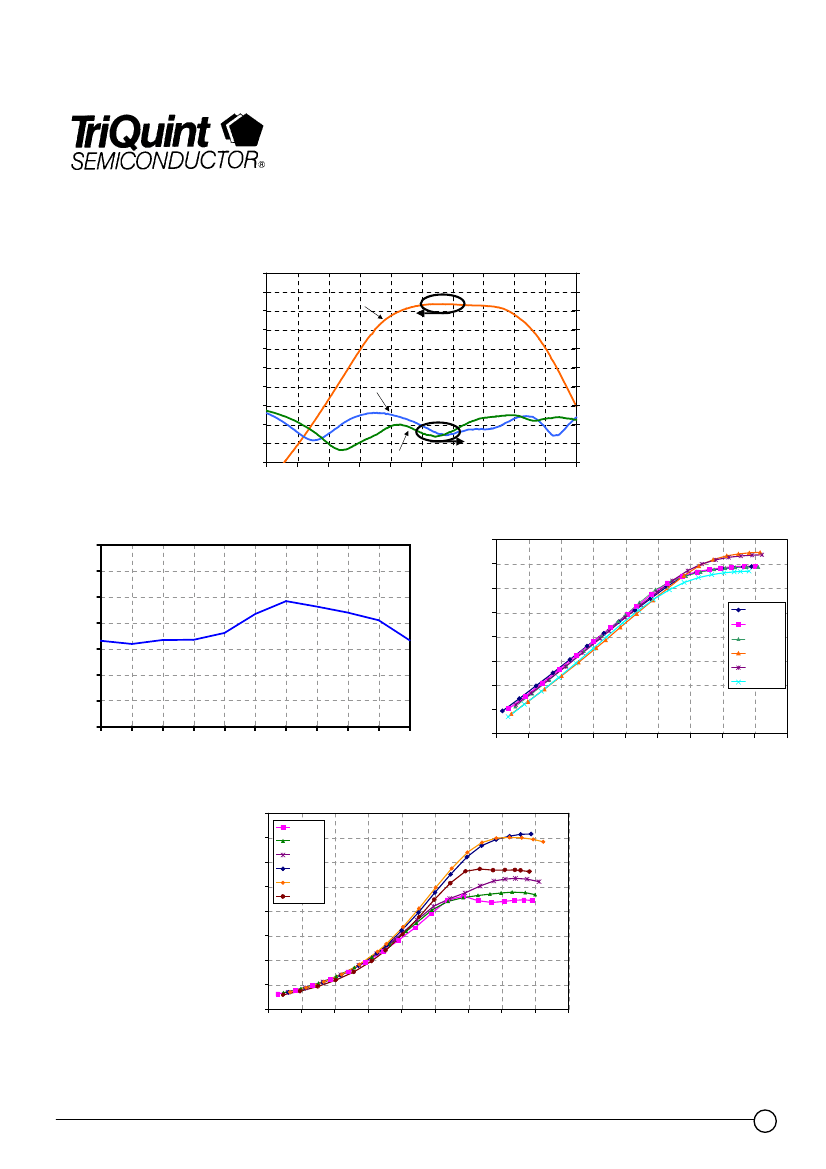

Measured Fixtured Data
Bias Conditions: Vd = 7V, Id = 500mA
25
Gain
20
10
5
0
Input
-5
-10
-15
-20
-25
40
42
44
46
48
50
Output
32
34
36
38
Frequency (GHz)
P1dB (dBm)
30
29
28
27
26
25
40
40.5
41
41.5
42
42.5
43
43.5
44
44.5
45
Frequency (GHz)
Note: This device is early in the characterization process prior to finalizing all electrical specifications. Specifications are subject to
change without notice.
1
TriQuint Semiconductor Texas Phone: (972)994-8465 Fax: (972)994 8504 Email: info-mmw@tqs.com Web: www.triquint.com
Return Loss (dB)
15
Gain (dB)
Advance Product Information
April 25, 2005
TABLE I
MAXIMUM RATINGS 1/
SYMBOL
V
+
V
-
I
+
| I
G
|
P
IN
P
D
T
CH
T
M
T
STG
1/
2/
3/
4/
PARAMETER
Positive Supply Voltage
Negative Supply Voltage Range
Positive Supply Current
Gate Supply Current
Input Continuous Wave Power
Power Dissipation
Operating Channel Temperature
Mounting Temperature (30 Seconds)
Storage Temperature
VALUE
8V
-5V TO 0V
960 mA
56 mA
27 dBm
4.6 W
150
°C
320
°C
-65 to 150
°C
2/
2/, 3/
4/, 5/
2/
TGA4043
NOTES
2/
These ratings represent the maximum operable values for this device.
Current is defined under no RF drive conditions. Combinations of supply voltage, supply
current, input power, and output power shall not exceed P
D
.
When operated at this power dissipation with a base plate temperature of 70
°C,
the median
life is 1 E+6 hours.
Junction operating temperature will directly affect the device median time to failure (T
M
). For
maximum life, it is recommended that junction temperatures be maintained at the lowest
possible levels.
These ratings apply to each individual FET.
5/
TABLE II
DC PROBE TEST
(T
A
= 25
°C,
Nominal)
SYMBOL
I
dss, Q1
G
m, Q1
V
p, Q1,2, 3-6, 7, 8, 9-12
V
BVGD, Q1,2
V
BVGS, Q1
PARAMETER
Saturated Drain Current
Transconductance
Pinch-off Voltage
Breakdown Voltage Gate-
Drain
Breakdown Voltage Gate-
Source
MINIMUM
40
88
-1.5
-30
-30
MAXIMUM
188
212
-0.5
-8
-8
UNIT
mA
mS
V
V
V
2
TriQuint Semiconductor Texas Phone: (972)994-8465 Fax: (972)994 8504 Email: info-mmw@tqs.com Web: www.triquint.com
Advance Product Information
April 25, 2005
TGA4043
TABLE III
RF CHARACTERIZATION TABLE
(T
A
= 25
°C,
Nominal)
Vd = 7V, Id = 500 mA
SYMBOL
Gain
IRL
ORL
PARAMETER
Small Signal Gain
Input Return Loss
Output Return Loss
Output Power @
1dB Gain
Compression
TEST
CONDITION
F = 40-45 GHz
F = 40-45 GHz
F = 40-45 GHz
F = 40-45 GHz
TYPICAL
LIMITS
10
14.5
12.5
29
dBm
UNITS
dB
dB
dB
P
1dB
TABLE IV
THERMAL INFORMATION*
Parameter
R
θJC
Thermal
Resistance
(channel to backside of
carrier)
Test Conditions
Vd = 7 V
I
D
= 500 mA
Pdiss = 3.5 W
T
CH
(
o
C)
130
R
T
JC
(qC/W)
17.3
T
M
(HRS)
5.9 E+6
Note: Assumes eutectic attach using 1.5 mil 80/20 AuSn mounted to a 20 mil
CuMo Carrier at 70°C baseplate temperature. Worst case condition with no RF
applied, 100% of DC power is dissipated.
3
TriQuint Semiconductor Texas Phone: (972)994-8465 Fax: (972)994 8504 Email: info-mmw@tqs.com Web: www.triquint.com
Advance Product Information
April 25, 2005
TGA4043
Measured Fixtured Data
Bias Conditions: Vd = 7V, Id = 500mA
15
12
9
6
3
0
-3
-6
-9
-12
-15
30
32
34
36
38
40
42
44
46
48
50
Output
Input
Gain
25
20
10
5
0
-5
-10
-15
-20
-25
15
Frequency (GHz)
32
31
29
Output power (dBm)
31
P1dB (dBm)
30
29
28
27
26
25
40
40.5
41
41.5
42
42.5
43
43.5
44
44.5
45
27
25
23
21
19
17
15
6
8
10
12
14
16
18
20
22
24
40 GHz
41 GHz
42 GHz
43 GHz
44 GHz
45 GHz
Frequency (GHz)
Input power (dBm)
16
14
12
PAE (%)
10
8
6
4
2
0
6
8
10
12
14
16
18
20
22
24
Input power (dBm)
40 GHz
41 GHz
42 GHz
43 GHz
44 GHz
45 GHz
Return Loss (dB)
Gain (dB)
4
TriQuint Semiconductor Texas Phone: (972)994-8465 Fax: (972)994 8504 Email: info-mmw@tqs.com Web: www.triquint.com
Advance Product Information
April 25, 2005
TGA4043

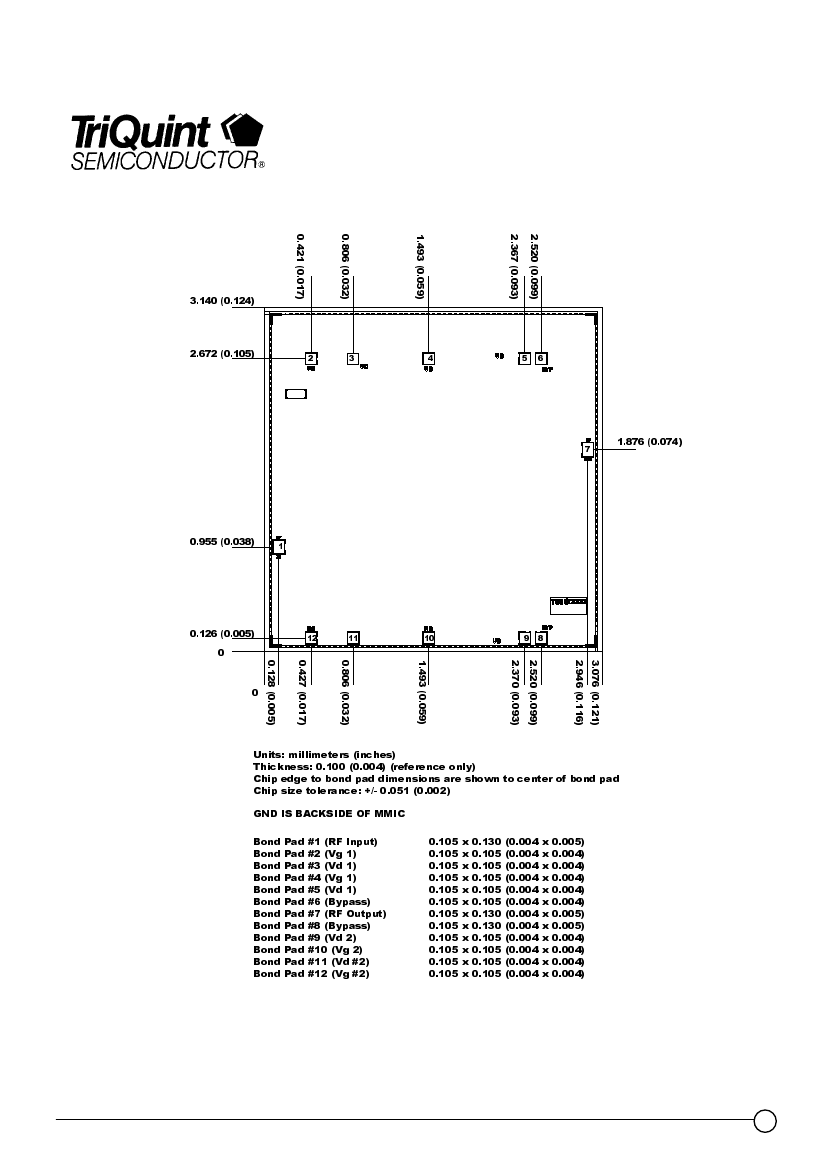

Mechanical Characteristics
#
!
Ã
&
"
#Ã
!#
'
%
Ã
"
!
#
(
"
Ã
$
(
!
"
%
&
Ã
(
"
!
$
!
Ã
(
(
!%&!Ã
$
'&%Ã&#
($$Ã"'
!%Ã$
!
'
Ã
$
#
!
&
Ã
&
'
%
Ã
"
!
#
(
"
Ã
$
(
!
"
&
Ã
(
"
!
$
!
Ã
(
(
!
(
#
%
Ã
%
"
&
%
Ã
!
Vv)Ãvyyvrr
Ãvpur
Uuvpxr)Ã Ã#Ã
rsr
rprÃy
8uvÃrqtrÃÃiqÃhqÃqvrvÃh
rÃuÃÃprr
ÃsÃiqÃhq
8uvÃvrÃyr
hpr)ÃÃ$ Ã!
BI9ÃDTÃ768FTD9@ÃPAÃHHD8
7qÃQhqÃÆ ÃSAÃDÃÃÃÃÃÃ
7qÃQhqÃÆ!ÃWtà ÃÃÃÃÃÃÃÃÃÃÃÃ
7qÃQhqÃÆ"ÃWqà ÃÃÃÃÃÃÃÃÃÃÃÃ
7qÃQhqÃÆ#ÃWtà ÃÃÃÃÃÃÃÃÃÃÃÃ
7qÃQhqÃÆ$ÃWqà ÃÃÃÃÃÃÃÃÃÃÃÃ
7qÃQhqÃÆ%Ã7hÃÃÃÃÃÃÃ
7qÃQhqÃÆ&ÃSAÃPÃÃ
7qÃQhqÃÆ'Ã7hÃÃÃÃÃÃÃ
7qÃQhqÃÆ(ÃWqÃ!ÃÃÃÃÃÃÃÃÃÃÃ
7qÃQhqÃÆ ÃWtÃ!ÃÃÃÃÃÃÃÃÃ
7qÃQhqÃÆ
ÃWqÃÆ!ÃÃÃÃÃÃÃ
7qÃQhqÃÆ !ÃWtÃÆ!ÃÃÃÃÃÃÃ
$ÃÃ "Ã#ÃÃ$
$ÃÃ $Ã#ÃÃ#
$ÃÃ $Ã#ÃÃ#
$ÃÃ $Ã#ÃÃ#
$ÃÃ $Ã#ÃÃ#
$ÃÃ $Ã#ÃÃ#
$ÃÃ "Ã#ÃÃ$
$ÃÃ "Ã#ÃÃ$
$ÃÃ $Ã#ÃÃ#
$ÃÃ $Ã#ÃÃ#
$ÃÃ $Ã#ÃÃ#
$ÃÃ $Ã#ÃÃ#
GaAs MMIC devices are susceptible to damage from Electrostatic Discharge. Proper precautions should
be observed during handling, assembly and test.
5
TriQuint Semiconductor Texas Phone: (972)994-8465 Fax: (972)994 8504 Email: info-mmw@tqs.com Web: www.triquint.com
