Part Number

Search

TGF2022-60

Description
0 MHz - 20000 MHz RF/MICROWAVE WIDE BAND HIGH POWER AMPLIFIER
CategoryTopical application    Wireless rf/communication
File Size150KB,8 Pages
ManufacturerTriQuint Semiconductor Inc. (Qorvo)
Websitehttp://www.triquint.com
Download Datasheet Parametric View All

TGF2022-60 Online Shopping

Suppliers Part Number Price MOQ In stock
TGF2022-60 - - View Buy Now

TGF2022-60 Overview

0 MHz - 20000 MHz RF/MICROWAVE WIDE BAND HIGH POWER AMPLIFIER

TGF2022-60 Parametric

Parameter NameAttribute value
Maximum input power33 dBm
Maximum operating frequency20000 MHz
Minimum operating frequency0.0 MHz
Processing package description0.57 X 2.93 MM, 0.10 MM HEIGHT, ROHS COMPLIANT, CHIP-18
Lead-freeYes
EU RoHS regulationsYes
stateACTIVE
structureCOMPONENT
terminal coatingMATTE TIN/GOLD
Microwave RF TypeWIDE BAND HIGH POWER

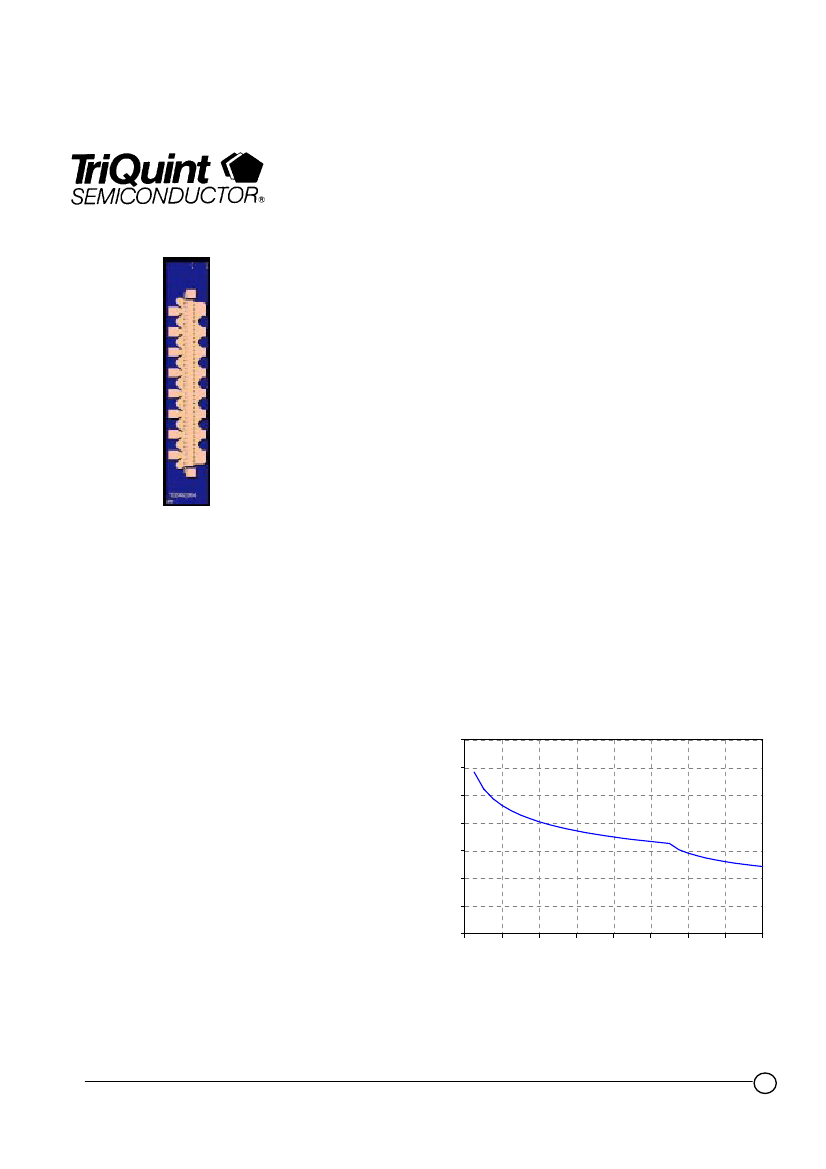

Advance Product Information
September 19, 2005
DC - 20 GHz Discrete power pHEMT
TGF2022-60
Key Features and Performance
Frequency Range: DC - 20 GHz
> 38 dBm Nominal Psat
57% Maximum PAE
12 dB Nominal Power Gain
Suitable for high reliability applications
6.0mm x 0.35um Power pHEMT
Nominal Bias Vd = 8-12V, Idq = 448-752mA
(U
nder RF Drive, Id rises from 448mA to 1480mA)
Chip Dimensions: 0.57 x 2.93 x 0.10 mm
(0.022 x 0.115 x 0.004 in)
Product Description
The TriQuint TGF2022-60 is a discrete
6.0 mm pHEMT which operates from
DC-20 GHz. The TGF2022-60 is
designed using TriQuint’s proven
standard 0.35um power pHEMT
production process.
The TGF2022-60 typically provides
> 38 dBm of saturated output power
with power gain of 12 dB. The The
maximum power added efficiency is
57% which makes the TGF2022-60
appropriate for high efficiency
applications.
The TGF2022-60 is also ideally suited
for Point-to-point Radio, High-reliability
space, and Military applications.
The TGF2022-60 has a protective
surface passivation layer providing
environmental robustness.
Lead-free and RoHS compliant
Primary Applications
35
30
Point-to-point Radio
High-reliability space
Military
Base Stations
Broadband Wireless Applications
Maximum Gain (dB)
25
MSG
20
15
10
5
0
0
2
4
6
8
10
12
14
16
MAG
Frequency (GHz)
Note: This device is early in the characterization process prior to finalizing all electrical specifications. Specifications are subject to
change without notice.
TriQuint Semiconductor Texas: Phone (972)994-8465 Fax (972)994-8504 Email: Info-mmw@tqs.com Web: www.triquint.com
1
