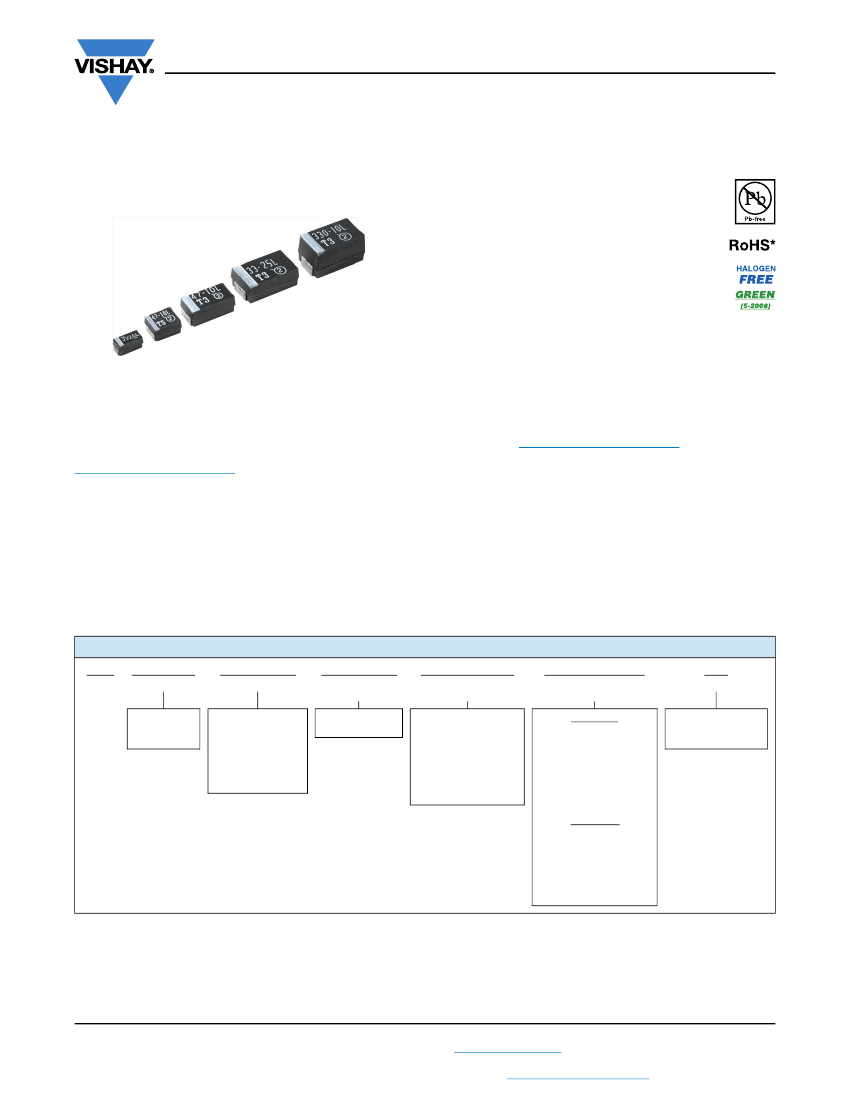

TL3
www.vishay.com
Vishay Sprague
Solid Tantalum Surface Mount Chip Capacitors,
T
ANTAMOUNT
™, Molded Case, Very Low DCL
FEATURES
•
•
•
•
•
•
•
•
•
•
•
•
DC leakage at 0.005 CV
Low ESR options
Available
Qualified to EIA-717
100 % surge current tested
Available
(B, C, D, and E case sizes)
Improved reliability: 0.50 % / 1000 h, 85 °C,
rated voltage
Molded case available in five case codes
Available
Terminations: 100 % matte tin standard,
tin / lead available
Compliant terminations
Compatible with “high volume” automatic pick and place
equipment
Moisture sensitivity level 1
Standard EIA-535-BAAC case size (A through E)
Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
PERFORMANCE / ELECTRICAL
CHARACTERISTICS
www.vishay.com/doc?40192
Operating Temperature: -55 °C to +125 °C
(above 85 °C voltage derating is required)
Capacitance Range:
0.1 μF to 470 μF
Capacitance Tolerance:
± 10 %, ± 20 %
Voltage Rating:
4 V to 50 V
Note
*
This datasheet provides information about parts that are
RoHS-compliant and / or parts that are non RoHS-compliant. For
example, parts with lead (Pb) terminations are not RoHS-compliant.
Please see the information / tables in this datasheet for details
APPLICATIONS
•
•
•
•
•
Industrial
Telecom infrastructure
Consumer
Medical
General purpose
ORDERING INFORMATION
TL3
TYPE
D
CASE CODE
See Ratings
and Case
Codes table
107
CAPACITANCE
This is expressed
in picofarads. The
first two digits are
significant figures.
The third is the
number of zeros
to follow.
K
CAPACITANCE
TOLERANCE
K = ± 10 %
M = ± 20 %
010
DC VOLTAGE
RATING AT +85 °C
This is expressed in
volts. To complete
the three-digit block,
zeros precede the
voltage rating.
A decimal point is
indicated by an “R”
(6R3 = 6.3 V).
C
TERMINATION
AND PACKAGING
Matte tin
C
= 7" (178 mm) reel
D
= 13" (330 mm) reel
V
= 7" (178 mm) reel,
dry pack
U
= 13" (330 mm) reel,
dry pack
Tin / lead
E
= 7" (178 mm) reel
F
= 13" (330 mm) reel
T
= 7" (178 mm) reel,
dry pack
W
= 13" (330 mm) reel,
dry pack
Notes
• We reserve the right to supply higher voltage ratings and tighter capacitance tolerance capacitors in the same case size.
Voltage substitutions will be marked with the higher voltage rating
• The EIA and CECC standards for low ESR solid tantalum chip capacitors, allow delta ESR of 1.25 times the datasheet limit after mounting
• Dry pack as specified in J-STD-033 for MSL3. Applicable for D and E cases only
0100
ESR
Maximum 100 kHz
ESR in mΩ.
See note below.
Revision: 22-Jun-17
Document Number: 40154
1
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
TL3
www.vishay.com
Vishay Sprague
DIMENSIONS
in inches [millimeters]
L
W
T
H
(MIN.)
Glue Pad
H
Glue Pad
P
T
W
CASE CODE
A
B
C
D
E
EIA SIZE
3216-18
3528-21
6032-28
7343-31
7343-43
L
0.126 ± 0.008
[3.2 ± 0.20]
0.138 ± 0.008
[3.5 ± 0.20]
0.236 ± 0.012
[6.0 ± 0.30]
0.287 ± 0.012
[7.3 ± 0.30]
0.287 ± 0.012
[7.3 ± 0.30]
W
0.063 ± 0.008
[1.6 ± 0.20]
0.110 ± 0.008
[2.8 ± 0.20]
0.126 ± 0.012
[3.2 ± 0.30]
0.169 ± 0.012
[4.3 ± 0.30]
0.169 ± 0.012
[4.3 ± 0.30]
H
0.063 ± 0.008
[1.6 ± 0.20]
0.075 ± 0.008
[1.9 ± 0.20]
0.098 ± 0.012
[2.5 ± 0.30]
0.110 ± 0.012
[2.8 ± 0.30]
0.157 ± 0.012
[4.0 ± 0.30]
P
0.031 ± 0.012
[0.80 ± 0.30]
0.031 ± 0.012
[0.80 ± 0.30]
0.051 ± 0.012
[1.3 ± 0.30]
0.051 ± 0.012
[1.3 ± 0.30]
0.051 ± 0.012
[1.3 ± 0.30]
T
W
0.047 ± 0.004
[1.2 ± 0.10]
0.087 ± 0.004
[2.2 ± 0.10]
0.087 ± 0.004
[2.2 ± 0.10]
0.094 ± 0.004
[2.4 ± 0.10]
0.094 ± 0.004
[2.4 ± 0.10]
T
H
(MIN.)
0.028
[0.70]
0.028
[0.70]
0.039
[1.0]
0.039
[1.0]
0.039
[1.0]
Note
• Glue pad (non-conductive, part of molded case) is dedicated for glue attachment (as user option)
RATINGS AND CASE CODES
μF
0.10
0.15
0.22
0.33
0.47
0.68
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
A (7.60, 6.00)
A (7.60, 4.00)
A (6.30, 3.50)
B (4.50, 2.00)
B (3.50, 1.20)
B (2.90, 1.20)
A (8.00, 6.00)
A (7.60, 6.00)
A (6.30, 5.00)
B (3.50, 2.50)
A (9.30, 6.00)
A (8.00, 6.00)
A (11.00, 8.00)
A (9.30, 6.00)
A (8.00, 6.00)
B (4.60, 2.50)
B (3.50, 2.00)
4V
6.3 V
10 V
16 V
35 V
50 V
A (20.00, 10.00) A (19.00, 10.00)
(17.00, 10.00)
A (18.00, 6.00) AB (14.00, 9.00) /
A (15.00, 6.00) B (12.00, 8.50)
A (14.00, 10.00) A (13.00, 6.00) B (10.00, 4.50)
(10.00,
A (12.00, 9.00) A (12.00, 9.00) AB (8.00, 4.00) / B (8.40, 4.00) /
2.50)
C (6.70, 1.80)
A (10.00, 8.00) B (7.00, 5.00)
B (6.50, 2.50)
C (5.90, 1.60)
A (7.60, 4.00) / A (7.50, 6.00) / B (6.70, 2.00) /
A (8.40, 5.50)
B (5.00, 2.00)
B (5.00, 2.00)
C (4.60, 1.60)
B (4.20, 3.00) / C (3.40, 1.50) /
B (4.60, 2.50)
B (4.60, 2.00)
C (3.80, 1.50)
D (2.90, 1.00)
A
A (5.90, 4.00) / B (6.30, 4.00) / B (3.80, 2.30) / C (2.90, 1.50) /
(3.80, 2.30) /
C (2.90, 0.90)
D (2.10, 0.80)
B (3.50, 1.50)
C (2.90, 1.00)
B (3.00, 1.30)
B (3.10, 1.50) /
C (2.30, 1.00)
B (2.80, 1.50) /
C (2.0, 0.525)
B (3.50, 1.50) /
C (2.10, 0.70)
C (1.90, 0.60) /
D (1.30, 0.60)
D (1.70, 0.80)
D (1.20, 0.60)
E (0.90, 0.54)
E (0.80, 0.55)
20 V
25 V
A
A (5.50, 3.50) / A (5.00, 3.00) / A (3.50, 2.50) / B (5.50, 3.50) /
(2.90, 1.00) /
B (3.40, 1.80) B (3.40, 1.50) B (2.90, 1.50)
C (2.30, 0.60)
B (3.40, 1.20)
B (2.90, 1.00)
C (1.80, 0.60)
A (2.90, 2.00) /
C (1.80, 0.60)
B (2.90, 1.20)
A (3.40, 2.00) /
C (1.80, 0.55)
A (2.90, 2.00) /
C (1.80, 0.50)
A (2.50, 1.50)
C (1.90, 0.60)
C (1.90, 0.55)
A (2.90, 1.50) / B (1.90, 0.60) / B (1.90, 0.60) /
C (1.80, 050)
C (1.50, 0.40) C (1.40, 0.35) /
D (0.80, 0.25)
B (2.00, 0.55) / B (1.80, 0.60) / C (1.00, 0.30) / D (0.70, 0.20) /
B (2.50, 0.60) / C (1.40, 0.30) / C (1.10, 0.30) /
C (1.80, 0.40) D (0.80, 0.20) D (0.70, 0.20) D (0.70, 0.15)
E (0.60, 0.15)
D (0.80, 0.175)
D (0.70, 0.20)
D (0.70, 0.15)
D (0.60, 0.15)
C (1.70, 0.50) / C (1.80, 0.900) /
D (1.20, 0.35)
D (1.10, 0.30)
A (3.00, 1.70) / B (2.50, 1.00) / B (2.30, 1.30) / C (1.60, 0.85) /
B (2.80, 0.80) / C (1.70, 0.45) C (1.50, 0.45) /
D (0.80, 0.30)
D (1.00, 0.30)
C (1.80, 0.45)
(1.20, 0.425)
B (2.00, 0.80)
D (0.90, 0.30) CD (0.80, 0.25) / D (0.80, 0.30)
B (1.90, 1.00) / C (1.20, 0.375) /
C (1.20) /
D (0.70, 0.40) /
D (0.80, 0.25) D (0.70, 0.225) D (0.70, 0.20)
E (0.60, 0.300)
B (1.80, 0.50) /
C (1.10, 0.30) / D (0.70, 0.20) D (0.70, 0.30) /
E (0.60, 0.20)
D (0.70, 0.225)
D (0.70, 0.35) /
E (0.60, 0.30)
D (0.70, 0.175) /
E (0.60, 0.15)
E (0.50, 0.15)
100 B (1.80, 0.45) / B (1.70, 0.70) /
D (0.70, 0.175) D (0.70, 0.14)
(0.60, 0.125)
150 D (0.60, 0.15) DE (0.50, 0.10) /
C (0.70, 0.30) /
220
D (0.60, 0.10) /
E (0.50, 0.10)
330 E (0.50, 0.10)
E (0.50, 0.10)
470
Revision: 22-Jun-17
C (0.90, 0.20) / D (0.60, 0.125) /
D (0.60, 0.10)
E (0.60, 0.10)
D (0.60, 0.10)
D (0.60, 0.36) /
E (0.50, 0.10)
E (0.50, 0.10)
E (0.50, 0.20)
E (0.50, 0.15)
Document Number: 40154
2
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
TL3
www.vishay.com
Vishay Sprague
“A” CASE VOLTAGE CODE
VOLTS
4.0
6.3
CODE
G
J
A
C
D
E
V
T
B, C, D, E, V Cases
Date code
Vishay marking
Polarity
band (+)
Capacitance, μF
MARKING
Capacitance code, pF
Date code
designation
Indicates
lead (Pb)-free
Voltage
Indicates
lead (Pb)-free
V 104L
Voltage
code
A Case
10
16
20
25
35
50
22
XX
10L
2
Polarity band (+)
Marking
Capacitor marking includes an anode (+) polarity band, capacitance in microfarads and the voltage rating. “A” case capacitors use a letter
code for the voltage and EIA capacitance code.
The Vishay identification marking is included if space permits. Vishay marking (“circled 2”) may show additives in the form of short lines,
depicting actual manufacturing facility. For A case capacitors discontinuation in polarity bar maybe used as actual manufacturing facility
designation. Capacitors rated at 6.3 V are marked 6 V.
A manufacturing date code is marked on all capacitors, for details see FAQ:
www.vishay.com/doc?40110.
Capacitors may bear TP3 marking scheme if parts are substituted with high performance automotive grade TP3 family products.
This includes, for example, letter “P” as shown below.
Call the factory for further explanation.
TP3 MARKING EXAMPLE
Capacitance
code, pF
Date code
designation
Indicates
high performance
(1)
Capacitance
μF
Polarity
band (+)
Indicates
high performance
(1)
Voltage
V 104Z
Voltage
Polarity band (+)
code
A Case
22
XX
P10
2
Vishay marking
Date code
B, C, D, E Cases
Note
(1)
Capital letter indicates lead (Pb)-free
STANDARD RATINGS
CAPACITANCE
(μF)
CASE CODE
PART NUMBER
MAX. DCL
AT +25 °C
(μA)
MAX. DF
AT +25 °C
120 Hz
(%)
6
6
6
6
6
6
6
6
6
6
6
6
MAX. ESR
AT +25 °C
100 kHz
(Ω)
7.600
6.000
7.600
4.000
6.300
3.500
4.500
2.000
3.500
1.200
2.900
1.200
MAX. RIPPLE
100 kHz
I
RMS
(A)
0.10
0.11
0.10
0.14
0.11
0.15
0.14
0.20
0.16
0.27
0.17
0.27
2.2
2.2
3.3
3.3
4.7
4.7
6.8
6.8
10
10
15
15
A
A
A
A
A
A
B
B
B
B
B
B
4 V
DC
AT +85 °C; 2.7 V
DC
AT +125 °C
TL3A225(1)004(2)7600
0.25
TL3A225(1)004(2)6000
0.25
TL3A335(1)004(2)7600
0.25
TL3A335(1)004(2)4000
0.25
TL3A475(1)004(2)6300
0.25
TL3A475(1)004(2)3500
0.25
TL3B685(1)004(2)4500
0.25
TL3B685(1)004(2)2000
0.25
TL3B106(1)004(2)3500
0.25
TL3B106(1)004(2)1200
0.25
TL3B156(1)004(2)2900
0.30
TL3B156(1)004(2)1200
0.30
Note
• Part number definitions:
(1) Capacitance tolerance: K, M
(2) Termination and packaging: C, D, E, F
(3) Termination and packaging: C, D, E, F, U, V, T, W
Revision: 22-Jun-17
Document Number: 40154
3
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
TL3
www.vishay.com
STANDARD RATINGS
CAPACITANCE
(μF)
CASE CODE
PART NUMBER
MAX. DCL
AT +25 °C
(μA)
MAX. DF
AT +25 °C
120 Hz
(%)
6
6
6
6
6
6
6
6
6
6
6
6
6
6
8
8
8
8
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
MAX. ESR
AT +25 °C
100 kHz
(Ω)
2.900
1.500
1.800
0.500
2.500
0.600
1.800
0.400
0.800
0.175
1.800
0.450
0.700
0.175
0.600
0.150
0.500
0.100
8.000
6.000
7.600
6.000
6.300
5.000
5.500
3.500
3.400
1.800
3.400
1.200
2.900
1.000
1.800
0.600
2.900
2.000
1.800
0.600
1.900
0.600
1.500
0.400
2.000
0.550
1.400
MAX. RIPPLE
100 kHz
I
RMS
(A)
0.16
0.22
0.25
0.47
0.18
0.38
0.25
0.52
0.43
0.93
0.22
0.43
0.46
0.93
0.50
1.00
0.57
1.28
0.10
0.11
0.10
0.11
0.11
0.12
0.12
0.15
0.16
0.22
0.16
0.27
0.17
0.29
0.25
0.43
0.16
0.19
0.25
0.43
0.21
0.38
0.27
0.52
0.21
0.39
0.28
Vishay Sprague
4 V
DC
AT +85 °C; 2.7 V
DC
AT +125 °C
33
33
33
33
47
47
47
47
68
68
100
100
100
100
150
150
330
330
1.5
1.5
2.2
2.2
3.3
3.3
4.7
4.7
4.7
4.7
6.8
6.8
10
10
15
15
22
22
22
22
33
33
33
33
47
47
47
A
A
C
C
B
B
C
C
D
D
B
B
D
D
D
D
E
E
A
A
A
A
A
A
A
A
B
B
B
B
B
B
C
C
A
A
C
C
B
B
C
C
B
B
C
TL3A336(1)004(2)2900
TL3A336(1)004(2)1500
TL3C336(1)004(2)1800
TL3C336(1)004(2)0500
TL3B476(1)004(2)2500
TL3B476(1)004(2)0600
TL3C476(1)004(2)1800
TL3C476(1)004(2)0400
TL3D686(1)004(3)0800
TL3D686(1)004(3)0175
TL3B107(1)004(2)1800
TL3B107(1)004(2)0450
TL3D107(1)004(3)0700
TL3D107(1)004(3)0175
TL3D157(1)004(3)0600
TL3D157(1)004(3)0150
TL3E337(1)004(3)0500
TL3E337(1)004(3)0100
TL3A155(1)6R3(2)8000
TL3A155(1)6R3(2)6000
TL3A225(1)6R3(2)7600
TL3A225(1)6R3(2)6000
TL3A335(1)6R3(2)6300
TL3A335(1)6R3(2)5000
TL3A475(1)6R3(2)5500
TL3A475(1)6R3(2)3500
TL3B475(1)6R3(2)3400
TL3B475(1)6R3(2)1800
TL3B685(1)6R3(2)3400
TL3B685(1)6R3(2)1200
TL3B106(1)6R3(2)2900
TL3B106(1)6R3(2)1000
TL3C156(1)6R3(2)1800
TL3C156(1)6R3(2)0600
TL3A226(1)6R3(2)2900
TL3A226(1)6R3(2)2000
TL3C226(1)6R3(2)1800
TL3C226(1)6R3(2)0600
TL3B336(1)6R3(2)1900
TL3B336(1)6R3(2)0600
TL3C336(1)6R3(2)1500
TL3C336(1)6R3(2)0400
TL3B476(1)6R3(2)2000
TL3B476(1)6R3(2)0550
TL3C476(1)6R3(2)1400
0.66
0.66
0.66
0.66
0.94
0.94
0.94
0.94
1.36
1.36
2.00
2.00
2.00
2.00
3.00
3.00
6.60
6.60
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.30
0.3
0.45
0.45
0.66
0.66
0.66
0.66
0.99
0.99
0.99
0.99
1.41
1.41
1.41
6 V
DC
AT +85 °C; 4 V
DC
AT +125 °C
Note
• Part number definitions:
(1) Capacitance tolerance: K, M
(2) Termination and packaging: C, D, E, F
(3) Termination and packaging: C, D, E, F, U, V, T, W
Revision: 22-Jun-17
Document Number: 40154
4
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
TL3
www.vishay.com
STANDARD RATINGS
CAPACITANCE
(μF)
CASE CODE
PART NUMBER
MAX. DCL
AT +25 °C
(μA)
MAX. DF
AT +25 °C
120 Hz
(%)
6
6
6
6
6
15
15
6
6
8
8
8
8
14
14
8
8
8
8
8
8
4
4
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
8
8
6
6
MAX. ESR
AT +25 °C
100 kHz
(Ω)
0.300
0.800
0.200
0.700
0.200
1.700
0.700
0.700
0.140
0.600
0.125
0.500
0.100
0.700
0.300
0.600
0.100
0.500
0.100
0.500
0.100
9.300
6.000
8.000
6.000
3.500
2.500
5.000
3.000
3.400
1.500
2.900
1.200
3.400
2.000
1.800
0.550
2.900
2.000
1.800
0.500
2.500
1.500
1.900
0.600
MAX. RIPPLE
100 kHz
I
RMS
(A)
0.61
0.43
0.87
0.46
0.87
0.22
0.35
0.46
1.04
0.50
1.10
0.57
1.28
0.40
0.61
0.50
1.22
0.57
1.28
0.57
1.28
0.09
0.11
0.10
0.11
0.16
0.18
0.12
0.16
0.16
0.24
0.17
0.27
0.15
0.19
0.25
0.45
0.16
0.19
0.25
0.47
0.17
0.22
0.21
0.38
Vishay Sprague
6 V
DC
AT +85 °C; 4 V
DC
AT +125 °C
47
47
47
68
68
100
100
100
100
150
150
150
150
220
220
220
220
220
220
330
330
1.0
1.0
1.5
1.5
3.3
3.3
4.7
4.7
4.7
4.7
6.8
6.8
10
10
10
10
15
15
15
15
22
22
33
33
C
D
D
D
D
B
B
D
D
D
D
E
E
C
C
D
D
E
E
E
E
A
A
A
A
B
B
A
A
B
B
B
B
A
A
C
C
A
A
C
C
A
A
B
B
TL3C476(1)6R3(2)0300
TL3D476(1)6R3(3)0800
TL3D476(1)6R3(3)0200
TL3D686(1)6R3(3)0700
TL3D686(1)6R3(3)0200
TL3B107(1)6R3(2)1700
TL3B107(1)6R3(2)0700
TL3D107(1)6R3(3)0700
TL3D107(1)6R3(3)0140
TL3D157(1)6R3(3)0600
TL3D157(1)6R3(3)0125
TL3E157(1)6R3(3)0500
TL3E157(1)6R3(3)0100
TL3C227(1)6R3(2)0700
TL3C227(1)6R3(2)0300
TL3D227(1)6R3(3)0600
TL3D227(1)6R3(3)0100
TL3E227(1)6R3(3)0500
TL3E227(1)6R3(3)0100
TL3E337(1)6R3(3)0500
TL3E337(1)6R3(3)0100
TL3A105(1)010(2)9300
TL3A105(1)010(2)6000
TL3A155(1)010(2)8000
TL3A155(1)010(2)6000
TL3B335(1)010(2)3500
TL3B335(1)010(2)2500
TL3A475(1)010(2)5000
TL3A475(1)010(2)3000
TL3B475(1)010(2)3400
TL3B475(1)010(2)1500
TL3B685(1)010(2)2900
TL3B685(1)010(2)1200
TL3A106(1)010(2)3400
TL3A106(1)010(2)2000
TL3C106(1)010(2)1800
TL3C106(1)010(2)0550
TL3A156(1)010(2)2900
TL3A156(1)010(2)2000
TL3C156(1)010(2)1800
TL3C156(1)010(2)0500
TL3A226(1)010(2)2500
TL3A226(1)010(2)1500
TL3B336(1)010(2)1900
TL3B336(1)010(2)0600
1.41
1.41
1.41
2.04
2.04
3.00
3.00
3.00
3.00
4.50
4.50
4.50
4.50
6.60
6.60
6.60
6.60
6.60
6.60
9.90
9.90
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.34
0.34
0.50
0.50
0.50
0.50
0.75
0.75
0.75
0.75
1.10
1.10
1.65
1.65
10 V
DC
AT +85 °C; 7 V
DC
AT +125 °C
Note
• Part number definitions:
(1) Capacitance tolerance: K, M
(2) Termination and packaging: C, D, E, F
(3) Termination and packaging: C, D, E, F, U, V, T, W
Revision: 22-Jun-17
Document Number: 40154
5
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MCU
京公网安备 11010802033920号
EEWORLD
