CYStech Electronics Corp.
NPN Epitaxial Planar Transistor
Spec. No. : C205S3
Issued Date : 2003.12.30
Revised Date : 2004.06.18
Page No. : 1/3
BTC4083S3
Description
The BTC4083S3 is designed for use in VHF & UHF oscillators and VHF mixer in tuner of a TV receiver.
Features
•
High transition frequency. ( f
T
= 3.2GHz, typ. @ V
CE
=10V, I
C
=10mA, f=500MHz )
•
Very low capacitance. ( Cob = 0.8pF , typ. @ V
CB
=10V, f=1MHz )
•
Small R
bb’
-C
C
and high gain. ( R
bb’
-Cc = 4ps , typ. @V
CB
=10V, I
C
=10mA, f=31.8MHz)
•
Small NF. ( NF = 3.5dB , typ. @V
CE
=12V, I
C
=2mA, f=200MHz, Rg=50
Ω
)

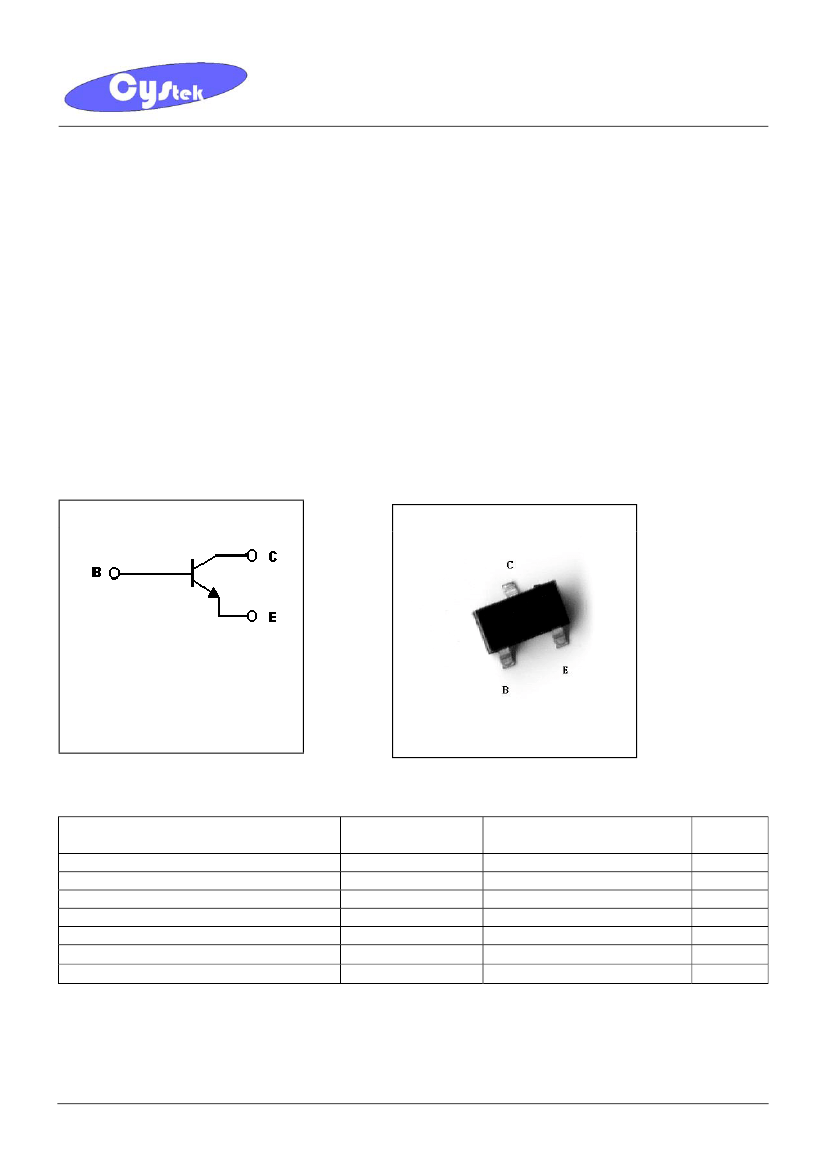

Symbol
BTC4083S3
Outline
SOT-323
B：Base
C：Collector
E：Emitter
Absolute Maximum Ratings
(Ta=25°C)
Parameter
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current
Power Dissipation
Junction Temperature
Storage Temperature
Symbol
V
CBO
V
CEO
V
EBO
I
C
Pd
Tj
Tstg
Limits
20
11
3
50
200
150
-55~+150
Unit
V
V
V
mA
mW
°C
°C
BTC4083S3
CYStek Product Specification
CYStech Electronics Corp.
Characteristics
(Ta=25°C)
Symbol
BV
CBO
BV
CEO
BV
EBO
I
CBO
I
EBO
*V
CE(sat)
*h
FE
f
T
Cob
R
bb’
-C
C
NF
Min.
20
11
3
-
-
-
82
1.4
-
-
-
Typ.
-
-
-
-
-
-
-
3.2
0.8
4
3.5
Max.
-
-
-
0.5
0.5
0.5
180
-
1.5
12
-
Unit
V
V
V
µA
µA
V
-
GHz
pF
ps
dB
Spec. No. : C205S3
Issued Date : 2003.12.30
Revised Date : 2004.06.18
Page No. : 2/3
Test Conditions
I
C
=10µA
I
C
=1mA
I
E
=10µA
V
CB
=10V
V
EB
=2V
I
C
=10mA, I
B
=5mA
V
CE
=10V, I
C
=5mA
V
CE
=10V, I
C
=10mA, f=500MHz
V
CB
=10V, I
E
=0A, f=1MHz
V
CB
=10V, I
C
=10mA, f=31.8MHz
V
CE
=12V, I
C
=2mA, f=200MHz, Rg=50
Ω
*Pulse Test : Pulse Width
≤380µs,
Duty Cycle≤2%
BTC4083S3
CYStek Product Specification
CYStech Electronics Corp.

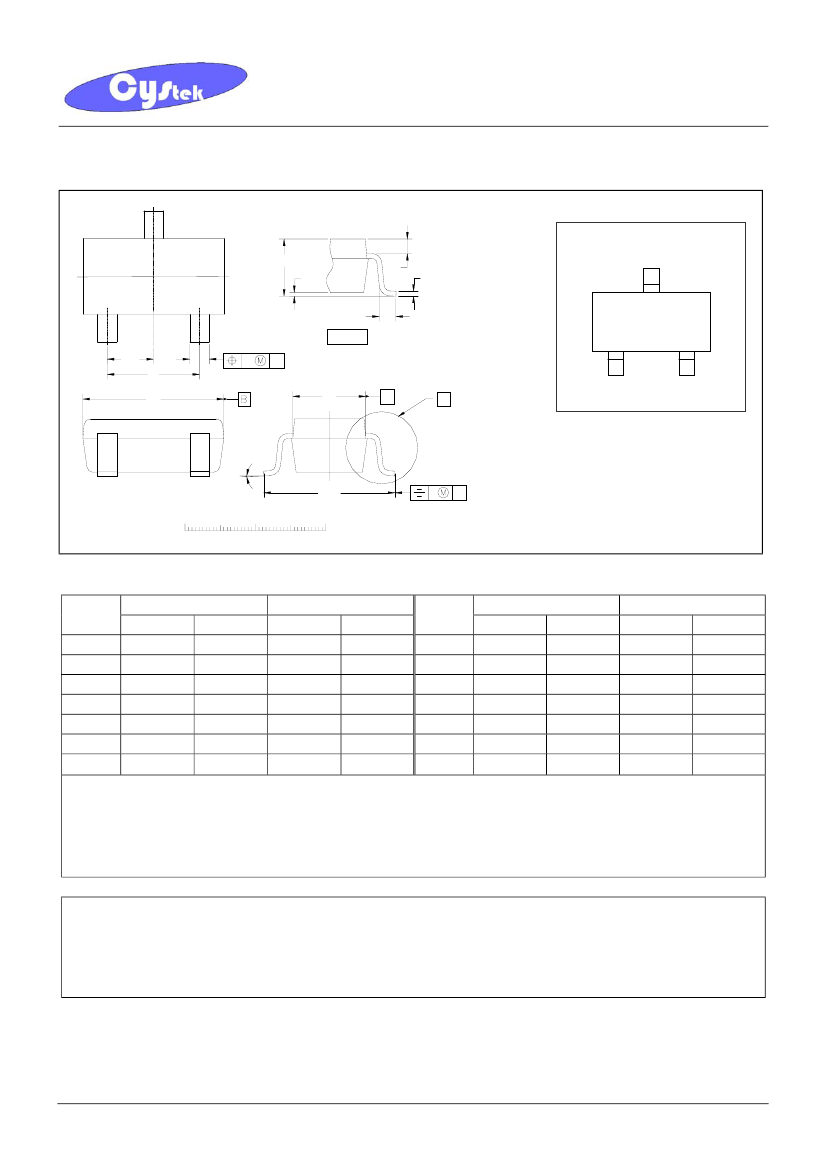

SOT-323 Dimension
Spec. No. : C205S3
Issued Date : 2003.12.30
Revised Date : 2004.06.18
Page No. : 3/3
3
A
Marking:
A1
Q
Lp
detail Z
W
B
C
1
e1
e
D
bp
2
TE
1D
E
A
Z
θ
He
0
1
scale
2 mm
3-Lead SOT-323 Plastic
Surface Mounted Package
CYStek Package Code: S3
v
A
Style: Pin 1.Base 2.Emitter 3.Collector
*: Typical
DIM
A
A1
bp
C
D
E
e
Inches
Min.
Max.
0.0315 0.0433
0.0000 0.0039
0.0118 0.0157
0.0039 0.0098
0.0709 0.0866
0.0453 0.0531
0.0512
-
Millimeters
Min.
Max.
0.80
1.10
0.00
0.10
0.30
0.40
0.10
0.25
1.80
2.20
1.15
1.35
1.3
-
DIM
e1
He
Lp
Q
v
w
θ
Inches
Min.
Max.
0.0256
-
0.0787 0.0886
0.0059 0.0177
0.0051 0.0091
0.0079
-
0.0079
-
-
-
Millimeters
Min.
Max.
0.65
-
2.00
2.25
0.15
0.45
0.13
0.23
0.2
-
0.2
-
10°
0°
Notes:
1.Controlling dimension: millimeters.
2.Maximum lead thickness includes lead finish thickness, and minimum lead thickness is the minimum thickness of base material.
3.If there is any question with packing specification or packing method, please contact your local CYStek sales office.
Material:
•
Lead: 42 Alloy ; solder plating
•
Mold Compound: Epoxy resin family, flammability solid burning class: UL94V-0
Important Notice:
•
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written approval of CYStek.
•
CYStek reserves the right to make changes to its products without notice.
•
CYStek
semiconductor products are not warranted to be suitable for use in Life-Support Applications, or systems.
•
CYStek assumes no liability for any consequence of customer product design, infringement of patents, or application assistance.
BTC4083S3
CYStek Product Specification
PCB Design
