CYStech Electronics Corp.
General Purpose PNP Epitaxial Planar Transistor
Spec. No. : C317A3-H
Issued Date : 2002.06.11
Revised Date : 2005.06.29
Page No. : 1/5
BTP2907A3
Description
•
The BTP2907A3 is designed for general purpose amplifier and high-speed switching, medium power
applications.
•
Low collector saturation voltage
•
High speed switching.
•
Complementary to BTN2222A3
•
Pb-free package
Symbol
BTP2907A3
Outline
TO-92
B：Base
C：Collector
E：Emitter
EBC
Absolute Maximum Ratings
(Ta=25°C)
Parameter
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current
Power Dissipation
Junction Temperature
Storage Temperature
Symbol
V
CBO
V
CEO
V
EBO
I
C
Pd
Tj
Tstg
Limits
-60
-60
-5
-600
625
150
-55~+150
Unit
V
V
V
mA
mW
°C
°C
BTP2907A3
CYStek Product Specification
CYStech Electronics Corp.
Characteristics
(Ta=25°C)
Symbol
BV
CBO
BV
CEO
BV
EBO
I
CBO
I
CEX
*V
CE(sat)
*V
CE(sat)
*V
BE(sat)
*V
BE(sat)
*h
FE
1
*h
FE
2
*h
FE
3
*h
FE
4
*h
FE
5
f
T
Cob
Min.
-60
-60
-5
-
-
-
-
-
-
75
100
100
100
50
200
-
Typ.
-
-
-
-
-
-0.2
-0.5
-
-
-
-
-
-
-
-
Max.
-
-
-
-10
-50
-0.4
-1.6
-1.3
-2.6
-
-
-
300
-
-
8
Unit
V
V
V
nA
nA
V
V
V
V
-
-
-
-
-
MHz
pF
Spec. No. : C317A3-H
Issued Date : 2002.06.11
Revised Date : 2005.06.29
Page No. : 2/5
Test Conditions
I
C
=-10µA
I
C
=-10mA
I
E
=-10µA
V
CB
=-50V
V
CE
=-30V, V
BE(OFF)
=-0.5V
I
C
=-150mA, I
B
=-15mA
I
C
=-500mA, I
B
=-50mA
I
C
=-150mA, I
B
=-15mA
I
C
=-500mA, I
B
=-50mA
V
CE
=-10V, I
C
=-100µA
V
CE
=-10V, I
C
=-1mA
V
CE
=-10V, I
C
=-10mA
V
CE
=-10V, I
C
=-150mA
V
CE
=-10V, I
C
=-500mA
V
CE
=-20V, I
C
=-50mA, f=100MHz
V
CB
=-30V, I
E
=0A,f=1MHz
*Pulse Test: Pulse Width
≤380µs,
Duty Cycle≤2%
Classification Of h
FE
4
Rank
Range
A
100~180
N
120~270
B
180~300
Ordering Information
Device
BTP2907A3
Package
TO-92
(Pb-free)
Shipping
2000 pcs / Tape & Box
BTP2907A3
CYStek Product Specification
CYStech Electronics Corp.

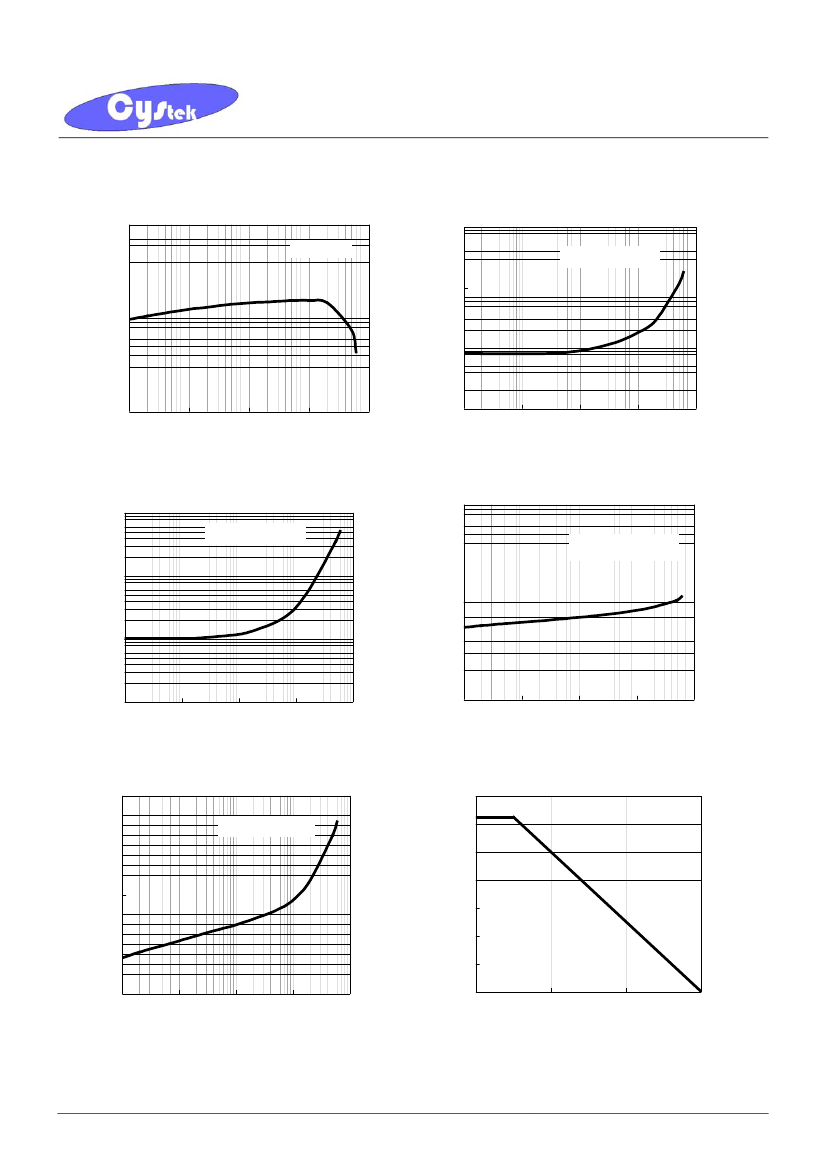

Characteristic Curves
Current Gain vs Collector Current
1000
VCE=10V
Saturation Voltage---(mV)
10
Spec. No. : C317A3-H
Issued Date : 2002.06.11
Revised Date : 2005.06.29
Page No. : 3/5
Saturation Voltage vs Collector Current
VCE(sat)@IC=10IB
1
Current Gain---HFE
100
0.1
10
0.1
1
10
100
Collector Current---IC(mA)
1000
0.01
0.1
1
10
100
Collector Current---IC(mA)
1000
Saturation Voltage vs Collector Current
10
10
Saturation Voltage vs Collector Current
VCE(sat)@IC=20IB
Saturation Voltage---(mV)
Saturation Voltage---(mV)
VBE(sat)@IC=10IB
1
1
0.1
0.01
0.1
1
10
100
Collector Current---IC(mA)
1000
0.1
0.1
1
10
100
1000
Collector Current---IC(mA)
On Voltage vs Collector Current
1.2
VBE(on)@VCE=1V
1
On Voltage (V)
Power Disspation---PD (mW)
700
600
500
400
300
200
100
Power Derating Curve
0.8
0.6
0.4
0.1
1
10
100
Collector Current---IC(mA)
1000
0
0
50
100
150
Ambient Tempurature---Ta (℃ )
BTP2907A3
CYStek Product Specification
CYStech Electronics Corp.

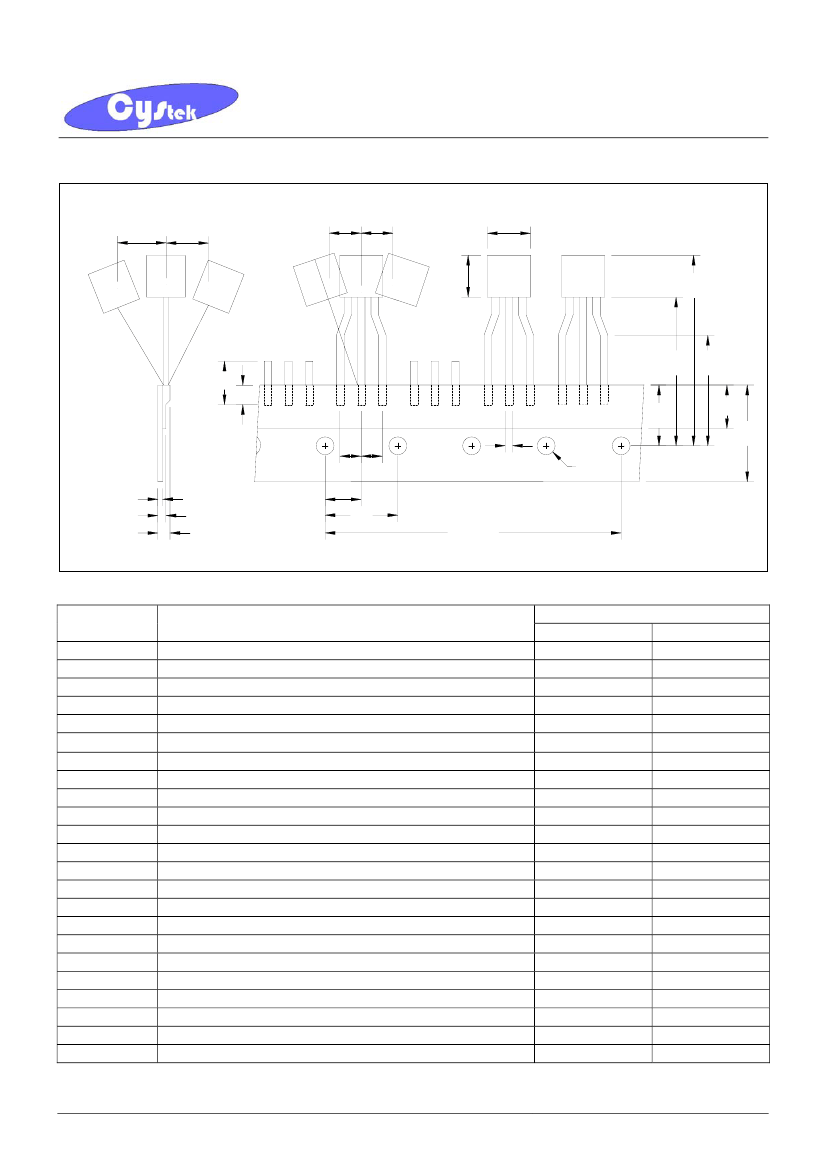

TO-92 Taping Outline
H2
H2
H2A H2A
A
D2
Spec. No. : C317A3-H
Issued Date : 2002.06.11
Revised Date : 2005.06.29
Page No. : 4/5
H3
L
H4 H
L1
H1
F1F2
D1
D
W1
W
T2
T
T1
P1
P
P2
DIM
A
D
D1
D2
F1,F2
F1,F2
H
H1
H2
H2A
H3
H4
L
L1
P
P1
P2
T
T1
T2
W
W1
-
Item
Component body height
Tape Feed Diameter
Lead Diameter
Component Body Diameter
Component Lead Pitch
F1-F2
Height Of Seating Plane
Feed Hole Location
Front To Rear Deflection
Deflection Left Or Right
Component Height
Feed Hole To Bottom Of Component
Lead Length After Component Removal
Lead Wire Enclosure
Feed Hole Pitch
Center Of Seating Plane Location
4 Feed Hole Pitch
Over All Tape Thickness
Total Taped Package Thickness
Carrier Tape Thickness
Tape Width
Adhesive Tape Width
20 pcs Pitch
Millimeters
Min.
4.33
3.80
0.36
4.33
2.40
-
15.50
8.50
-
-
-
-
-
2.50
12.50
5.95
50.30
-
-
0.36
17.50
5.00
253
Max.
4.83
4.20
0.53
4.83
2.90
±0.3
16.50
9.50
1
1
27
21
11
-
12.90
6.75
51.30
0.55
1.42
0.68
19.00
7.00
255
BTP2907A3
CYStek Product Specification
CYStech Electronics Corp.

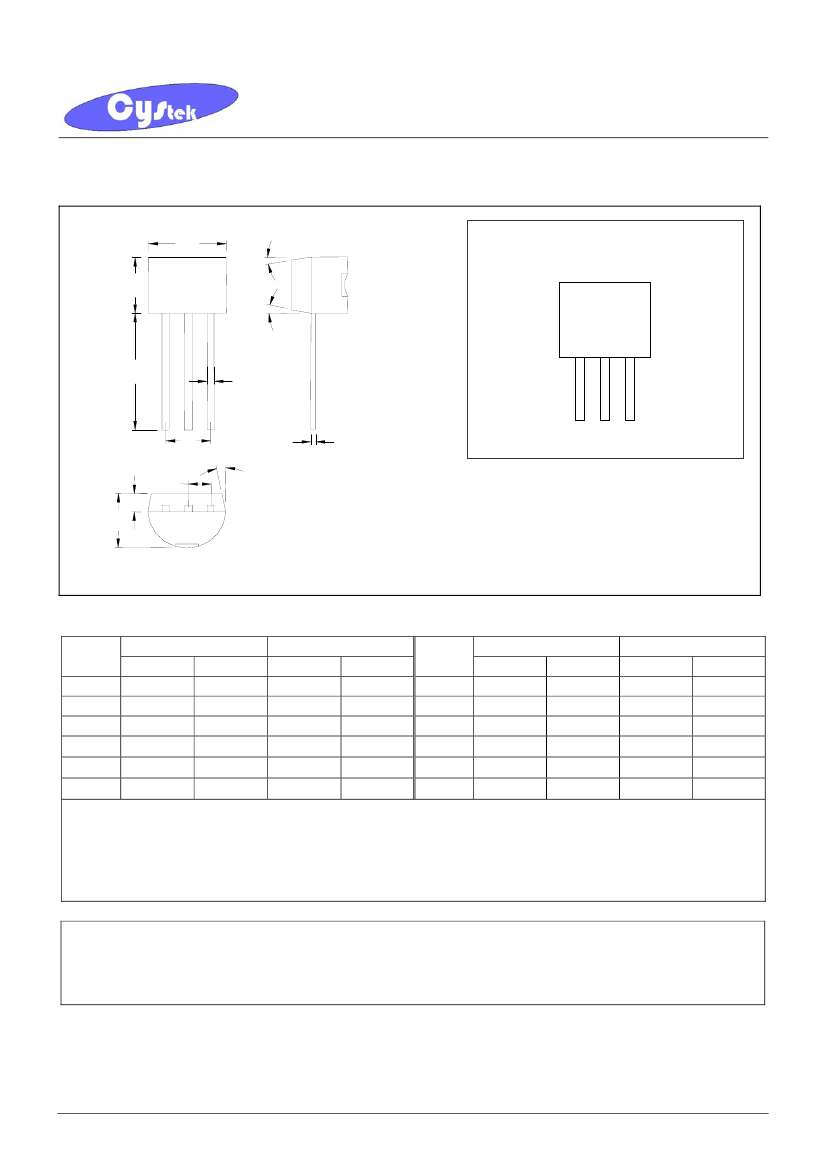

TO-92 Dimension
α
2
Spec. No. : C317A3-H
Issued Date : 2002.06.11
Revised Date : 2005.06.29
Page No. : 5/5
A
B
1
2
3
Marking:
α
3
2907
C
D
H
I
E
F
G
α
1
Style: Pin 1.Emitter 2.Base 3.Collector
3-Lead TO-92 Plastic Package
CYStek Package Code: A3
*: Typical
DIM
A
B
C
D
E
F
Inches
Min.
Max.
0.1704 0.1902
0.1704 0.1902
0.5000
-
0.0142 0.0220
-
*
0.0500
0.1323 0.1480
Millimeters
Min.
Max.
4.33
4.83
4.33
4.83
12.70
-
0.36
0.56
-
*
1.27
3.36
3.76
DIM
G
H
I
α1
α2
α3
Inches
Min.
Max.
0.0142 0.0220
-
*
0.1000
-
*
0.0500
-
*
5°
-
*
2°
-
*
2°
Millimeters
Min.
Max.
0.36
0.56
-
*
2.54
-
*
1.27
-
*
5°
-
*
2°
-
*
2°
Notes:
1.Controlling dimension: millimeters.
2.Maximum lead thickness includes lead finish thickness, and minimum lead thickness is the minimum thickness of base material.
3.If there is any question with packing specification or packing method, please contact your local CYStek sales office.
Material:
•
Lead: 42 Alloy ; solder plating
•
Mold Compound: Epoxy resin family, flammability solid burning class: UL94V-0
Important Notice:
•
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written approval of CYStek.
•
CYStek reserves the right to make changes to its products without notice.
•
CYStek
semiconductor products are not warranted to be suitable for use in Life-Support Applications, or systems.
•
CYStek assumes no liability for any consequence of customer product design, infringement of patents, or application assistance.
BTP2907A3
CYStek Product Specification
