S16C35CE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> S16C35CE

S16C35CE: DescriptionSchottky Barrier Rectifiers; CategoryDiscrete semiconductor diode; File Size78KB，2 Pages; ManufacturerMOSPEC; Websitehttp://www.mospec.com.tw/eng/index.html

Download Datasheet Parametric Compare View All

S16C35CE Overview

Schottky Barrier Rectifiers

S16C35CE Parametric

Parameter Name	Attribute value
Maker	MOSPEC
package instruction	R-PSFM-T3
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	FREE WHEELING DIODE, LOW POWER LOSS
application	EFFICIENCY
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.57 V
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Maximum non-repetitive peak forward current	150 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	8 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Maximum repetitive peak reverse voltage	35 V
Maximum reverse current	500 µA
surface mount	NO
technology	SCHOTTKY
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

Preview

Download Datasheet

View All

MOSPEC

Schottky Barrier Rectifiers

S16C30CE thru S16C60CE

SCHOTTKY BARRIER

RECTIFIERS

16 AMPERES

30-60 VOLTS

Using the Schottky Barrier principle with a Molybdenum barrier metal. These

state-of-the-art geometry features epitaxial construction with oxide passivation

and metal overlay contact. Ideally suited for low voltage, high frequency

rectification, or as free wheeling and polarity protection diodes.

＊Low

Forward Voltage.

＊Low

Switching noise.

＊High

Current Capacity

＊Guarantee

Reverse Avalanche.

＊Guard-Ring

for Stress Protection.

＊Low

Power Loss & High efficiency.

＊150℃

Operating Junction Temperature

＊Low

Stored Charge Majority Carrier Conduction.

＊Plastic

Material used Carries Underwriters Laboratory

Flammability Classification 94V-O

TO-220AB

MAXIMUM RATINGS

Characteristic

Peak Repetitive Reverse Voltage

Working Peak Reverse Voltage

DC Blocking Voltage

RMS Reverse Voltage

Average Rectifier Forward Current

Total Device (Rated V

), T

=100℃

Peak Repetitive Forward Current

(Rate V

, Square Wave, 20kHz)

Non-Repetitive Peak Surge Current

(Surge applied at rate load conditions

halfware, single phase, 60Hz)

Operating and Storage Junction

Temperature Range

Symbol

RRM

RWM

R(RMS)

F(AV)

S16C

30CE 35CE 40CE 45CE 50CE 60CE

Unit

8.0

DIM

FSM

150

, T

stg

-65 to +150

℃

MILLIMETERS

MIN

MAX

14.68

15.32

9.78

10.42

5.02

6.52

13.06

14.62

3.57

4.07

2.42

2.66

1.12

1.36

0.72

0.96

4.22

4.98

1.14

1.38

2.20

2.98

0.33

0.55

2.48

2.98

3.70

3.90

ELECTRIAL CHARACTERISTICS

Characteristic

Maximum Instantaneous Forward Voltage

( I

=8.0 Amp T

= 25℃)

( I

=8.0 Amp T

= 125℃)

Maximum Instantaneous Reverse Current

( Rated DC Voltage, T

= 25℃)

( Rated DC Voltage, T

= 125℃)

Symbol

S16C

30CE 35CE 40CE 45CE 50CE 60CE

0.57

0.48

0.70

0.58

Common cathode

Suffix “C”

Unit

0.5

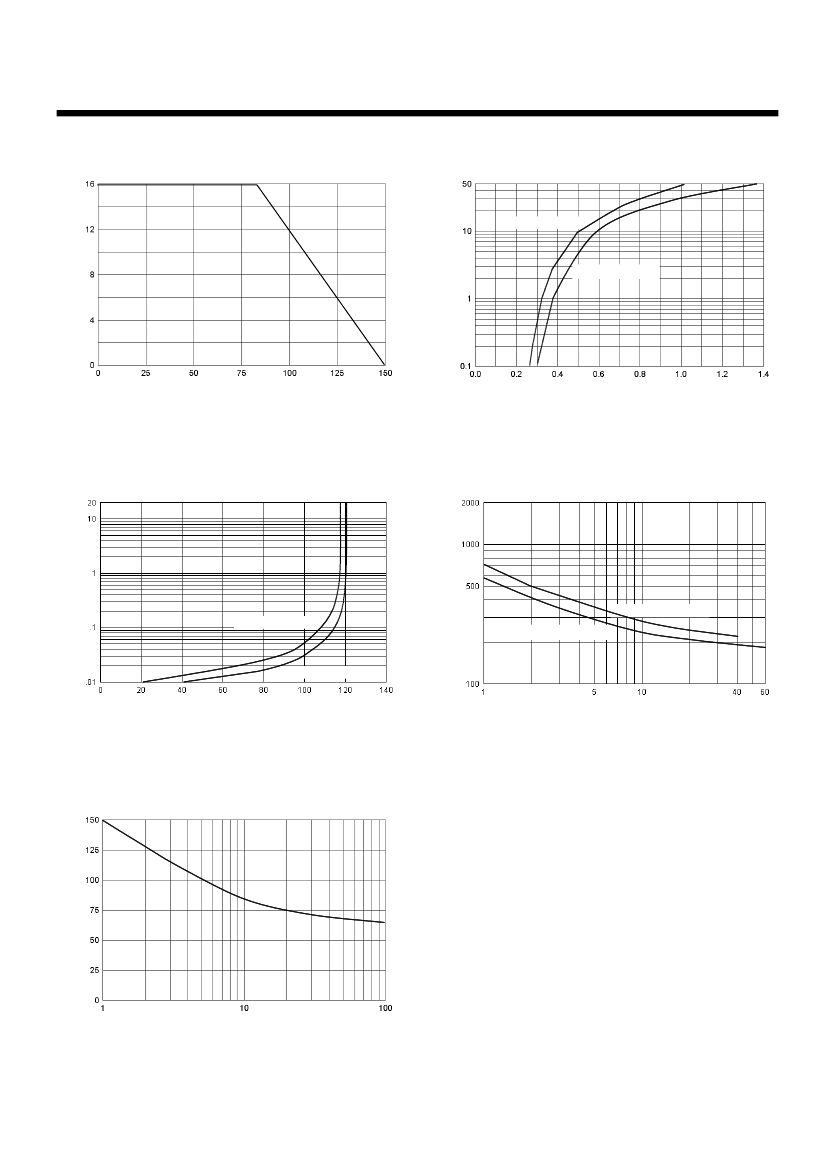

S16C35CE Related Products

	S16C35CE	S16C45CE	S16C30CE	S16C40CE	S16C60CE	S16C50CE
Description	Schottky Barrier Rectifiers	Schottky Barrier Rectifiers	Schottky Barrier Rectifiers	Schottky Barrier Rectifiers	Schottky Barrier Rectifiers	Schottky Barrier Rectifiers
Maker	MOSPEC	MOSPEC	MOSPEC	MOSPEC	MOSPEC	MOSPEC
package instruction	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	FREE WHEELING DIODE, LOW POWER LOSS	FREE WHEELING DIODE, LOW POWER LOSS	FREE WHEELING DIODE, LOW POWER LOSS	FREE WHEELING DIODE, LOW POWER LOSS	FREE WHEELING DIODE, LOW POWER LOSS	FREE WHEELING DIODE, LOW POWER LOSS
application	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY
Shell connection	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.57 V	0.57 V	0.57 V	0.57 V	0.7 V	0.7 V
JEDEC-95 code	TO-220AB	TO-220AB	TO-220AB	TO-220AB	TO-220AB	TO-220AB
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Maximum non-repetitive peak forward current	150 A	150 A	150 A	150 A	150 A	150 A
Number of components	2	2	2	2	2	2
Phase	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	8 A	8 A	8 A	8 A	8 A	8 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Maximum repetitive peak reverse voltage	35 V	45 V	30 V	40 V	60 V	50 V
Maximum reverse current	500 µA	500 µA	500 µA	500 µA	500 µA	500 µA
surface mount	NO	NO	NO	NO	NO	NO
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
