2 Watts 2 :1 Wide Input Range DC/DC Converters
Single Outputs
Key Features
MCW1000 Series
High Efficiency up to 80%
2:1 Input Range
I/O Isolation 1000VDC
Industry Standard Pinout
SMT Technology
Short Circuit Protection
MTBF > 1,000,000 Hours
External ON/OFF-Control
Low Ripple and Noise

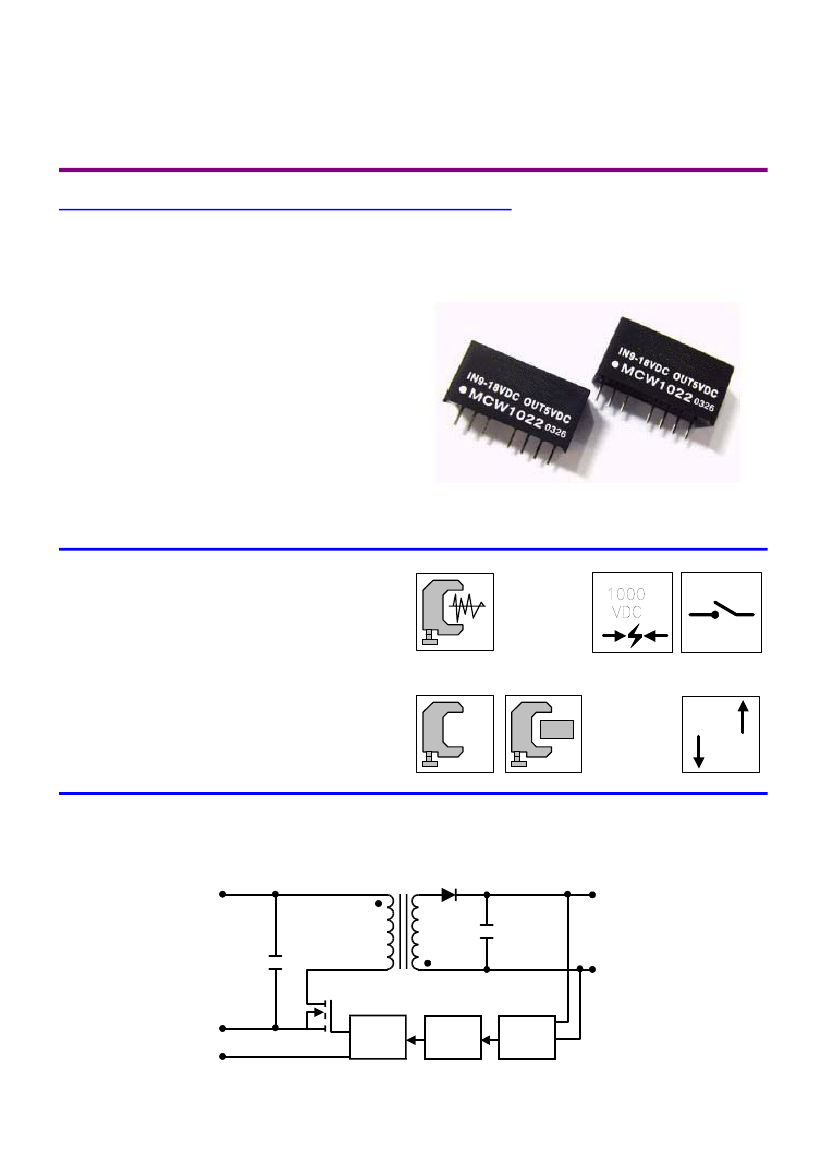

MCW1000-Series power modules are low-profile
dc-dc converters that operate over input voltage ranges of
4.5-9VDC, 9-18VDC, 18-36VDC and 36-75VDC and provide
precisely regulated output voltages of 3.3V, 5V, 12V.
The -40] to +65] operating temperature range makes it ideal
for data communication equipments, mobile battery driven
equipments, distributed power systems, telecommunication
equipments, mixed analog/digital subsystems, process/machine
control equipments, computer peripheral systems and industrial robot
systems.
The modules have a maximum power rating of 2W and a typical
full-load efficiency of 80%, continuous short circuit, 60mV output
ripple, built-in filtering for both input and output minimizes the need
for external filtering.
Low Noise
I/O Isolation
Remote on/off
$
Low Cost
Low Profile
2:1
Wide Range
Block Diagram
+Vin
+Vo
-Vo
-Vin
On/Off
PFM
Isolation
Ref.Amp
MCW1000 Series
Model Selection Guide
Model
Number
Input
Voltage
VDC
MCW1011
MCW1012
MCW1013
MCW1021
MCW1022
MCW1023
MCW1031
MCW1032
MCW1033
MCW1041
MCW1042
MCW1043
5
( 4.5 ~ 9 )
12
( 9 ~ 18 )
24
( 18 ~ 36 )
48
( 36 ~ 75 )
Output
Voltage
VDC
3.3
5
12
3.3
5
12
3.3
5
12
3.3
5
12
Output Current
Max.
mA
500
400
167
500
400
167
500
400
167
500
400
167
Min.
mA
125
100
42
125
100
42
125
100
42
125
100
42
Input Current
@Max. Load
mA (Typ.)
471
548
534
184
217
209
96
109
103
49
57
53
@No Load
mA (Typ.)
40
Efficiency
@Max. Load
% (Typ.)
70
73
75
73
77
80
72
77
81
71
73
79
20
10
8
Absolute Maximum Ratings
Parameter
5VDC Input Models
12VDC Input Models
Input Surge Voltage
( 1000 mS )
24VDC Input Models
48VDC Input Models
Lead Temperature (1.5mm from case for 10 Sec.)
Internal Power Dissipation
Min.
-0.7
-0.7
-0.7
-0.7
---
---
Max.
15
25
50
100
260
1,800
Unit
VDC
VDC
VDC
VDC
]
mW
Note :
1. Specifications typical at Ta=+25], resistive load,
nominal input voltage, rated output current unless
otherwise noted.
2. Transient recovery time is measured to within 1%
error band for a step change in output load of 50%
to 100%.
3. Ripple & Noise measurement bandwidth is 0-20
MHz.
4. These power converters require a minimum
output loading to maintain specified regulation.
5. Operation under no-load conditions will not
damage these devices; however they may not
meet all listed specifications.
Min.
Max.
-40
+65
-40
+90
-55
+105
---
95
Free-Air Convection
Unit
]
]
]
%
6. All DC/DC converters should be externally fused at
the front end for protection.
7. Other input and output voltage may be available,
please contact factory.
8. Specifications subject to change without notice.
Exceeding these values can damage the module. These are not continuous
operating ratings.
Environmental Specifications
Parameter
Operating Temperature
Operating Temperature
Storage Temperature
Humidity
Cooling
Conditions
Ambient
Case
MCW1000 Series
Input Specifications
Parameter
Start Voltage
Model
5V Input Models
12V Input Models
24V Input Models
48V Input Models
Under Voltage Shortdown
5V Input Models
12V Input Models
24V Input Models
48V Input Models
Reverse Polarity Input Current
Short Circuit Input Power
Input Filter
All Models
Min.
3.5
4.5
8
16
---
---
---
---
---
---
Typ.
4
7
12
24
3.5
6.5
11
22
---
---
Max.
4.5
9
18
36
4
8.5
17
34
1
1500
A
mW
VDC
Unit
Capacitor type
Output Specifications
Parameter
Output Voltage Accuracy
Line Regulation
Load Regulation
Ripple & Noise (20MHz)
Ripple & Noise (20MHz)
Ripple & Noise (20MHz)
Over Power Protection
Transient Recovery Time
Transient Response Deviation
Temperature Coefficient
Output Short Circuit
25% Load Step Change
Over Line,Load & Temp
Vin=Min. to Max.
Io=25% to 100%
Conditions
Min.
---
---
---
---
---
---
120
---
---
---
Continuous
Typ.
{1
{0.3
{0.5
30
---
---
---
100
{3
{0.01
Max.
{2
{0.5
{0.75
50
75
15
---
300
{5
{0.02
Unit
%
%
%
mV P-P
mV P-P
mV rms.
%
uS
%
%/]
General Specifications
Parameter
Isolation Voltage
Isolation Test Voltage
Isolation Resistance
Isolation Capacitance
Switching Frequency
MTBF
MIL-HDBK-217F @ 25], Ground Benign
Conditions
60 Seconds
Flash Tested for 1 Second
500VDC
100KHz,1V
Min.
1000
1100
1000
---
100
1000
Typ.
---
---
---
65
300
---
Max.
---
---
---
120
650
---
Unit
VDC
VDC
M[
pF
KHz
K Hours
Remote On/Off Control
Parameter
Supply On
Supply Off
Device Standby Input Current
Control Input Current ( on )
Control Input Current ( off )
Control Common
Conditions
Min.
Typ.
Max.
15
0.2
-0.4
1
Unit
VDC
mA
mA
mA
under 1VDC or open circuit
2.7
---
---
---
---
0.1
---
---
Referenced to Negative Input
MCW1000 Series
Capacitive Load
Models by Vout
Maximum Capacitive Load
Note: # For each output .
3.3V
2200
5V
1000
12V
170
170
Unit
uF
Input Fuse Selection Guide
5V Input Models
1500mA Slow - Blow Type
12V Input Models
700mA Slow - Blow Type
24V Input Models
350mA Slow - Blow Type
48V Input Models
135mA Slow - Blow Type
Input Voltage Transient Rating
MCW1000 Series
90
80
70
Efficiency(%)
60
50
40
30
20
Low
Nom
Input Voltage (V)
High
90
80
Efficiency(%)
70
60
50
40
30
20
10
20
40
60
80
100
Load Current (%)
Efficiency vs Input Voltage ( Single Output )
Efficiency vs Output Load ( Single Output )
100
80
Output Power (%)
100LFM
Natural
convection
400LFM
60
200LFM
40
20
0
-40
〜
50
60
70
80
]
90
100
110
Ambient Temperature
Derating Curve
