ASPI-2410-150M-T2: DescriptionFixed Inductors 15uF 20% -25C +120C; CategoryPassive components inductor; File Size1MB，3 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric Compare View All

ASPI-2410-150M-T2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ASPI-2410-150M-T2	-	-	View	Buy Now

ASPI-2410-150M-T2 Overview

Fixed Inductors 15uF 20% -25C +120C

ASPI-2410-150M-T2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Abracon
package instruction	1008
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	14 weeks
uppercase and lowercase codes	1008
structure	Rectangular
DC Resistance	0.954 Ω
Nominal inductance(L)	15 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Number of functions	1
Number of terminals	2
Maximum operating temperature	120 °C
Minimum operating temperature	-25 °C
Package height	1 mm
Package length	2.5 mm
Package form	SMT
Package width	2 mm
method of packing	TR, 7 Inch
Maximum rated current	0.5 A
self resonant frequency	19 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Tolerance	20%

Preview

Download Datasheet

View All

Low Profile Shielded SMD Chip Power Inductor

ASPI-2410 series

FEATURES:

•

Small size and low profile: 1.0mm

Small DCR and high rated current

High reliability to mechanical stress

Magnetically shielded by magnetic powder molding

Suitable for RoHS reflow profile

Pb

RoHS

Compliant

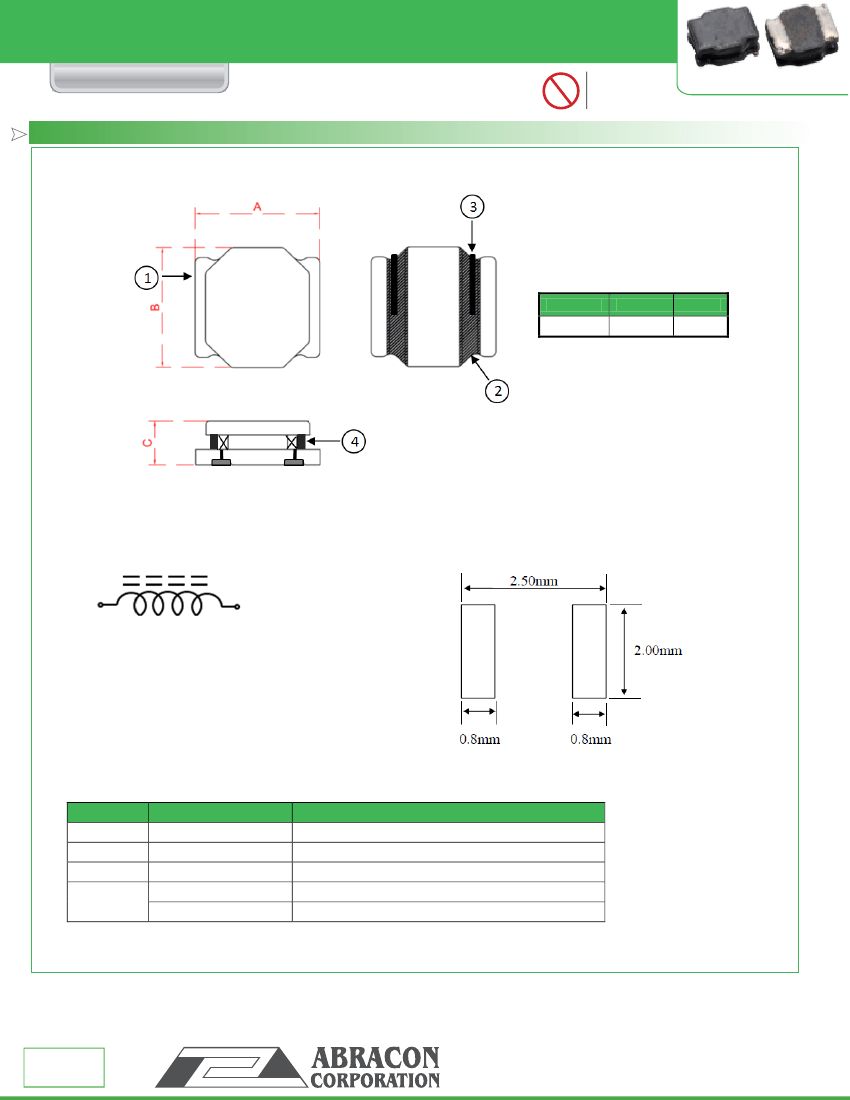

2.4 x 2.4 x 1.0mm

APPLICATIONS:

• Mobile phones

• MP3 & 4 and other portable communication equipment

• Digital cameras.

ELECTRICAL SPECIFICATIONS:

Abracon P/N:

Operating Temperature & Humidity

:

Storage Temperature & Humidity:

ASPI-2510 Series

-25˚C

to +120˚C

(Including

self generated heat)

-10˚C

to +40˚C, 30% to

70% RH

Inductance

Tolerance

%

M, N

N

M

DCR

m

DCR

60

70

110

140

220

290

410

690

1020

1470

DCR

Tolerance

%

±30%

Saturation

Current

A

Isat*

2.60

2.00

1.75

1.30

1.05

0.92

0.75

0.60

0.50

0.40

Temperature

Rise Current

A

Irms*

2.50

1.90

1.70

1.20

1.00

0.90

0.65

0.55

0.45

0.40

Part Number

Units

Symbol

ASPI-2410-R68

ASPI-2410-1R0

ASPI-2410-1R5

ASPI-2410-2R2

ASPI-2410-3R3

ASPI-2410-4R7

ASPI-2410-6R8

ASPI-2410-100

ASPI-2410-150

ASPI-2410-220

Inductance

H

L

0.68

1.0

1.5

2.2

3.3

4.7

6.8

10.0

15.0

22.0

±20%

Test Conditions

1.

Inductance is

measured in HP-4285A

Precision LCR

Meter.

2.

RDC is

measured in DU-5011 milli ohm meter.(or

equivalent).

3.

Isat : Based

on inductance change

(∆ L/Lo

:≤

-30%)

4. Irms : Based

on temperature

rise (∆ T : 40

o

C TYP.

)

5. Test

Freq:

100KHz,

1Vrms

OPTIONS AND PART IDENTIFICATION

ASPI-2410-

Inductance Code

Please refer

to the

Electrical Spec Table

Tolerance

N: ±30%*

M:

±20%*

-

Packaging

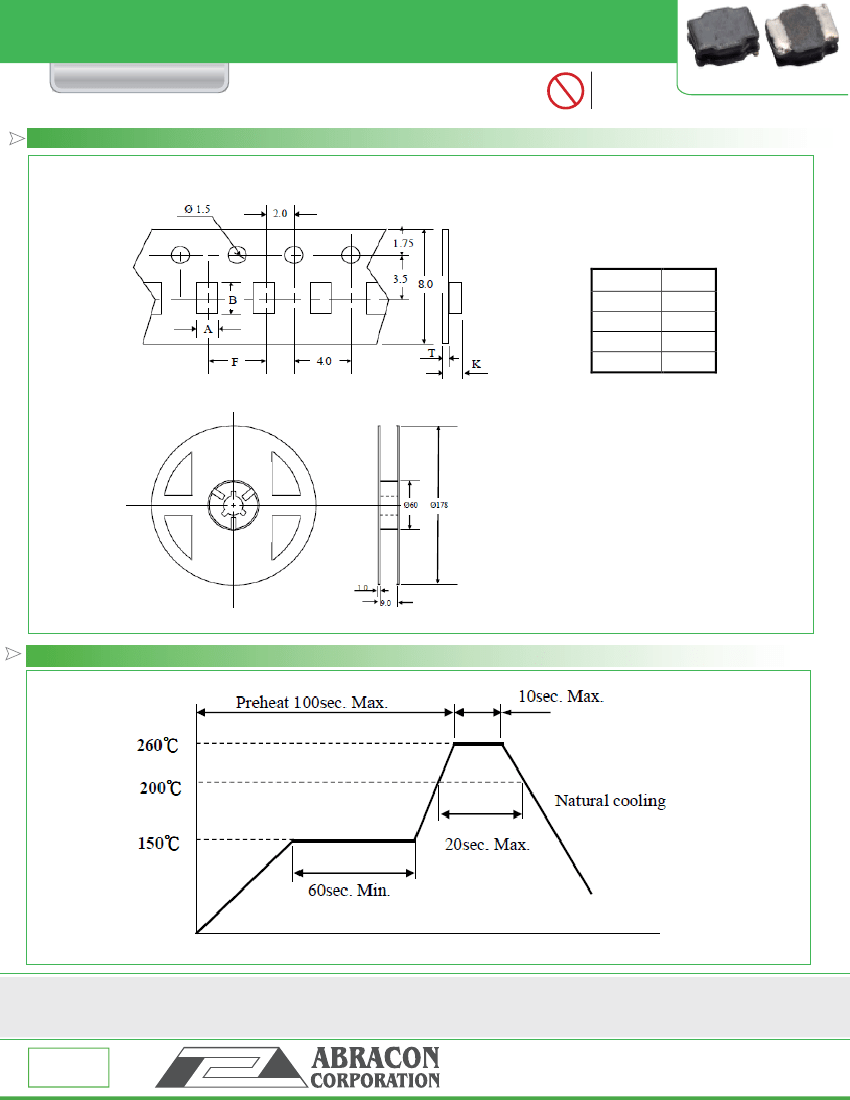

T2: Tape

and

Reel (2kpcs

/

reel)

*N

for

L = 0.68

and

1µH,

M for

L = 1.5 ~ 22µH

ABRACON IS

ISO9001:2008

CE RTIFIED

Revised: 10.20.11

3033

2 E s

p

eranza, Ran

cho

San

ta Margarita

, Cali

fornia

92688

tel

949-546-8000

|

fax

949-546-8001|

www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
