TC69: DescriptionAluminum Electrolytic Capacitors - Leaded 100uF 350V BI POLAR; CategoryPassive components; File Size63KB，3 Pages; ManufacturerCornell Dubilier

Download Datasheet Parametric View All

TC69 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TC69	-	-	View	Buy Now

TC69 Overview

Aluminum Electrolytic Capacitors - Leaded 100uF 350V BI POLAR

TC69 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Cornell Dubilier
Product Category	Aluminum Electrolytic Capacitors - Leaded
RoHS	N
Termination Style	Axial
Capacitance	100 uF
Voltage Rating DC	350 VDC
Tolerance	- 10 %, + 50 %
Ripple Current	1.093 A
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Diameter	22.23 mm
Length	66.68 mm
Life	1000 Hour
ESR	1.35 Ohms
Packaging	Bulk
Product	General Purpose Electrolytic Capacitors
Factory Pack Quantity	1

Preview

Download Datasheet

View All

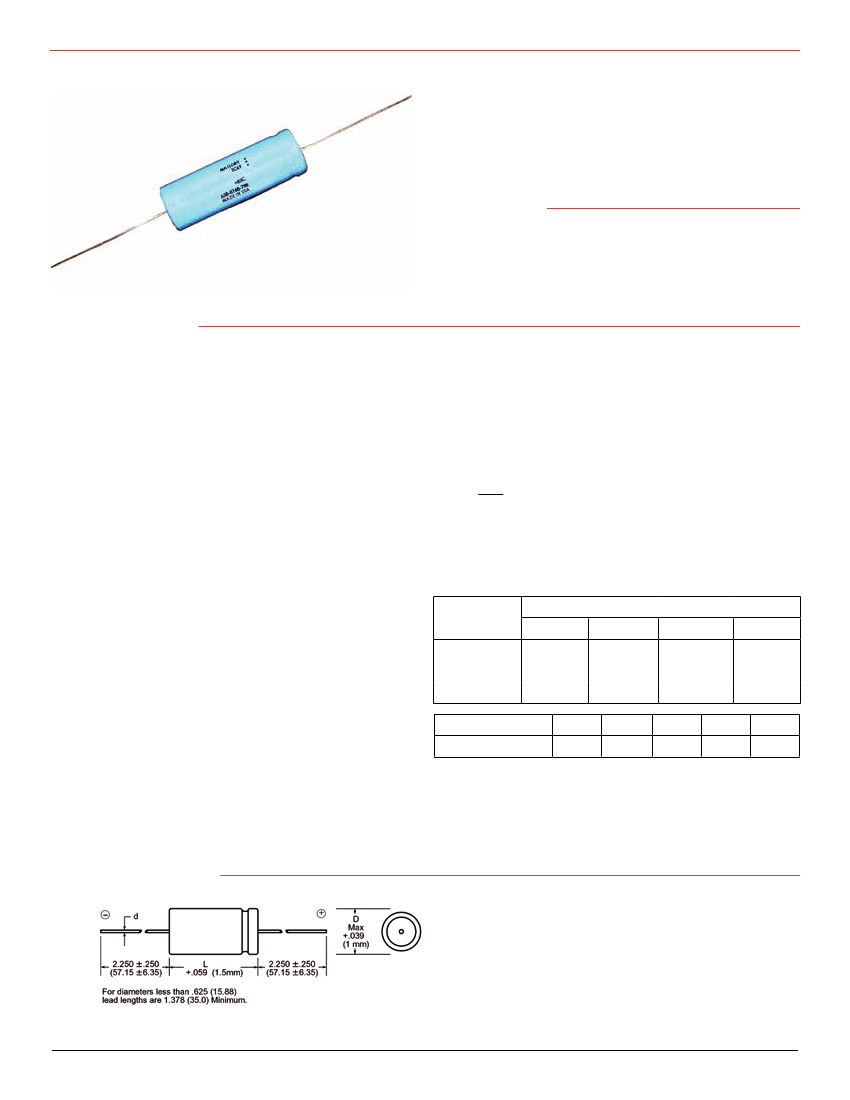

Type TC

Axial Leaded Aluminum Electrolytic Capacitors

85 ºC, High Ripple, General Purpose Capacitor

Type TC is an axial leaded, 85 ºC, 1000 hour long

life general purpose aluminum electrolytic capac-

itor with a high ripple current rating and is suit-

able for consumer electronic equipment applica-

tions.

Highlights

•

General purpose

•

High ripple current

•

Low profile mounting

Specifications

Capacitance Range:

1.0 to 5,000 µF

Voltage Range:

16 to 450 WVdc

Capacitance Tolerance:

Dia.< .625, ±20%

Dia.≥ .625

16 to 150 WVdc, –10 +75%

250 to 450 WVdc, –10 +50%

Operating Temperature Range:

–40 ºC to 85 ºC

DC Leakage Current:

I = 6 √CV after 5 minutes, not to exceed 3 mA @ 25 ºC

I = leakage current in µA

C = Capacitance in µF

V = Rated voltage

Ripple Current Multipliers:

Rated

WVdc

0 to 50

51 to 150

151 & up

Ambient Temp.

Ripple Multiplier

60 Hz

0.8

Ripple Multipliers

400 Hz

1.05

1.08

1.15

1000 Hz

1.10

1.13

1.21

2400 Hz

1.14

1.16

1.25

+45 ºC +55 ºC +65 ºC +75 ºC +85 ºC

2.2

2.0

1.7

1.4

1.0

QA Stability Test:

Apply WVdc for 1,000 h at 85 ºC

• Capacitance change ≤15% from initial limits

• DC leakage current meets initial limits

• ESR ≤150% of initial measured value

Outline Drawing

Parts are supplied with PVC insulating sleeve. Add

.010” to diameter and .125” max to length to allow

for insulation.
