3500 Series
Flat Coil SM Power Inductors
SELECTION GUIDE
Order Code
35251C
35501C
35801C
35112C
35152C
Inductance, L
±25%
μH
0.25
0.50
0.80
1.10
1.50
DC Current
2
Max.
A
15.5
11.5
9.5
8.0
6.5
DC Resistance
Max.
mΩ
4.5
7.0
10
15
19
ABSOLUTE MAXIMUM RATINGS
FEATURES
n
compliant
RoHS
n
Inductance range from 0.25µH to 1.5µH
n
Small footprint
n
Ultra-low profile
n
94V-0 packaging materials
UL
n
Custom inductance values available
Operating temperature range
Storage temperature range
SOLDERING INFORMATION
1
Peak reflow solder temperature
Pin finish
Moisture sensitivity level
-40°C to 125°C
-40°C to 150°C
250°C
Tin dip
1

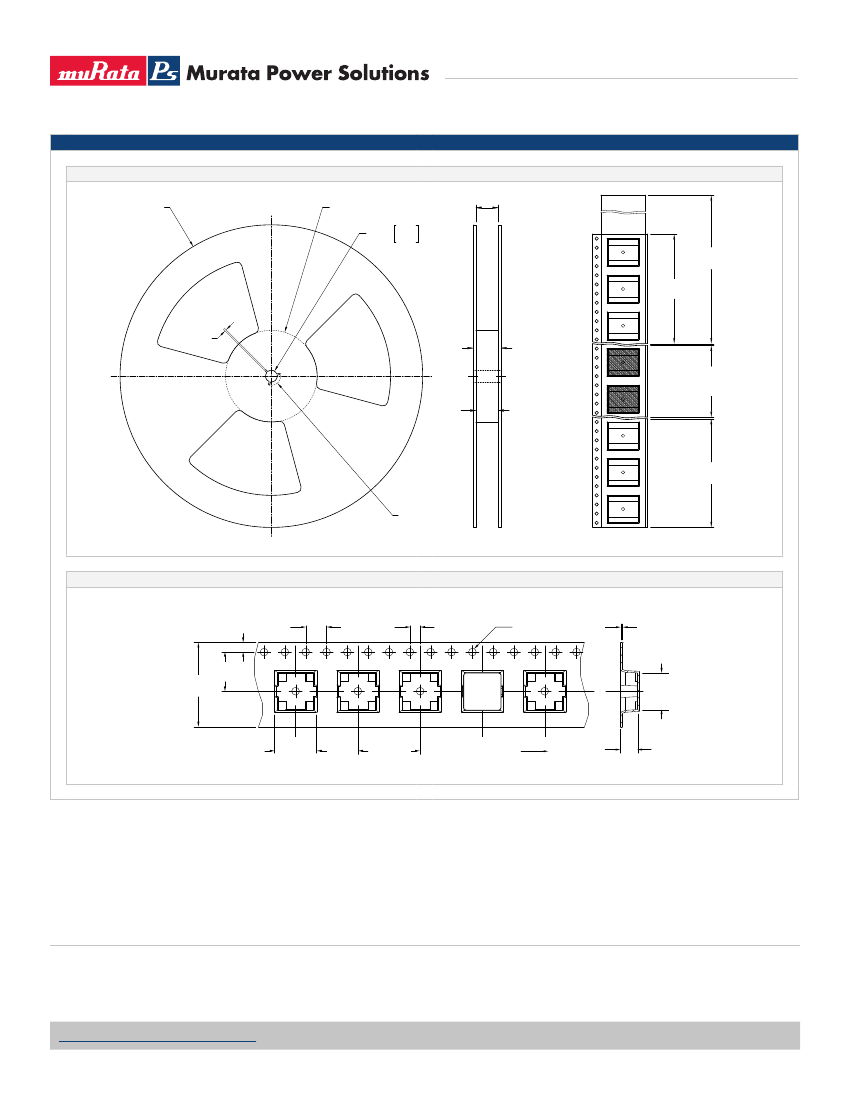

PACKAGE SPECIFICATIONS
Mechanical Dimensions
6.8 (0.268) Max.
7.6 (0.299) Max.

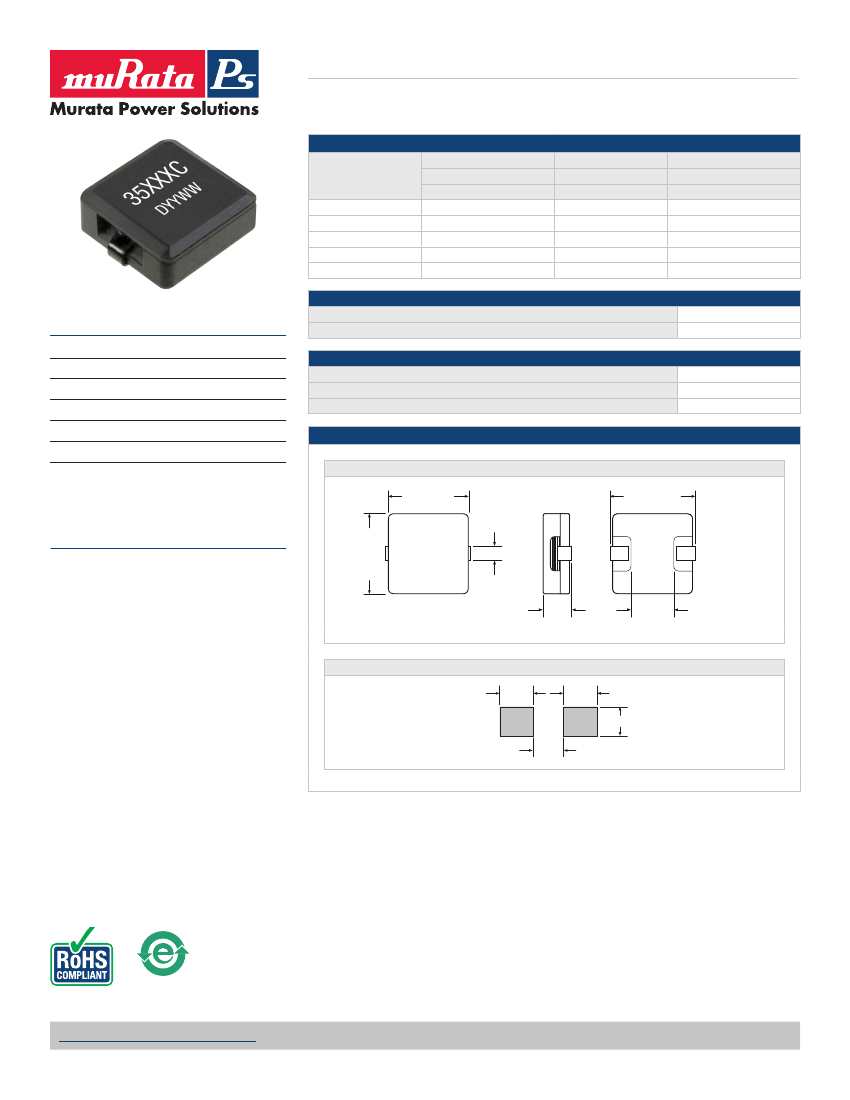

PRODUCT OVERVIEW
The 3500 series is a range of flat-coil power
inductors. They are ideal for high power designs
which demand reliability in high temperature
environments. Used to provide filtering or energy
storage, they are suited to many power applications
including portable devices, computers and telecom
equipment.
6.8 (0.268) Max.
35XXXC
DYYWW
1.1±0.15
(0.043±0.006)
3.2 (0.126) Max.
3.6 (0.142) Min.
4.4 (0.173) Max.
Package weight: 0.6g Typ.
Recommended Footprint Details
3.0
(0.118)
3.0
(0.118)
2.5 (0.098)
2.6
(0.102)
Unless otherwise stated, all dimensions in mm (inches) ± 0.25 (0.010).
Specifications typical at T
A
= 25°C
1 For further information, please visit www.murata-ps.com/rohs
2 The maximum DC current is the value at which the inductance falls to 75% of its nominal value or when its temperature rise reaches
40°C, whichever is sooner.
For full details go to
www.murata-ps.com/rohs
www.murata-ps.com/support
KMP_3500C_A05
Page 1 of 3
3500 Series
Flat Coil SM Power Inductors
INDUCTANCE Vs CURRENT
35152C
Typical performance characteristics
35152C Inductance Vs Current
10
Inductance, L (µH)
1
0.1
0.01
0.10
1.00
10.00
100.00
Current, I
DC
(A)
TEMPERATURE Vs CURRENT
35152C
Typical performance characteristics
35152C Temperature Vs Current
120
Temperature rise above ambient, t (ºC)
100
80
60
40
20
0
0
2
4
6
8
10
12
14
Current, I
DC
(A)
INDUCTANCE Vs FREQUENCY
35152C
Typical performance characteristics
35152C Inductance Vs Frequency
10
Inductance, L (µH)
1
0.1
10
100
1000
10000
Frequency, (kHz)
www.murata-ps.com/support
KMP_3500C_A05
Page 2 of 3
3500 Series
Flat Coil SM Power Inductors
PACKAGE SPECIFICATIONS
Mechanical Dimensions
Ø331 (13.031) Max.
49.75 (1.96) Min.
Ø
13.50 0.531
Ø
12.50 0.492
Leader Section
400 (15.748) Min.
100 (3.937)
Min.
15.9-19.4*
(0.626-0.764)
1.50 (0.059) Min.
22.4
(0.882)
Max.
†
Goods
Enclosure
Section
16.3-16.7
(0.642-0.657)
†
Trailer Section
160 (6.299) Min.
All dimensions in mm (inches)
* Includes flange distortion at outer edge
† Measured at hub
Ø21.1 (Ø0.83) Min.
Tape Outline Dimensions
1.75 (0.069)
4.00 (0.157)
2.00 (0.079)
Ø1.50 (0.059)
0.35 (0.014)
7.50
16.00 (0.296)
(0.630)
35XXXC
DYYWW
6.9
(0.272)
7.7 (0.303)
Reel quantity: 1400
Unless otherwise stated, all dimensions in mm (inches).
12.00 (0.472)
Direction of unreeling
3.3 (0.130)
Murata Power Solutions, Inc.
11 Cabot Boulevard, Mansfield, MA 02048-1151 U.S.A.
ISO 9001 and 14001 REGISTERED
Murata Power Solutions, Inc. makes no representation that the use of its products in the circuits described herein, or the use of other
technical information contained herein, will not infringe upon existing or future patent rights. The descriptions contained herein do not imply
the granting of licenses to make, use, or sell equipment constructed in accordance therewith. Specifications are subject to change without
notice.
© 2016 Murata Power Solutions, Inc.
www.murata-ps.com/support
KMP_3500C_A05
Page 3 of 3
