2300-2400 MHz Tx/Rx Filter
Applications
For Band 40 TD-LTE applications
1.1 x 0.9 x 0.50 mm
Product Features
Highly selective BAW filter achieving low insertion
loss over full bandwidth and operating conditions
Excellent WiFi Rejection
Performance −20 to +90 °C
RoHS Compliant, Pb-free Module Package

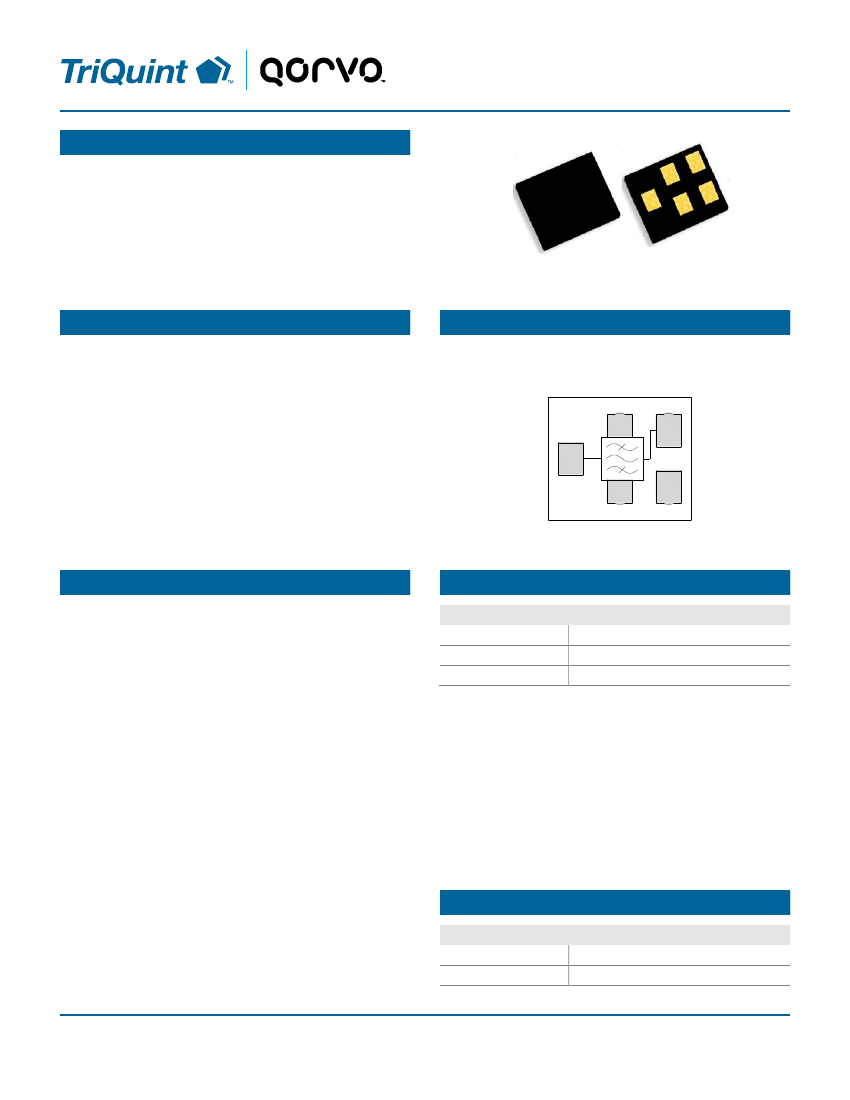

Functional Block Diagram
Top View
Gnd
Output
5
Input
1
2
4
3
Gnd
Gnd
General Description
The 885075 is a high-performance, high power Bulk
Acoustic Wave (BAW) Tx/Rx filter designed to meet the
strict LTE rejection requirements for use in B40.
The 885075 is specifically designed to meet the high
performance expectations of insertion loss and rejection
for LTE transmit systems under all operating conditions.
The 885075 uses common module packaging
techniques to achieve the industry standard 1.1 x 0.9 x
0.50 mm footprint. The filter exhibits excellent power
handling capabilities.
Pin Configuration
Pin No.
1
4
2,3,5
Label
B40 Tx Input / Rx Output
B40 Ant
Ground
Ordering Information
Part No.
Description
885075
Packaged part
885075-EVB
Evaluation board
Standard T/R size = 15,000 units/reel
Preliminary Datasheet: Rev. E 03-01-16
© 2015 TriQuint
-
1 of 7
-
Disclaimer: Subject to change without notice
www.triquint.com
885075
RFMD + TriQuint = Qorvo
2300-2400 MHz Tx/Rx Filter
Absolute Maximum Ratings
Parameter
Operable Temperature
Storage Temperature
RF Input Power (pin 1) CW, +55 °C for 5K hours
Peak RF Input Power (pin 1), max duration of 0.5 sec.
Rating
−20 to +90 °C
−40 to +90 °C
+29 dBm
+37 dBm
Notes:
1. Operation of this device outside the parameter ranges given may cause
permanent damage.
Electrical Specifications
(1)
Parameter
Insertion Loss
Conditions
2300 – 2395 MHz
2300 – 2395 MHz Integrated over 5 MHz
2395 – 2400 MHz
2300 – 2400 MHz
2300 – 2400 MHz
2300 – 2400 MHz
10 – 1574 MHz
703 – 748 MHz
1574 – 1577 MHz
1577 – 1680 MHz
1710 – 1785 MHz
1805 – 2170 MHz
1845 – 1880 MHz
2110 – 2170 MHz
2427 – 2460 MHz
2460 – 2500 MHz
4600 – 4800 MHz
6900 – 7200 MHz
WiFi Channels 5
(3)
WiFi Channels 6 – 13
(3)
2422 – 7200 MHz
(3)
2300 – 2400 MHz
(4)
Min
-
-
-
-
-
31
40
31
31
29
25
27
25
45
36
30
30
34
40
20
Typ
1.2
(2)
2.2
2.0
(2)
1.4:1
1.4:1
1.1
34
36
30
Max
2.6
3.0
2.0:1
1.8:1
1.7
-
-
-
Unit
dB
dB
dB
VSWR (ANT)
VSWR (TX)
Passband Ripple
dB
dB
dB
dB
Attenuation
29.5
26
46
34
39
46
51
-35
-
-
-
-
-
-
-
-
dB
dB
dB
dB
dB
dB
dB
dB
dBm
H2
Notes:
1. All specifications are based on the TriQuint schematic for the main reference design shown on page 3. Min/max is being
specified over −20 to +90 °C.
2. Typical values are derived through integration of the linear s-parameter over the indicated band at +25 ºC.
3. Integration of linear s-parameters over an 18MHz sliding frequency span.
4. H2 is measured for Pin=28 dBm (CW) at room temperature.
Preliminary Datasheet: Rev. E 03-01-16
© 2015 TriQuint
-
2 of 7
-
Disclaimer: Subject to change without notice
www.triquint.com
885075
RFMD + TriQuint = Qorvo
2300-2400 MHz Tx/Rx Filter
885025-EVB Evaluation Board
Notes:
1.
Matching component values shown are for the specified TriQuint evaluation board. Value adjustment may be required in end
user product circuits depending on component manufacturer and PCB material.
Bill of Material – 885025-EVB
Reference Des.
PCB
U1
L1
L2
SMA
Value
N/A
N/A
3.4 nH
3.4 nH
N/A
Description
3 layer
2300-2400 MHz Tx/Rx Filter
Chip Inductor, 0201, ±2%
Chip Inductor, 0201, ±2%
SMA connector
Manuf.
Multiple
TriQuint
Murata
Murata
Radiall USA Inc.
Part Number
885075
9602-1111-018
Preliminary Datasheet: Rev. E 03-01-16
© 2015 TriQuint
-
3 of 7
-
Disclaimer: Subject to change without notice
www.triquint.com
885075
RFMD + TriQuint = Qorvo
2300-2400 MHz Tx/Rx Filter

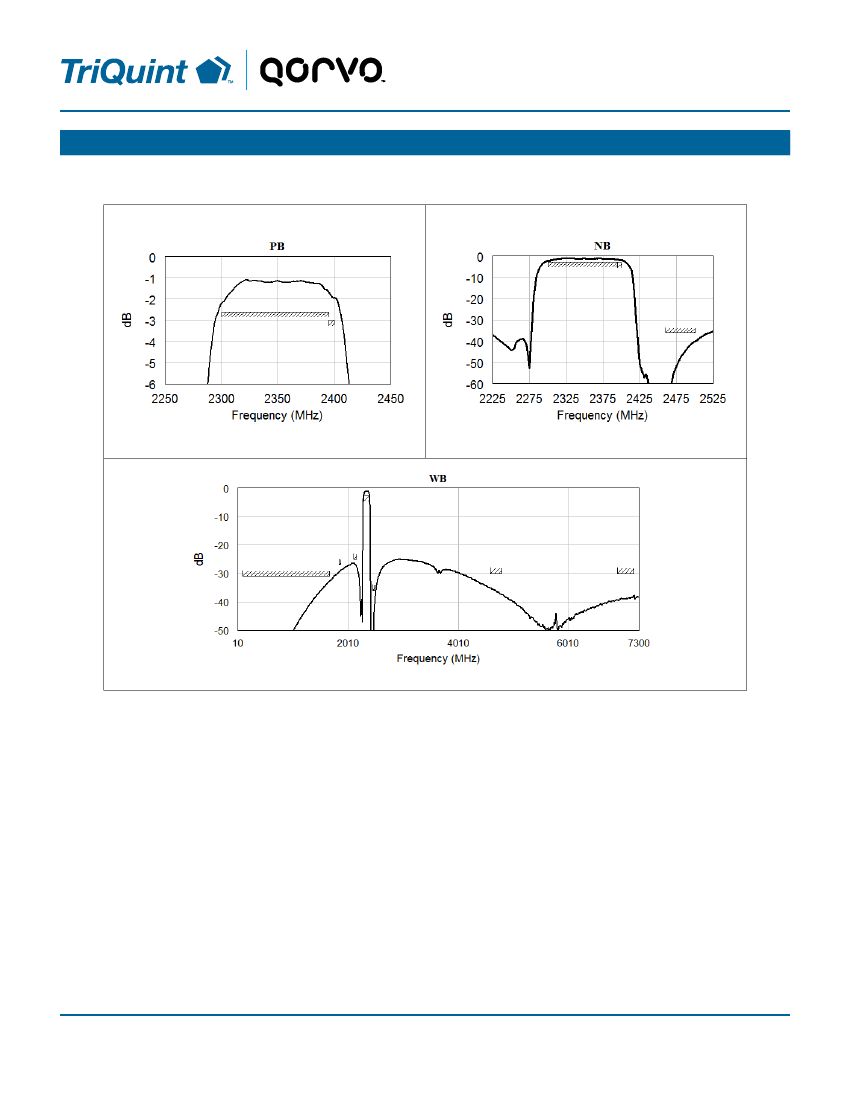

Performance Plots
Test conditions unless otherwise noted: Temp. = +25 °C
Preliminary Datasheet: Rev. E 03-01-16
© 2015 TriQuint
-
4 of 7
-
Disclaimer: Subject to change without notice
www.triquint.com
885075
RFMD + TriQuint = Qorvo
2300-2400 MHz Tx/Rx Filter

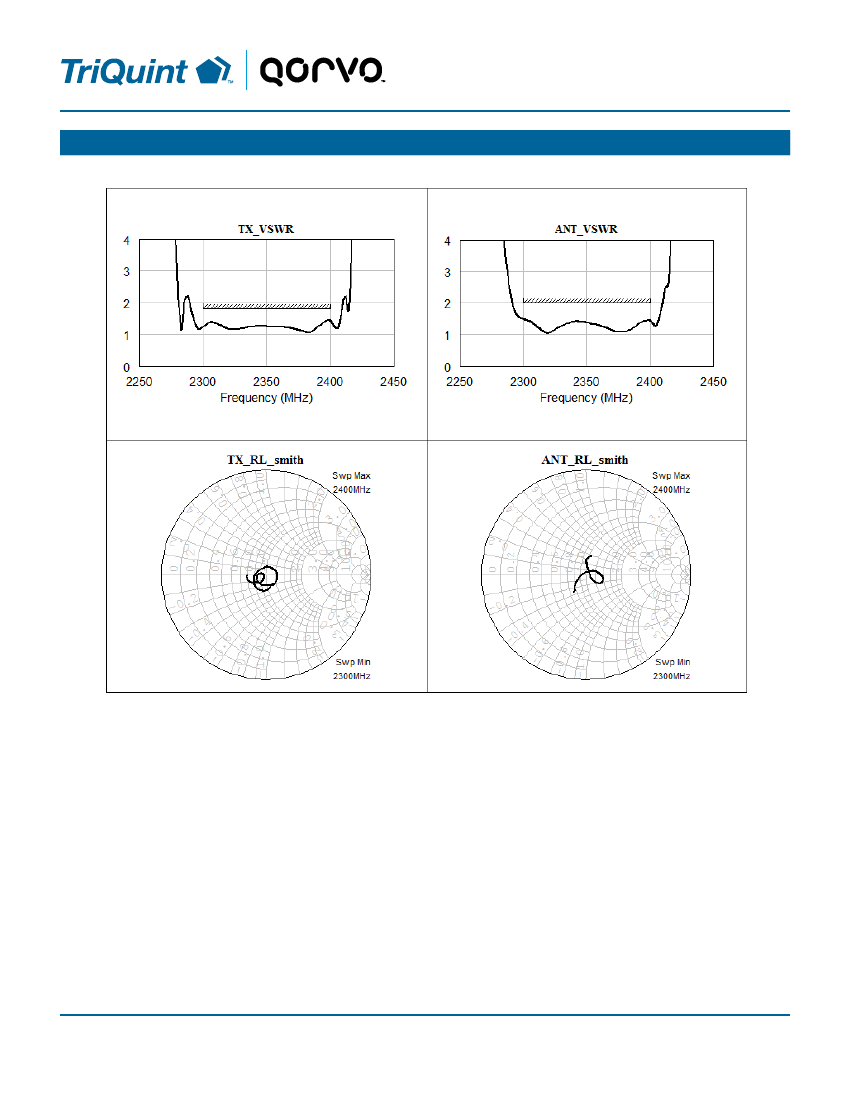

Performance Plots (cont’d)
Test conditions unless otherwise noted: Temp. = +25 °C
Preliminary Datasheet: Rev. E 03-01-16
© 2015 TriQuint
-
5 of 7
-
Disclaimer: Subject to change without notice
www.triquint.com
