MBH6045C-330MB=P3 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> MBH6045C-330MB=P3

Preview

MBH6045C-330MB=P3: DescriptionFixed Inductors 33uH 123.5mOhm .70A 6.2x6.2mm 20%; CategoryPassive components; File Size3MB，3 Pages; ManufacturerMurata; Websitehttps://www.murata.com

Download Datasheet Parametric View All

MBH6045C-330MB=P3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MBH6045C-330MB=P3	-	-	View	Buy Now

MBH6045C-330MB=P3 Overview

Fixed Inductors 33uH 123.5mOhm .70A 6.2x6.2mm 20%

MBH6045C-330MB=P3 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Murata
Product Category	Fixed Inductors
RoHS	Details
Inductance	33 uH
Tolerance	20 %
Maximum DC Current	1.5 A
Maximum DC Resistance	103 mOhms
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 150 C
Q Minimum	-
Test Frequency	100 kHz
Product	Inductors
Shielding	Shielded
Termination Style	SMD/SMT
Termination	-
Mounting Style	SMD/SMT
Package / Case	-
Length	6.2 mm
Width	6.2 mm
Height	4.8 mm
Qualification	AEC-Q200
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Type	AEC-Q200 Ferrite Inductors
Core Material	Ferrite
Self Resonant Frequency	-
Factory Pack Quantity	1000

Preview

Download Datasheet

View All

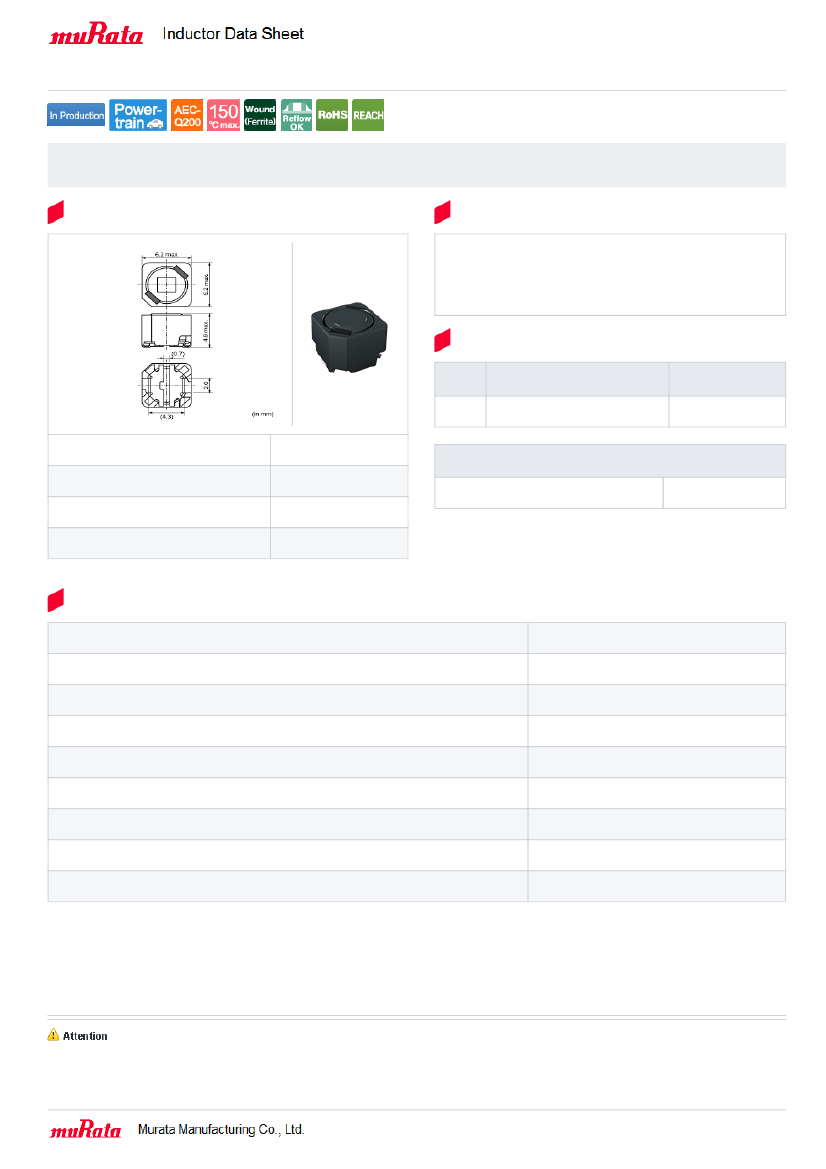

MBH6045C-330MB#

< List of part numbers with package codes >

“#” indicates a package specification code.

MBH6045C-330MB=P3

Shape

Notes

Rated current (Isat) is specified when the decrease of the initial

inductance value at 10%. (The ambient reference temperature is 25℃)

Rated current (Itemp) is specified when temperature of inductor the is

raised 40℃ by DC current. (The ambient reference temperature is 25℃)

References

Packaging

code

=P3

Specifications

φ330mm

Embossed taping

Minimum quantity

1000

L size

W size

T size

Size code in inch (mm)

6.2 mm

4.8 mm

2424 (6262)

Mass (Typ.)

1 piece

0.6155g

Specifications

Inductance

Inductance test frequency

Rated current (Isat) (Based on Inductance change)

Rated current (Itemp) (Based on Temperature rise)

Max. of DC resistance

Avg. of DC resistance

Operating temperature range (Self-temperature rise is included)

Class of magnetic shield

Series

33µH ±20%

0.1MHz

700mA

1500mA

0.1235Ω

0.103Ω±20%

-40〜150℃

Ferrite Core

MBH6045C

1 of 3

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : https://www.murata.com/

Last updated: 2018/02/18
