X3C25P1-05S

Description
Signal Conditioning 2300-2700MHz IL.18dB VSWR:1.22 -55 to 95C
CategoryWireless rf/communication    Radio frequency and microwave
File Size981KB,19 Pages
ManufacturerAnaren
Websitehttp://www.anaren.com/
Environmental Compliance
Download Datasheet Parametric View All

X3C25P1-05S Online Shopping

Suppliers Part Number Price MOQ In stock
X3C25P1-05S - - View Buy Now

X3C25P1-05S Overview

Signal Conditioning 2300-2700MHz IL.18dB VSWR:1.22 -55 to 95C

X3C25P1-05S Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerAnaren
Reach Compliance Codecompliant
Characteristic impedance50 Ω
structureCOMPONENT
Maximum input power (CW)50 dBm
Maximum insertion loss0.18 dB
JESD-609 codee3
Maximum operating frequency2700 MHz
Minimum operating frequency2300 MHz
Maximum operating temperature95 °C
Minimum operating temperature-55 °C
RF/Microwave Device TypesDIRECTIONAL COUPLER
Terminal surfaceTin (Sn)
Maximum voltage standing wave ratio1.22
Model X3C25P1-05S
Rev B
5dB Directional Coupler
PRELIMINARY
Description
The X3C25P1-05S is a low profile, high performance 5dB directional
coupler in a new easy to use, manufacturing friendly surface mount
package. It is designed for DC, WCDMA, LTE and PCS applications.
The X3C25P1-05S is designed particularly for non-binary split and
combine in high power amplifiers, e.g. used along with a 3dB to get a 3-
way, plus other signal distribution applications where low insertion loss
is required. It can be used in high power applications up to 70 Watts.
Parts have been subjected to rigorous qualification testing and they are
manufactured using materials with coefficients of thermal expansion
(CTE) compatible with common substrates such as FR4, G-10, RF-35,
RO4003 and polyimide. Produced with 6 of 6 RoHS compliant tin
immersion finish

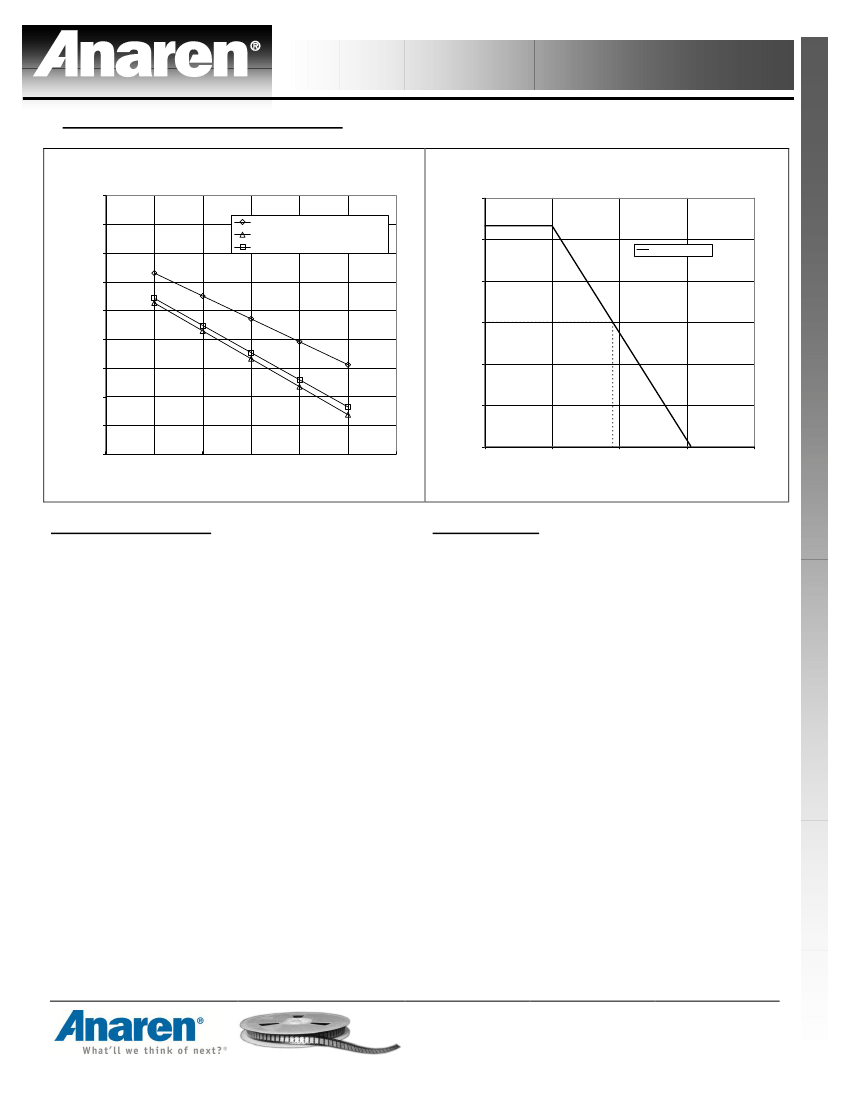

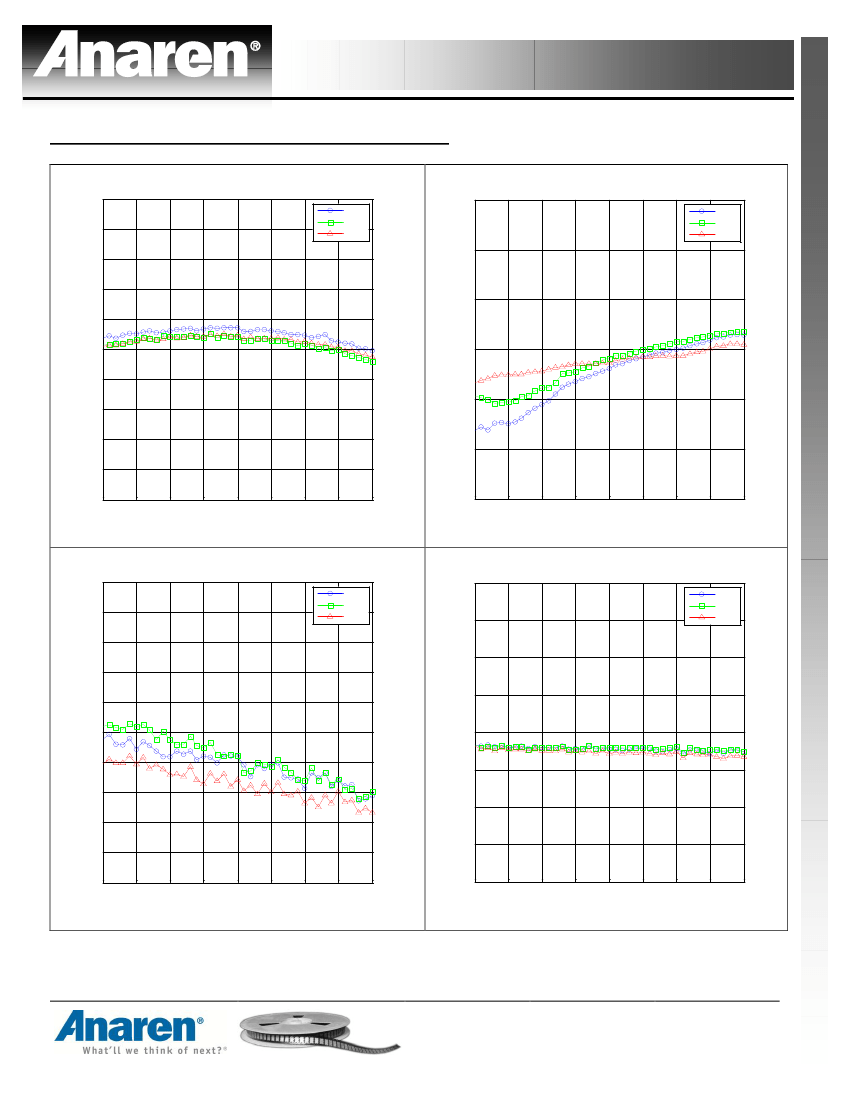

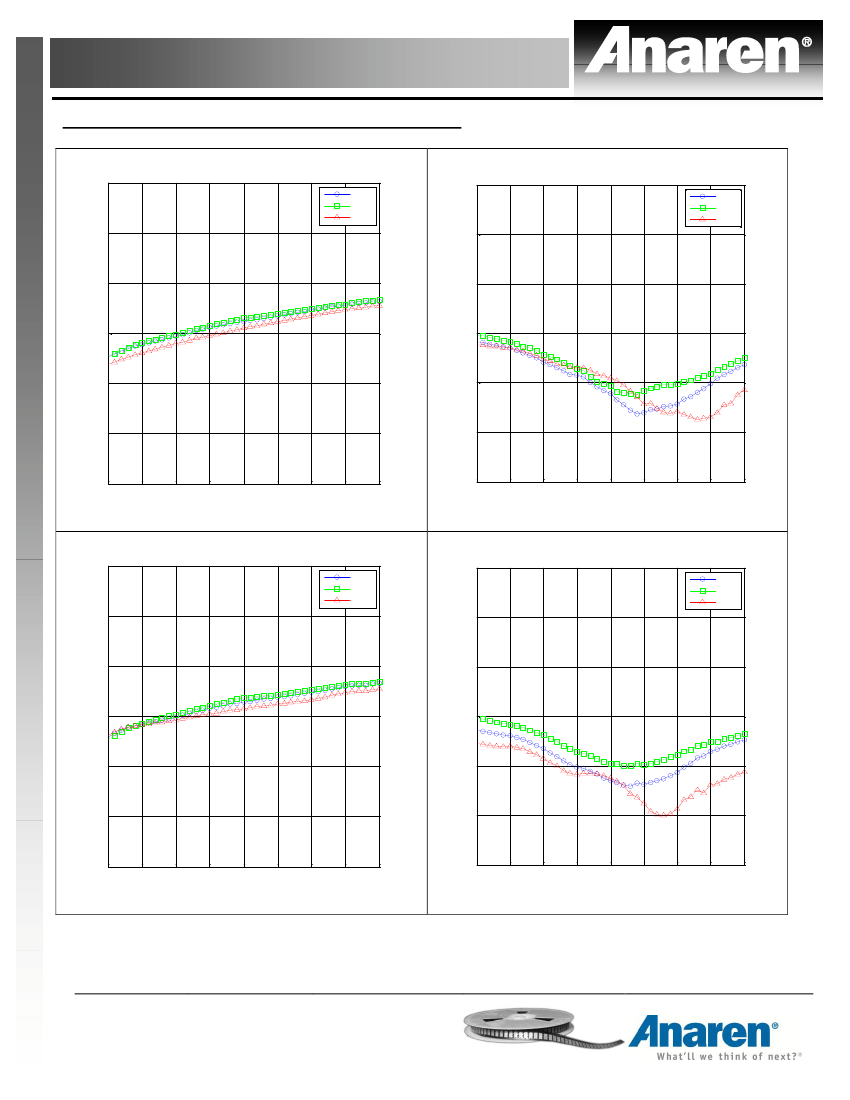

Electrical Specifications
**
Mean
Insertion
Phase
Frequency
VSWR
Coupling
Loss
Balance
MHz
dB
dB Max
Max : 1
Degrees
Features:
2300-2700 MHz
DCS,PCS, WCDMA and LTE
High Power
Very Low Loss
Tight Coupling
High Directivity
Production Friendly
Tape and Reel
Lead Free
2300-2700
2300-2400
2630-2655
Directivity
dB Min
5.0 ± 0.3
5.0 ± 0.2
5.0 ± 0.2
Frequency
Sensitivity
dB Max
0.18
0.14
0.17
Power
Avg. CW Watts
1.22
1.15
1.15
JC
ºC/Watt
904.0
904.0
904.0
Operating
Temp.
ºC
20
23
23
± 0.25
± 0.05
± 0.05
60
60
60
30
30
30
-55 to +95
-55 to +95
-55 to +95
**Specification based on performance of unit properly installed on Anaren Test Board 54147-0001. Refer to
Specifications subject to change without notice. Refer to parameter definitions for details.

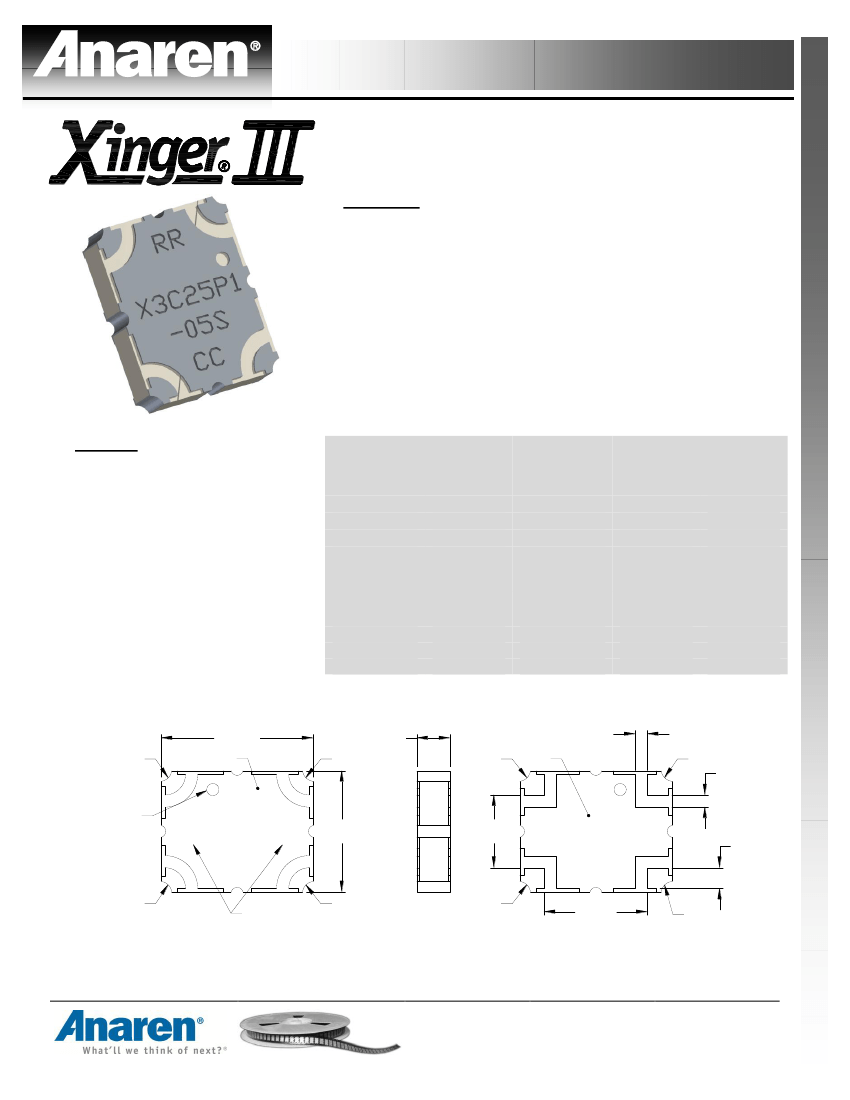

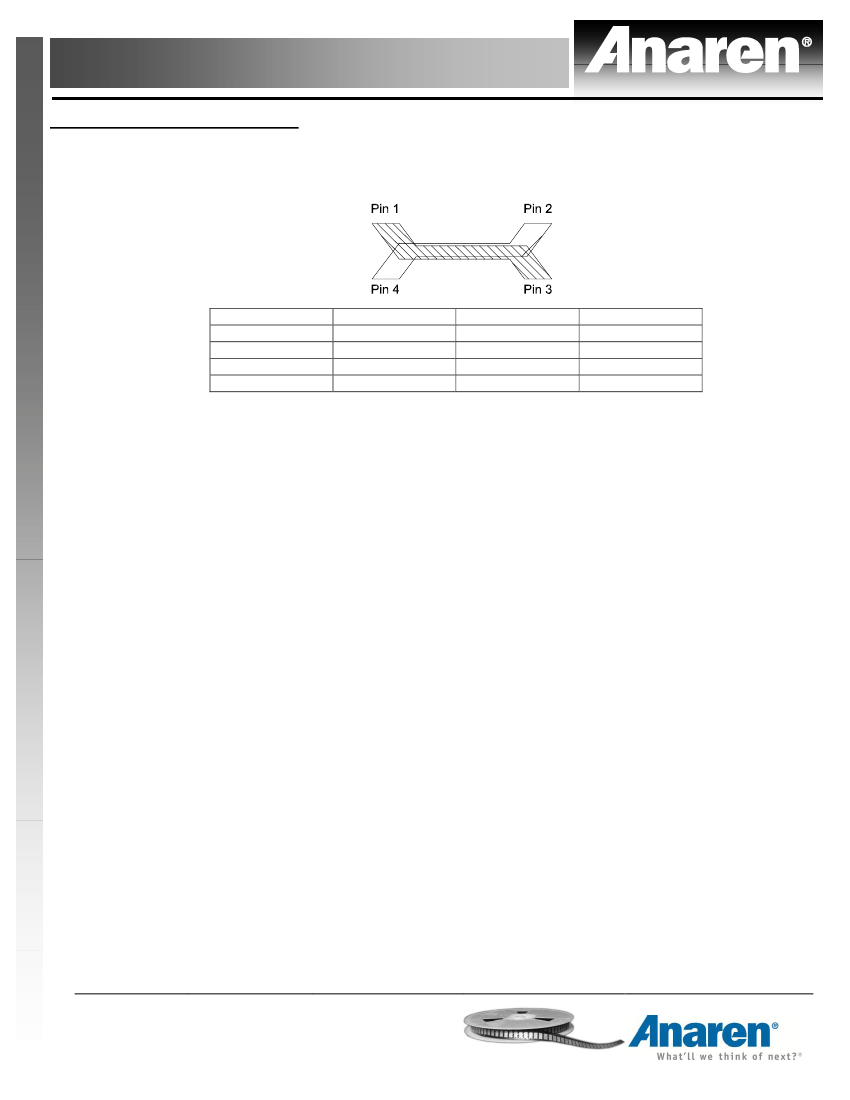

Mechanical Outline
Pin 1
.250
±.010
[6.35
±0.25
]
Gnd
.055
±.006
[1.38
±0.14
]
Pin 2
Pin 2
Gnd
.020
±.004
[0.51
±0.10
]
Pin 1
.020
±.004
[0.51
±0.10
]
RR
Orientation Mark
Denotes Pin 1
X3C25P1
-05S
CC
.200
±.010
[5.08
±0.25
]
.120
±.004
[3.05
±0.10
]
4X .034
±.004
SQ
[0.86
±0.10
]
Pin 4
Pin 3
Denotes Array
Row (RR) and Column (CC)
Dimensions are in Inches [Millimeters]
X3C25P1-05S Mechanical Outline
Pin 3
.170
±.004
[4.32
±0.10
]
Tolerances are Non-cumulative
Pin 4
Available on Tape
and Reel for Pick and
Place Manufacturing.
USA/Canada:
Toll Free:
Europe
:
(315) 432-8909
(800) 411-6596
+44 2392-232392
