SBRT10U50SP5
Green
10A Trench SBR
TRENCH SUPER BARRIER RECTIFIER
®
POWERDI 5
Product Summary
(@ T
A
= +25°C)
V
RRM
(V)
50
I
O
(A)
10
V
F(MAX)
(V)
0.45
I
R(MAX)
(mA)
0.3
Features and Benefits
•
•
•
•
•
•
•
Ultra low forward voltage drop (V
F
) helps – minimizes power
losses
Excellent reverse leakage (I
R
) stability at higher temperatures.
Thermally efficient package for cooler running applications
Less than 1.1mm package profile ideal for thin applications
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
NEW PRODUCT
ADVANCED INFORMATION
Description and Applications
Packaged in the compact thermally efficient POWERDI5 package, the
TrenchSBR SBRT10U50SP5 provides ultra-low forward voltage drop
(V
F
) and provides excellent low reverse leakage stability at high
temperatures. It is ideal for use as a rectification, freewheeling or
polarity protection diode in applications such as:
•
•
>10W AC/DC Adapters/Chargers
DC/DC Converters
Mechanical Data
•
•
•
•
•
Case: POWERDI 5
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections: See Diagram Below
Weight: 0.093 grams (Approximate)
®
POWERDI 5
®
LEFT PIN
RIGHT PIN
BOTTOMSIDE
HEAT SINK
Note: Pins Left & Right must
be electrically connected
at the printed circuit board.
Top View
Bottom View
Ordering Information
(Note 4)
Part Number
SBRT10U50SP5-13
SBRT10U50SP5-13D
Notes:
Case
POWERDI5
POWERDI5
Packaging
5,000/Tape & Reel
5,000/Tape & Reel
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
POWERDI5 available in 5K quantity on 13inch reel &12mm tape, part number suffix “13D”.
Marking Information
POWERDI5
T10U50S
T10U50S = Product Type Marking Code
YYWW = Date Code Marking
YY = Last Two Digits of Year (ex: 15 = 2015)
K = Factory Designator
YYWWK
SBR and POWERDI are registered trademarks of Diodes Incorporated.
SBRT10U50SP5
Document number: DS36318 Rev. 5 - 2
1 of 5
www.diodes.com
April 2015
© Diodes Incorporated

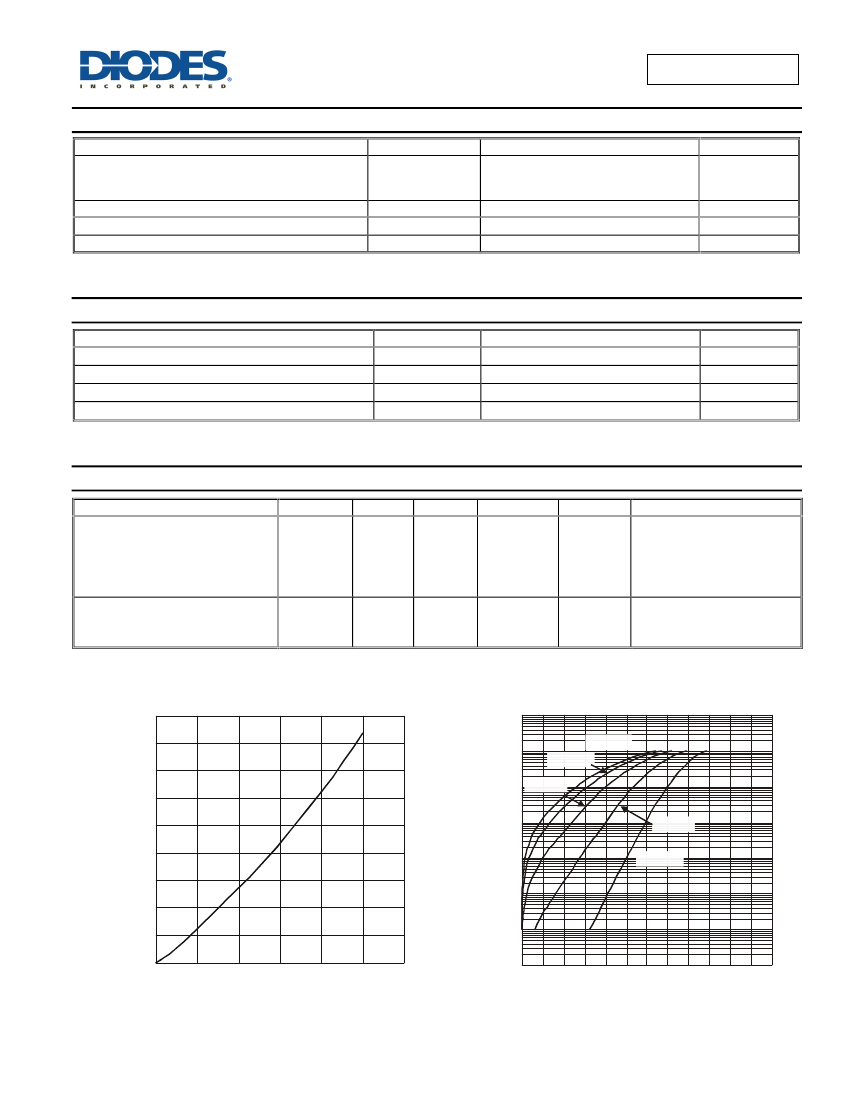

SBRT10U50SP5
Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectified Output Current
Non-Repetitive Peak Forward Surge Current 8.3mS
Symbol
V
RRM
Io
I
FSM
It
2
Value
50
10
320
425
Unit
V
A
A
AS
2
NEW PRODUCT
ADVANCED INFORMATION
I
2
t Rating for fusing (t < 8.3ms)
Thermal Characteristics
Characteristic
Typical Thermal Resistance Junction to Ambient (Note 5)
Typical Thermal Resistance Junction to Case (Note 5)
Typical Thermal Resistance Junction to Lead (Notes 5 & 6)
Operating and Storage Temperature Range
Symbol
R
θJA
R
θJC
R
θJL
T
J,
T
STG
Value
18
2
4
-55 to +150
Unit
°
C/W
°
C/W
°
C/W
°
C
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Symbol
Min
—
—
—
Typ
—
0.29
—
0.40
0.34
0.1
4
29
Max
0.31
—
0.43
0.45
0.39
0.3
15
75
Unit
Test Condition
I
F
=1A, T
J
= +25°
C
I
F
=5A, T
J
= +85°
C
I
F
=8A, T
J
= +25°
C
I
F
=10A, T
J
= +25°
C
I
F
=10A, T
J
= +125°
C
C
V
R
= 50V , T
J
= +25°
V
R
= 50V , T
J
= +85°
C
V
R
= 50V , T
J
= +125°
C
Forward Voltage Drop
V
F
V
Leakage Current (Note 7)
Notes:
I
R
—
—
—
mA
5. Device mounted on FR4 PCB with 1inch copper pad layout with AL substrate and additional HK1 (37mm x 55mm x15mm)
6. Junction to Lead (Cathode Terminal)
7. Short duration pulse test used to minimize self-heating effect.
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
4.5
4.0
P
F(AV)
, AVERAGE FORWARD
POWER DISSIPATION (W)
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
0
2
4
6
8
10
I
F(AV)
AVERAGE FORWARD CURRENT (A)
Figure 1 Forward Power Dissipation
12
100
10
1
0.1
0.01
0.001
0.0001
0.00001
0
100
200
300
400
500
600
V
F
, INSTANTANEOUS FORWARD VOLTAGE (mV)
Figure 2 Typical Forward Characteristics
T
A
= 150°
C
T
A
= 125°
C
T
A
= 85°
C
T
A
= 25°
C
T
A
= -55°
C
SBR and POWERDI are registered trademarks of Diodes Incorporated.
SBRT10U50SP5
Document number: DS36318 Rev. 5 - 2
2 of 5
www.diodes.com
April 2015
© Diodes Incorporated
SBRT10U50SP5
1000000
10000
f = 1MHz
100000
I
R
, LEAKAGE CURRENT (µA)
T
A
= 150°
C
T
A
= 125°
C
10000
T
A
= 85°
C
C
T
, JUNCTION CAPACITANCE (pF)
50
NEW PRODUCT
ADVANCED INFORMATION
1000
1000
100
T
A
= 25°
C
10
1
100
0
20
30
40
V
R
, REVERSE VOLTAGE (V)
Figure 3 Typical Reverse Characteristics
10
0
20
30
40
V
R
, REVERSE VOLTAGE (V)
Figure 4 Typical Junction Capacitance
10
50
12.0
I
F(AV)
, AVERAGE FORWARD CURRENT (A)
Note 5
10.0
8.0
6.0
4.0
2.0
0.0
0
25
50
75
100
125
T
A
, AMBIENT TEMPERATURE (°
C)
Figure 5 Forward Current Derating Curve
150
SBR and POWERDI are registered trademarks of Diodes Incorporated.
SBRT10U50SP5
Document number: DS36318 Rev. 5 - 2
3 of 5
www.diodes.com
April 2015
© Diodes Incorporated

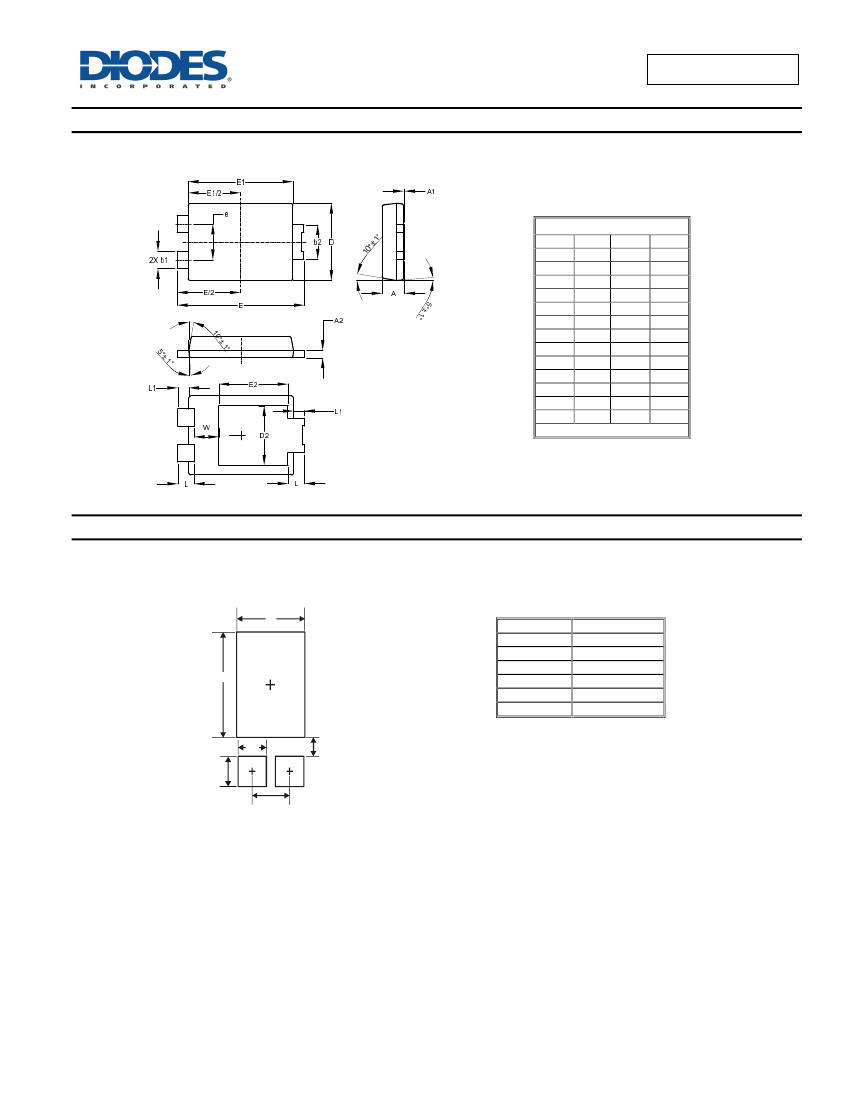

SBRT10U50SP5
Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for the latest version.
NEW PRODUCT
ADVANCED INFORMATION
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
X
Y
X1
(2x)
Y1
(2x)
C
G
SBR and POWERDI are registered trademarks of Diodes Incorporated.
SBRT10U50SP5
Document number: DS36318 Rev. 5 - 2
4 of 5
www.diodes.com
1A
1°
±
5°
A
01
±°
°1
2A
1L
D 2b
L
2D
2E
1E
E
e
°
1
±°
01
2/1E
2/E
W
L
°
1
±°
5
POWERDI 5
Dim
Min
Max
Typ
A
1.05 1.15
1.10
A2
0.33 0.43 0.381
b1
0.80 0.99
0.89
b2
1.70 1.88
1.78
D
3.90 4.05 3.966
D2
-
-
3.054
E
6.40 6.60 6.504
e
-
-
1.84
E1
5.30 5.45
5.37
E2
-
-
3.549
L
0.75 0.95
0.85
L1
0.50 0.65
0.57
W
1.10 1.41 1.255
All Dimensions in mm
®
1b X2
1L
Dimensions
C
G
X
X1
Y
Y1
Value (in mm)
1.840
0.852
3.360
1.390
4.860
1.400
April 2015
© Diodes Incorporated
SBRT10U50SP5
IMPORTANT NOTICE
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the
application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or
trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume
all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated
website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.
Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and
hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or
indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings
noted herein may also be covered by one or more United States, international or foreign trademarks.
This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the
final and determinative format released by Diodes Incorporated.
LIFE SUPPORT
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express
written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the
labeling can be reasonably expected to result in significant injury to the user.
B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any
use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related
information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its
representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.
Copyright © 2015, Diodes Incorporated
www.diodes.com
NEW PRODUCT
ADVANCED INFORMATION
SBR and POWERDI are registered trademarks of Diodes Incorporated.
SBRT10U50SP5
Document number: DS36318 Rev. 5 - 2
5 of 5
www.diodes.com
April 2015
© Diodes Incorporated
