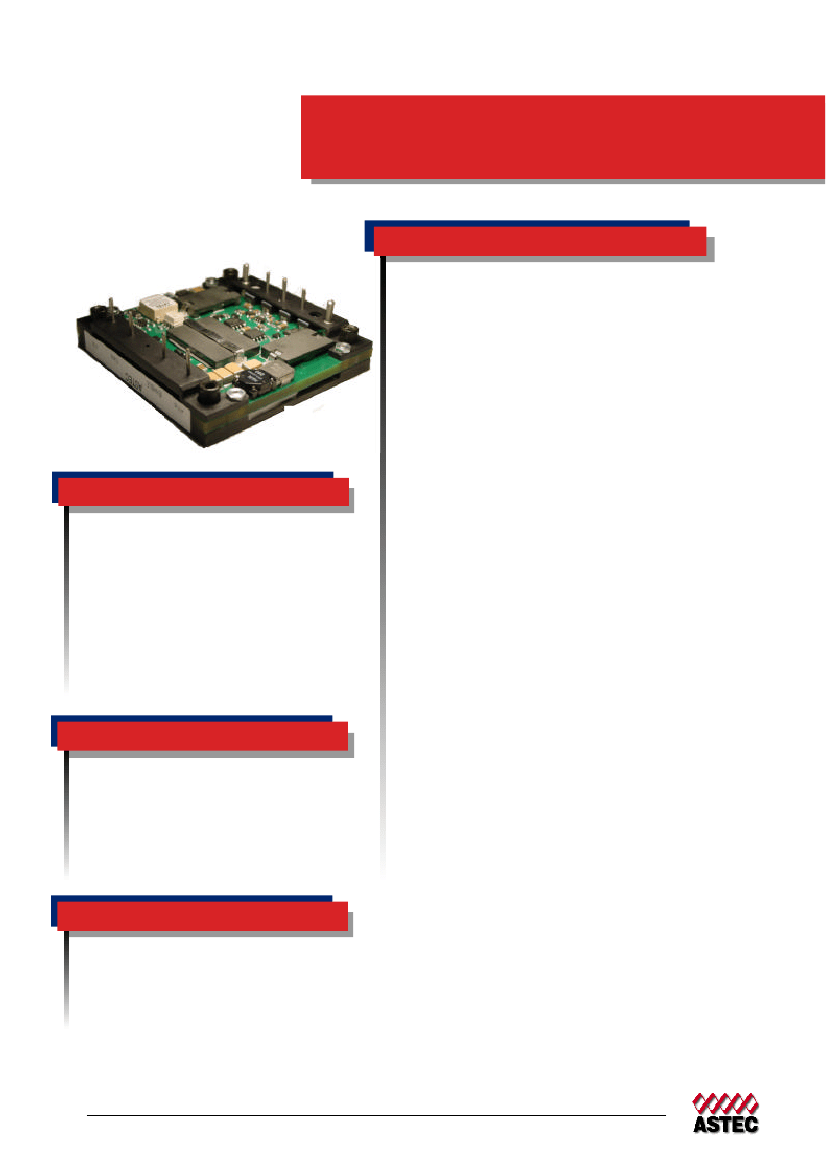

Astec Industry Standard
350W
AEH30
Ultra High Efficiency
Total Power:
Input Voltages:
No. of Outputs:
350 Watts (12V @ 29.17A)
48 V
Single
Electrical Specs
Input
Input range
Input Surge
Efficiency
1
36-75 VDC
100V / 100ms
92.7% @ 12V (Typical)
Control
Enable
TTL compatible
(positive or negative enable logic
control options)
Output
Regulation
(Line, Load, Temp)
<2%
120mVpk-pk tyical
Up to 10%Vout
±10% of nominal output
700mV output deviation
50% to 75% step load
500 µS recovery time
115% V
O
Typ (Latching)
115% I
O
Typ (Latching)
115°C Baseplate Temperature
(autorecovery)
1500 Vdc
Special Features
•
•
•
•
•
•
•
•
High efficiency, 12V@ 92.7% (Typical)
Industry Standard Half Brick baseplate design
Low output ripple and noise
High capacitive load limit on start-up
Remote sense compensation
Regulation to zero load
Fixed frequency switching
Industry standard features: OCP, OVP, OTP,
Short circuit protection, Trim, Remote Sense
• Positive or Negative enable logic control option
• Meets Basic Insulation
Ripple and Noise
2
Remote Sense
Output Voltage Adjust
Range
3
Transient Response
Overvoltage Protection
Overcurrent Protection
Over Temperature
Protection
Isolation Voltage
Environmental
Operating temperature: -40°C to +100°C Baseplate
Storage temperature: -55°C to +125°C
MTBF: >1 million hours
Safety
UL, cUL 60950 Recognized
TUV EN60950 Licensed
1
North America (USA): 1-888-41-ASTEC
Europe (UK): 44 (1384) 842-211Asia (HK): 852-2437-9662
AMERICAS
5810 Van Allen Way
Carlsbad, CA 92008
Telephone: 760-930-4600
Facsimile: 760-930-0698
EUROPE
Astec House, Waterfront Business Park
Merry Hill, Dudley
West Midlands, DY5 1LX, UK
Telephone: 44 (1384) 842-211
Facsimile: 44 (1384) 843-355
ASIA
Units 2111-2116, Level 21
Tower1, Metroplaza
223, Hing Fong Road
Fwai Fong, New Territories
Hong Kong
Telephone: 852-2437-9662
Facsimile: 852-2402-4426
AEH30B48
Ordering Information
Input
Voltage
48V
48V
OPTION:
Output
Voltage
12V @ 29.17A
12V @ 29.17A
suffix “N” = Negative Enable
no suffix “N” = Positive Enable (default)
Efficiency
Model Number
92.7%
92.7%
AEH30B48
AEH30B48N
Pin Assignments
Single Output
1.
2.
3.
4.
5.
6.
7.
8.
9.
+Vin
Enable (On/Off)
Case (AEH)
-Vin
- Output
- Sense
Trim
+ Sense
+ Output

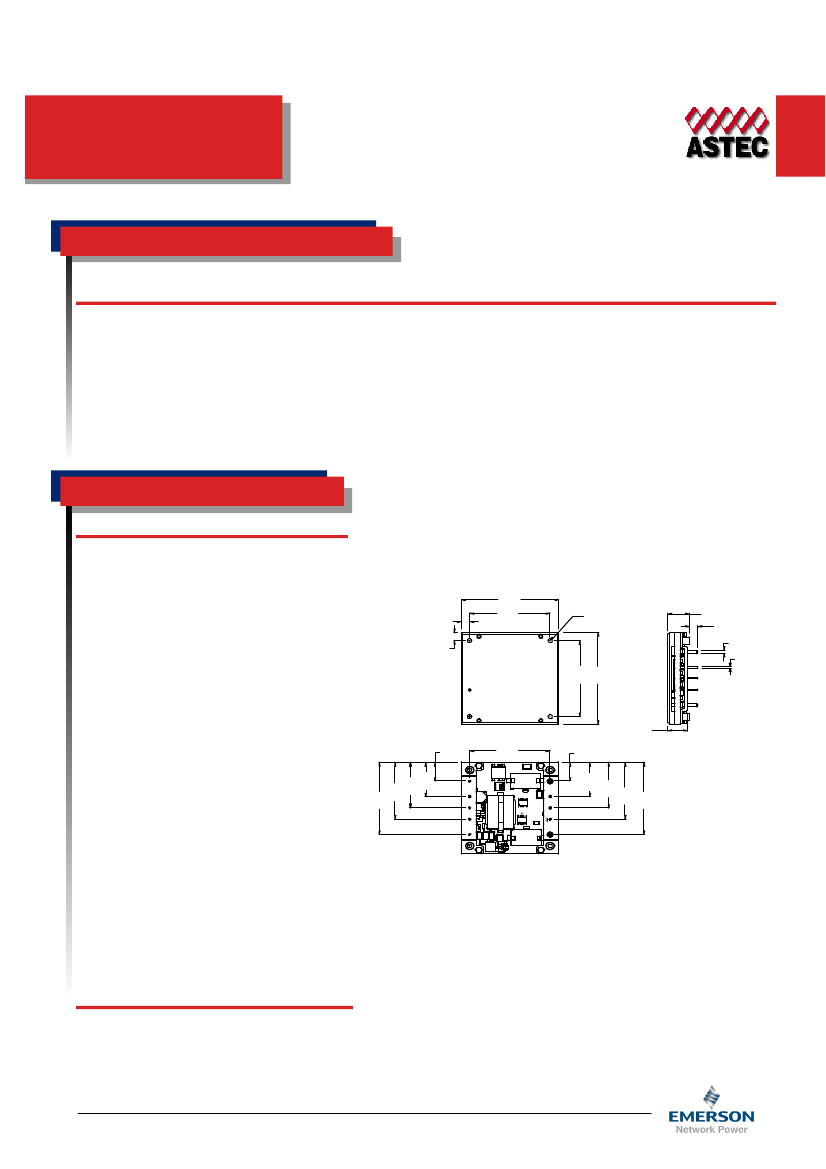

0.20
[5.1]
2.30
[58.4]
1.90
[48.3]
M3 X0.5 MOUNTING HOLE
4 PLACES
0.50
[12.7]
0.20
[5.2]
0.08Ø[2.0Ø] 2 PLACES
0.20
[5.1]
+Vin
+Output
0.04Ø [1.0Ø] 7 PLACES
2.00
[50.8]
2.40
[61.0]
Notes:
1. Typical efficiency measurement taken at nominal
line, full load, 25°C ambient.
2. 20 MHz BW with external 10uF/25V tantalum in
parallel with 0.1uF/50V X7R ceramic capacitor
placed across the output.
3. Total output power not to exceed 350W.
4. Requires a 2.2 uf, 100V film capacitor connected
between +V in and -V in to meet FCC class A
and ETS300-386-1 requirements for conducted
noise. Consult Factory for filtering information to
meet FCC class B, VDE or EIC specifications.
5. All specifications are typical at nominal line, full
load, and 25°C unless otherwise noted.
6. All specifications subject to change without
notice. Mechanical drawings are for reference
only.
7. Technical Reference Notes should be consulted
for detailed information.
8. Warranty: 1yr.
* Astec reserves the right to make changes to the information
contained herein without notice and assumes no liability as a
result of its use or application. (REV A: AUGUST 25, 2005)
- Vin
-Output
0.46
[11.8]
0.50
[12.7]
PIN SIDE DOWN
0.50
[12.7]
1.90
[48.3]
SIDE VIEW
PIN ASSIGNMENT
0.90
1.20 [22.8]
1.50 [30.4]
1.90 [38.1]
[48.3]
4
5
3
6
7
2
9
1
0.90
[22.9]
1.20
[30.5]
1.50
[38.2]
1.90
[48.3]
1 +Vin
2 Enable (On/Off)
3 CASE
4 - Vin
5 -Output
6 -Sense
7 Trim
8 +Sense
9 +Output
PIN SIDE UP
NOTES:
NOTES:
ALL DIMENSIONS ARE ALL DIMENSIONS ARE IN INCHES (MILLIMETERS)
IN INCHES (MILLIMETERS)
PIN PLACEMENT TOLERANCE : ± 0.005(0.127)
PIN PLACEMENT TOLERANCE : ± 0.005(0.127)
MECHANICAL TOLERANCE ± .002(0.5)
MECHANICAL TOLERANCE ± .002(0.5)
Astec Industry Standard
www.astecpower.com
2
