DTA124XM3T5G

Description
Bipolar Transistors - Pre-Biased 100mA 50V BRT PNP
CategoryDiscrete semiconductor    The transistor
File Size164KB,11 Pages
ManufacturerON Semiconductor
Websitehttp://www.onsemi.cn
Download Datasheet Parametric Compare View All

DTA124XM3T5G Online Shopping

Suppliers Part Number Price MOQ In stock
DTA124XM3T5G - - View Buy Now

DTA124XM3T5G Overview

Bipolar Transistors - Pre-Biased 100mA 50V BRT PNP

DTA124XM3T5G Parametric

Parameter NameAttribute value
Brand NameON Semiconductor
Is it lead-free?Lead free
MakerON Semiconductor
package instructionSMALL OUTLINE, R-PDSO-F3
Contacts3
Manufacturer packaging code631AA
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time8 weeks
Other featuresBUILT-IN BIAS RESISTOR RATIO IS 2.14
Maximum collector current (IC)0.1 A
Collector-emitter maximum voltage50 V
ConfigurationSINGLE WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)80
JESD-30 codeR-PDSO-F3
JESD-609 codee3
Humidity sensitivity level1
Number of components1
Number of terminals3
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)260
Polarity/channel typePNP
Maximum power dissipation(Abs)0.6 W
Certification statusNot Qualified
surface mountYES
Terminal surfaceTin (Sn)
Terminal formFLAT
Terminal locationDUAL
Maximum time at peak reflow temperature40
transistor applicationsSWITCHING
Transistor component materialsSILICON

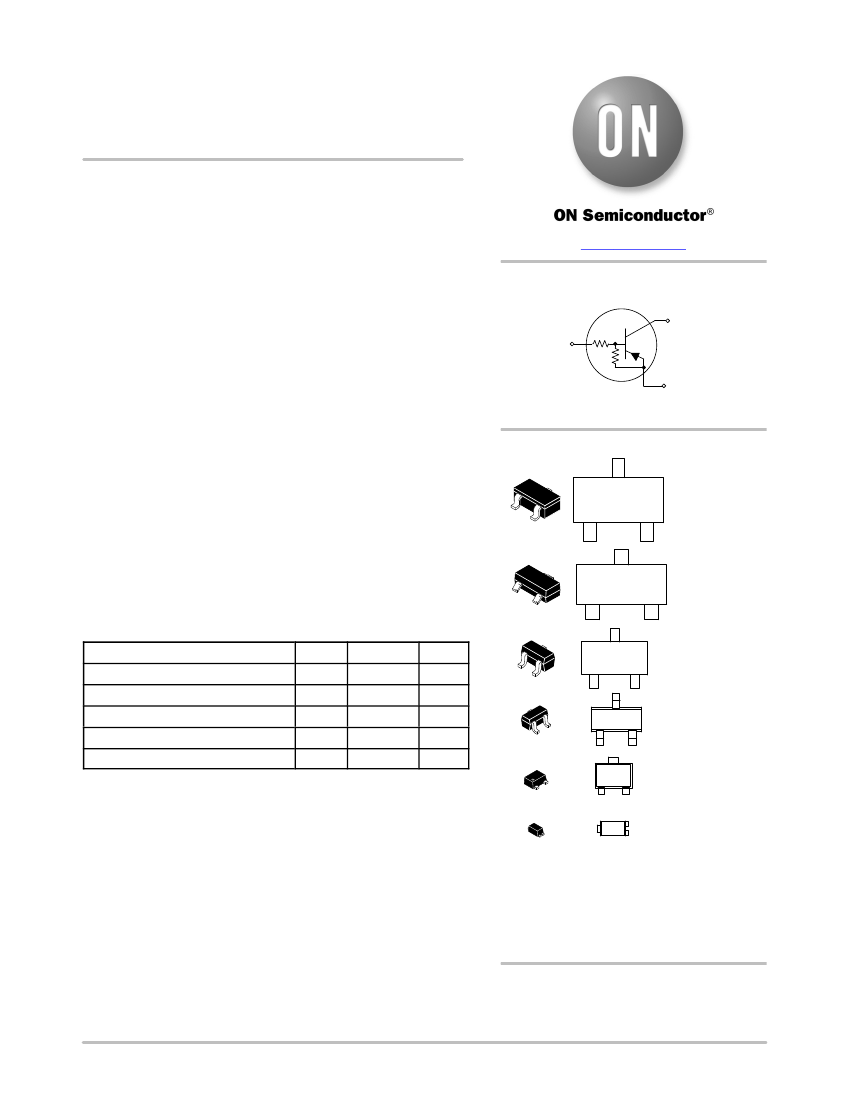

MUN2134, MMUN2134L,
MUN5134, DTA124XE,
DTA124XM3, NSBA124XF3
Digital Transistors (BRT)
R1 = 22 kW, R2 = 47 kW
PNP Transistors with Monolithic Bias
Resistor Network
This series of digital transistors is designed to replace a single
device and its external resistor bias network. The Bias Resistor
Transistor (BRT) contains a single transistor with a monolithic bias
network consisting of two resistors; a series base resistor and a
base−emitter resistor. The BRT eliminates these individual
components by integrating them into a single device. The use of a BRT
can reduce both system cost and board space.
Features
PIN 1
BASE
(INPUT)
www.onsemi.com
PIN CONNECTIONS
PIN 3
COLLECTOR
(OUTPUT)
R1
R2
PIN 2
EMITTER
(GROUND)
MARKING DIAGRAMS
SC−59
CASE 318D
STYLE 1
Simplifies Circuit Design
Reduces Board Space
Reduces Component Count
S and NSV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q101
Qualified and PPAP Capable
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
MAXIMUM RATINGS
(T
A
= 25°C)
Rating
Collector−Base Voltage
Collector−Emitter Voltage
Collector Current
Continuous
Input Forward Voltage
Input Reverse Voltage
Symbol
V
CBO
V
CEO
I
C
V
IN(fwd)
V
IN(rev)
Max
50
50
100
40
7
Unit
Vdc
Vdc
mAdc
Vdc
Vdc
XX MG
G
1
XXX MG
G
1
XX MG
G
1
XX M
1
XX M
1
XM 1
XXX
M
G
SOT−23
CASE 318
STYLE 6
SC−70/SOT−323
CASE 419
STYLE 3
SC−75
CASE 463
STYLE 1
SOT−723
CASE 631AA
STYLE 1
SOT−1123
CASE 524AA
STYLE 1
Stresses exceeding those listed in the Maximum Ratings table may damage the
device. If any of these limits are exceeded, device functionality should not be
assumed, damage may occur and reliability may be affected.
= Specific Device Code
= Date Code*
= Pb−Free Package
(Note: Microdot may be in either location)
*Date Code orientation may vary depending up-
on manufacturing location.
ORDERING INFORMATION
See detailed ordering, marking, and shipping information in
the package dimensions section on page 2 of this data sheet.
©
Semiconductor Components Industries, LLC, 2012
October, 2016
Rev. 5
1
Publication Order Number:
DTA124X/D

DTA124XM3T5G Related Products

DTA124XM3T5G DTA124XET1G SMMUN2134LT1G
Description Bipolar Transistors - Pre-Biased 100mA 50V BRT PNP Bipolar Transistors - Pre-Biased SS SC75 BR XSTR PNP 50V Bipolar Transistors - Pre-Biased SS BR XSTR PNP 50V
Brand Name ON Semiconductor ON Semiconductor ON Semiconductor
Is it lead-free? Lead free Lead free Lead free
Maker ON Semiconductor ON Semiconductor ON Semiconductor
package instruction SMALL OUTLINE, R-PDSO-F3 SMALL OUTLINE, R-PDSO-G3 ,
Contacts 3 3 3
Manufacturer packaging code 631AA 463-01 318-08
Reach Compliance Code compliant compliant compliant
ECCN code EAR99 EAR99 EAR99
Factory Lead Time 8 weeks 2 weeks 5 weeks
Maximum collector current (IC) 0.1 A 0.1 A 0.1 A
Minimum DC current gain (hFE) 80 80 80
JESD-609 code e3 e3 e3
Humidity sensitivity level 1 1 1
Number of components 1 1 1
Peak Reflow Temperature (Celsius) 260 260 NOT SPECIFIED
Polarity/channel type PNP PNP PNP
Maximum power dissipation(Abs) 0.6 W 0.3 W 0.4 W
surface mount YES YES YES
Terminal surface Tin (Sn) Tin (Sn) Tin (Sn)
Maximum time at peak reflow temperature 40 NOT SPECIFIED NOT SPECIFIED
Transistor component materials SILICON SILICON SILICON
Other features BUILT-IN BIAS RESISTOR RATIO IS 2.14 BUILT-IN BIAS RESISTOR RATIO IS 2.14 -
Collector-emitter maximum voltage 50 V 50 V -
Configuration SINGLE WITH BUILT-IN RESISTOR SINGLE WITH BUILT-IN RESISTOR -
JESD-30 code R-PDSO-F3 R-PDSO-G3 -
Number of terminals 3 3 -
Package body material PLASTIC/EPOXY PLASTIC/EPOXY -
Package shape RECTANGULAR RECTANGULAR -
Package form SMALL OUTLINE SMALL OUTLINE -
Certification status Not Qualified Not Qualified -
Terminal form FLAT GULL WING -
Terminal location DUAL DUAL -
transistor applications SWITCHING SWITCHING -
