Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> MAX369CWN-T

Preview

MAX369CWN-T: DescriptionMultiplexer Switch ICs Fault Protected 8-Channel Latched Multiplexer; CategoryAnalog mixed-signal IC The signal circuit; File Size4MB，12 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric Compare View All

MAX369CWN-T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MAX369CWN-T	-	-	View	Buy Now

MAX369CWN-T Overview

Multiplexer Switch ICs Fault Protected 8-Channel Latched Multiplexer

MAX369CWN-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Maxim
Parts packaging code	SOIC
package instruction	SOP, SOP16,.4
Contacts	16
Reach Compliance Code	not_compliant
Analog Integrated Circuits - Other Types	DIFFERENTIAL MULTIPLEXER
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
length	10.3 mm
Humidity sensitivity level	1
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	4
Number of functions	1
Number of terminals	16
Nominal off-state isolation	68 dB
Maximum on-state resistance (Ron)	1800 Ω
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240
power supply	+-15 V
Certification status	Not Qualified
Maximum seat height	2.65 mm
Maximum signal current	0.02 A
Maximum supply current (Isup)	2 mA
Nominal supply voltage (Vsup)	15 V
surface mount	YES
Maximum disconnect time	1000 ns
Maximum connection time	1000 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.5 mm

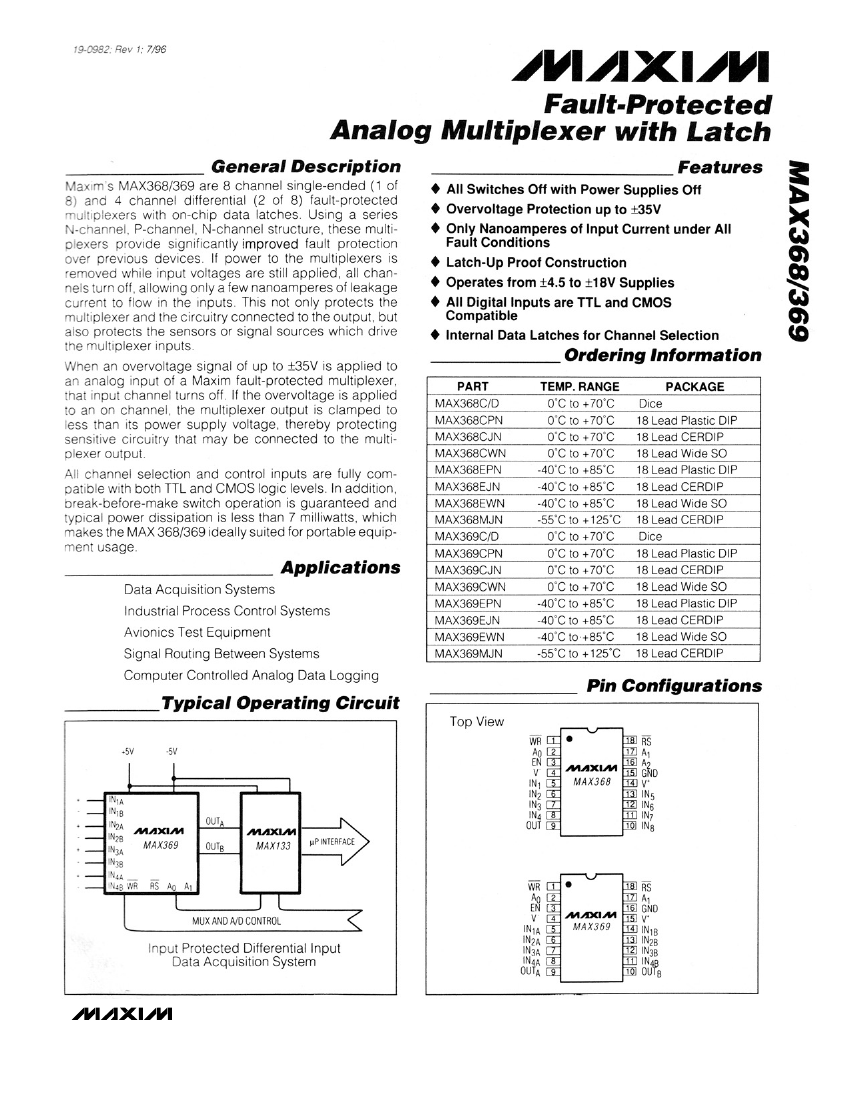

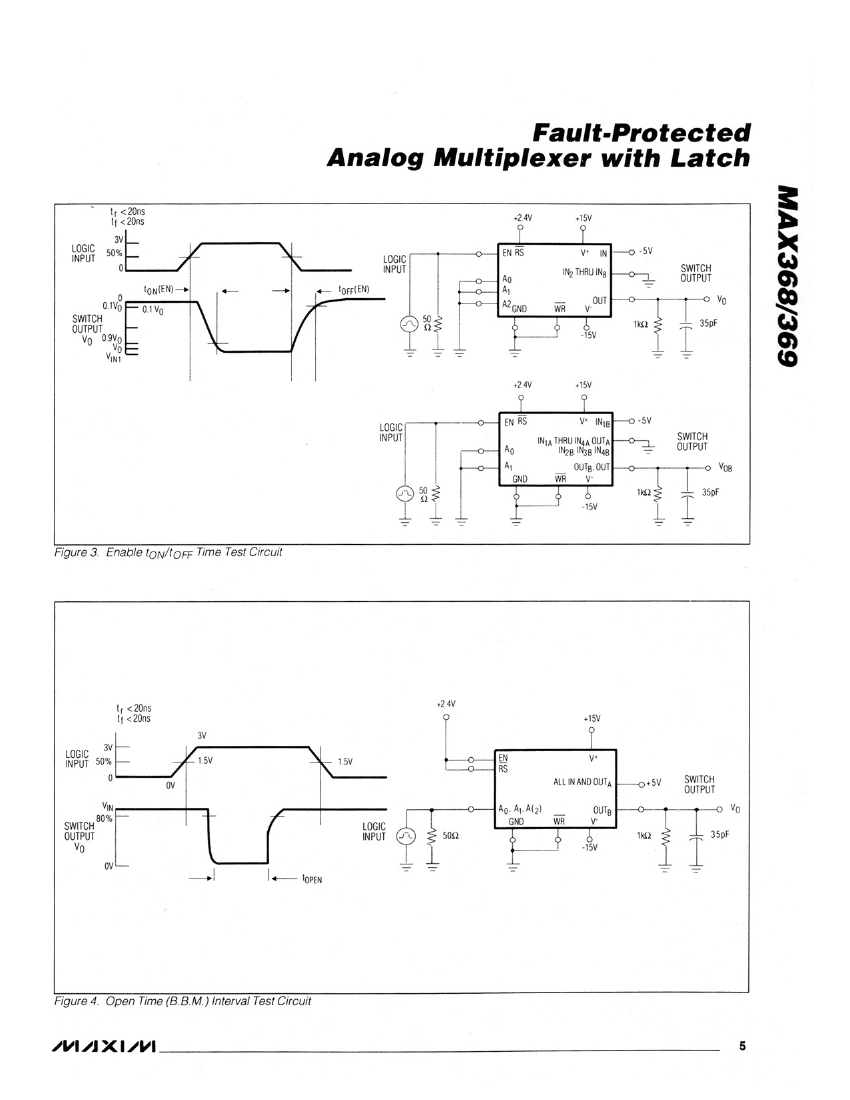

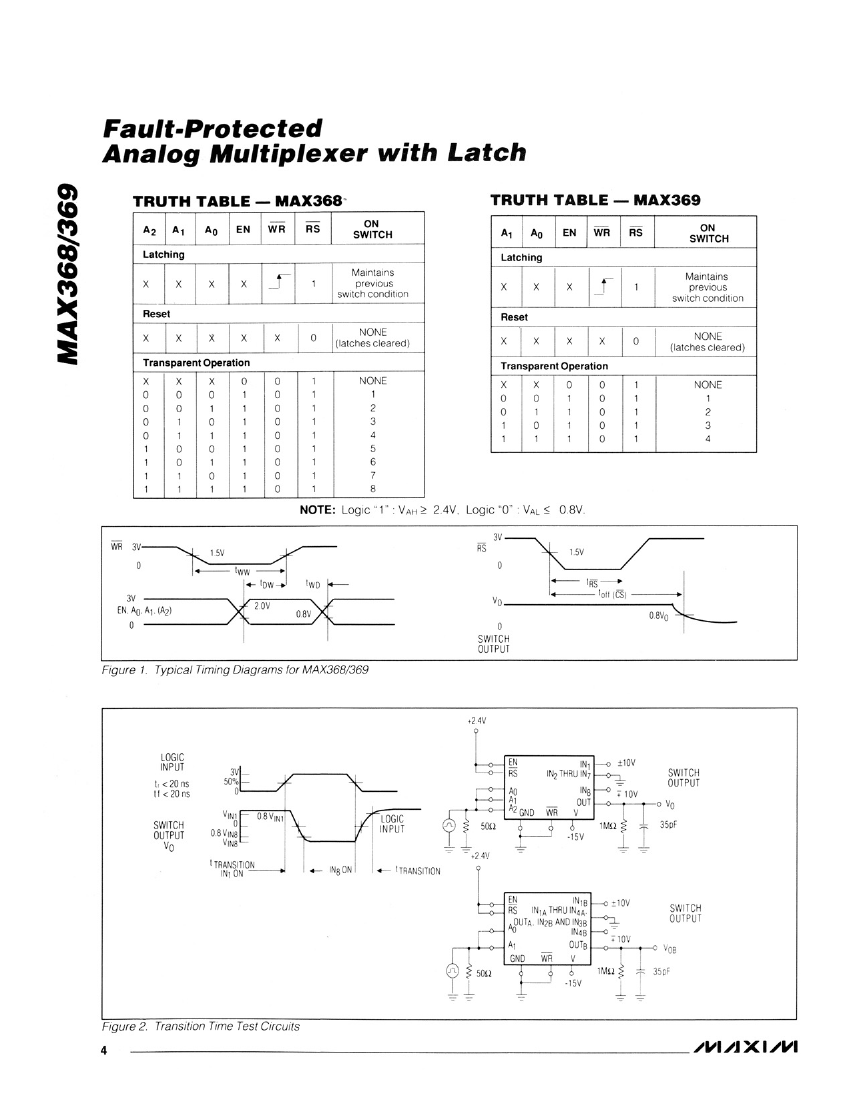

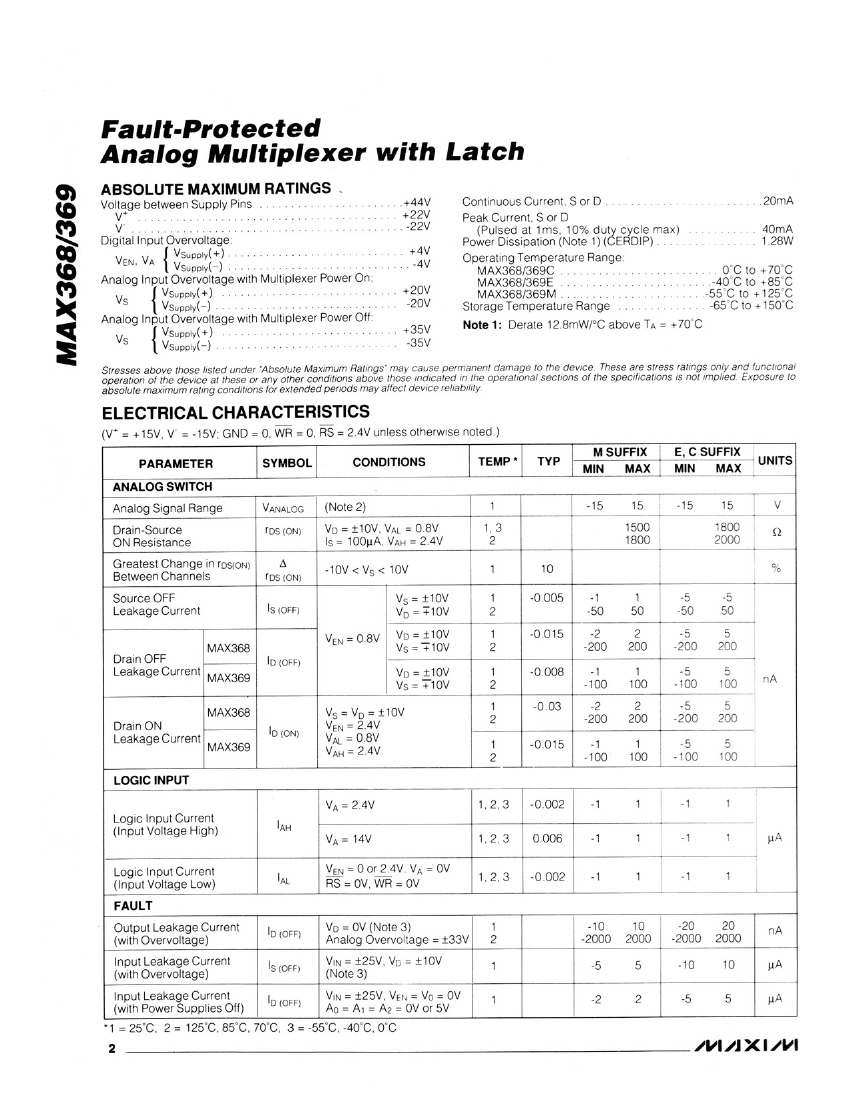

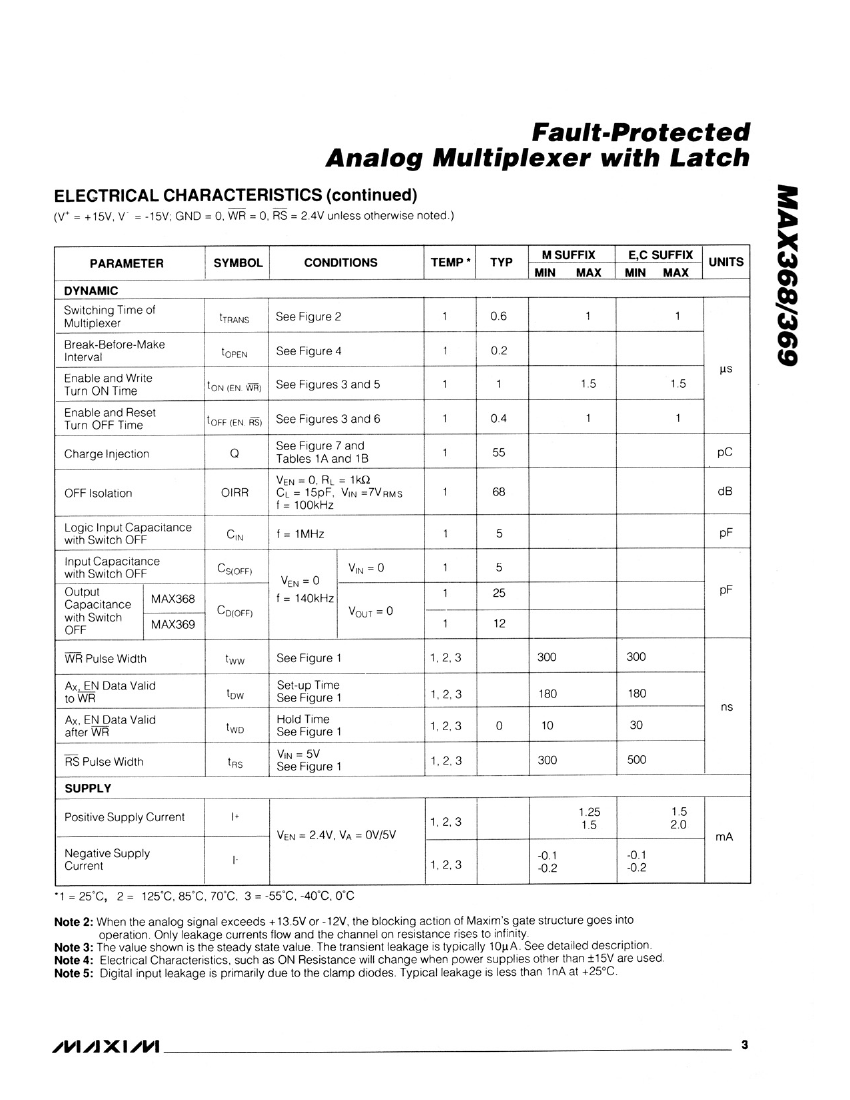

Preview

Download Datasheet

View All

____________________________________________________________________________

Maxim

Integrated Products

1

For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at

1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.

MAX369CWN-T Related Products

	MAX369CWN-T	MAX368CJN	MAX369CJN	MAX369MJN	MAX368EJN	MAX369EWN	MAX369CWN
Description	Multiplexer Switch ICs Fault Protected 8-Channel Latched Multiplexer	Multiplexer Switch ICs	Multiplexer Switch ICs	Multiplexer Switch ICs	Multiplexer Switch ICs	Multiplexer Switch ICs 4:1 2Ch Fault-Prtct Analog MUX	Multiplexer Switch ICs
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	SOIC	DIP	DIP	DIP	DIP	SOIC	SOIC
package instruction	SOP, SOP16,.4	CERDIP-18	CERDIP-18	CERDIP-18	CERDIP-18	SOP, SOP16,.4	SOP, SOP16,.4
Contacts	16	18	18	18	18	16	16
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
Analog Integrated Circuits - Other Types	DIFFERENTIAL MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	DIFFERENTIAL MULTIPLEXER	DIFFERENTIAL MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	DIFFERENTIAL MULTIPLEXER	DIFFERENTIAL MULTIPLEXER
JESD-30 code	R-PDSO-G16	R-GDIP-T18	R-GDIP-T18	R-GDIP-T18	R-GDIP-T18	R-PDSO-G16	R-PDSO-G16
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Humidity sensitivity level	1	1	1	1	1	1	1
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of channels	4	8	4	4	8	4	4
Number of functions	1	1	1	1	1	1	1
Number of terminals	16	18	18	18	18	16	16
Nominal off-state isolation	68 dB	68 dB	68 dB	68 dB	68 dB	68 dB	68 dB
Maximum on-state resistance (Ron)	1800 Ω	1800 Ω	1800 Ω	1500 Ω	1800 Ω	1800 Ω	1800 Ω
Maximum operating temperature	70 °C	70 °C	70 °C	125 °C	85 °C	85 °C	70 °C
Package body material	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	DIP	DIP	DIP	SOP	SOP
Encapsulate equivalent code	SOP16,.4	DIP18,.3	DIP18,.3	DIP18,.3	DIP18,.3	SOP16,.4	SOP16,.4
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240	245	245	245	245	245	245
power supply	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.65 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	2.65 mm	2.65 mm
Maximum signal current	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A
Maximum supply current (Isup)	2 mA	2 mA	2 mA	1.5 mA	2 mA	2 mA	2 mA
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	YES	NO	NO	NO	NO	YES	YES
Maximum disconnect time	1000 ns	1000 ns	1000 ns	1000 ns	1000 ns	1000 ns	1000 ns
Maximum connection time	1000 ns	1000 ns	1000 ns	1000 ns	1000 ns	1000 ns	1000 ns
switch	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY	INDUSTRIAL	INDUSTRIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.5 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.5 mm	7.5 mm
Maker	Maxim	Maxim	Maxim	Maxim	-	Maxim	Maxim
